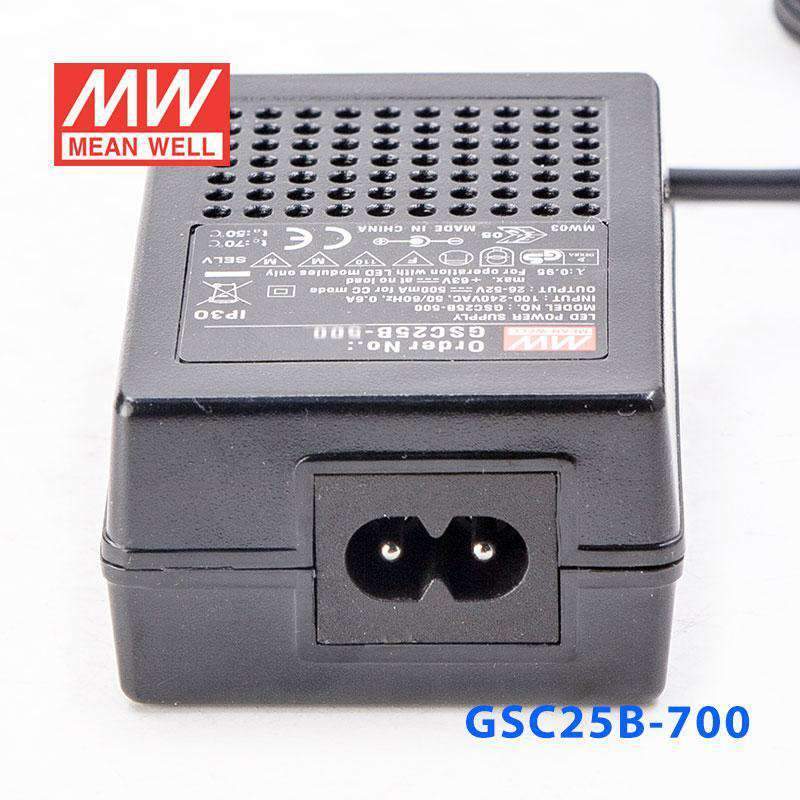

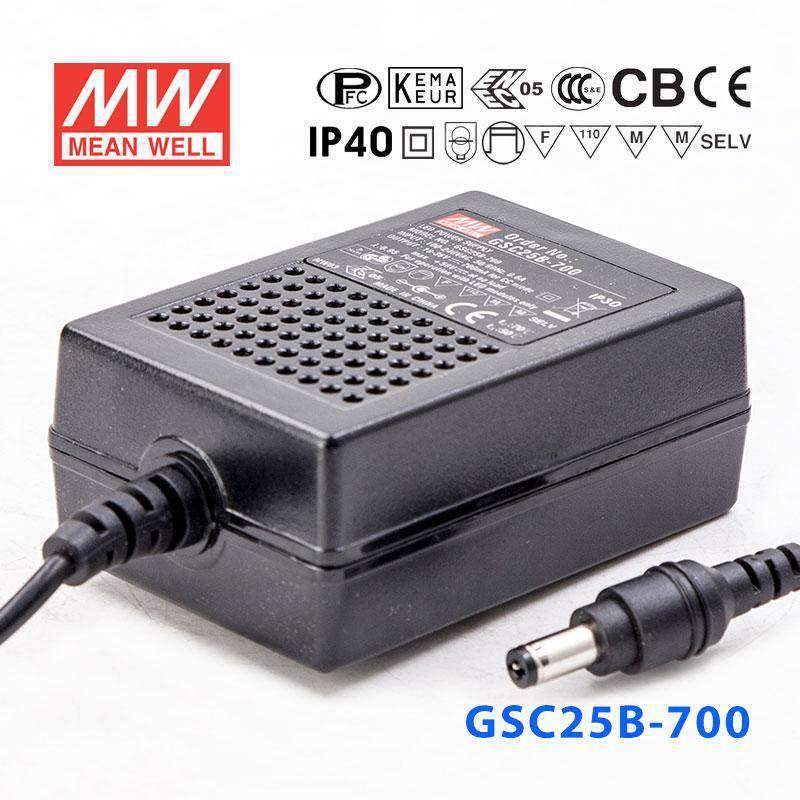

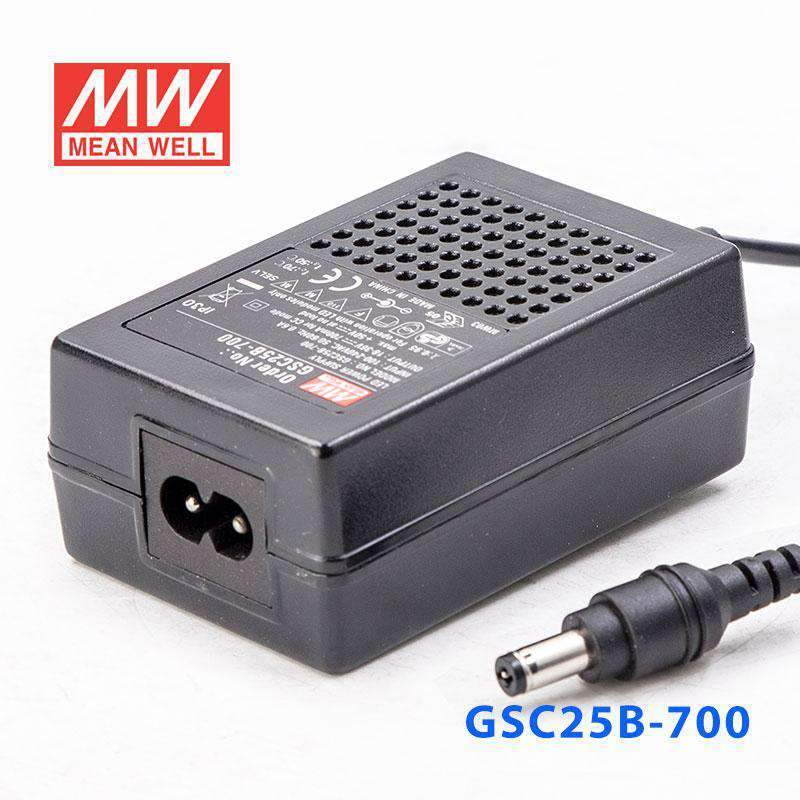

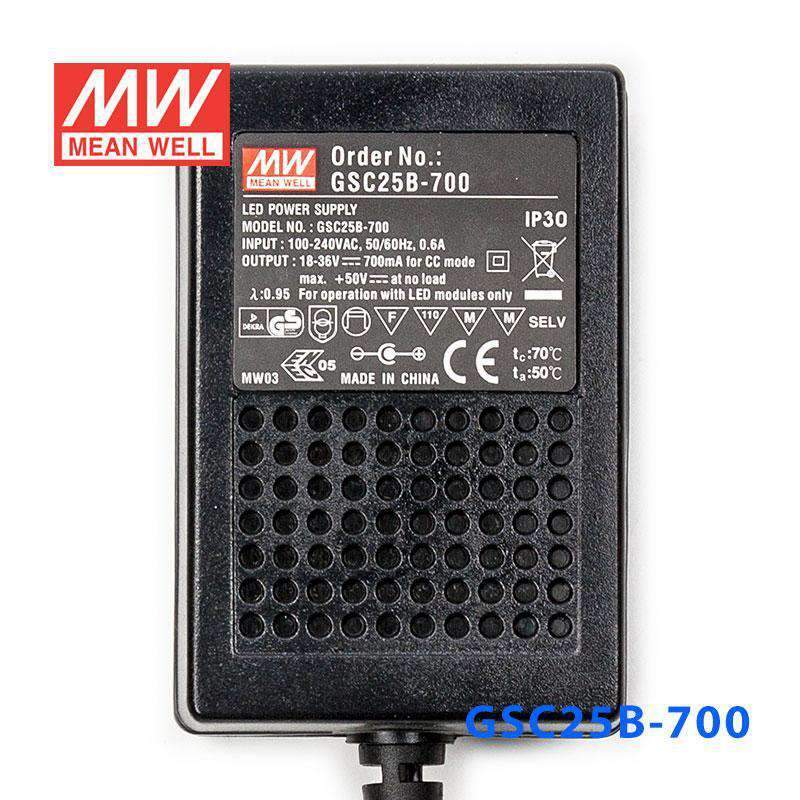

Mean Well GSC25B-700 Power Supply 25W 700A

$26.74 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range (up to 277VAC)
2 pole AC inlet IEC320-C8
Built-in active PFC function
Constant current design
Protections: Short circuit
Cooling by free air convection
Fully isolated plastic case
Class power unit, no FG
No load power consumption<0.15W
Low cost, high reliability
100% full load burn-in test
3 years warranty

General Specification

Short circuit Hiccup mode, recovers automatically after fault condition is removed
AC inrush current (max.) Cold start 17A/230VAC
Withstand voltage I/P-O/P:3.75KVAC
Working temperature

-30 ~ +50°C (Refer to "Derating Curve")

Safety standards Dekra GS/ENEC EN61347-1, EN61347-2-13 listed, EN62384, GB19510.1, GB19510.14 approved
EMC standards Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1
Dimension (LxWxH)(mm) 79 x 54 x 33 mm

Specifications

  • Brand
    Mean Well
  • Series
    GSC Series
  • Power Rating
    25.2 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    90V~277V
  • Standards Met
    CB,CE,EAC,ENEC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~50°C
  • Warranty
    3 Year
  • Length
    3.11 in
  • Width
    2.13 in
  • Height
    1.3 in
  • Weight
    0.47 lb

File Downloads

::specification::
