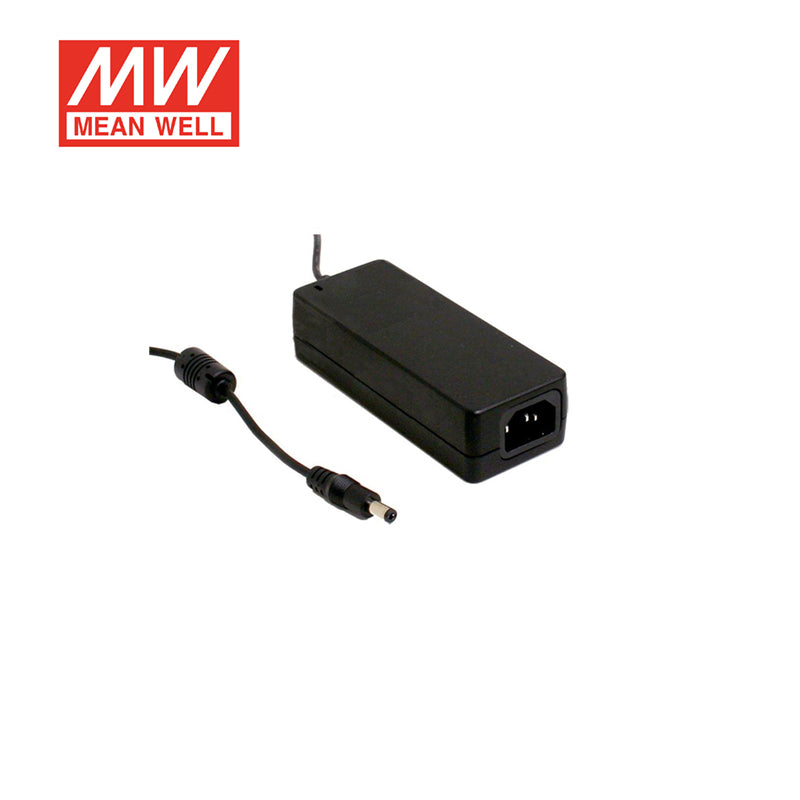

Mean Well GS40A05-P1J Swiching Power Adaptor
$11.10 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| 3 pole AC inlet IEC320-C14 |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| Approvals: UL/ CUL / PSE / TUV / BSMI / CCC / CB / FCC / CE |
| Class I power (with earth pin) |
| Pass LPS |
| LED indicator for power on |
| No load power consumption<0.3W |
| ErP step2 compliant (level V) |
| NRCan compiant |
| MEPS compiant |
| Meet EISA 2007 (Energy Independence and Security Act) |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 1.0% |
| Load regulation (max.) | ± 5.0% |
| Overload protection Range | 105 ~ 150% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recov er |
| Withstand voltage | I/P-O/P:4242VDC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG / 25 / 70% RH |
| Working temperature | -30 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, approved |
| Dimension (LxWxH) (mm) | 125*50*31.5mm (L*W*H) |
| Packing | 0.28Kg; 40pcs/12.02Kg/1.05CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well GS Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,cUL,EAC,FCC
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.62 lb
