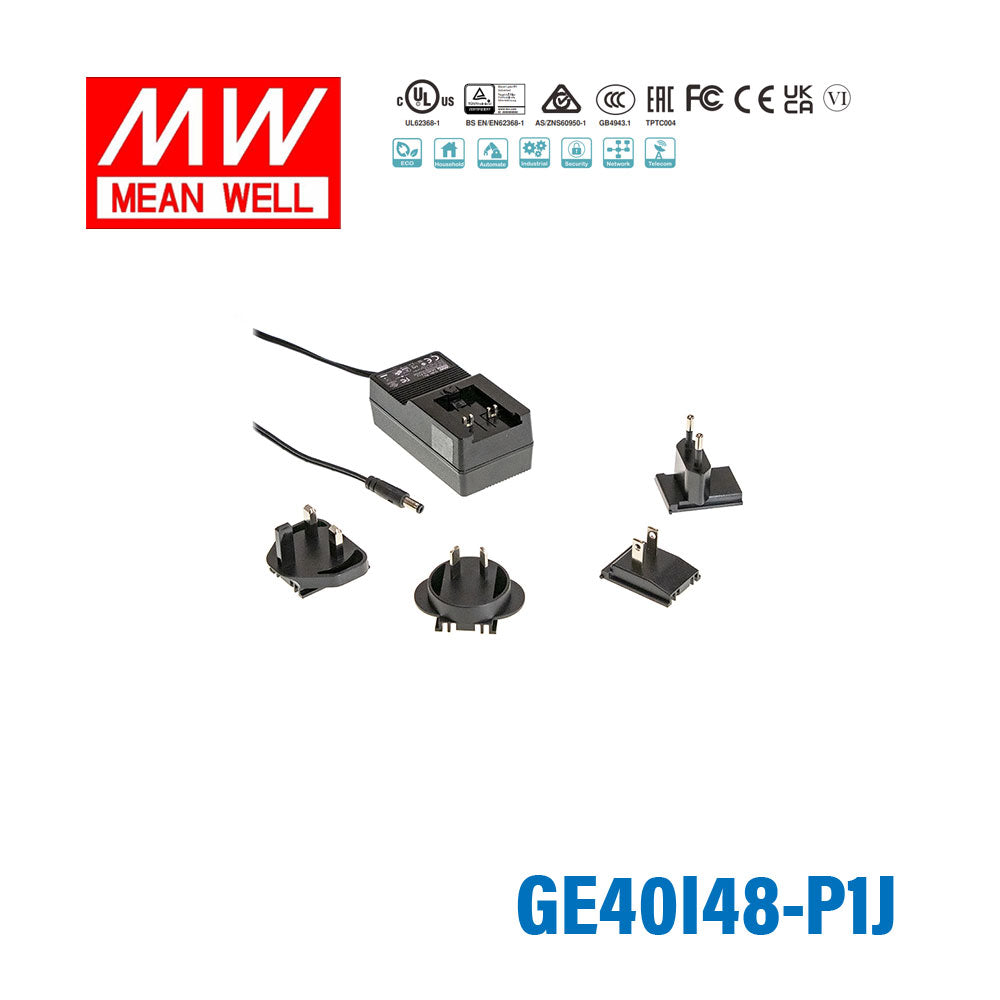

Mean Well GE40I48-P1J Power Supply 40W 48V 830mA

Name: Mean Well GE40I48-P1J Power Supply 40W 48V 830mA
Brand: Mean Well
SKU: GE40I48-P1J
Price: 24.41 USD
Availability: InStock

SKU GE40I48-P1J

$24.41 USD

Shipping calculated at checkout.

In stock

Overview

GE40I48-P1J is the 48V output model of this series: rated current 0.83A, typical efficiency 89%.

GE40I is a highly reliable, 40W wall-mounted style single-output green adaptor series, which is compact and convient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GE40I is a class Ⅱ power unit (without FG), accepting the input range from 90VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 89% and the extremely low no-load power consumption below 0.075W, GE40I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅵ) and EU ErP. The superme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.

Features

Interchangeable AC plugs (plug kit sold sperately)
Universal AC input / Full range
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE, EU ErP and meet CoC version 5
Class Ⅱ power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
-30 ~ +70℃ wide range working temperature
Fully enclosed plastic case
LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
2 years warranty

Specifications

GE40I48-P1JSpecifications from the official datasheet (2023-05-02 edition)

OUTPUT

SAFETY MODEL NO.: GE40I48
DC VOLTAGE^Note.2: 48V
RATED CURRENT: 0.83A
CURRENT RANGE: 0 ~ 0.83A
RATED POWER (max.): 40W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 3000ms, 40ms, 12ms / 230VAC 3000ms, 40ms, 12ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT: 1A / 100VAC 0.5A / 230VAC
INRUSH CURRENT (max.): COLD START 35A / 100VAC 70A / 230VAC
LEAKAGE CURRENT (max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110% ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 115% ~ 135% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1, AS/NZS 60950.1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32) Class B
Radiated emission BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)	Class B
Radiated emission	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 2 years : 100% load 40℃, 8 hours / day
MTBF: 100Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 94*48.4*40mm (L*W*H)
PACKING: 200g ; 50pcs / 12kg / CARTON

DC OUTPUT PLUG

PLUG: See page 4~5 ; Other type available by customer requested

CONNECTOR CABLE

CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes10

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
9.Main body unit and AC inlet plug should be ordered separately ; it needs to be used along with any of the AC inlet plug.
10.Please be aware that Australian type AC plug of GE40 Series CANNOT be used on GE12-GE30 series. However, UK, European, and US type AC plug doesn't have such concern. Order no. of Mix four type to GE40 is AC plug-MIX3, please DO NOT order AC plug-MIX.

Technical drawings

GE40I48-P1J Derating Curve — Derating Curve

GE40I48-P1J Mechanical Specification — Mechanical Specification

GE40I48-P1J DC output plug — DC output plug

GE40I48-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Consumer electronic devices
Telecommunication devices
Office faciliies
Industrial eqiupments

Downloads

Certificates9

Mean Well GE40I-CB Certificate PDF Download

Mean Well GE40I-ErP Certificate PDF Download

Mean Well GE40I-TUV Certificate PDF Download

Mean Well GE40I-RCM Certificate PDF Download

Mean Well GE40I-CCC Certificate PDF Download

Mean Well GE40I-EMC Certificate PDF Download

Mean Well GE40I-CE-dec Certificate PDF Download

Mean Well GE40-UK-dec Certificate PDF Download

Mean Well GE40I-FCC Certificate PDF Download

Test reports1

Mean Well GE40I48 Test Report PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GE40I48-P1J for a 48V telecom or networking device?

Yes, it can be used with 48V IT or telecom equipment that requires constant-voltage DC input and draws no more than 40W or 0.83A. Voltage match is critical, so the connected device should be specified for 48V operation.

Is the GE40I48-P1J suitable for a compact 48V automation or control subsystem?

It is a fit for compact 48V control or automation electronics when the load stays within 0.83A at 48V. This model is designed as a constant-voltage supply, so it should be used with equipment built for a fixed 48V DC source.

Can this 48V 40W model power embedded equipment that uses a 48V rail?

Yes, for embedded devices that are designed for 48V DC input and need no more than 40W. It accepts 90-264VAC input, which can help in installations with varying AC mains conditions.

Would the GE40I48-P1J work for a small 48V industrial communications node?

It can work for a 48V communications node or similar industrial electronics if the required current does not exceed 0.83A. Buyers should confirm that the equipment expects constant-voltage 48V DC rather than another output type.

Is this 48V supply appropriate for indoor-only use or outdoor use?

No IP rating is shown in the provided specifications, so this model should be treated as suited to protected indoor applications rather than exposed outdoor environments. The operating temperature range is -30°C to +70°C (with load derating per the derating curve), but that does not replace a stated ingress-protection rating.
