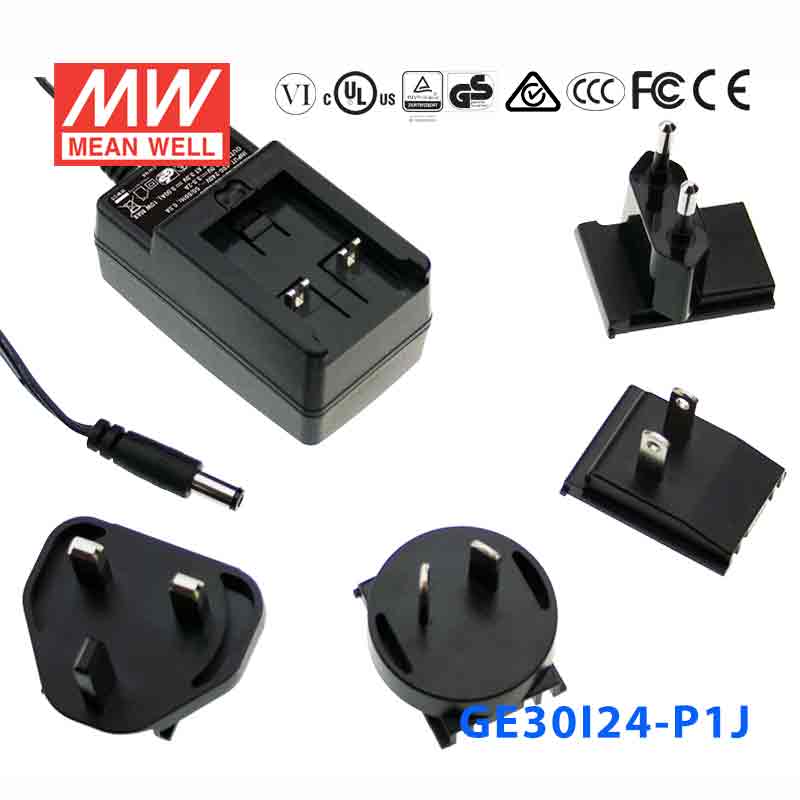

Mean Well GE30I24-P1J Power Supply 30W 24V 1.25A

Name: Mean Well GE30I24-P1J Power Supply 30W 24V 1.25A
Brand: Mean Well
SKU: GE30I24-P1J
Price: 20.74 USD
Availability: InStock

SKU GE30I24-P1J

$20.74 USD

Shipping calculated at checkout.

Available to order

Overview

GE30I24-P1J is the 24V output model of this series: rated current 1.25A, typical efficiency 87%.

GE30I is a highly reliable, 30W wall-mounted style single-output green adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GE30I is a class Ⅱ power unit (without FG), accepting the input range from 90VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 87% and the extremely low no-load power consumption below 0.075W, GE30I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅵ) and EU ErP. The suprem e feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electrical hazard.

Features

Interchangeable AC plugs (plug kit sold separately)
Universal AC input / Full range
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE and EU ErP
Class Ⅱ power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Fully enclosed plastic case
LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
2 years warranty

Specifications

GE30I24-P1JSpecifications from the official datasheet (2023-05-02 edition)

OUTPUT

SAFETY MODEL NO.: GE30 I24
DC VOLTAGE^Note.2: 24V
RATED CURRENT: 1.25A
CURRENT RANGE: 0 ~ 1.25A
RATED POWER (max.): 30W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 4000ms, 100ms, 30ms / 230VAC 4000ms, 100ms, 10ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT: 0.7A / 100VAC 0.4A / 230VAC
INRUSH CURRENT (max.): COLD START 40A / 100VAC 80A / 230VAC
LEAKAGE CURRENT (max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110% ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 115% ~ 135% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -10 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 30℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32) Class B
Radiated emission BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)	Class B
Radiated emission	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 2 years : 100% load 30℃, 8 hours / day
MTBF: 100Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 81*43*40.5mm (L*W*H)
PACKING: 134g ; 50pcs / 8.4kg / CARTON

DC OUTPUT CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
9.Main body unit and AC inlet plug should be ordered separately ; it needs to be used along with any of the AC inlet plug.

Technical drawings

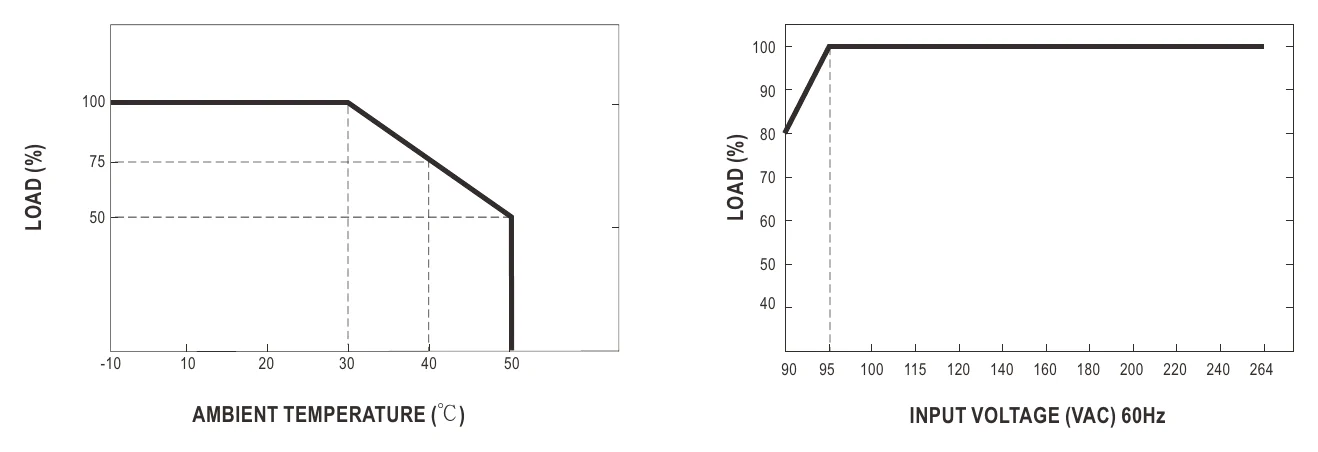

GE30I24-P1J Derating Curve — Derating Curve

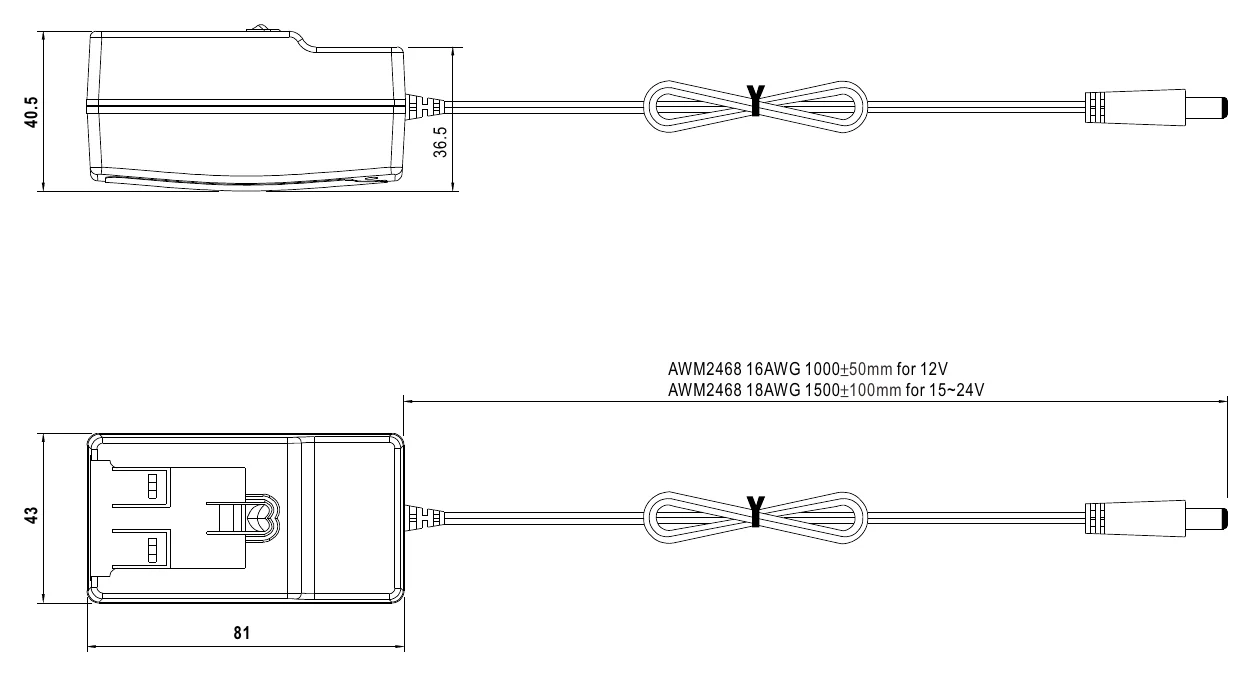

GE30I24-P1J Mechanical Specification — Mechanical Specification

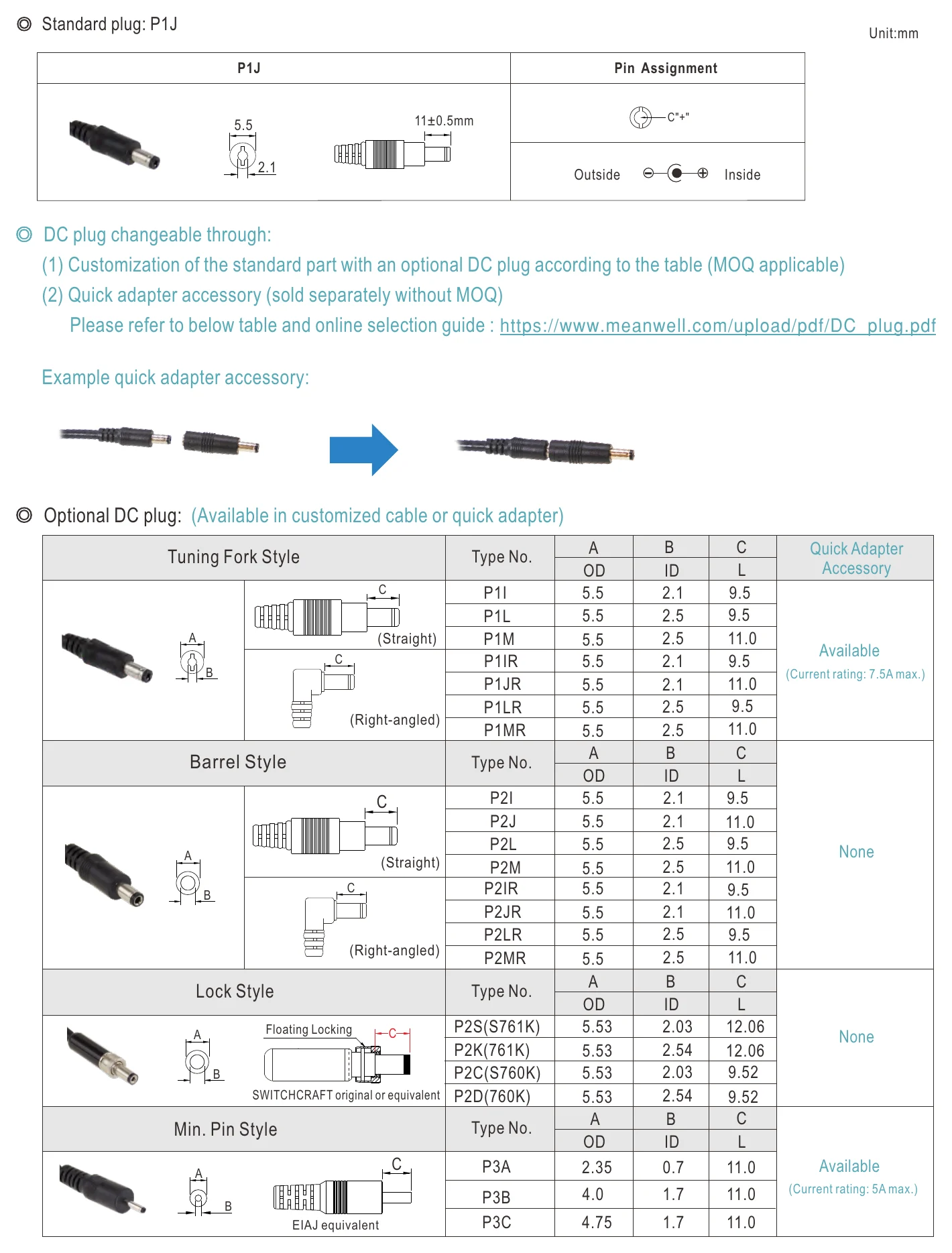

GE30I24-P1J DC output plug — DC output plug

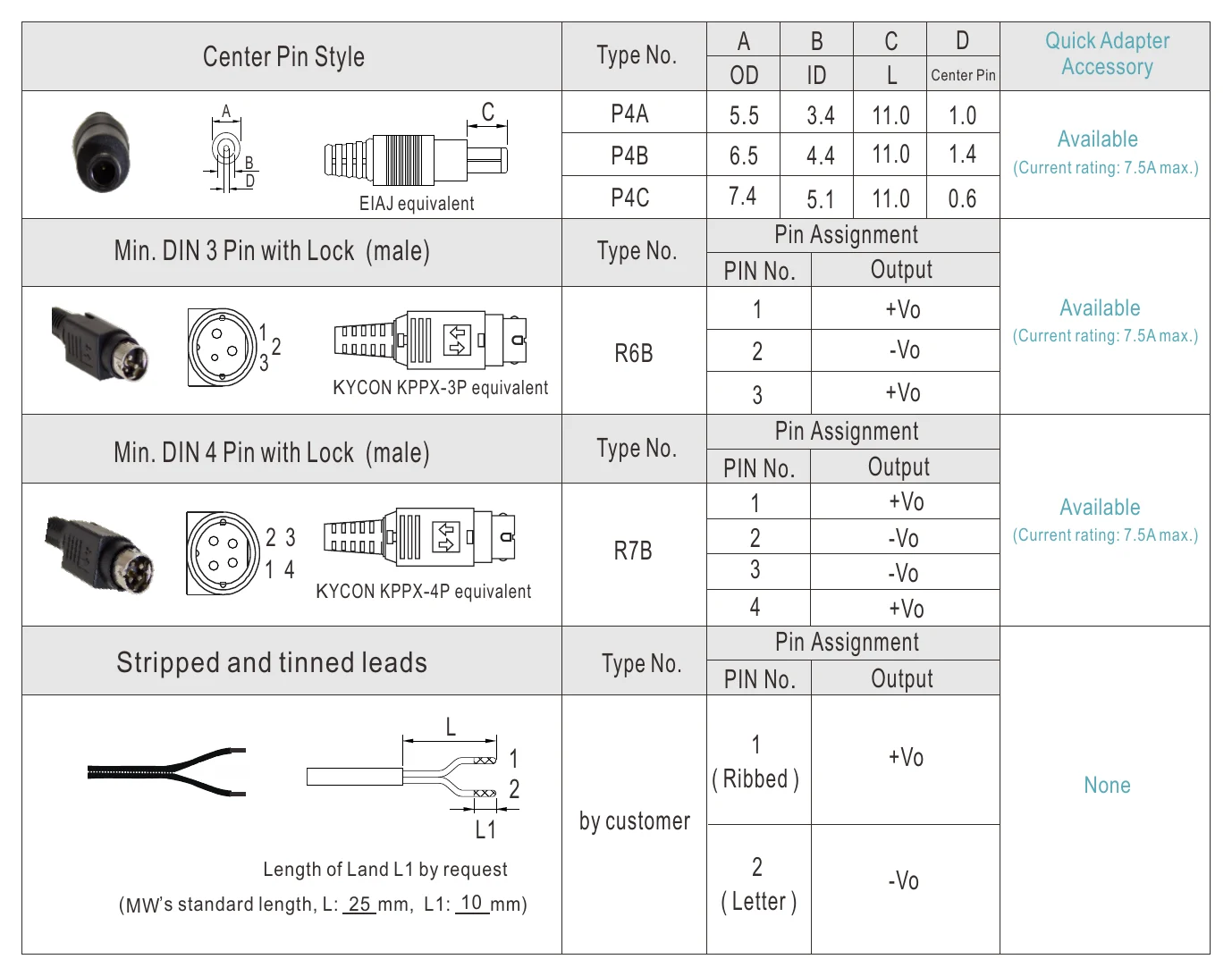

GE30I24-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Certificates10

Mean Well E183223 UL Certificate PDF Download

Mean Well GE18I-24I-30I-CB Certificate PDF Download

Mean Well 0147477-EAC Certificate PDF Download

Mean Well GE18-24-30I-TUV Certificate PDF Download

Mean Well GE18-24-30-SAA Certificate PDF Download

Mean Well GE18-24-30I-CCC Certificate PDF Download

Mean Well GE18-24-30-FCC Certificate PDF Download

Mean Well GE18-24-30I-EMC Certificate PDF Download

Mean Well GE18-24-30I-CE-dec Certificate PDF Download

Mean Well GE18-24-30-UK-dec Certificate PDF Download

Test reports1

Mean Well GE30I24 Test Report PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GE30I24-P1J for a 24V PLC accessory or industrial control device?

Yes, if the equipment requires constant-voltage 24V DC and the load stays within 1.25A and 30W. That makes it a fit for lower-power 24V control accessories rather than larger 24V field loads.

Is this suitable for a 24V embedded computer, gateway, or communications device?

It can be used with 24V embedded or communications hardware that operates from constant-voltage DC input. The supply provides 24V at up to 1.25A, with a total output of 30W.

Can this power a 24V sensor interface or compact automation subsystem?

It can, provided the combined 24V load does not exceed 1.25A or 30W. Buyers should confirm the equipment requires 24V constant-voltage power, since this model is not for other output voltages.

Would this work for low-power 24V instrumentation or monitoring equipment?

Yes, for low-power 24V instrumentation that stays within the rated output. This model is intended for 24V applications where 30W is enough and a compact 81.0 × 43.0 × 40.5 mm package is useful.

Can I use this 24V power supply in unprotected outdoor conditions?

The specified operating range is -10°C to +50°C, but the product data does not list an IP rating. Without a stated ingress rating, it should not be assumed to be suitable for direct exposure to weather.
