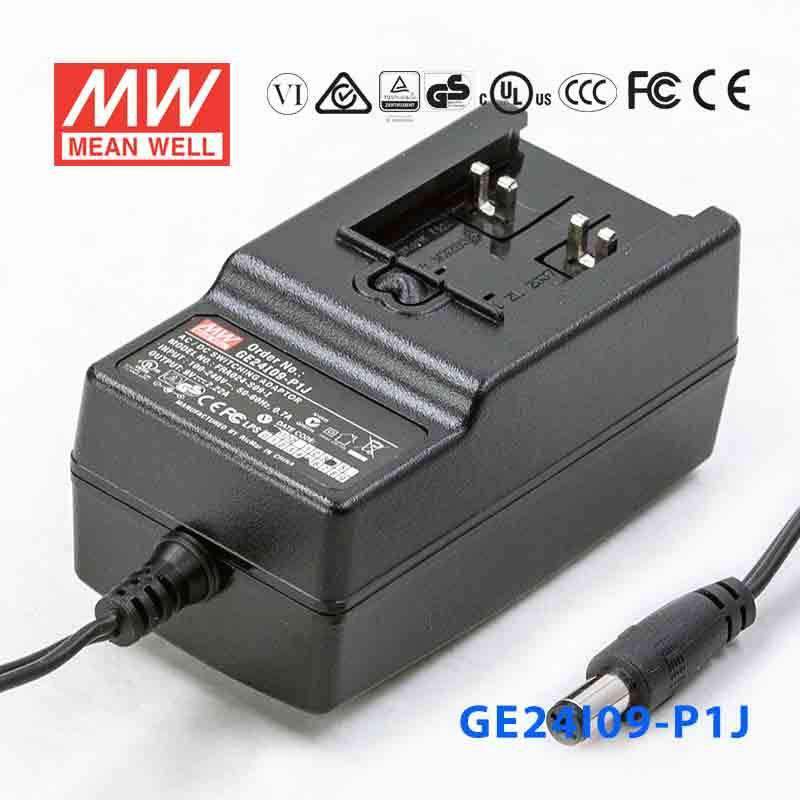

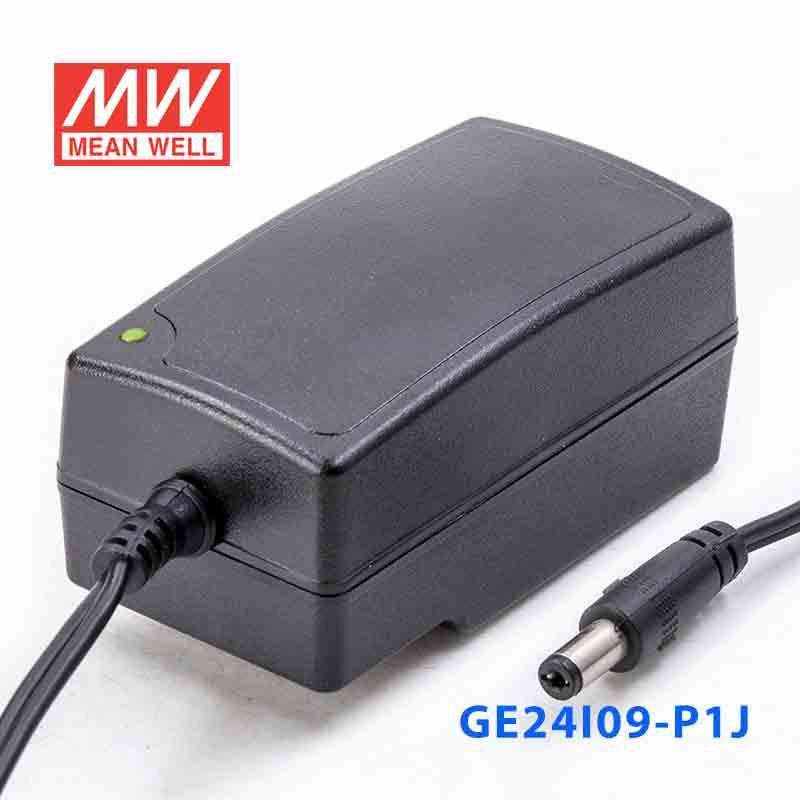

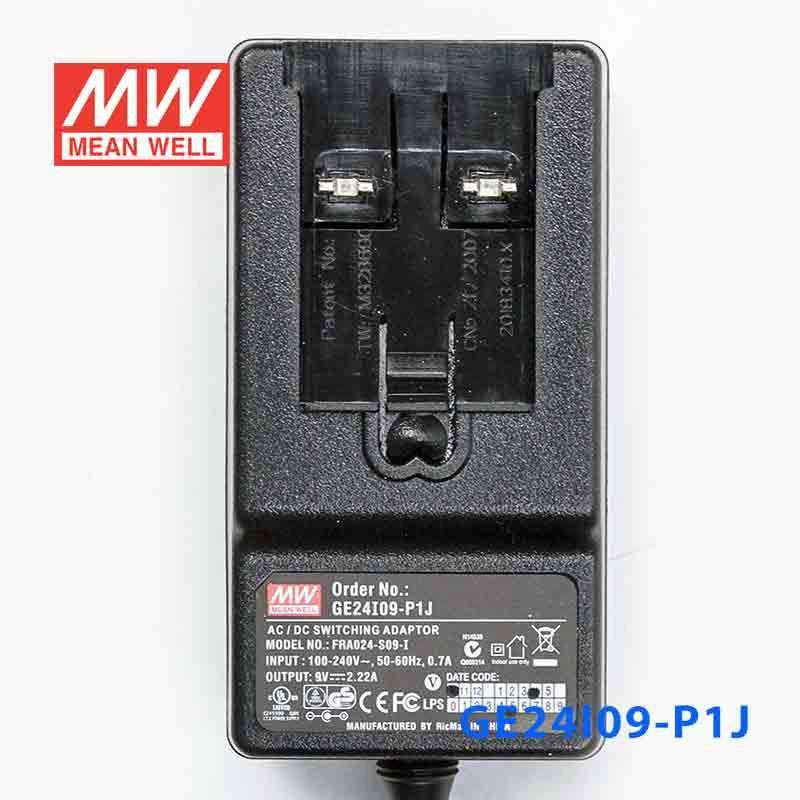

Mean Well GE24I09-P1J Power Supply 20W 9V 2.22A

Name: Mean Well GE24I09-P1J Power Supply 20W 9V 2.22A
Brand: Mean Well
SKU: GE24I09-P1J
Price: 19.05 USD
Availability: InStock

SKU GE24I09-P1J

$19.05 USD

Shipping calculated at checkout.

In stock

Overview

GE24I09-P1J is the 9V output model of this series: rated current 2.22A, typical efficiency 85.5%.

GE24I is a highly reliable, 24W wall-mounted style single-output green adaptor series, which is compact and convient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GE24I is a class Ⅱ power unit (without FG), accepting the input range from 90VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 89% and the extremely low no-load power consumption below 0.075W, GE24I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅵ) and EU ErP. The superme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric haz ard.

Features

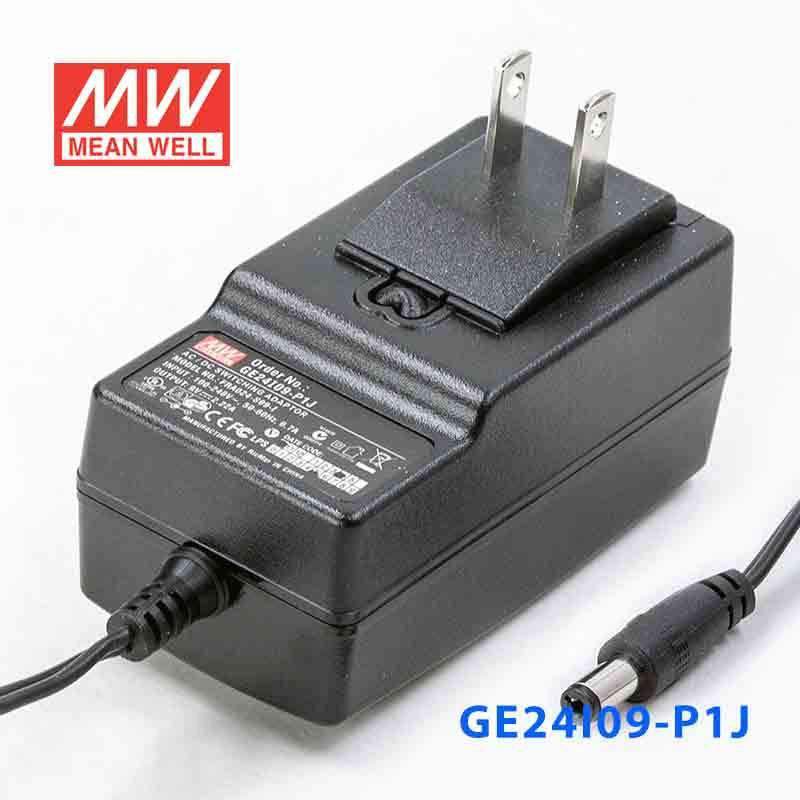

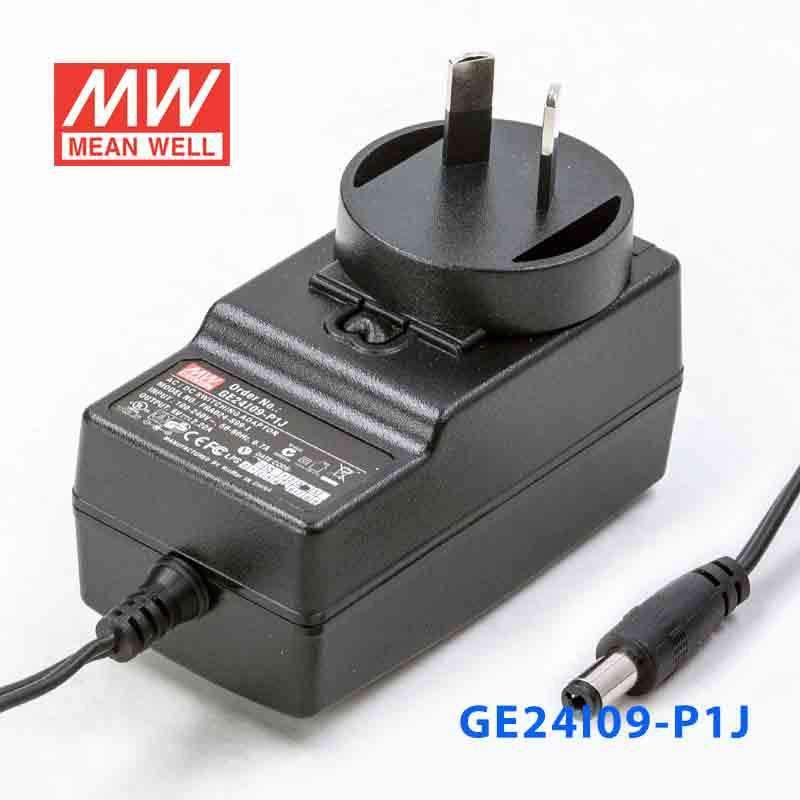

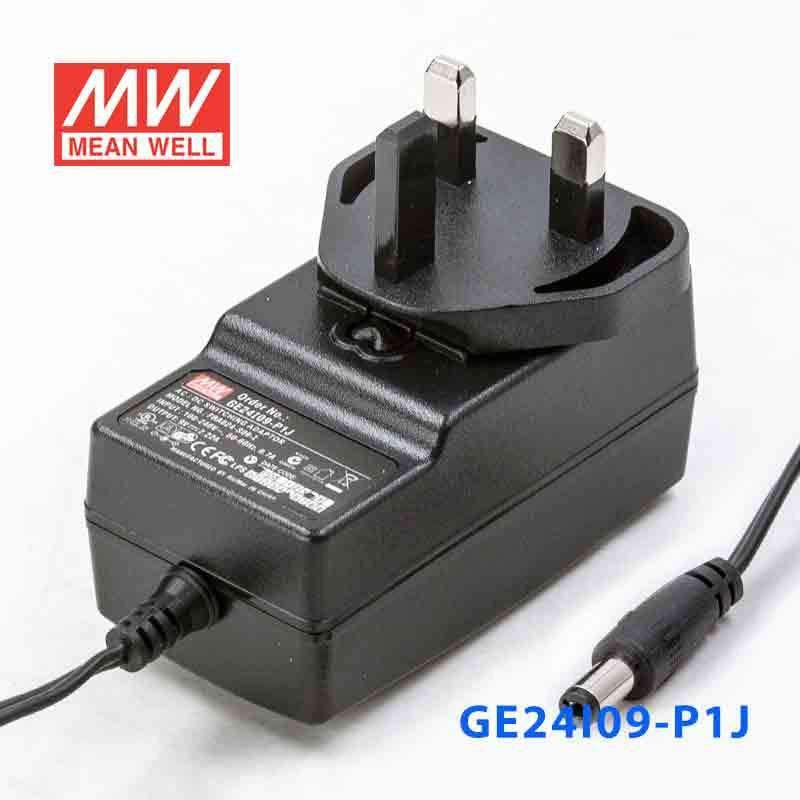

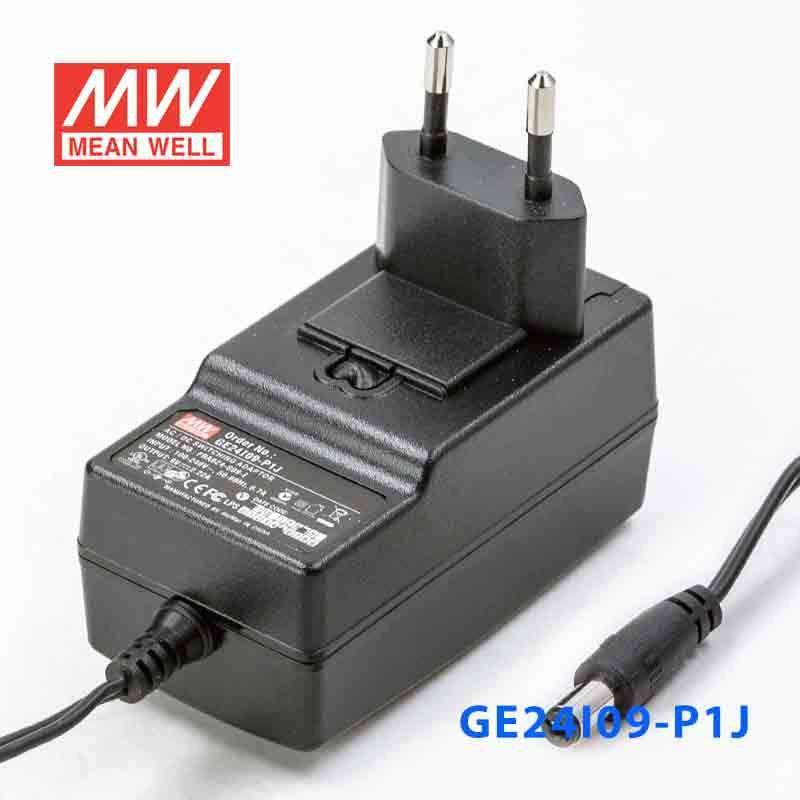

Interchangeable AC plugs (plug kit sold separately)
Universal AC input / Full range
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE, EU ErP
Class Ⅱ power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Fully enclosed plastic case
LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
2 years warranty

Specifications

GE24I09-P1JSpecifications from the official datasheet (2023-05-02 edition)

OUTPUT

SAFETY MODEL NO.: GE24I09
DC VOLTAGE^Note.2: 9V
RATED CURRENT: 2.22A
CURRENT RANGE: 0 ~ 2.22A
RATED POWER (max.): 20W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 4000ms, 100ms, 30ms / 230VAC 4000ms, 100ms, 10ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85.5%
AC CURRENT: 0.7A / 100VAC 0.4A / 230VAC
INRUSH CURRENT (max.): COLD START 40A / 100VAC 80A / 230VAC
LEAKAGE CURRENT (max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110% ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 115% ~ 135% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -10 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 30℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32) Class B
Radiated emission BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)	Class B
Radiated emission	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 2 years : 100% load 30℃, 8 hours / day
MTBF: 100Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 81*43*40.5mm (L*W*H)
PACKING: 134g ; 50pcs / 8.4kg / CARTON

DC OUTPUT CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
9.Main body unit and AC inlet plug should be ordered separately ; it needs to be used along with any of the AC inlet plug.

Technical drawings

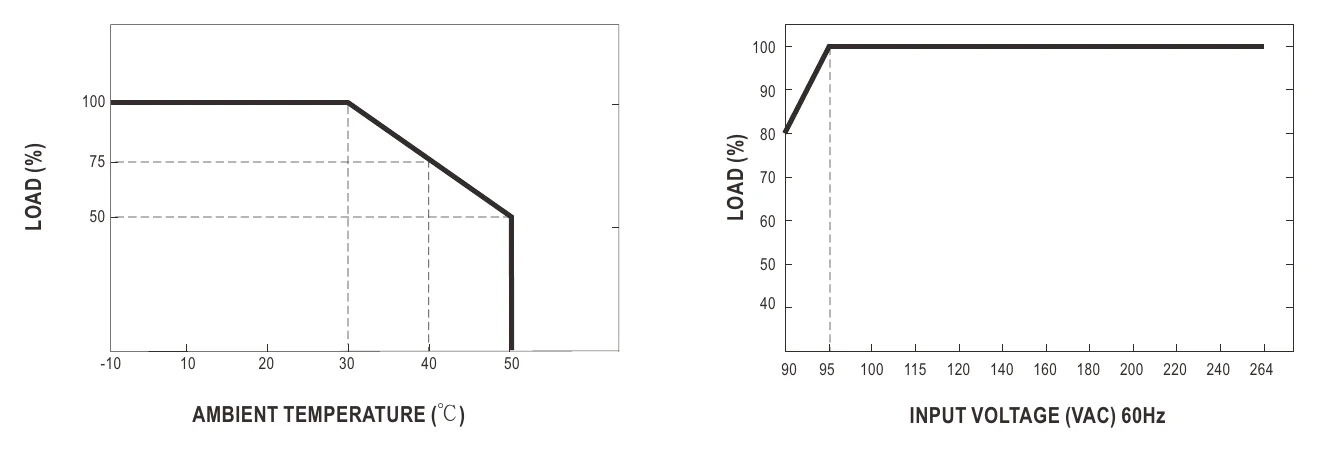

GE24I09-P1J Derating Curve — Derating Curve

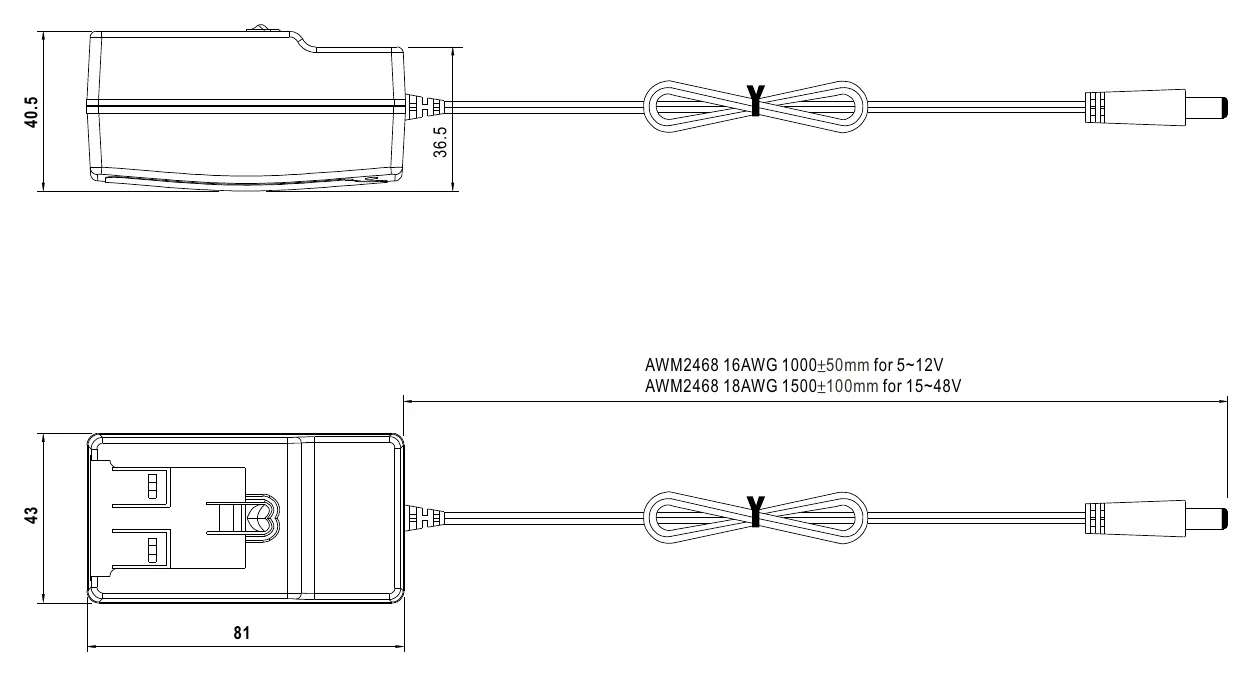

GE24I09-P1J Mechanical Specification — Mechanical Specification

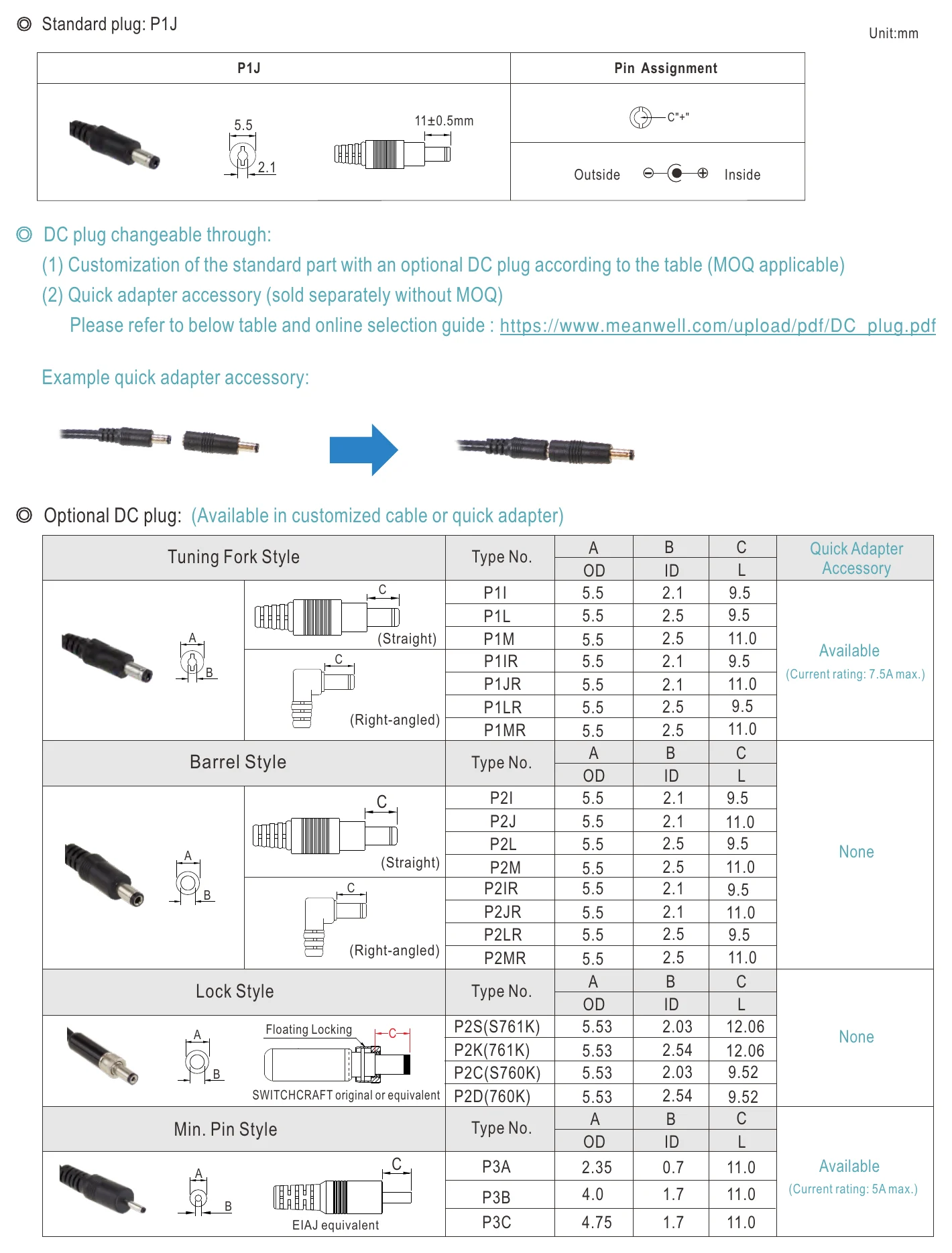

GE24I09-P1J DC output plug — DC output plug

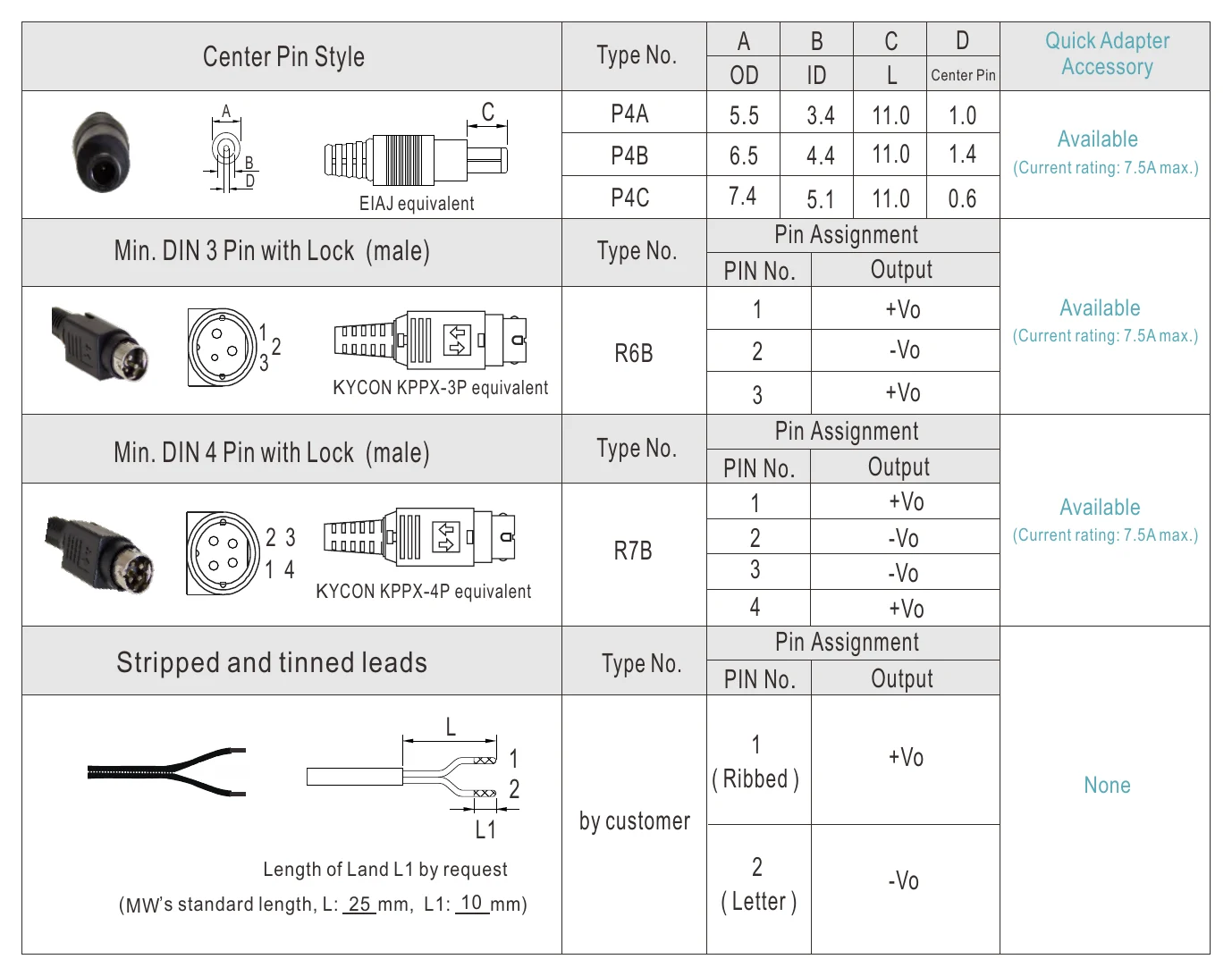

GE24I09-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Certificates9

CCC Certificate (GE24)(CN) PDF Download

UL Certificate (GE24)(EN) PDF Download

CB Certificate (GE24)(EN) PDF Download

TUV Certificate (GE24)(EN) PDF Download

FCC Certificate (GE24)(EN) PDF Download

ErP Certificate (GE24)(EN) PDF Download

SAA Certificate (GE24)(EN) PDF Download

UL Certificate (GE24)(EN) PDF Download

SAA Certificate (GE24)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GE24I09-P1J for a 9V router, embedded controller, or small IT device?

Yes, if the equipment requires constant 9V DC and draws no more than 2.22A. The output is rated at 20W, which suits lower-power 9V electronics in IT and embedded applications.

Is this 9V power supply suitable for a barcode base, compact instrument, or control accessory that runs on 9V?

It is suitable when the device is designed for a regulated 9V input and stays within 20W total load. The maximum output current is 2.22A, so that current limit should be checked against the device requirement.

Can the GE24I09-P1J power a small automation or communications module that needs 9V DC?

Yes, for 9V modules that operate from a constant-voltage source and do not exceed 2.22A. This model is intended for lower-power 9V equipment rather than loads that need more than 20W.

Is the GE24I09-P1J suitable for outdoor use or only indoor environments?

The stated operating temperature range is -10°C to +50°C. No IP rating is listed in the product data, so it should be considered a supply for protected indoor locations instead of exposed outdoor conditions.

What other versions are available alongside the GE24I09-P1J?

The GE24I09-P1J main body is used with an interchangeable AC plug ordered separately: AC plug-AU, AC plug-UK, AC plug-EU, AC plug-US, or the four-type AC plug-MIX kit. For this model, the stated electrical spec is 20W, 9V, 2.22A, so confirm the plug type when ordering.
