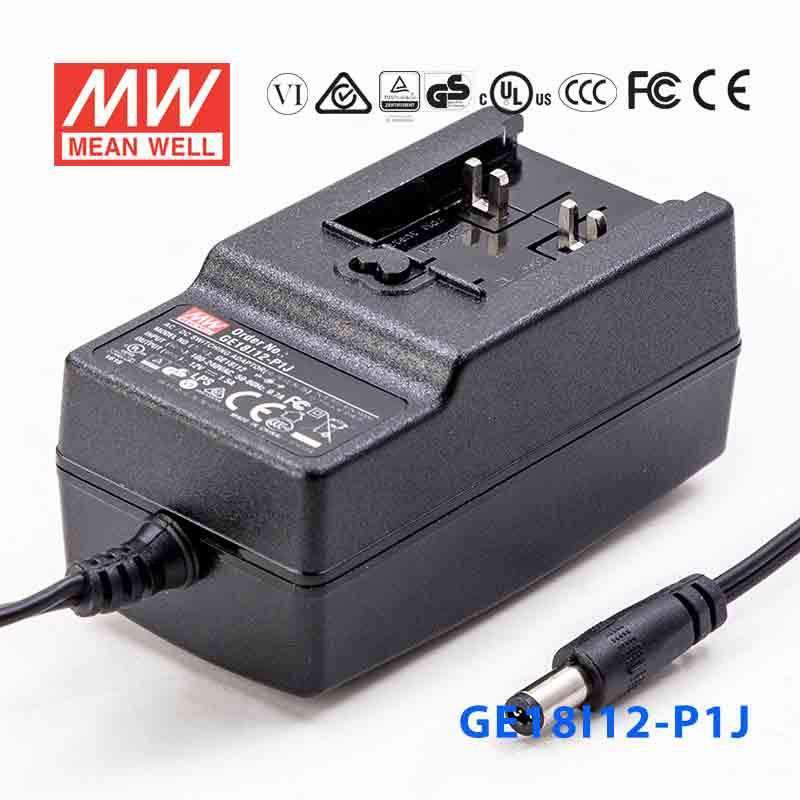

Mean Well GE18I12-P1J Power Supply 18W 12V 1.5A

Name: Mean Well GE18I12-P1J Power Supply 18W 12V 1.5A
Brand: Mean Well
SKU: GE18I12-P1J
Price: 20.48 USD
Availability: InStock

SKU GE18I12-P1J

$20.48 USD

Shipping calculated at checkout.

In stock

Overview

GE18I12-P1J is the 12V output model of this series: rated current 1.5A, typical efficiency 86%.

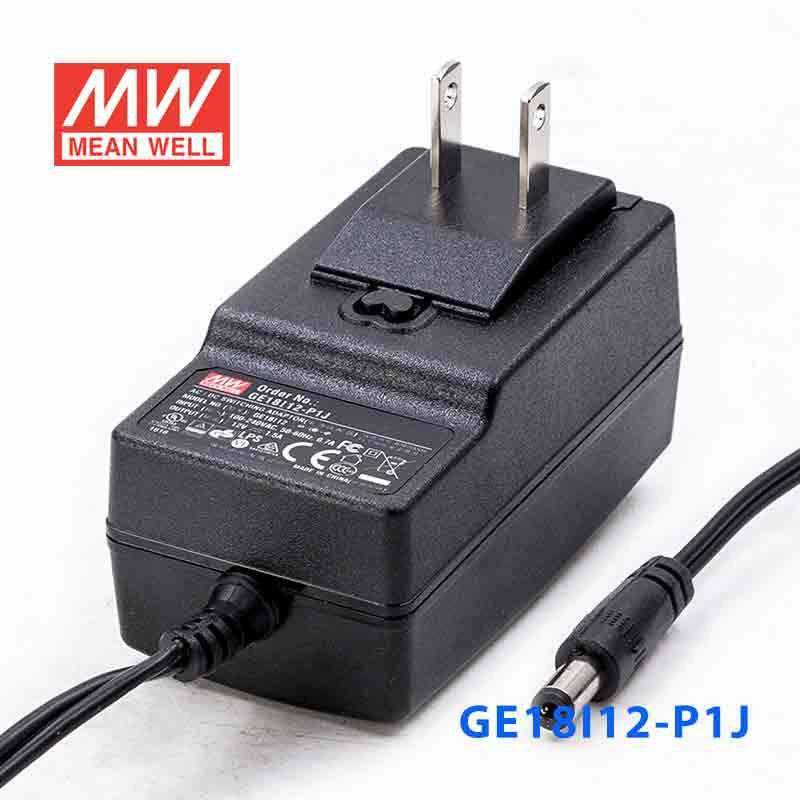

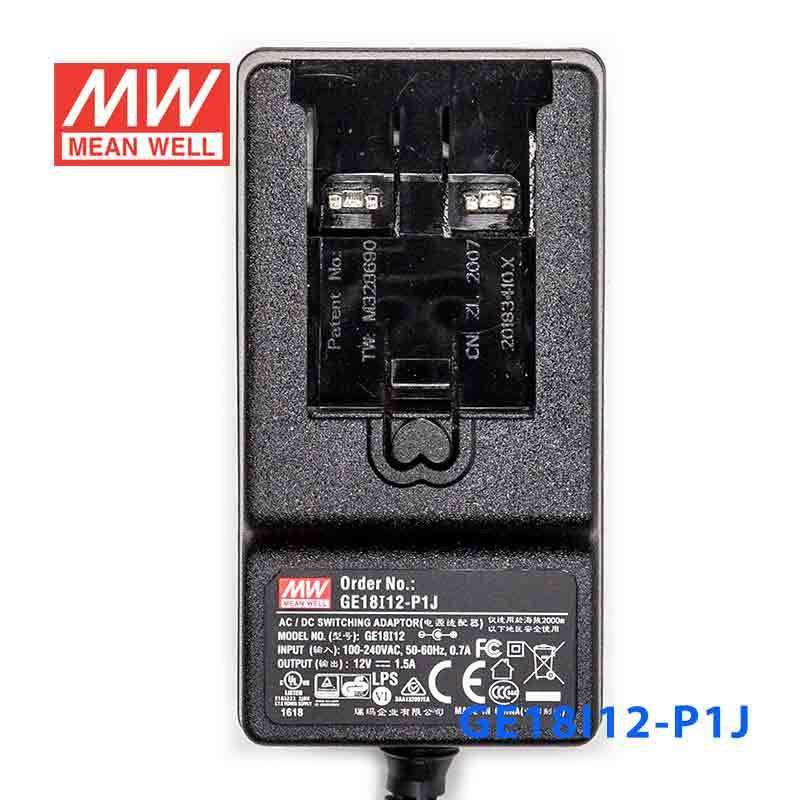

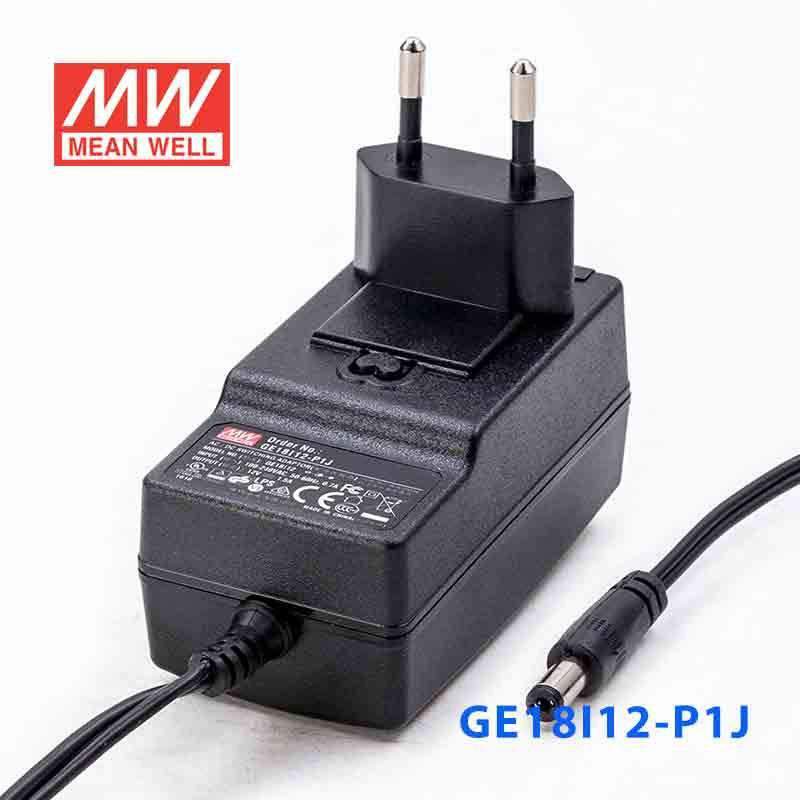

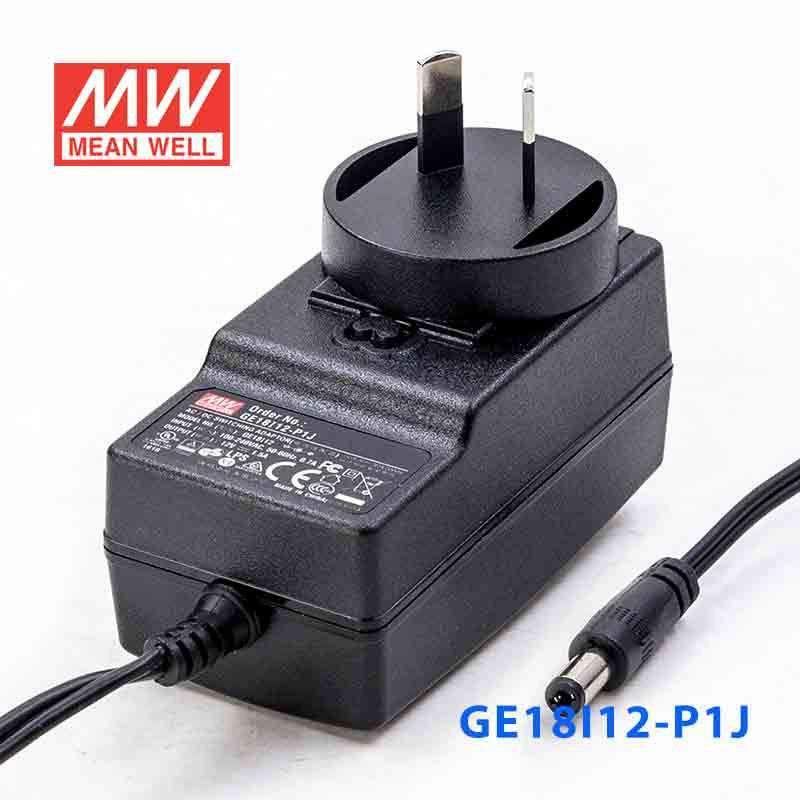

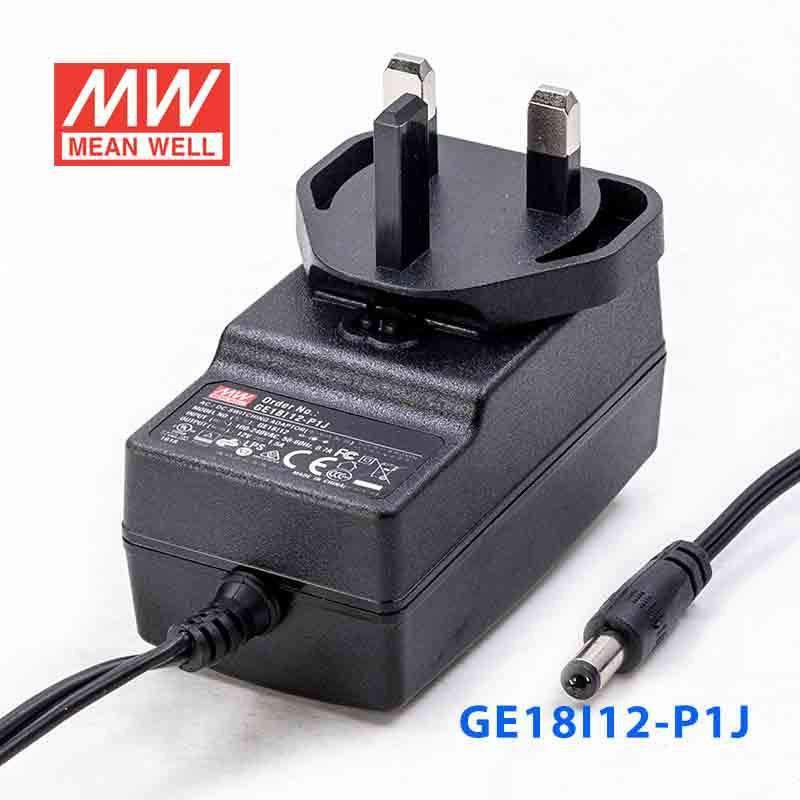

GE18I is a highly reliable, 18W wall-mounted style single-output green adaptor series, which is compact and convient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GE18I is a class Ⅱ power unit (without FG), accepting the input range from 90VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 87% and the extremely low no-load power consumption below 0.075W, GE18I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅵ) and EU ErP. The suprem e feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazar d.

Features

Interchangeable AC plugs (plug kit sold sperately)
Universal AC input / Full range
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE, EU ErP
Class Ⅱ power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Fully enclosed plastic case

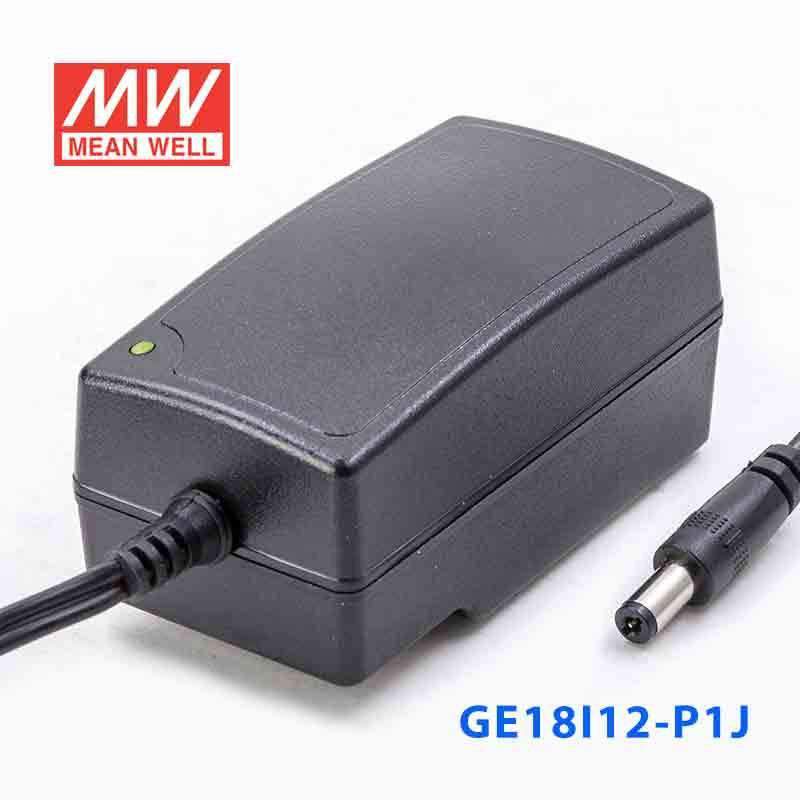

LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf
2 years warranty

Specifications

GE18I12-P1JSpecifications from the official datasheet (2023-05-02 edition)

OUTPUT

SAFETY MODEL NO.: GE18I12
DC VOLTAGE^Note.2: 12V
RATED CURRENT: 1.5A
CURRENT RANGE: 0 ~ 1.5A
RATED POWER (max.): 18W
RIPPLE & NOISE (max.)^Note.3: 120mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 4000ms, 100ms, 30ms / 230VAC 4000ms, 100ms, 10ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.7A / 100VAC 0.4A / 230VAC
INRUSH CURRENT (max.): COLD START 40A / 100VAC 80A / 230VAC
LEAKAGE CURRENT (max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110% ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 115% ~ 135% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -10 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 30℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32) Class B
Radiated emission BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)	Class B
Radiated emission	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 2 years : 100% load 30℃, 8 hours / day
MTBF: 100Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 81*43*40.5mm (L*W*H)
PACKING: 134g ; 50pcs / 8.4kg / CARTON

DC OUTPUT CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
9.Main body unit and AC inlet plug should be ordered separately ; it needs to be used along with any of the AC inlet plug.

Technical drawings

GE18I12-P1J Derating Curve — Derating Curve

GE18I12-P1J Mechanical Specification — Mechanical Specification

GE18I12-P1J DC output plug — DC output plug

GE18I12-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Certificates7

CCC Certificate (GE18)(CN) PDF Download

UL Certificate (GE18)(EN) PDF Download

CB Certificate (GE18)(EN) PDF Download

TUV Certificate (GE18)(EN) PDF Download

FCC Certificate (GE18)(EN) PDF Download

ErP Certificate (GE18)(EN) PDF Download

RCM Certificate (GE18)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GE18I12-P1J for a 12V PLC accessory or automation module?

Yes, if the equipment requires a constant 12V DC supply and draws no more than 1.5A or 18W. It is suited to lower-power automation electronics that match those ratings.

Is this a good fit for a 12V embedded computer or industrial interface device?

It can be, as long as the device is specified for 12V constant voltage input and stays within 1.5A. The 18W output is appropriate for compact embedded and control hardware rather than higher-load systems.

Can the GE18I12-P1J power a small 12V HMI, panel device, or control accessory?

Yes, for devices that call for regulated 12V DC and do not exceed 18W total load. Constant voltage output is the key match point for this type of equipment.

Would this work for a 12V bench instrument or monitoring device?

It may, provided the product's DC input requirement is 12V and the current draw remains at or below 1.5A. Its 90-264VAC input range also supports broad AC input compatibility.

Is the GE18I12-P1J meant for indoor use only?

Based on the provided specs, it should be considered an indoor unit unless additional protection is provided by the finished system. The operating range is -10°C to +50°C, and no IP rating is listed.
