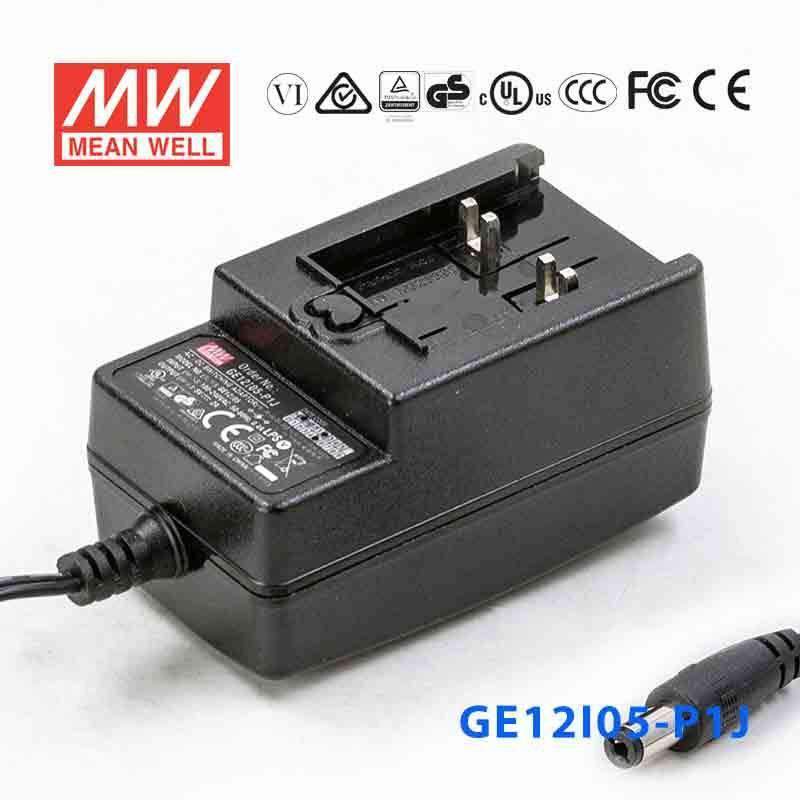

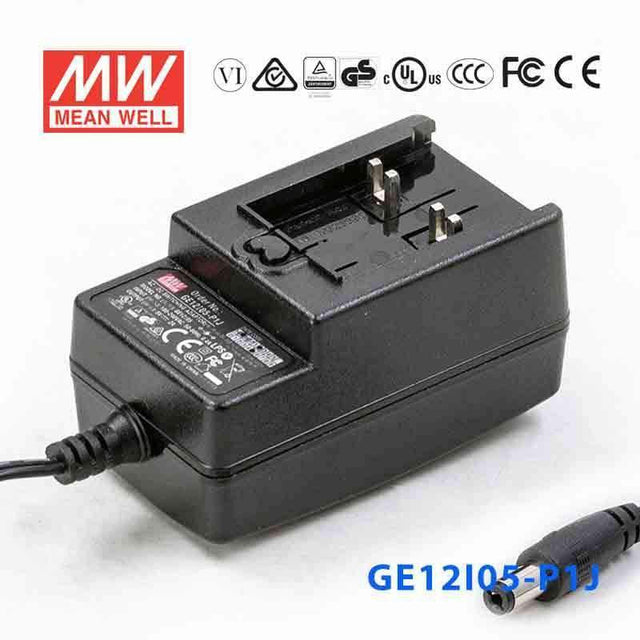

Mean Well GE12I05-P1J Power Supply 10W 5V 2A

Name: Mean Well GE12I05-P1J Power Supply 10W 5V 2A
Brand: Mean Well
SKU: GE12I05-P1J
Price: 15.04 USD
Availability: InStock

SKU GE12I05-P1J

$15.04 USD

Shipping calculated at checkout.

In stock

Overview

GE12I05-P1J is the 5V output model of this series: rated current 2.0A, rated power 10W, typical efficiency 80%.

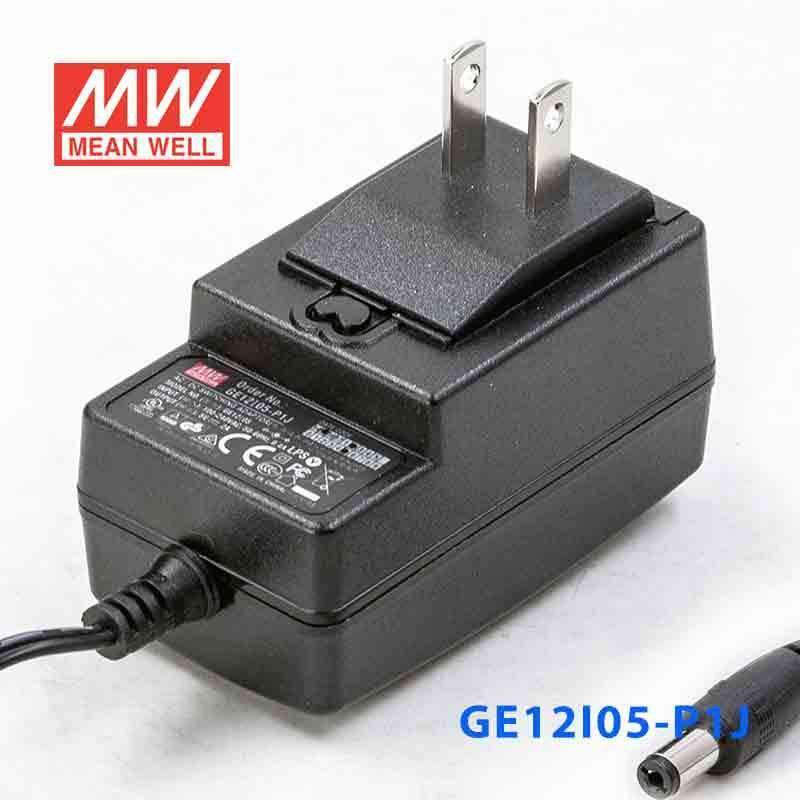

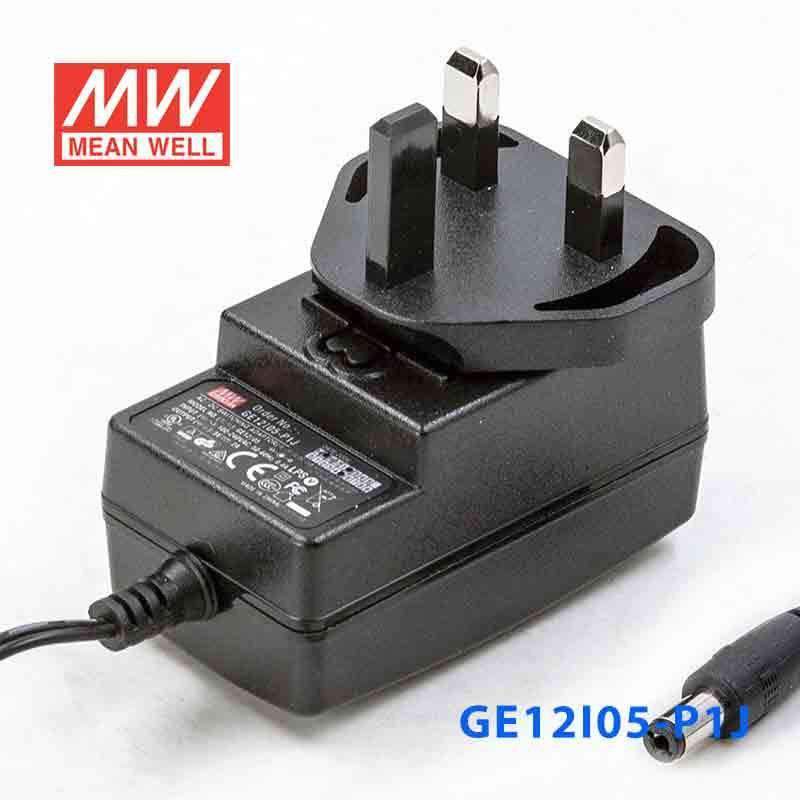

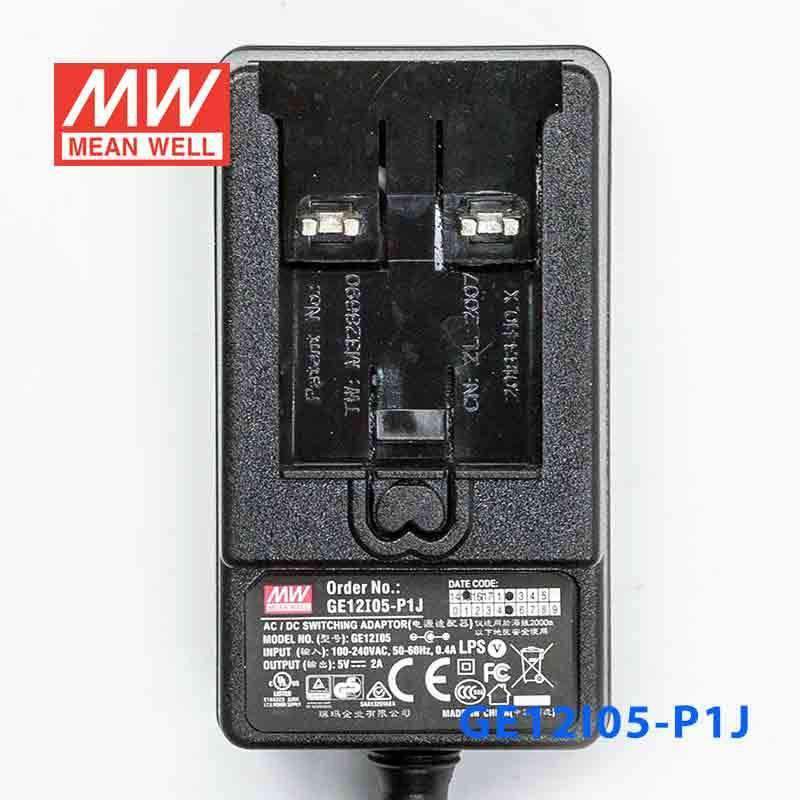

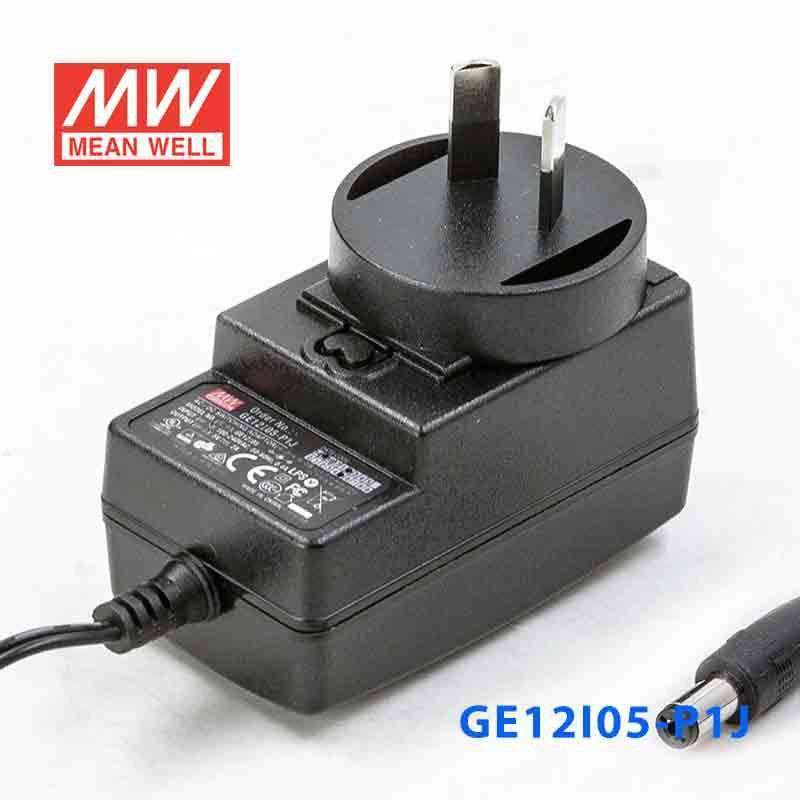

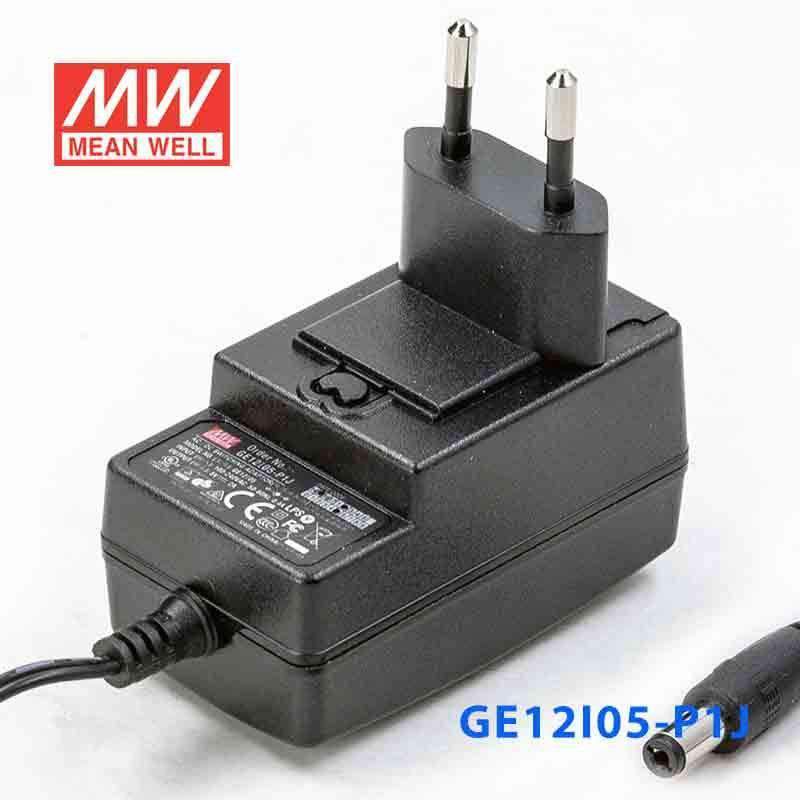

GE12I is a highly reliable, 12W wall-mounted style single-output green adaptor series, which is compact and convient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GE12I is a class Ⅱ power unit (without FG), accepting the input range from 90VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 85.5% and the extremely low no-load power consumption below 0.075W, GE12I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅵ) and EU ErP. The superme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electrical hazard.

Features

Interchangeable AC plugs (plug kit sold sperately)
Universal AC input / Full range
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE, EU ErP
Class Ⅱ power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Fully enclosed plastic case

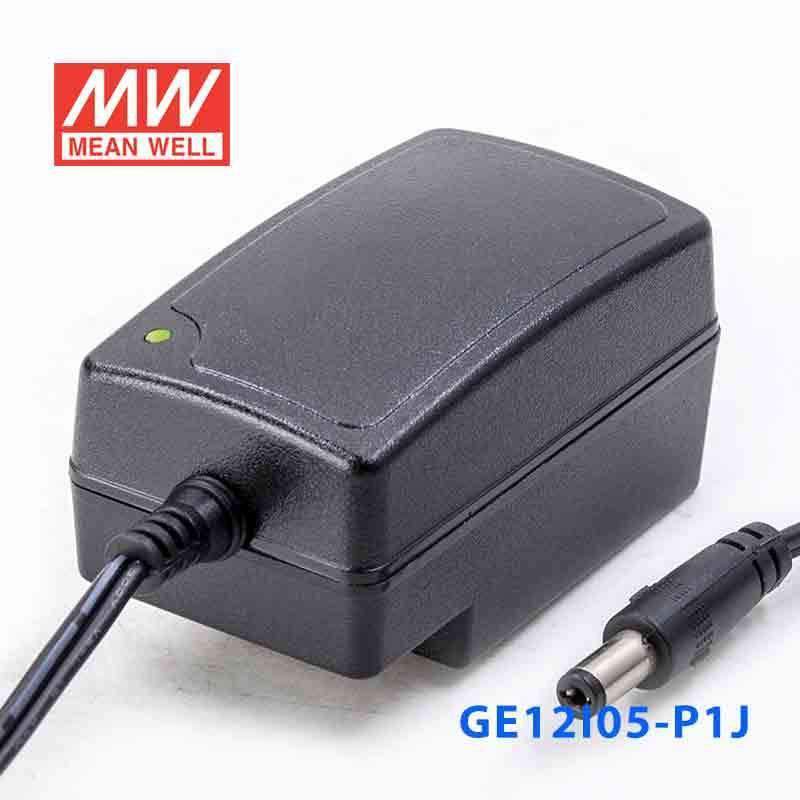

LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
2 years warranty

Specifications

GE12I05-P1JSpecifications from the official datasheet (2023-05-02 edition)

OUTPUT

SAFETY MODEL NO.: GE12I05
DC VOLTAGE^Note.2: 5V
RATED CURRENT: 2.0A
CURRENT RANGE: 0 ~ 2.0A
RATED POWER: 10W
RIPPLE & NOISE (max.)^Note.3: 50mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 4000ms, 100ms, 30ms / 230VAC 4000ms, 100ms, 10ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT: 0.4A / 100VAC 0.25A / 230VAC
INRUSH CURRENT (max.): COLD START 40A / 100VAC 80A / 230VAC
LEAKAGE CURRENT (max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110% ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 115% ~ 135% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -10 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 30℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32) Class B
Radiated emission BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)	Class B
Radiated emission	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 2 years : 100% load 30℃, 8 hours / day
MTBF: 100Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 70.7*40*38.8mm (L*W*H)
PACKING: 97g ; 50pcs / 6.3kg / CARTON

DC OUTPUT CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
9.Main body unit and AC inlet plug should be ordered separately ; it needs to be used along with any of the AC inlet plug.

Technical drawings

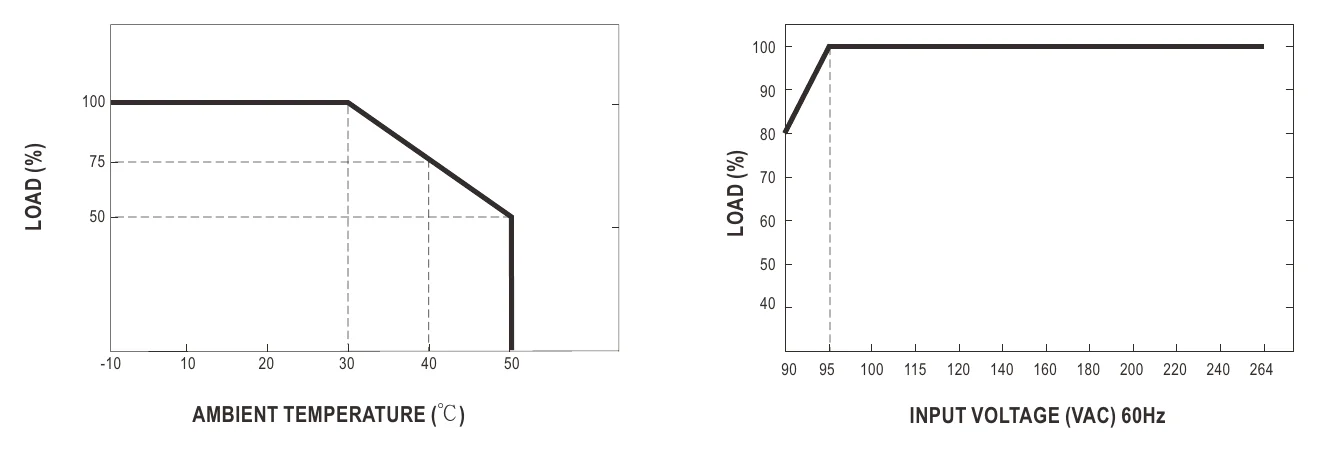

GE12I05-P1J Derating Curve — Derating Curve

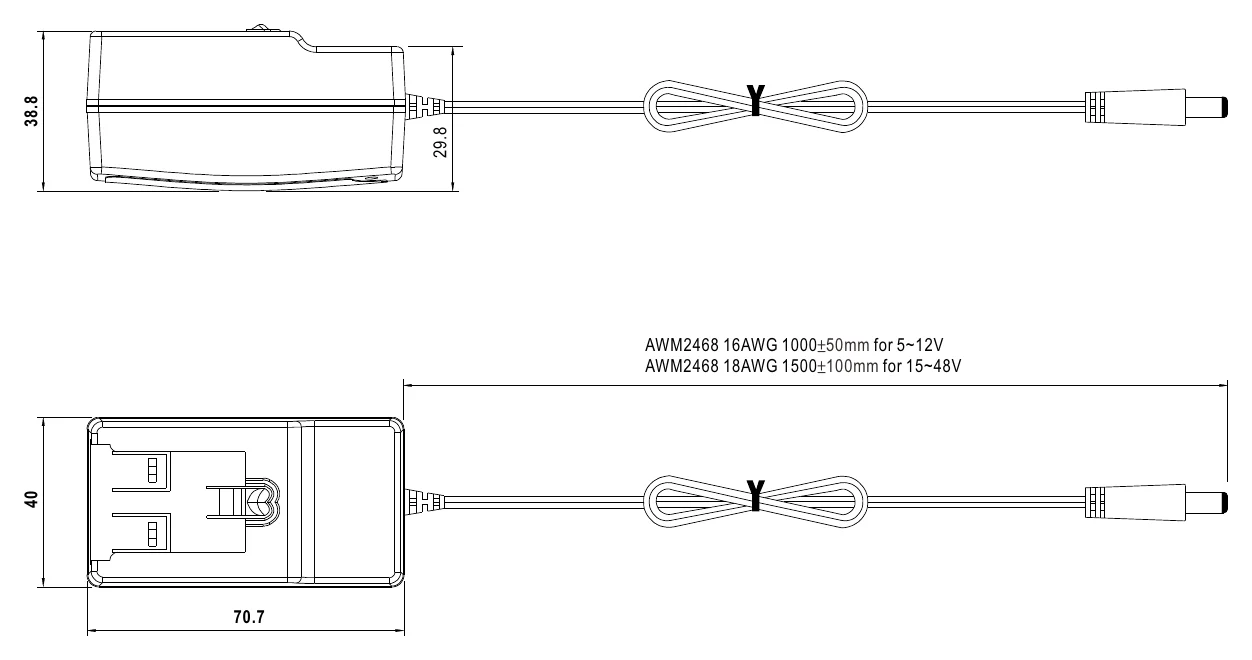

GE12I05-P1J Mechanical Specification — Mechanical Specification

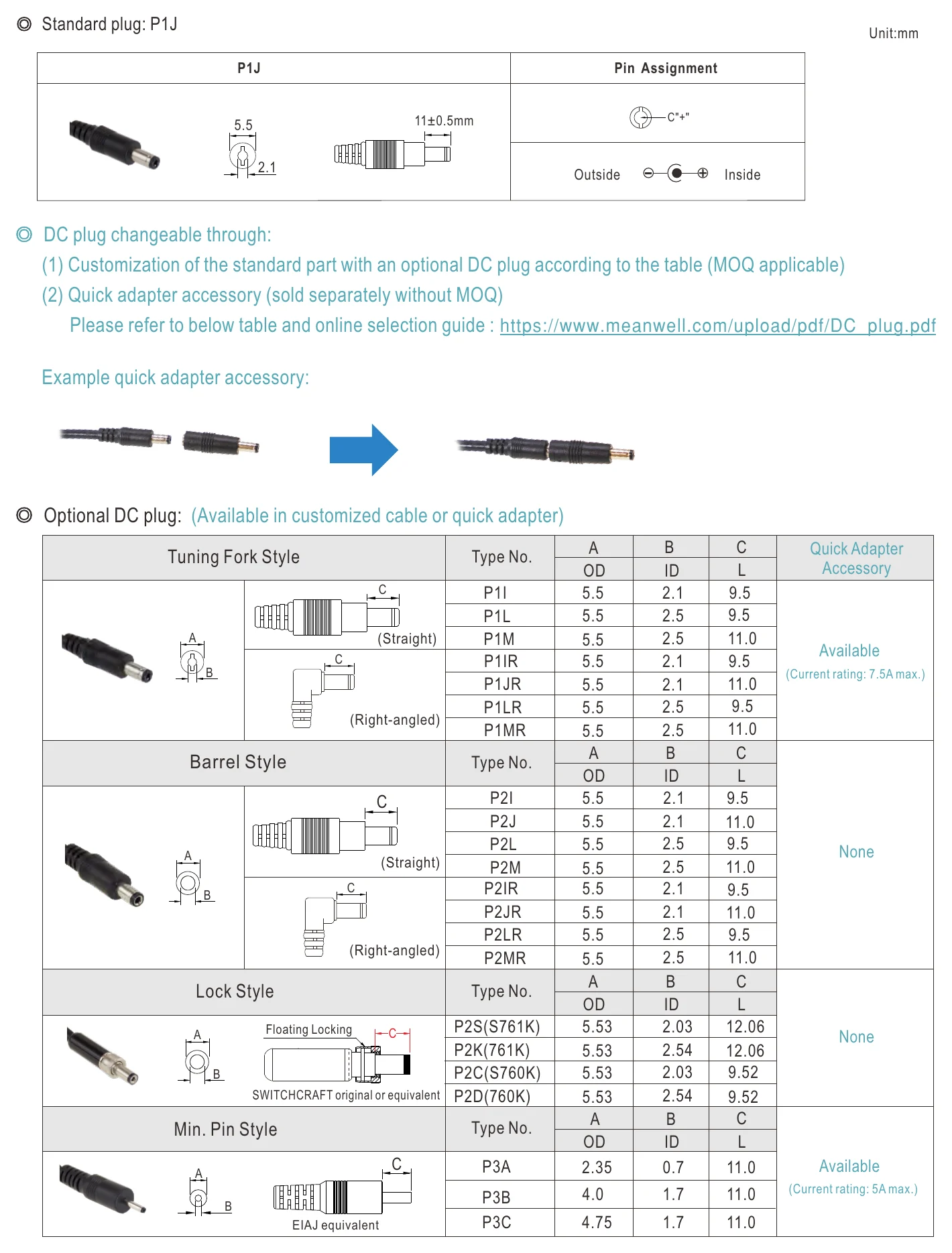

GE12I05-P1J DC output plug — DC output plug

GE12I05-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Certificates8

CCC Certificate (GE12)(CN) PDF Download

UL Certificate (GE12)(EN) PDF Download

CB Certificate (GE12)(EN) PDF Download

TUV Certificate (GE12)(EN) PDF Download

FCC Certificate (GE12)(EN) PDF Download

ErP Certificate (GE12)(EN) PDF Download

RCM Certificate (GE12)(EN) PDF Download

SAA Certificate (GE12)(EN) PDF Download

Test reports1

Test Report(GE12I05)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GE12I05-P1J for a 5V industrial controller or small automation module?

It is intended for constant voltage applications with a 5V output and up to 2A output current. That makes it a fit for 5V control electronics, embedded modules, or low-power automation devices that stay within the 10W rating.

Is this 5V power supply suitable for USB-powered embedded or IT equipment?

This model provides a regulated 5V constant voltage output with a 10W maximum power rating. It can be considered for 5V embedded or IT hardware that requires up to 2A, but its standard output connector is a P1J 5.5/2.1mm DC plug, not a USB port.

Can I use this adapter for a compact HMI, sensor hub, or edge device that runs on 5V?

It can support 5V equipment as long as the total load does not exceed 2A or 10W. The compact body size of 70.7 x 40.0 x 38.8 mm can also help where enclosure space is limited.

Is the GE12I05-P1J suitable for outdoor or harsh-environment use?

The listed operating temperature is -10°C to +50°C, but no IP rating is provided in the product specs. Based on the published data, it is better matched to environments within -10°C to +50°C where no outdoor or washdown protection rating is required.

How does the GE12I05-P1J compare with the other variants in this series?

The GE12I series covers 5V, 7.5V, 9V, 12V, 15V, 18V and 24V models, and the interchangeable AC plug is ordered separately in AU, UK, EU, US or mixed four-type versions. For this base model, the published specs are 10W, 5V, 2A, constant voltage, 90-264VAC input, and 70.7 x 40.0 x 38.8 mm dimensions.
