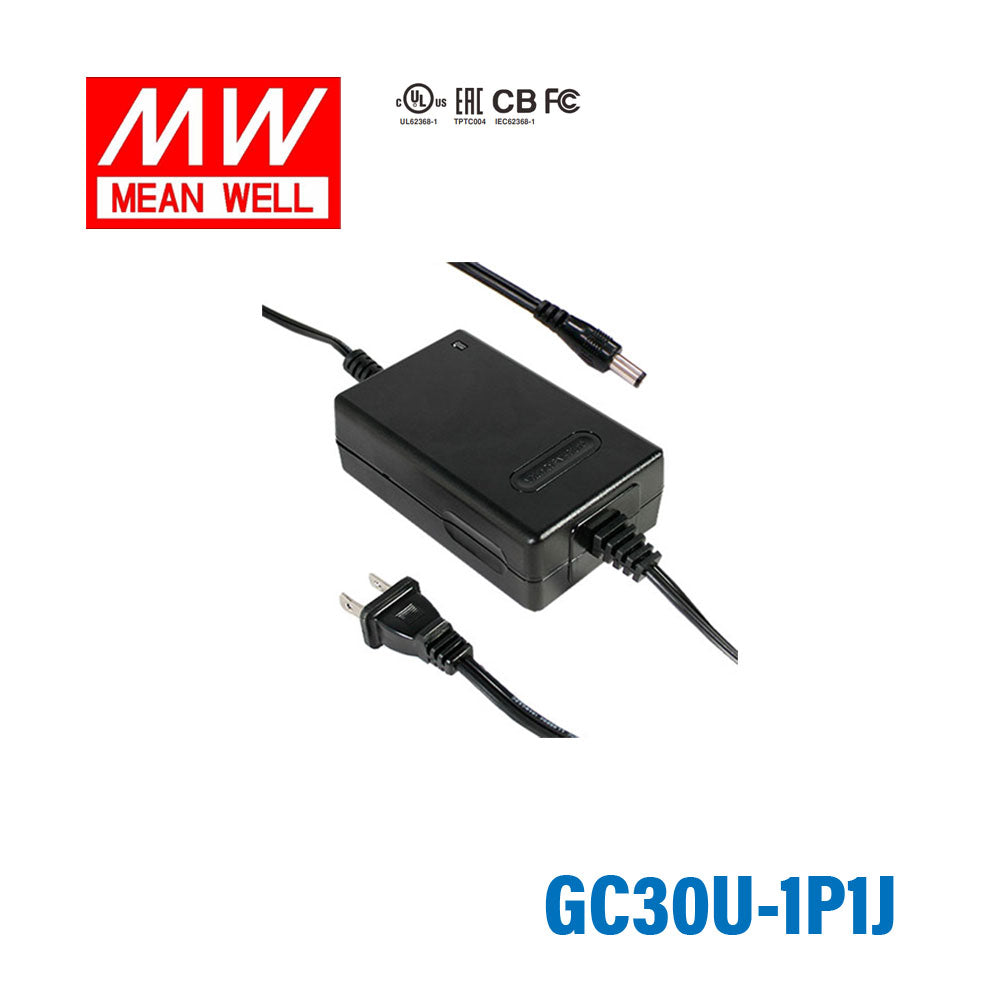

Mean Well GC30U-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Adaptor

Name: Mean Well GC30U-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Adaptor
Brand: Mean Well
SKU: GC30U-1P1J
Price: 37.51 USD
Availability: InStock

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment

SKU GC30U-1P1J

$37.51 USD

Shipping calculated at checkout.

In stock

Overview

GC30U-1P1J is the model of this series: rated current 3.99A, rated power 22.38W, typical efficiency 70%.

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
Universal AC input / Full range
With USA type 6FT power cord(2pin)
Class II power (without earth pin)
No load power consumption <1.0W
Constant current and voltage(CC,CV mode)
Suitable for continue load
For high surge current equipment
Protections: Short circuit / Overload / Over voltage / Over temp.
2 colors LED indicate for charging status
Fully enclosed plastic case
High reliability
Approvals: UL / CUL / EAC / CB / FCC
2 years warranty

Specifications

GC30U-1P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.: GC30U-1
DC VOLTAGE SET AT^Note.3: 5.6V
RATED CURRENT: 3.99A
CURRENT RANGE: 0 ~ 3.99A
RATED POWER: 22.38W
RIPPLE & NOISE (max.)^Note.4: 50mVp-p
CHARGING VOLTAGE RANGE^Note.5: 5 ~ 5.8V
LINE REGULATION^Note.6: ±0.5%
LED INDICATOR: Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME: 200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 70%
AC CURRENT: 0.7A / 100VAC; 0.35A/ 230VAC
INRUSH CURRENT (max.): 40A / 230VAC
LEAKAGE CURRENT(max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE: IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: 0 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA22.2, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY: Compliance to EAC TP TC 020

OTHERS

DIMENSION: 108*67*36mm (L*W*H)
PACKING: 405g; 36pcs / 16.5kg / CARTON

CONNECTOR

PLUG: Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE: Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested

Test conditions and notes6

1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2.All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
5.Output charging voltage range is measured from 0% to 100% rated load.
6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30U-1P1J Mechanical Specification — Mechanical Specification

GC30U-1P1J Charging Curve — Charging Curve

GC30U-1P1J Derating Curve — Derating Curve

Downloads

Certificates5

Mean Well GC30-UK-dec Certificate PDF Download

Mean Well GC30(U-B-E)-CB(UL) Certificate PDF Download

Mean Well GC30(U-B-E)-CB(TUV) Certificate PDF Download

Mean Well GC30-FCC-CER.PDF Certificate PDF Download

Mean Well 0123808-EAC Certificate PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well GC30U-1P1J designed for?

The GC30U-1P1J is a power adaptor with charger function designed for battery-charging and power-supply applications. Mean Well lists it for lead-acid batteries, including flooded, gel, and AGM types, and for lithium iron and lithium manganese lithium-ion batteries. Its compact 108 x 67 x 36 mm size and 22.38W output make it suited to light portable and bench-style use.

What are the output ratings of the GC30U-1P1J?

This model is rated for 5.6V output at up to 3.99A, with a total power rating of 22.38W. It also uses constant current and constant voltage operation, which is specified as CC/CV mode. Those ratings make it important to match against equipment or battery systems designed for this output level.

Does the GC30U-1P1J support global input power?

Yes. The unit has a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. That wide input range makes it suitable for use across standard power systems in multiple regions.

What protections are included in the GC30U-1P1J?

The GC30U-1P1J includes overload, over-voltage, and over-temperature protection. The over-voltage protection is a zener diode clamp at 110% to 135% of rated output voltage, and overload and over-temperature protection recover automatically once the fault is removed. These built-in safeguards help protect both the charger and connected equipment under fault conditions.

What operating environment is the GC30U-1P1J rated for?

This model is rated for a working temperature range of 0°C to 50°C, with reference to the derating curve, and 20% to 90% RH non-condensing. Buyers using it in warmer environments should verify their application stays within the stated operating range.

What approvals and warranty does the GC30U-1P1J have?

The datasheet lists safety approval to UL62368-1, CSA22.2, and EAC TP TC 004. EMC compliance includes FCC Part 15 Class B and EAC TP TC 020. The datasheet does not state a warranty period, so confirm warranty terms with the seller.
