Mean Well

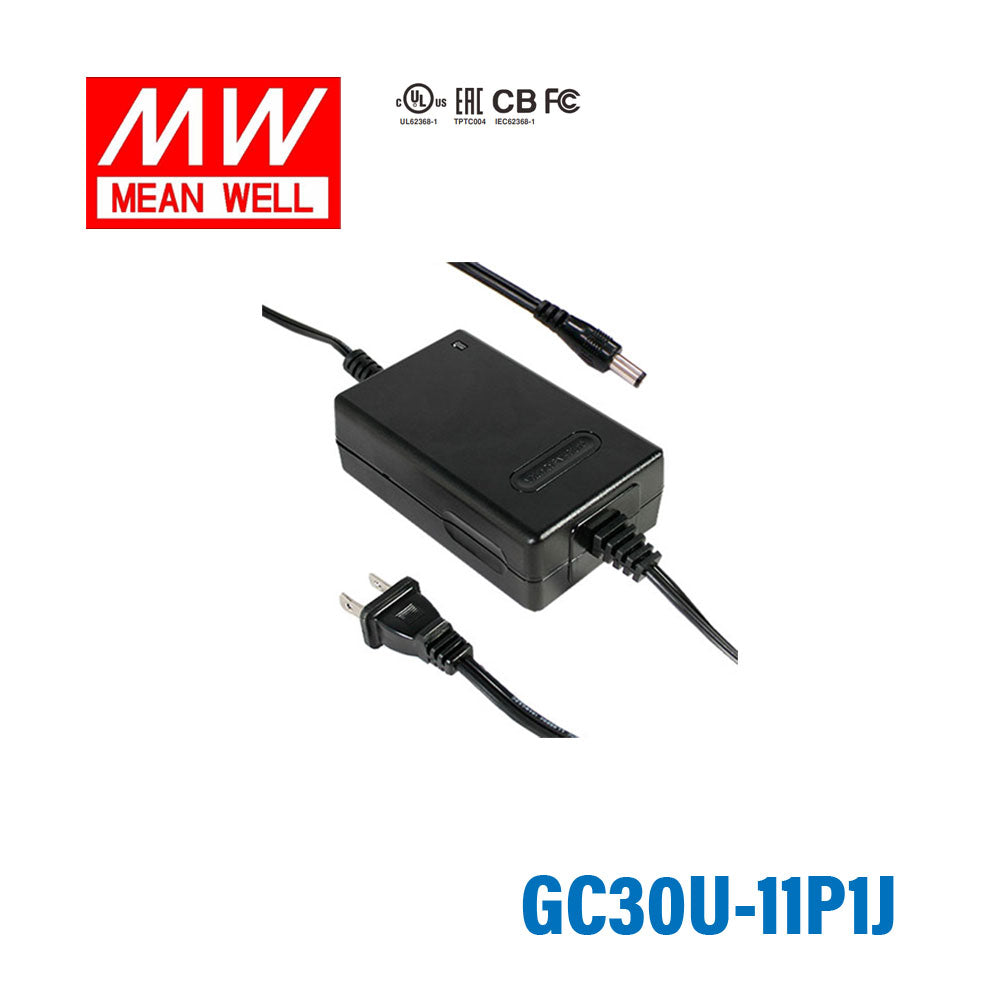

Mean Well GC30U-11P1J Portable Chargers 21.6W 7.2V 3A - Green Adaptor

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment
SKU GC30U-11P1J
$37.51 USD
Shipping calculated at checkout.
Available to order
|

Overview

GC30U-11P1J is the model of this series: rated current 3A, rated power 21.6W, typical efficiency 74%.

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
  • Universal AC input / Full range
  • With USA type 6FT power cord(2pin)
  • Class II power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / EAC / CB / FCC
  • 2 years warranty

Specifications

GC30U-11P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.
GC30U-11
DC VOLTAGE SET ATNote.3
7.2V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
21.6W
RIPPLE & NOISE (max.)Note.4
80mVp-p
CHARGING VOLTAGE RANGENote.5
6.5 ~ 7.5V
LINE REGULATIONNote.6
±0.5%
LED INDICATOR
Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
74%
AC CURRENT
0.7A / 100VAC; 0.35A/ 230VAC
INRUSH CURRENT (max.)
40A / 230VAC
LEAKAGE CURRENT(max.)
0.25mA / 240VAC

PROTECTION

OVERLOAD
90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE
IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, CSA22.2, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to EAC TP TC 020

OTHERS

DIMENSION
108*67*36mm (L*W*H)
PACKING
405g; 36pcs / 16.5kg / CARTON

CONNECTOR

PLUG
Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE
Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
Test conditions and notes6
  1. 1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2.All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
  3. 3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
  4. 4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  5. 5.Output charging voltage range is measured from 0% to 100% rated load.
  6. 6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30U-11P1J Mechanical Specification
Mechanical Specification
GC30U-11P1J Charging Curve
Charging Curve
GC30U-11P1J Derating Curve
Derating Curve

Downloads

FAQ

What type of batteries is the Mean Well GC30U-11P1J designed to charge?

The GC30U-11P1J is designed for lead-acid batteries, including flooded, gel, and AGM types, as well as lithium iron and lithium manganese lithium-ion chemistries listed on the datasheet. It is a power adaptor with charger function rated for 7.2V output and 3A charging current. This makes it suitable for buyers looking for a compact charger for supported 7.2V battery applications.

What are the key output specifications of the GC30U-11P1J?

This model is rated at 21.6W with a 7.2V output and 3A rated current. It operates in constant current and constant voltage modes for charging use. Those specs make it a fit for applications that require a compact 7.2V charger from the Mean Well GC series.

Is the GC30U-11P1J suitable for portable or field-use applications?

It is a compact external adaptor measuring 108 x 67 x 36 mm and weighing about 405g, which helps support portable use. Its rated working range is 0°C to 50°C at 20% to 90% RH non-condensing. Buyers looking for a lightweight bench or mobile charging solution often prefer this form factor.

What input range and power characteristics does this charger support?

The GC30U-11P1J accepts a universal AC input range of 90 to 264VAC at 47 to 63Hz, or 127 to 370VDC. Typical efficiency is 74%, and AC input current is 0.7A at 100VAC or 0.35A at 230VAC. These characteristics make it practical for buyers needing broad input compatibility across different AC environments.

What protections and status indicators are included on the GC30U-11P1J?

This charger includes protection for overload, over voltage, and over temperature. It also has a red/green LED indicator for charging status: red while charging, green during float charging. These features help commercial buyers evaluate the unit for reliability and basic charge-state visibility.

What operating environment is the GC30U-11P1J rated for?

The specified working temperature range is 0°C to 50°C, with reference to the derating curve noted in the product data. The unit is intended for use within that ambient temperature range rather than extreme hot or freezing conditions. Buyers should use that range when screening chargers for indoor or light industrial environments.

Does the Mean Well GC30U-11P1J include certifications and warranty coverage?

Yes for certifications: the datasheet lists UL62368-1, CSA22.2, and EAC TP TC 004 safety approval, with EMC compliance to FCC Part 15 Class B and EAC TP TC 020. The datasheet does not state a warranty period, so confirm warranty terms with the seller. This combination is useful for buyers who need a branded charger with recognized compliance coverage.
