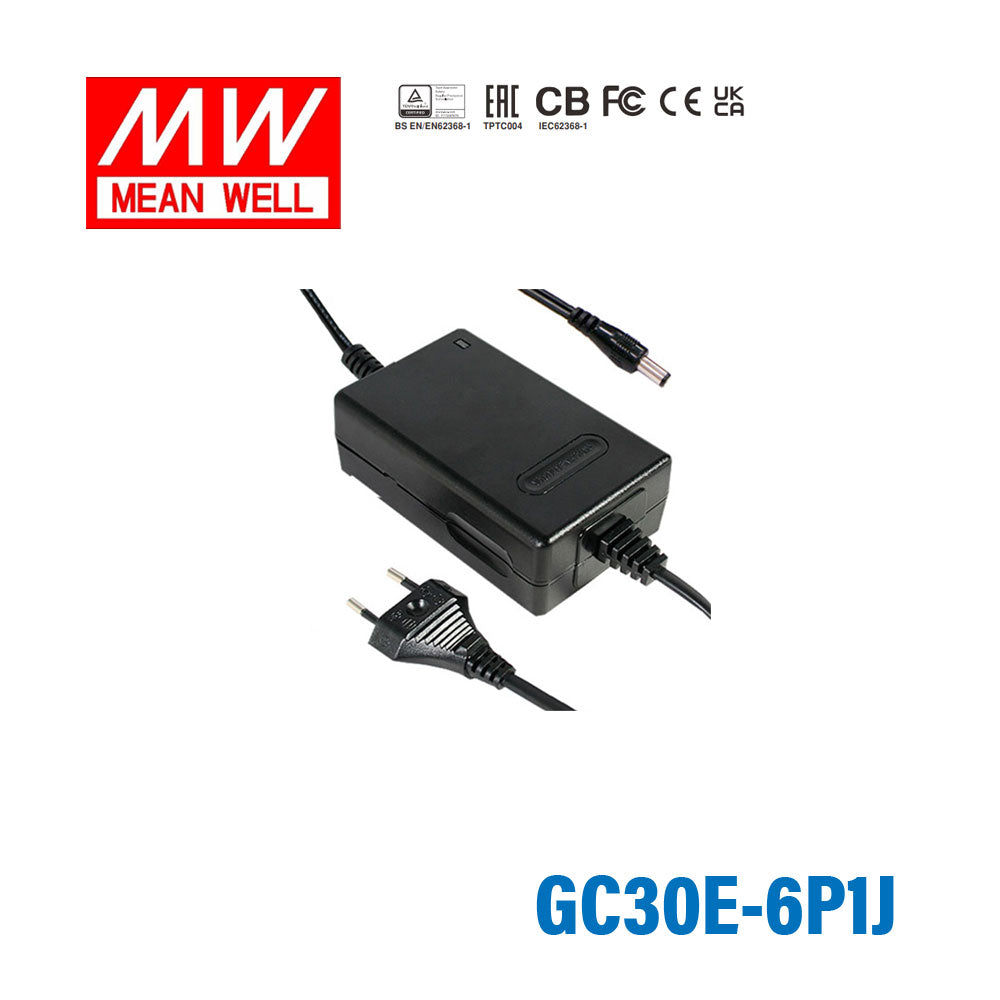

Mean Well GC30E-6P1J Portable Chargers 30W 28.6V 1.04A - Green Adaptor

Name: Mean Well GC30E-6P1J Portable Chargers 30W 28.6V 1.04A - Green Adaptor
Brand: Mean Well
SKU: GC30E-6P1J
Price: 37.51 USD
Availability: InStock

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment

SKU GC30E-6P1J

$37.51 USD

Shipping calculated at checkout.

In stock

Overview

GC30E-6P1J is the model of this series: rated current 1.04A, rated power 30W, typical efficiency 80%.

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese) (Note.1)
Universal AC input / Full range
With EURO type 6 FT power cord(2pin)
Class II power (without earth pin)
No load power consumption <1.0W
Constant current and voltage(CC,CV mode)
Suitable for continue load
For high surge current equipment
Protections: Short circuit / Overload / Over voltage / Over temp.
2 colors LED indicate for loading status
Fully enclosed plastic case
High reliability
Approvals: TUV / EAC / CB / FCC / CE / UKCA
2 years warranty

Specifications

GC30E-6P1JSpecifications from the official datasheet (2025-01-23 edition)

OUTPUT

SAFETY MODEL NO.: GC30E-6
DC VOLTAGE SET AT^Note.3: 28.6V
RATED CURRENT: 1.04A
CURRENT RANGE: 0 ~ 1.04A
RATED POWER: 30W
RIPPLE & NOISE (max.)^Note.4: 150mVp-p
CHARGING VOLTAGE RANGE^Note.5: 27.1 ~ 28.8V
LINE REGULATION^Note.6: ±0.5%
LED INDICATOR: Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME: 200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT: 0.7A / 100VAC; 0.35A/ 230VAC
INRUSH CURRENT (max.): 40A / 230VAC
LEAKAGE CURRENT(max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE: IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: 0 ~ +50℃(Refer to output load derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION: 108*67*36mm (L*W*H)
PACKING: 405g; 36pcs / 16.5kg / CARTON

CONNECTOR

PLUG: Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE: Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested

Test conditions and notes6

1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
5.Output charging voltage range is measured from 0% to 100% rated load.
6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30E-6P1J Mechanical Specification — Mechanical Specification

GC30E-6P1J Charging Curve — Charging Curve

GC30E-6P1J Derating Curve — Derating Curve

Downloads

Certificates8

Mean Well GC30-UK-dec Certificate PDF Download

Mean Well GC30(B-E)-TUV Certificate PDF Download

Mean Well GC30(U-B-E)-CB(UL) Certificate PDF Download

Mean Well GC30(U-B-E)-CB(TUV) Certificate PDF Download

Mean Well GC30-FCC-CER.PDF Certificate PDF Download

Mean Well GC30B-E-EMC Certificate PDF Download

Mean Well GC30(B-E)-CE-dec Certificate PDF Download

Mean Well 0123808-EAC Certificate PDF Download

Test reports1

Mean Well GC30x-6P1J Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well GC30E-6P1J designed for?

The GC30E-6P1J is a 30W portable charger and power adaptor intended for battery charging and related low-power DC applications. It is part of Mean Well's GC series and provides a regulated 28.6V DC output at up to 1.04A.

What battery types is the GC30E-6P1J suitable for?

This model is specified for charging lead-acid batteries including flooded, gel, and AGM types. It is also listed for certain lithium-ion battery chemistries, including lithium iron and lithium manganese.

What are the output ratings of the GC30E-6P1J?

The GC30E-6P1J is rated for 30W output power. Its nominal output is 28.6V DC with a rated current of 1.04A, making it suitable for applications that require that charging voltage and current level.

Is this charger suitable for portable or field use?

Yes, this model is built in a compact housing and weighs about 0.405 kg, which supports portable use. Its body size is 108 x 67 x 36 mm, so it is relatively easy to handle where a small charger is preferred.

What input range does the GC30E-6P1J support?

This charger accepts a universal AC input range of 90 to 264VAC, and it is also rated for 127 to 370VDC input. That wide input range makes it practical for use across different standard mains power environments.

What protection and compliance features does this model include?

The GC30E-6P1J includes protection for overload, over-voltage, and over-temperature conditions. It is approved to TUV BS EN/EN62368-1 and EAC TP TC 004, and its EMC emissions comply with BS EN/EN55014-1 Class B and FCC Part 15 Class B.

What operating environment is this charger rated for?

The specified working temperature range for the GC30E-6P1J is 0°C to 50°C, with reference to the derating curve. Working humidity is rated at 20% to 90% RH non-condensing, with storage from -20°C to +85°C.
