Mean Well

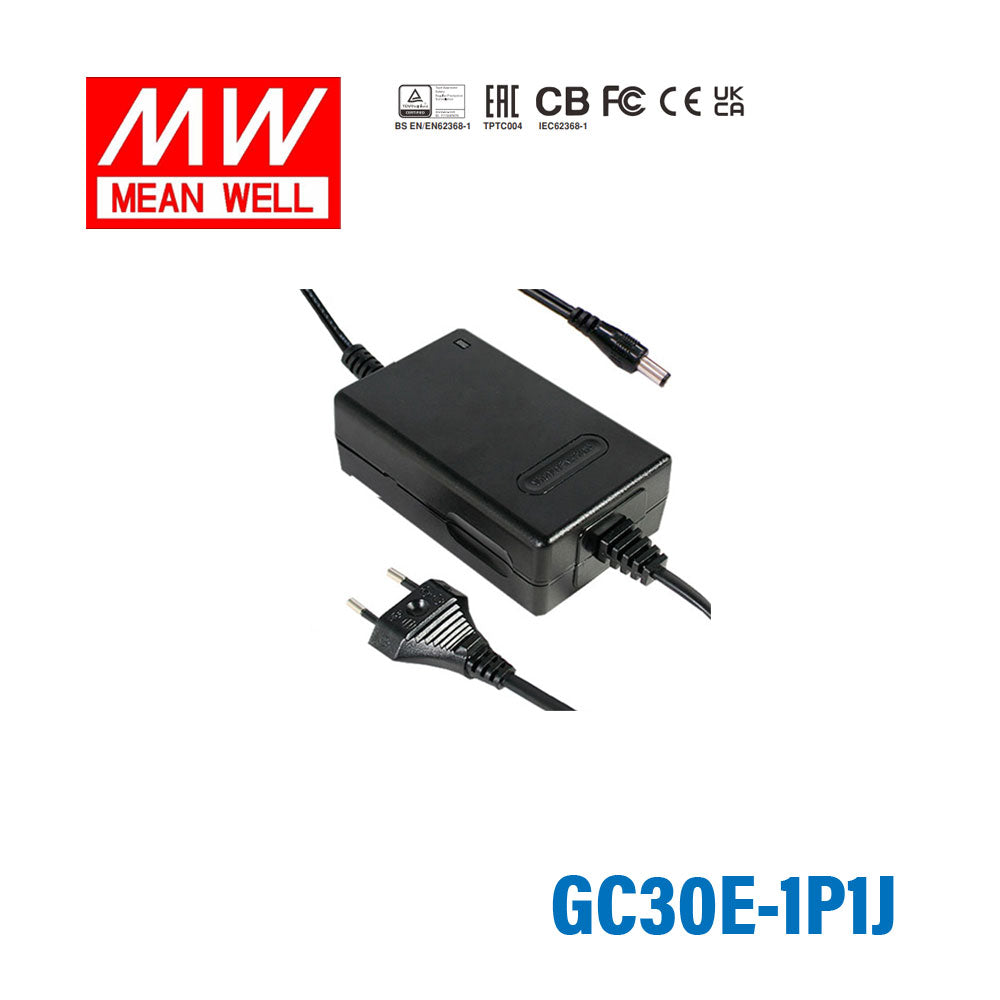

Mean Well GC30E-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Adaptor

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment
SKU GC30E-1P1J
$37.51 USD
Shipping calculated at checkout.
Available to order
|

Overview

GC30E-1P1J is the model of this series: rated current 3.99A, rated power 22.38W, typical efficiency 70%.

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • Universal AC input / Full range
  • With EURO type 6 FT power cord(2pin)
  • Class II power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for loading status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC30E-1P1JSpecifications from the official datasheet (2025-01-23 edition)

OUTPUT

SAFETY MODEL NO.
GC30E-1
DC VOLTAGE SET ATNote.3
5.6V
RATED CURRENT
3.99A
CURRENT RANGE
0 ~ 3.99A
RATED POWER
22.38W
RIPPLE & NOISE (max.)Note.4
50mVp-p
CHARGING VOLTAGE RANGENote.5
5 ~ 5.8V
LINE REGULATIONNote.6
±0.5%
LED INDICATOR
Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
70%
AC CURRENT
0.7A / 100VAC; 0.35A/ 230VAC
INRUSH CURRENT (max.)
40A / 230VAC
LEAKAGE CURRENT(max.)
0.25mA / 240VAC

PROTECTION

OVERLOAD
90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE
IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃(Refer to output load derating curve)
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
108*67*36mm (L*W*H)
PACKING
405g; 36pcs / 16.5kg / CARTON

CONNECTOR

PLUG
Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE
Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
Test conditions and notes6
  1. 1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  3. 3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
  4. 4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  5. 5.Output charging voltage range is measured from 0% to 100% rated load.
  6. 6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30E-1P1J Mechanical Specification
Mechanical Specification
GC30E-1P1J Charging Curve
Charging Curve
GC30E-1P1J Derating Curve
Derating Curve

Downloads

FAQ

What is the Mean Well GC30E-1P1J designed for?

The GC30E-1P1J is a charger and AC/DC power adaptor rated at 22.38W with a 5.6V output and 3.99A rated current. It is intended for battery charging and power supply use in applications that need a compact unit with constant current and constant voltage operation.

Which battery chemistries is the GC30E-1P1J compatible with?

This model is described for use with lead-acid batteries including flooded, gel, and AGM types. It is also listed for Li-ion batteries including lithium iron and lithium manganese chemistries.

What are the main electrical specifications of the GC30E-1P1J?

This model provides 5.6V output at up to 3.99A, for a total power rating of 22.38W. It accepts a universal input range of 90 to 264VAC or 127 to 370VDC, which makes it suitable for broad AC input conditions.

Is the GC30E-1P1J suitable for portable or space-limited equipment?

Yes. The enclosure measures 108 x 67 x 36 mm and the unit weight is 0.405 kg, so it is relatively compact for portable charger applications. Its DC output uses the standard P1J plug (2.1 x 5.5 x 11 mm, center positive).

What protection and safety features does the GC30E-1P1J include?

The GC30E-1P1J includes overload, over-voltage, and over-temperature protection. It is approved to TUV BS EN/EN62368-1 and EAC TP TC 004, and lists EMC compliance including BS EN/EN55014-1 Class B and FCC Part 15 Class B.

What operating environment is specified for the GC30E-1P1J?

The specified working temperature range is 0 to +50°C, with reference to the derating curve. This model is intended for use within that ambient range rather than extreme hot or sub-zero conditions.

How can buyers identify charging status on the GC30E-1P1J?

This model includes a 2-color LED indicator for charging status: red while charging and green during float charging. That gives a simple visual status indication without requiring extra monitoring hardware on the charger itself.
