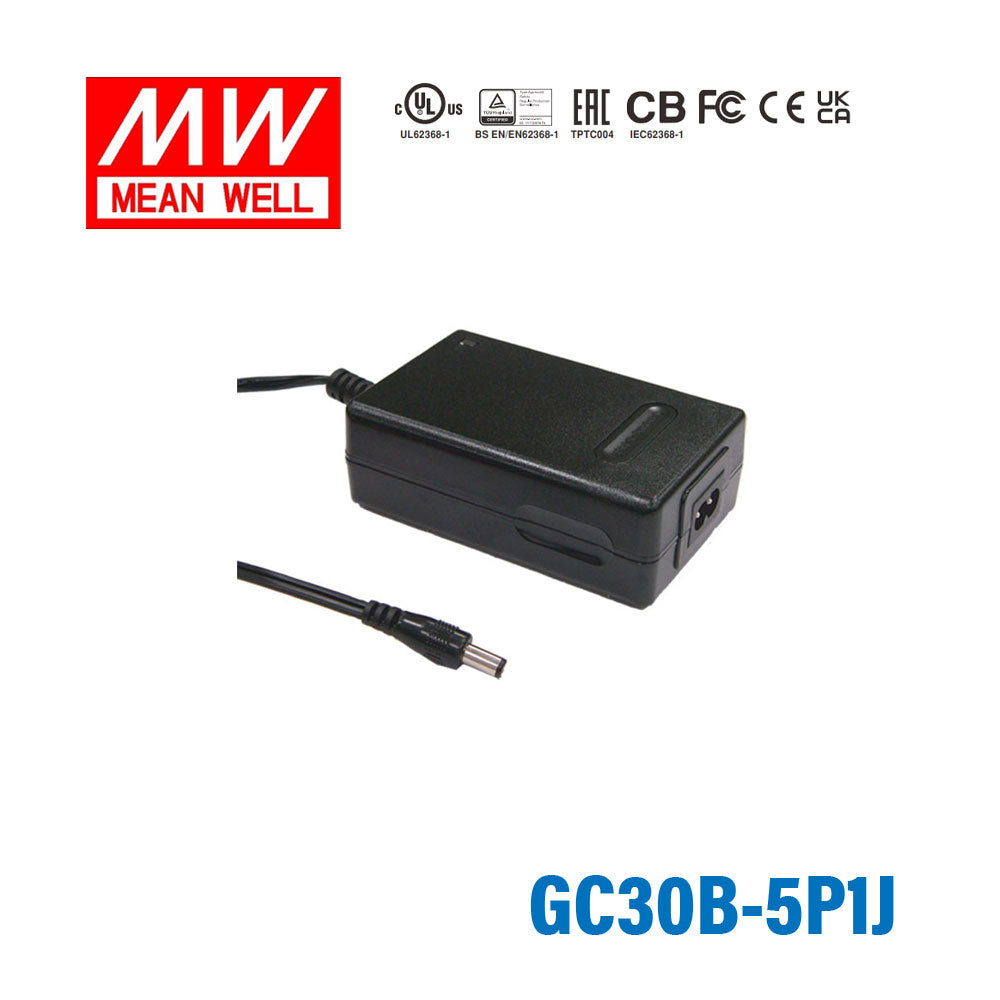

Mean Well GC30B-5P1J Portable Chargers 27W 16.8V 1.6A - Green Adaptor

Name: Mean Well GC30B-5P1J Portable Chargers 27W 16.8V 1.6A - Green Adaptor
Brand: Mean Well
SKU: GC30B-5P1J
Price: 35.01 USD
Availability: InStock

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment

SKU GC30B-5P1J

$35.01 USD

Shipping calculated at checkout.

Available to order

Overview

GC30B-5P1J is the model of this series: rated current 1.6A, rated power 27W, typical efficiency 78%.

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
Universal AC input / Full range
2 pole AC Inlet IEC320-C8
Class II power (without earth pin)
No load power consumption <1.0W
Constant current and voltage(CC,CV mode)
Suitable for continue load
For high surge current equipment
Protections: Short circuit / Overload / Over voltage / Over temp.
2 colors LED indicate for charging status
Fully enclosed plastic case
High reliability
Approvals: UL / CUL / TUV / EAC / CB / FCC / CE / UKCA
2 years warranty

Specifications

GC30B-5P1JSpecifications from the official datasheet (2025-01-23 edition)

OUTPUT

SAFETY MODEL NO.: GC30B-5
DC VOLTAGE SET AT^Note.3: 16.8V
RATED CURRENT: 1.6A
CURRENT RANGE: 0 ~ 1.6A
RATED POWER: 27W
RIPPLE & NOISE (max.)^Note.4: 100mVp-p
CHARGING VOLTAGE RANGE^Note.5: 16 ~ 17V
LINE REGULATION^Note.6: ±0.5%
LED INDICATOR: Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME: 200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 78%
AC CURRENT: 0.7A /100VAC; 0.35A/230VAC
INRUSH CURRENT (max.): 40A/230VAC
LEAKAGE CURRENT(max.): 0.25mA /240VAC

PROTECTION

OVERLOAD: 90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE: IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: 0 ~ +50℃(Refer to output load derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA22.2, BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION: 108*67*36mm (L*W*H)
PACKING: 309g; 54pcs / 19kg / CARTON

CONNECTOR

PLUG: Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE: Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested

Test conditions and notes6

1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
5.Output charging voltage range is measured from 0% to 100% rated load.
6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30B-5P1J Mechanical Specification — Mechanical Specification

GC30B-5P1J Charging Curve — Charging Curve

GC30B-5P1J Derating Curve — Derating Curve

Downloads

Certificates8

Mean Well GC30-UK-dec Certificate PDF Download

Mean Well GC30(B-E)-TUV Certificate PDF Download

Mean Well GC30(U-B-E)-CB(UL) Certificate PDF Download

Mean Well GC30(U-B-E)-CB(TUV) Certificate PDF Download

Mean Well GC30-FCC-CER.PDF Certificate PDF Download

Mean Well GC30B-E-EMC Certificate PDF Download

Mean Well GC30(B-E)-CE-dec Certificate PDF Download

Mean Well 0123808-EAC Certificate PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What type of battery charger is the Mean Well GC30B-5P1J?

The GC30B-5P1J is a 27W portable charger with a 16.8V output and 1.6A rated current. It is designed for charging supported battery types using constant current and constant voltage operation, and it includes a 2-color LED charging status indicator.

Which battery chemistries is the GC30B-5P1J intended for?

This model is listed for lead-acid batteries including flooded, gel, and AGM types. It is also described as suitable for certain lithium-ion battery chemistries, including lithium iron and lithium manganese variants.

Is the GC30B-5P1J suitable for portable or field-use equipment?

Yes. This is a portable charger in a compact 108 x 67 x 36 mm case weighing 309g, which supports use where space and portability matter. Its 90 to 264VAC input range also makes it practical for varied business environments.

What protection features are included on the GC30B-5P1J?

The GC30B-5P1J includes overload, over-voltage, and over-temperature protection. Overload uses constant current limiting and over-temperature shuts down the output, both recovering automatically; over-voltage at 110% to 135% of rated output is clamped by a zener diode.

What input range and operating temperature does this charger support?

This model accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. Its specified working temperature range is 0 to 50 degrees C, with derating referenced by the manufacturer.

Does the GC30B-5P1J meet common safety and EMC approvals?

Yes. The datasheet lists safety standards UL62368-1, CSA22.2, BS EN/EN62368-1, and EAC TP TC 004, with EMC emission compliance to BS EN/EN55014-1 Class B, FCC Part 15 Class B, and EAC TP TC 020.
