Mean Well

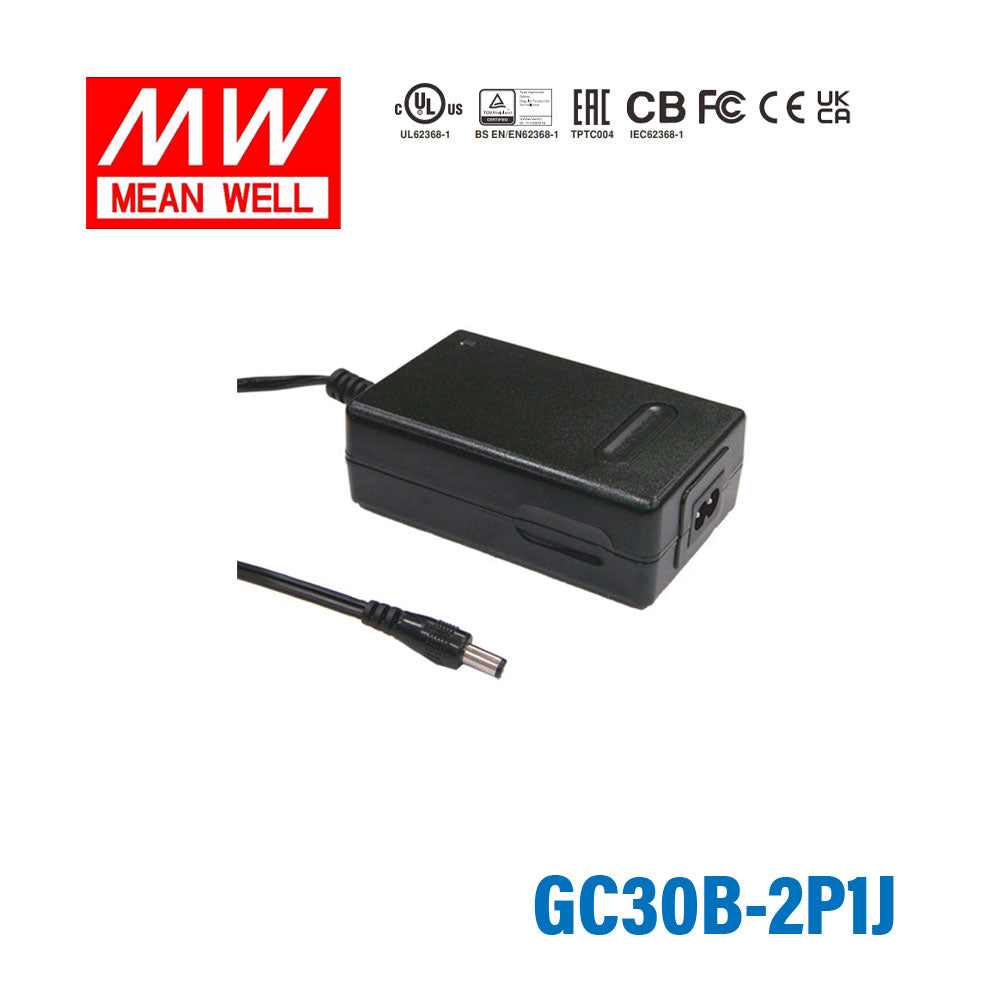

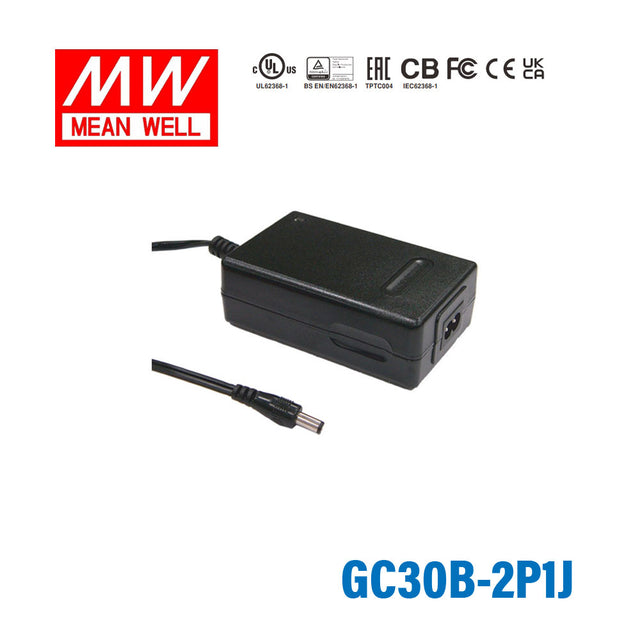

Mean Well GC30B-2P1J Portable Chargers 25.2W 8.4V 3A - Green Adaptor

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment
SKU GC30B-2P1J
$35.01 USD
Shipping calculated at checkout.
Available to order
|

Overview

GC30B-2P1J is the model of this series: rated current 3A, rated power 25.2W, typical efficiency 76%.

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
  • Universal AC input / Full range
  • 2 pole AC Inlet IEC320-C8
  • Class II power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC30B-2P1JSpecifications from the official datasheet (2025-01-23 edition)

OUTPUT

SAFETY MODEL NO.
GC30B-2
DC VOLTAGE SET ATNote.3
8.4V
RATED CURRENT
3A
CURRENT RANGE
0 ~3A
RATED POWER
25.2W
RIPPLE & NOISE (max.)Note.4
80mVp-p
CHARGING VOLTAGE RANGENote.5
7.7 ~ 8.6V
LINE REGULATIONNote.6
±0.5%
LED INDICATOR
Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
76%
AC CURRENT
0.7A /100VAC; 0.35A/230VAC
INRUSH CURRENT (max.)
40A/230VAC
LEAKAGE CURRENT(max.)
0.25mA /240VAC

PROTECTION

OVERLOAD
90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE
IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃(Refer to output load derating curve)
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, CSA22.2, BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
108*67*36mm (L*W*H)
PACKING
309g; 54pcs / 19kg / CARTON

CONNECTOR

PLUG
Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE
Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
Test conditions and notes6
  1. 1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  3. 3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
  4. 4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  5. 5.Output charging voltage range is measured from 0% to 100% rated load.
  6. 6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30B-2P1J Mechanical Specification
Mechanical Specification
GC30B-2P1J Charging Curve
Charging Curve
GC30B-2P1J Derating Curve
Derating Curve

Downloads

FAQ

What type of product is the Mean Well GC30B-2P1J?

The GC30B-2P1J is a portable AC/DC charger and power adaptor rated at 25.2W. It provides an 8.4V DC output at up to 3A in a compact 108 x 67 x 36 mm case.

What batteries or applications is the GC30B-2P1J intended for?

Mean Well lists this model for charging supported lead-acid batteries, including flooded, gel, and AGM types, as well as certain lithium-ion battery applications. Buyers should confirm that the battery system requires an 8.4V charger profile and matches this model's charging characteristics.

What are the key electrical specifications of the GC30B-2P1J?

This model is rated for 25.2W output with a nominal 8.4V DC output and 3A rated current. It accepts a universal input range of 90 to 264VAC or 127 to 370VDC and operates in constant current and constant voltage modes.

Is the GC30B-2P1J suitable for international AC input ranges?

Yes. Its universal AC input range of 90 to 264VAC makes it suitable for use across common global mains voltages, subject to local approvals and application requirements.

Can this charger be used in demanding operating environments?

The GC30B-2P1J is specified for operation from 0°C to 50°C, with derating referenced by the manufacturer. It also includes protection features for overload, over-voltage, and over-temperature conditions.

What certifications and compliance approvals does this model have?

This charger lists safety standards UL62368-1, CSA22.2, BS EN/EN62368-1, and EAC TP TC 004, with EMC emission compliance to BS EN/EN55014-1 Class B, FCC Part 15 Class B, and EAC TP TC 020.

How compact is the Mean Well GC30B-2P1J for portable use?

The housing measures 108 x 67 x 36 mm and the unit weight is approximately 309 g. That makes it a compact option for portable charging applications where space and handling matter.

Does the GC30B-2P1J include a warranty and status indication?

It includes a 2-color LED indicator to show charging status: red while charging and green during float charging. The datasheet does not state a warranty period, so confirm warranty terms with the seller.
