Mean Well

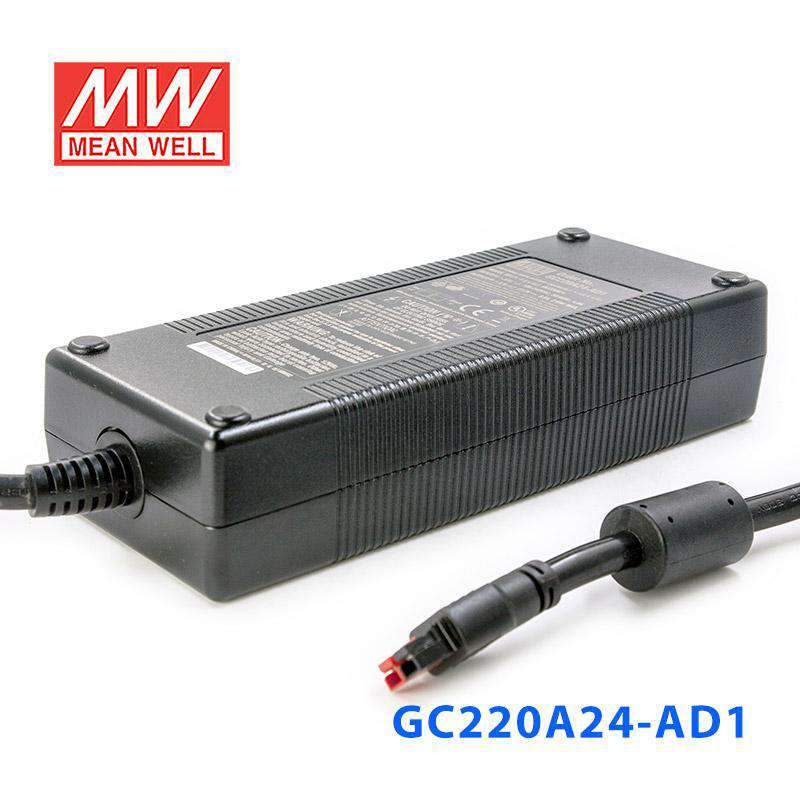

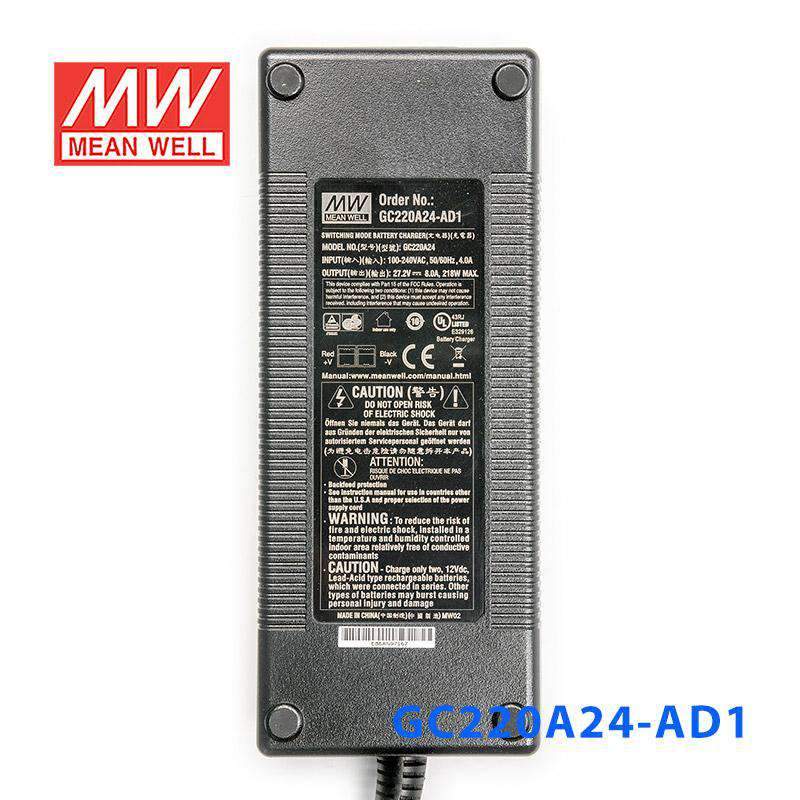

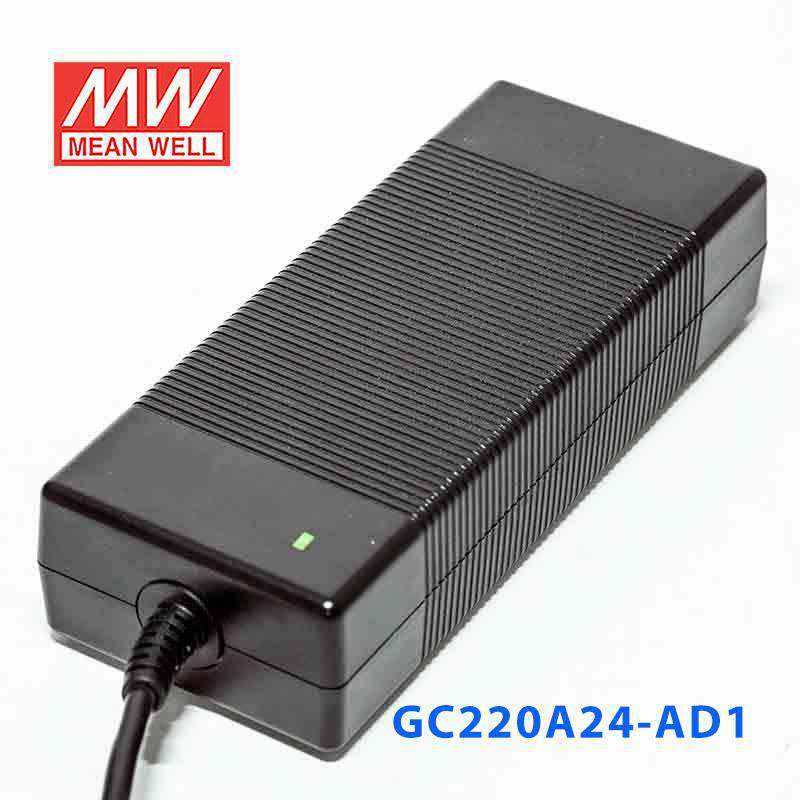

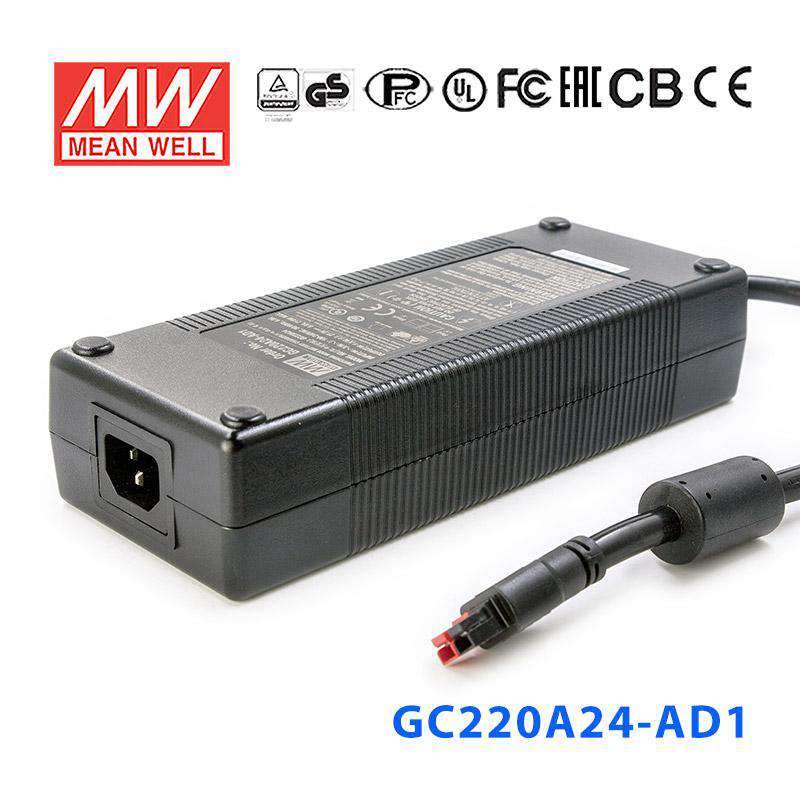

Mean Well GC220A24-AD1 Portable Chargers 217.6W 27.2V 8A - Green Adaptor

SKU GC220A24-AD1
$76.50 USD
Shipping calculated at checkout.
In stock
|

Overview

GC220A24-AD1 is the model of this series: rated power 217.6W, typical efficiency 92.5%.

Features

  • Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.90
  • No load power consumption<1W

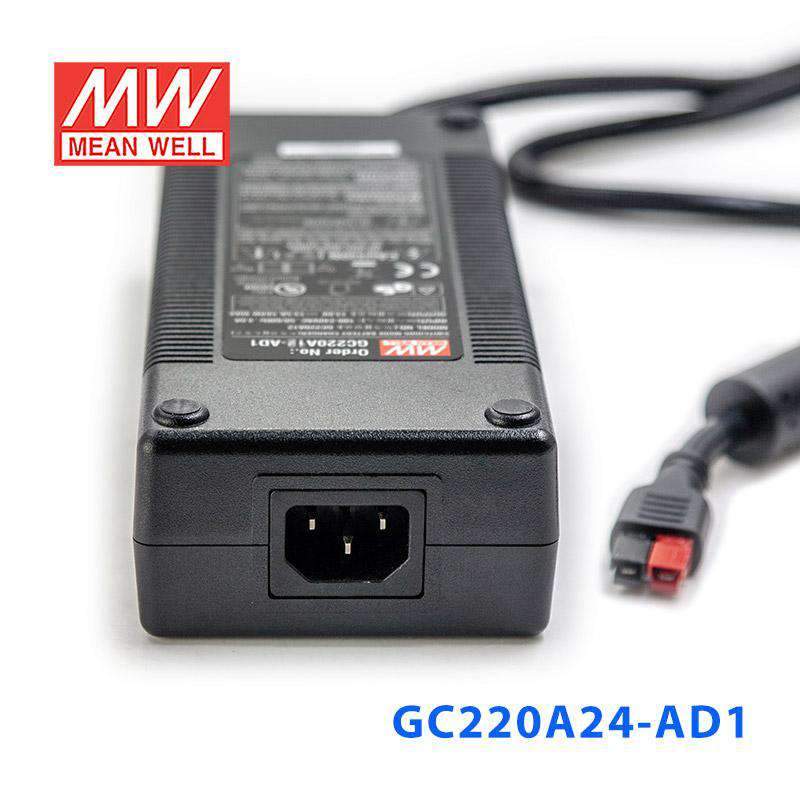

  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • Approvals: UL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC220A24-AD1Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

SAFETY MODEL NO.
GC220A24
DC VOLTAGE (Typ.)
27.2V
RECOMMENDED BATTERY CAPACITYNote.3
40 ~ 125Ah
CONTINUOS OUTPUT CURRENT (Typ.)
8A
RATED POWER
217.6W
LED INDICATOR
Charging(CC) : RED Floating charging(CV) : GREEN

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.90 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.)
92.5%
AC CURRENT
4A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.)
120A / 230VAC
LEAKAGE CURRENT(max.)
1.5mA / 240VAC

PROTECTION

OVERLOADNote.5
90 ~ 110% rated output power Protection type : Constant current limiting recovers automatically after fault condition is removed
SHORT CIRCUIT
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
95℃±10℃(TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0~50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote. 6
UL1012 (for GC220Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, EAC TP TC 020

OTHERS

MTBF
1557.3K hrs min. Telcordia SR-332 (Bellcore) ; 170.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
210*85*46mm (L*W*H)
PACKING
1.1Kg; 12pcs/14.2Kg/0.73CUFT(GC220Axx-R7B) 1.2Kg; 12pcs/15.4Kg/1CUFT(GC220Axx-AD1)

CONNECTOR

PLUG
See page 2 ; Other type available by customer requested
CABLE
See page 2 ; Other type available by customer requested
Test conditions and notes7
  1. 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  3. 3. This is MeanWell's suggested range, please consult your battery manufacturer for their suggestions about maximum charging current limitation.
  4. 4. Derating may be needed under low input voltage. Please check the derating curve for more details.
  5. 5. Constant current operation region is within 50~100% rated output voltage.
  6. 6. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that whole system complies with the EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

GC220A24-AD1 Mechanical Specification
Mechanical Specification
GC220A24-AD1 Plug Assignment
Plug Assignment
GC220A24-AD1 Derating Curve
Derating Curve

Downloads

FAQ

What are the main output ratings of the Mean Well GC220A24-AD1?

The GC220A24-AD1 is rated for 217.6W total output power. It provides a 27.2V output at 8A continuous output current, which makes it a higher-power battery charger in Mean Well's GC220 series.

Is the GC220A24-AD1 a battery charger or a power supply?

The datasheet describes this model as a single output battery charger with a 2-stage charging characteristic for lead-acid and Li-ion batteries. Its charging-focused features and charging status LED make it especially relevant for buyer evaluations as a charger.

What input range does the GC220A24-AD1 support?

The unit accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. That full-range input makes it suitable for buyers sourcing one charger model for different regions or power environments.

Can the GC220A24-AD1 be used in demanding industrial or commercial environments?

It is built with multiple protections including short circuit, overload, over voltage, and over temperature protection. The operating temperature range is -30°C to +60°C, and the enclosed plastic case uses free air convection cooling, which supports use in a wide range of commercial environments.

How efficient is the Mean Well GC220A24-AD1?

This model has a typical efficiency of 92.5%. It also has no-load power consumption below 1W, which can help reduce standby energy use in applications where the charger is not always actively charging.

What safety and compliance standards are listed for the GC220A24-AD1?

The GC220A24-AD1 is listed with UL1012 (GC220Axx-AD1 only), TUV BS EN/EN62368-1 and EAC TP TC 004 approval. Its EMC standards include BS EN/EN55032 Class B, FCC Part 15 Class B, and multiple EN61000 immunity and harmonic standards.

What physical size and cable details should buyers know for the GC220A24-AD1?

The charger measures 210 x 85 x 46 mm and weighs 1.2 kg. It includes a 1000mm (±50mm) SJTW 14AWG 2C output cable and uses an Anderson DC connector, which can matter when matching it to an existing equipment requirement.
