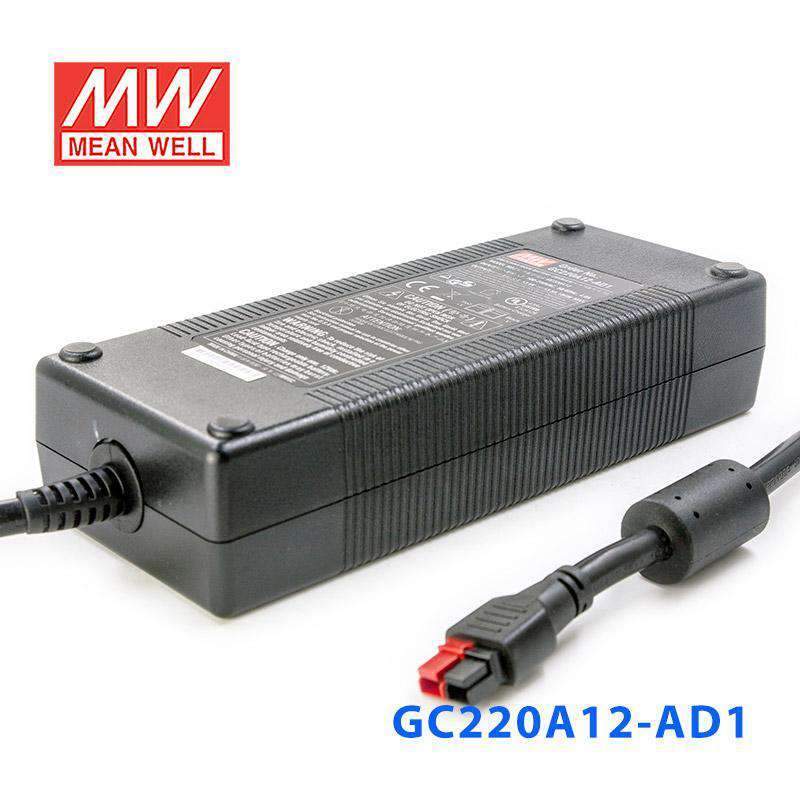

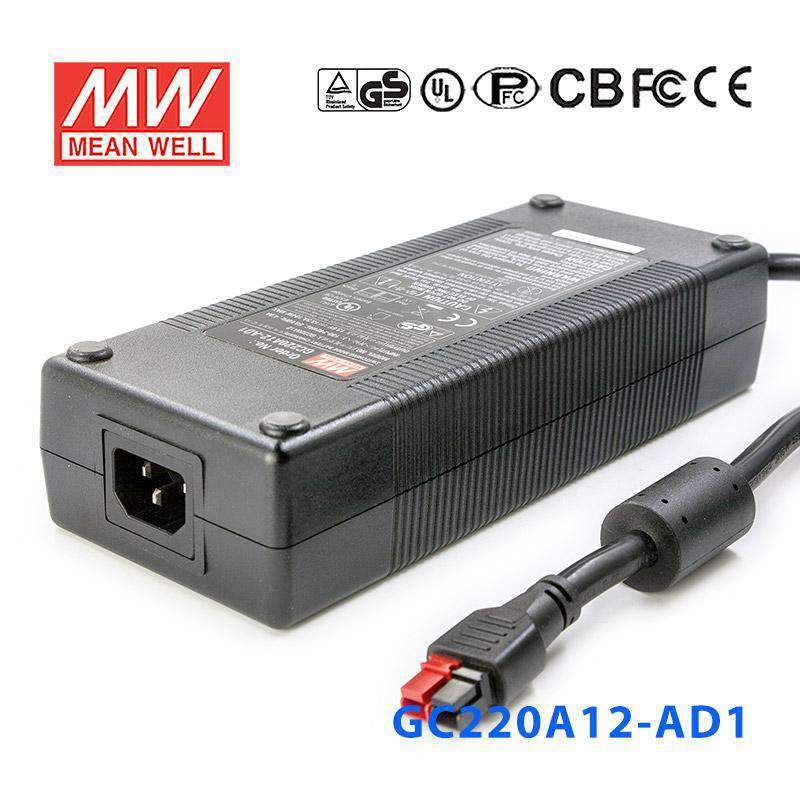

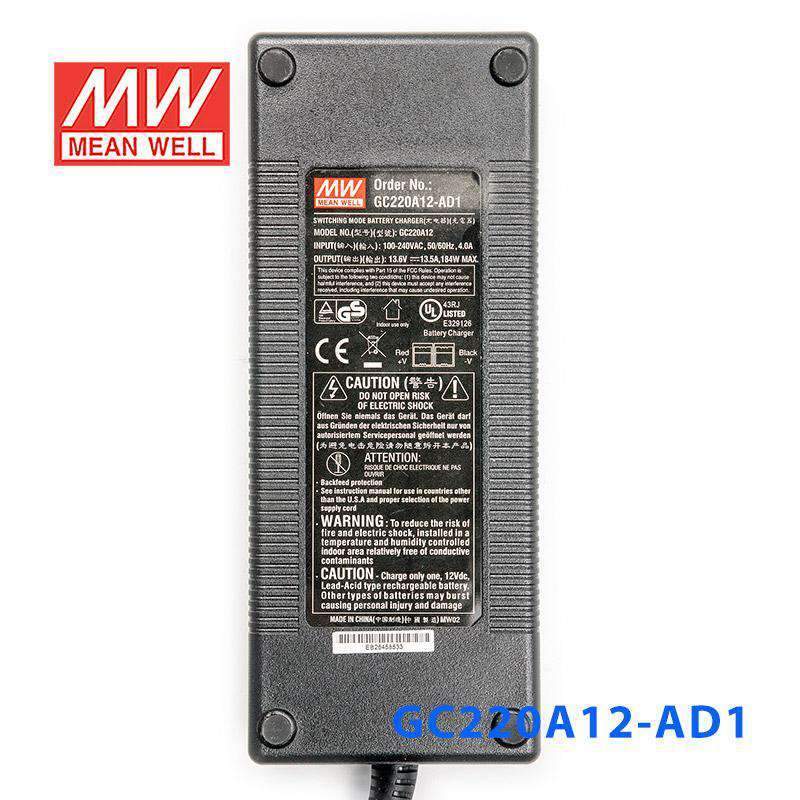

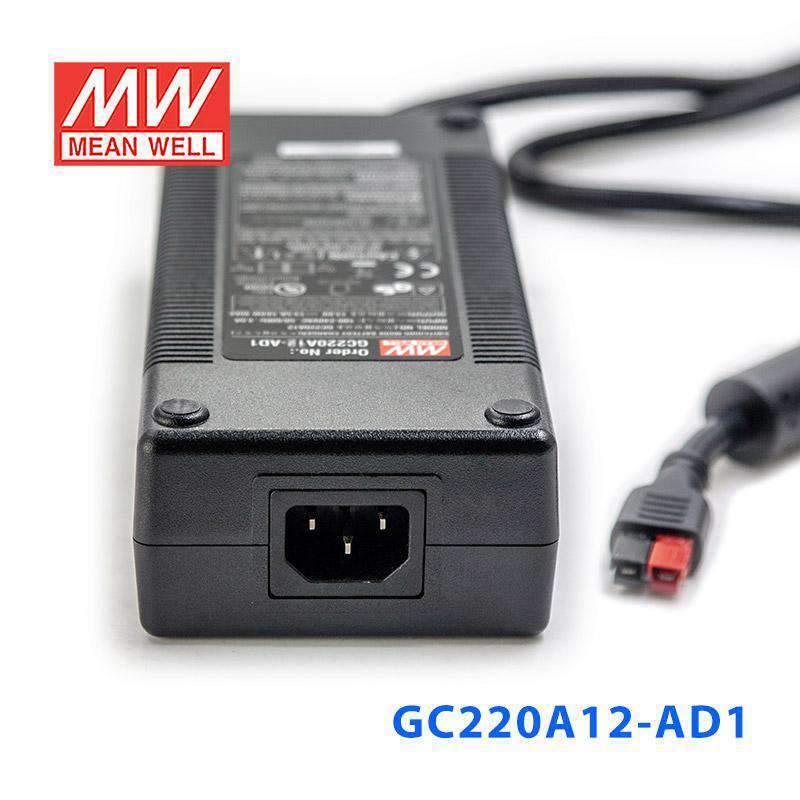

Mean Well GC220A12-AD1 Portable Chargers 183.6W 13.6V 13.5A - Green Adaptor

SKU GC220A12-AD1
$76.50 USD
Shipping calculated at checkout.
In stock
|

Overview

GC220A12-AD1 is the model of this series: rated power 183.6W, typical efficiency 89%.

Features

  • Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.90
  • No load power consumption<1W
  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully enclosed plastic case

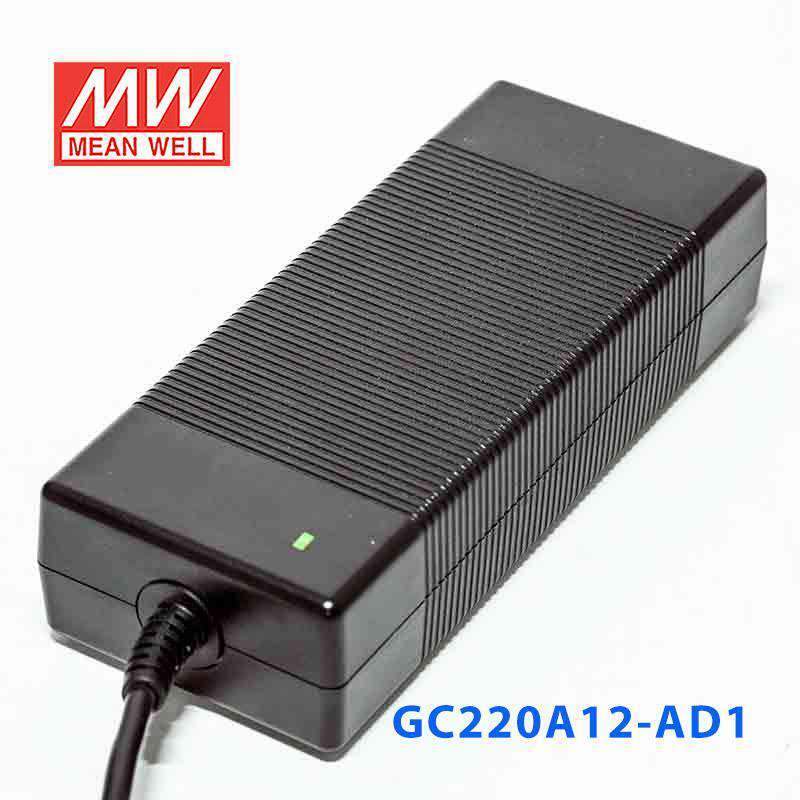

  • 2 color LED indicator for charging status
  • Approvals: UL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC220A12-AD1Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

SAFETY MODEL NO.
GC220A12
DC VOLTAGE (Typ.)
13.6V
RECOMMENDED BATTERY CAPACITYNote.3
80 ~ 200Ah
CONTINUOS OUTPUT CURRENT (Typ.)
13.5A
RATED POWER
183.6W
LED INDICATOR
Charging(CC) : RED Floating charging(CV) : GREEN

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.90 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.)
89%
AC CURRENT
4A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.)
120A / 230VAC
LEAKAGE CURRENT(max.)
1.5mA / 240VAC

PROTECTION

OVERLOADNote.5
90 ~ 110% rated output power Protection type : Constant current limiting recovers automatically after fault condition is removed
SHORT CIRCUIT
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
95℃±10℃(TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0~50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote. 6
UL1012 (for GC220Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, EAC TP TC 020

OTHERS

MTBF
1557.3K hrs min. Telcordia SR-332 (Bellcore) ; 170.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
210*85*46mm (L*W*H)
PACKING
1.1Kg; 12pcs/14.2Kg/0.73CUFT(GC220Axx-R7B) 1.2Kg; 12pcs/15.4Kg/1CUFT(GC220Axx-AD1)

CONNECTOR

PLUG
See page 2 ; Other type available by customer requested
CABLE
See page 2 ; Other type available by customer requested
Test conditions and notes7
  1. 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  3. 3. This is MeanWell's suggested range, please consult your battery manufacturer for their suggestions about maximum charging current limitation.
  4. 4. Derating may be needed under low input voltage. Please check the derating curve for more details.
  5. 5. Constant current operation region is within 50~100% rated output voltage.
  6. 6. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that whole system complies with the EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

GC220A12-AD1 Mechanical Specification
Mechanical Specification
GC220A12-AD1 Plug Assignment
Plug Assignment
GC220A12-AD1 Derating Curve
Derating Curve

Downloads

FAQ

What is the output rating of the Mean Well GC220A12-AD1?

The GC220A12-AD1 is rated for 183.6W with a 13.6V DC output and 13.5A continuous output current. That makes it suitable for higher-current 13.6V battery charging, with a recommended battery capacity of 80 to 200Ah, where a fully enclosed charger is preferred.

Is the GC220A12-AD1 designed as a portable charger or a fixed industrial power supply?

This model is a battery charger built in a fully enclosed plastic case, with an IEC320-C14 AC inlet and an Anderson output connector. It is cooled by free air convection, so no fan is needed, and it is intended for charging lead-acid and Li-ion batteries rather than as a general power supply.

What input range does the GC220A12-AD1 support?

The unit has a universal input range of 90 to 264VAC, and it also supports 127 to 370VDC input. This wide range makes it easier to use across different mains power environments without needing a separate input variant.

What charging features does the GC220A12-AD1 include?

The GC220A12-AD1 uses a 2-stage charging characteristic and has a 2-color LED indicator for charging status. It also includes built-in active PFC and low no-load power consumption of less than 1W.

What protection features are built into this charger?

This model includes protection for short circuit, overload, over voltage, and over temperature. Overload protection operates at 90 to 110% of rated output power with constant current limiting and auto-recovery, while over-voltage protection shuts the output down and requires re-powering to recover.

Can the GC220A12-AD1 be used in demanding temperature conditions?

The specified operating temperature range is -30°C to +60°C, subject to the derating curve. That gives it a broad environmental range for industrial or workshop use where ambient conditions may vary.

What output-side hardware comes standard with the GC220A12-AD1?

This model includes a 1000mm (±50mm) output cable using SJTW 14AWG 2C cable and an Anderson connector (housing Anderson 1327FP red / 1327G6FP black, contacts Anderson 261G2 or equivalent), identified as AD1. Buyers should confirm that the mating interface matches their equipment before purchase.
