Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

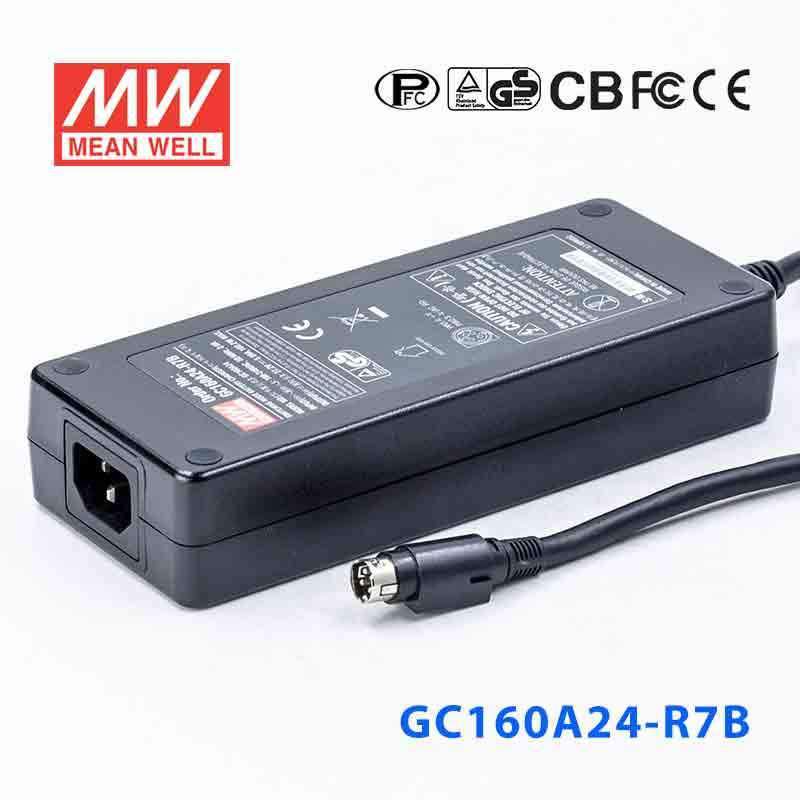

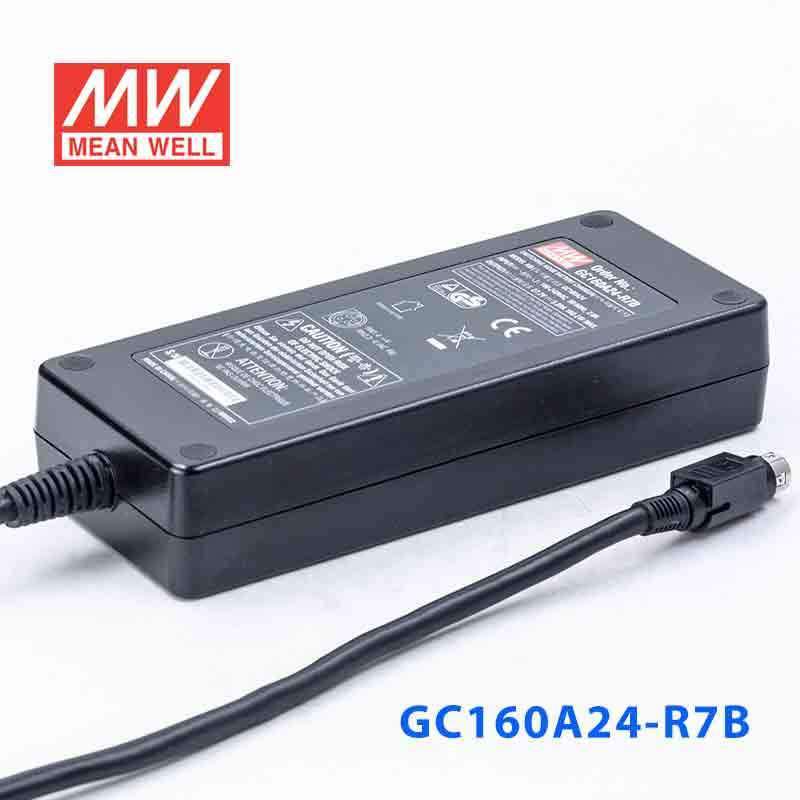

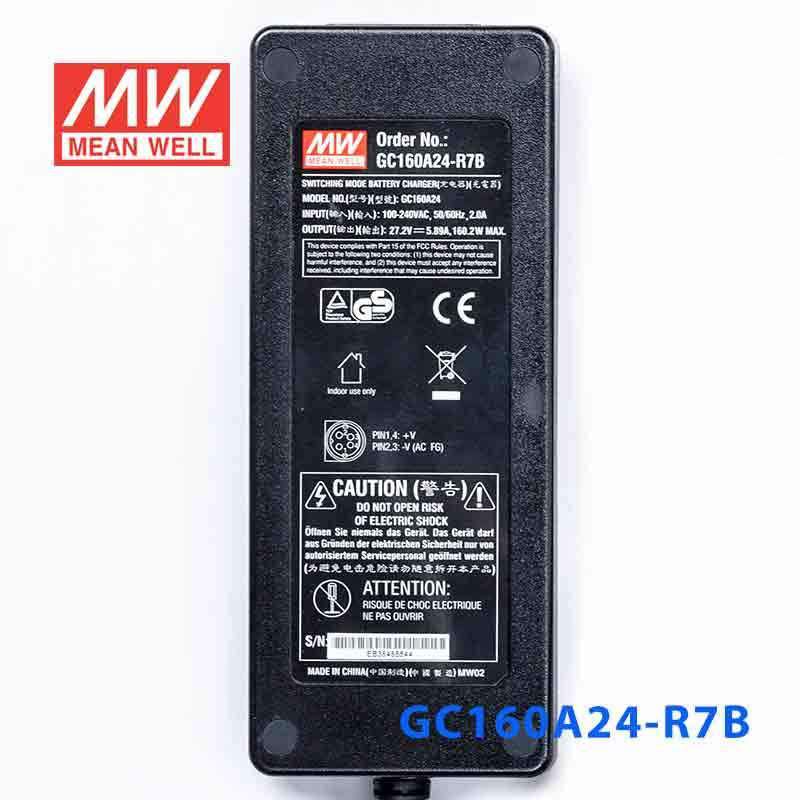

Mean Well GC160A24-R7B Portable Chargers 160.2W 27.2V 5.89A - Green Adaptor

class I powerno load power consumption < 1.0W2 stage charging
SKU GC160A24-R7B
$53.99 USD
Shipping calculated at checkout.
In stock
|

Overview

GC160A24-R7B is the model of this series: rated power 160.2W, typical efficiency 92.5%.

Features

  • Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.94
  • No load power consumption<1W

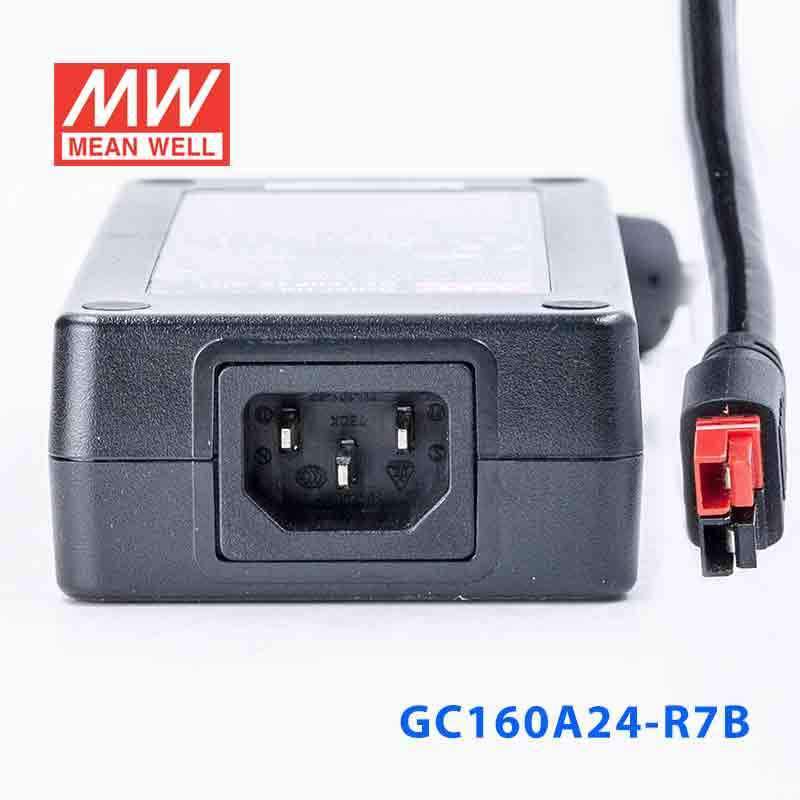

  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully enclosed plastic case

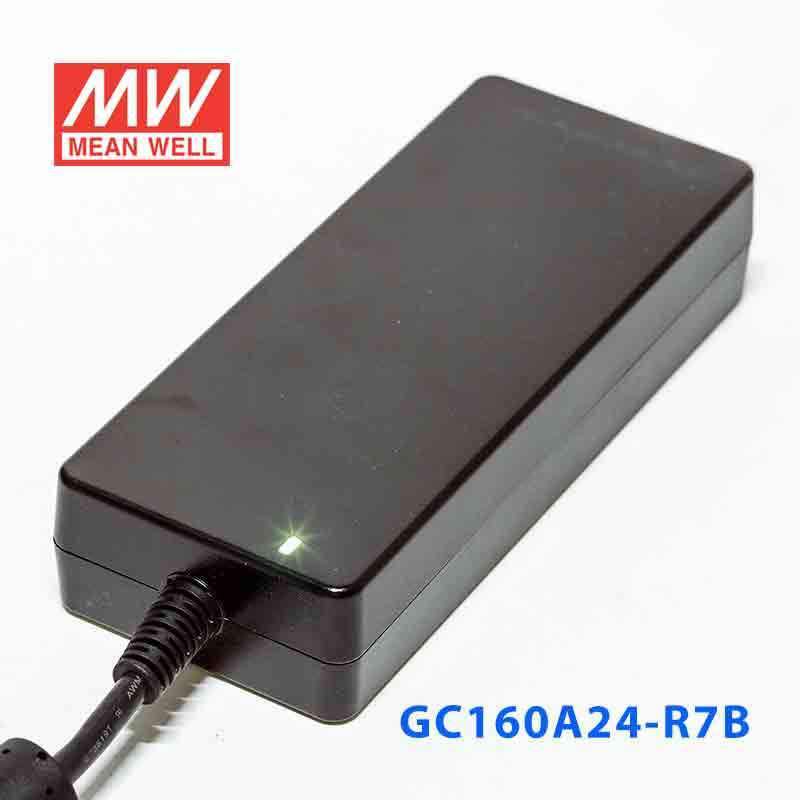

  • 2 color LED indicator for charging status
  • Approvals: UL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC160A24-R7BSpecifications from the official datasheet (2024-10-30 edition)

OUTPUT

SAFETY MODEL NO.
GC160A24
DC VOLTAGE (Typ.)
27.2V
RECOMMENDED BATTERY CAPACITYNote.3
30 ~ 90Ah
CONTINUOS OUTPUT CURRENT (Typ.)
5.89A
RATED POWER
160.2W
LED INDICATOR
Charging(CC) : RED Floating charging(CV) : GREEN

INPUT

VOLTAGE RANGENote.4
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.94 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.)
92.5%
AC CURRENT
1.85A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.)
120A / 230VAC
LEAKAGE CURRENT(max.)
0.75mA / 240VAC

PROTECTION

OVERLOADNote.5
90 ~ 110% rated output power Protection type : Constant current limiting recovers automatically after fault condition is removed
SHORT CIRCUIT
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
90℃±10℃ (RTH2) detect on inside ambient temperature Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0~50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.6
UL1012 (for GC160Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2197.9K hrs min. Telcordia SR-332 (Bellcore) ; 274.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
175*72*35mm (L*W*H)
PACKING
0.7Kg; 20pcs/15Kg/0.95CUFT(GC160Axx-R7B) 0.77Kg; 20pcs/16.4Kg/1.15CUFT(GC160Axx-AD1)

CONNECTOR

PLUG
See page 2 ; Other type available by customer requested
CABLE
See page 2 ; Other type available by customer requested
Test conditions and notes7
  1. 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  3. 3. This is MeanWell's suggested range, please consult your battery manufacturer for their suggestions about maximum charging current limitation.
  4. 4. Derating may be needed under low input voltage. Please check the derating curve for more details.
  5. 5. Constant current operation region is within 50~100% rated output voltage.
  6. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

GC160A24-R7B Mechanical Specification
Mechanical Specification
GC160A24-R7B Plug Assignment
Plug Assignment
GC160A24-R7B Derating Curve
Derating Curve

Downloads

FAQ

What is the output rating of the Mean Well GC160A24-R7B?

The GC160A24-R7B is rated for 160.2W output with a nominal output voltage of 27.2V and rated current of 5.89A. This makes it suitable for charging lead-acid or Li-ion batteries in that output range, with a recommended capacity of 30 to 90Ah.

Is the GC160A24-R7B intended to be used as a battery charger or a power supply?

The datasheet describes this model as a battery charger for lead-acid (flooded, Gel and AGM) and Li-ion batteries. Its 2-stage charging characteristic (constant current, then float charging at constant voltage) and red/green charging-status LED are built around battery charging use.

What input voltage range does the GC160A24-R7B accept?

The GC160A24-R7B accepts a universal AC input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide input range helps it work across many regional power environments without needing a separate input-specific version.

What connector type does the GC160A24-R7B use on the DC output side?

This model uses a 4-pin power DIN DC connector (KYCON KPP-4S or equivalent) in the R7B configuration. Buyers who need that specific plug style should verify that their equipment matches the R7B connector format before purchase.

Can the GC160A24-R7B be used in demanding temperature conditions?

The specified working temperature range is -30°C to +70°C, with reference to the derating curve. That gives it a broader operating range than many general indoor-only adapters, but performance at higher temperatures should be considered within the stated derating guidance.

What protection features are included in the GC160A24-R7B?

The GC160A24-R7B includes short circuit, overload, over-voltage, and over-temperature protection. Its overload protection operates at 90 to 110% of rated output power with constant current limiting and auto-recovery, while over-voltage protection shuts down the output and requires re-powering to recover.

What are the physical size and cable details of the GC160A24-R7B?

The enclosure measures 175 x 72 x 35 mm, and the unit weight is listed as 0.7 kg. The output cable length is 120 cm and uses UL2464 18AWG 4-conductor cable.

What makes the GC160A24-R7B different from a basic desktop power adapter?

Compared with a basic adapter, this model adds features aimed at industrial and battery-charging use, including active PFC, 92.5% typical efficiency, 2-stage charging behavior, and a 4-pin power DIN output connector. It also includes Class I grounding, low no-load power consumption under 1W, and charging-status LED indication.
