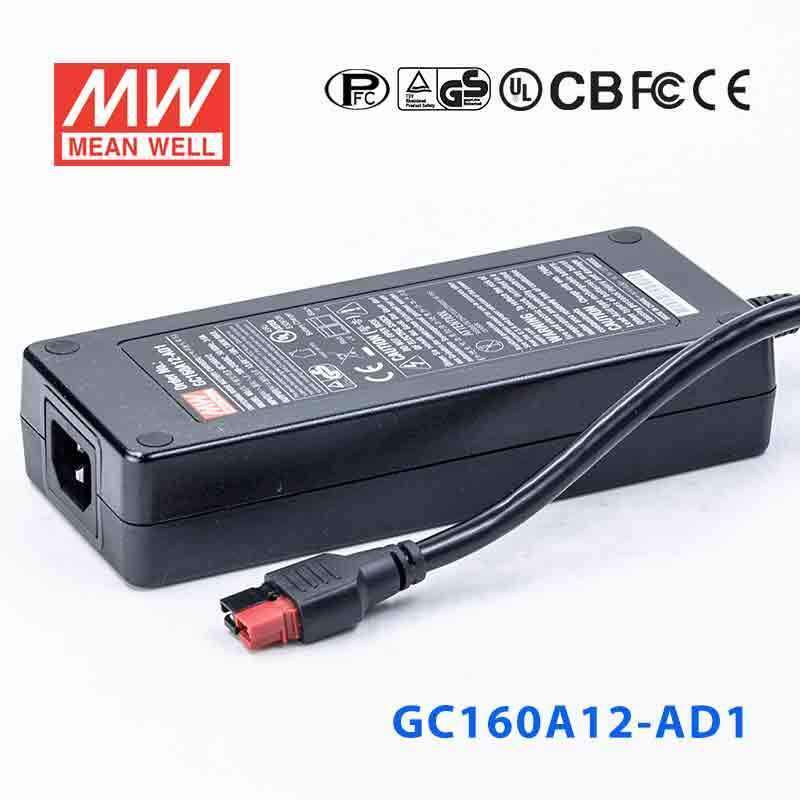

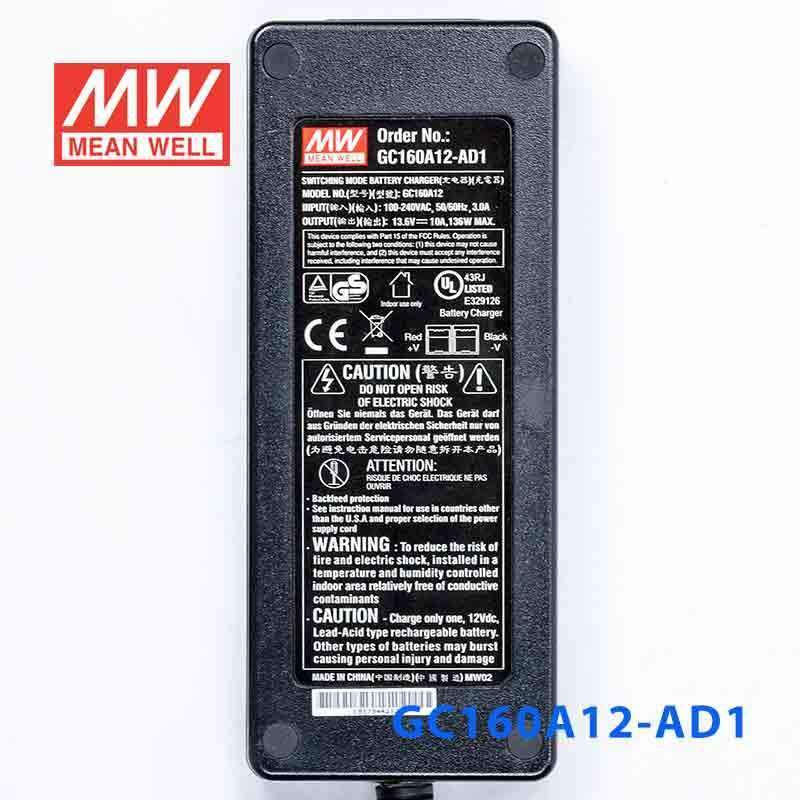

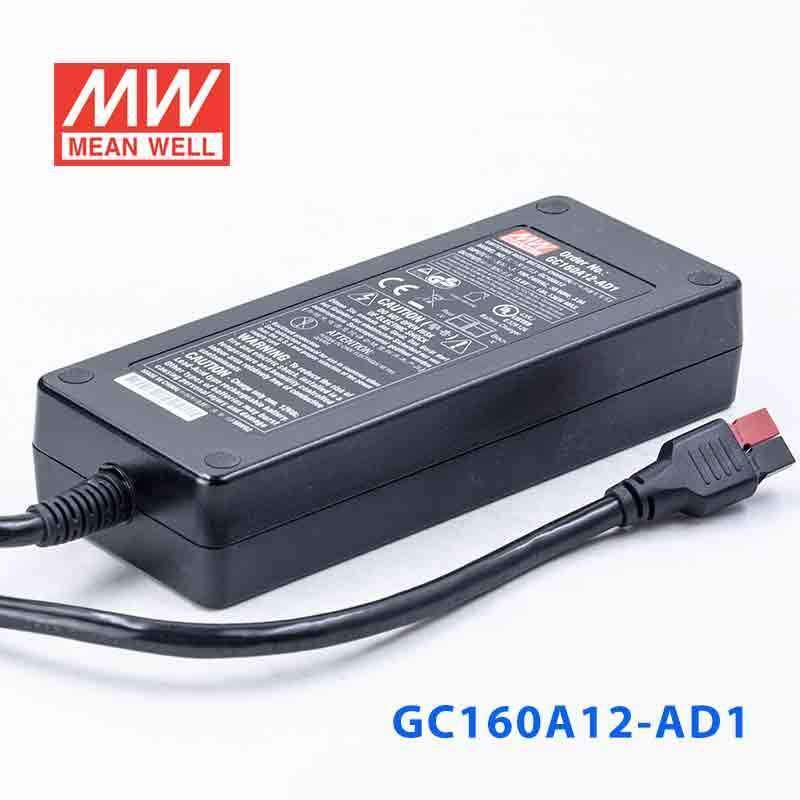

Mean Well GC160A12-AD1 Portable Chargers 136W 13.6V 10A - Green Adaptor

class I powerno load power consumption < 1.0W2 stage charging
SKU GC160A12-AD1
$53.99 USD
Shipping calculated at checkout.
In stock
|

Overview

GC160A12-AD1 is the model of this series: rated power 136W, typical efficiency 89%.

Features

  • Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.94
  • No load power consumption<1W

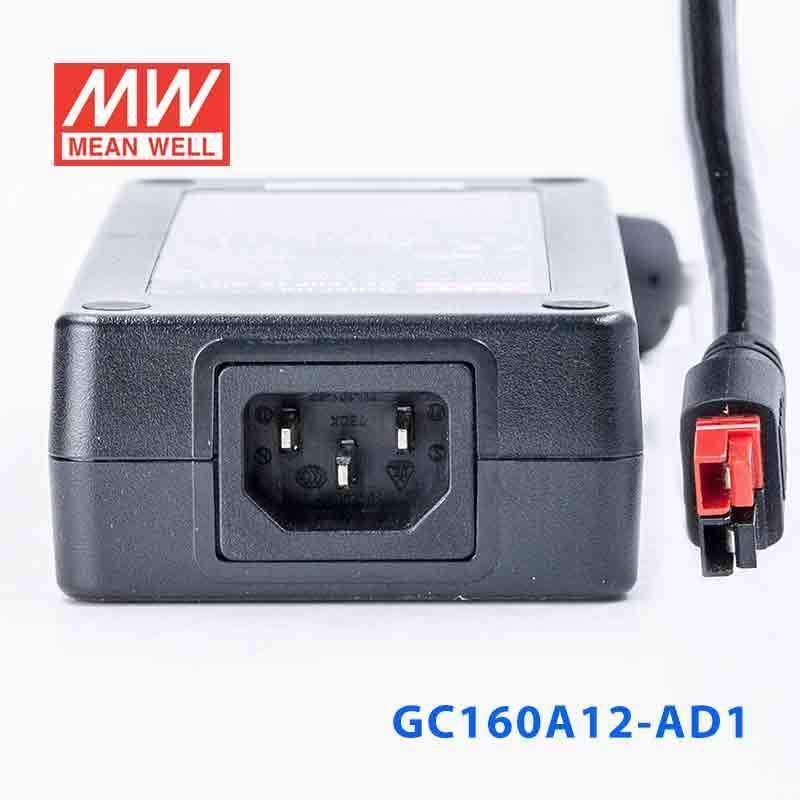

  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection

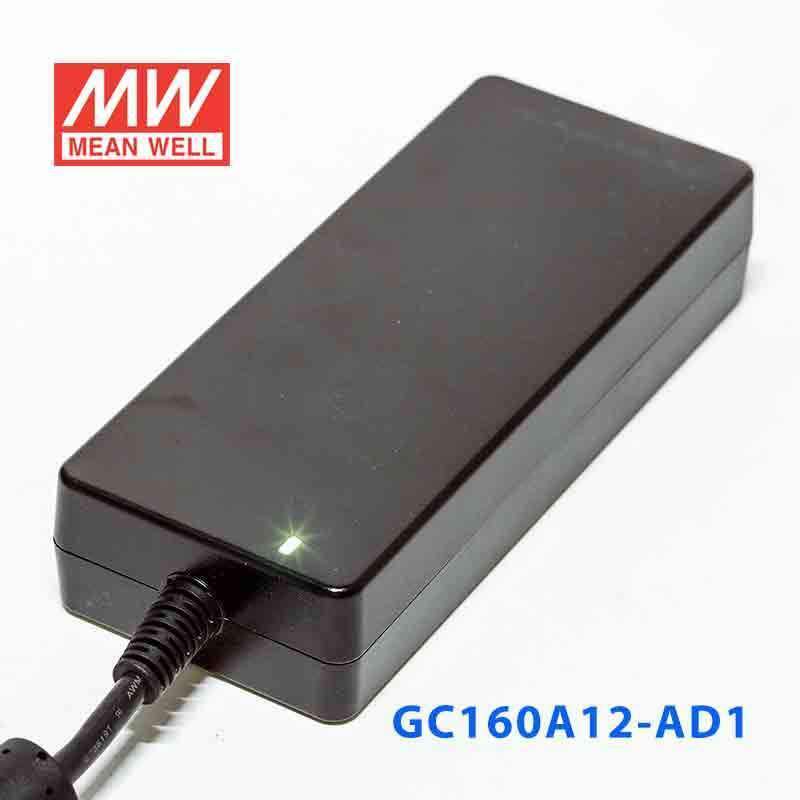

  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • Approvals: UL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC160A12-AD1Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

SAFETY MODEL NO.
GC160A12
DC VOLTAGE (Typ.)
13.6V
RECOMMENDED BATTERY CAPACITYNote.3
60 ~160Ah
CONTINUOS OUTPUT CURRENT (Typ.)
10A
RATED POWER
136W
LED INDICATOR
Charging(CC) : RED Floating charging(CV) : GREEN

INPUT

VOLTAGE RANGENote.4
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.94 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.)
89%
AC CURRENT
1.85A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.)
120A / 230VAC
LEAKAGE CURRENT(max.)
0.75mA / 240VAC

PROTECTION

OVERLOADNote.5
90 ~ 110% rated output power Protection type : Constant current limiting recovers automatically after fault condition is removed
SHORT CIRCUIT
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
90℃±10℃ (RTH2) detect on inside ambient temperature Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0~50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.6
UL1012 (for GC160Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2197.9K hrs min. Telcordia SR-332 (Bellcore) ; 274.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
175*72*35mm (L*W*H)
PACKING
0.7Kg; 20pcs/15Kg/0.95CUFT(GC160Axx-R7B) 0.77Kg; 20pcs/16.4Kg/1.15CUFT(GC160Axx-AD1)

CONNECTOR

PLUG
See page 2 ; Other type available by customer requested
CABLE
See page 2 ; Other type available by customer requested
Test conditions and notes7
  1. 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  3. 3. This is MeanWell's suggested range, please consult your battery manufacturer for their suggestions about maximum charging current limitation.
  4. 4. Derating may be needed under low input voltage. Please check the derating curve for more details.
  5. 5. Constant current operation region is within 50~100% rated output voltage.
  6. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

GC160A12-AD1 Mechanical Specification
Mechanical Specification
GC160A12-AD1 Plug Assignment
Plug Assignment
GC160A12-AD1 Derating Curve
Derating Curve

Downloads

FAQ

What is the output rating of the Mean Well GC160A12-AD1?

The GC160A12-AD1 is rated for 13.6V output at 10A, with a 136W power rating. This makes it suitable for charging lead-acid or Li-ion batteries, with a recommended battery capacity of 60 to 160Ah.

Is the GC160A12-AD1 designed as a portable charger?

It is a standalone battery charger in a fully enclosed plastic case with free air convection cooling and an IEC320-C14 AC inlet. Its compact 175 x 72 x 35 mm size and 0.77 kg weight make it easy to handle and move.

What input voltage range does the GC160A12-AD1 accept?

The GC160A12-AD1 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. This full-range input helps it work across different mains power environments.

What protection features are included in the GC160A12-AD1?

This model includes short circuit, overload, over voltage, and over temperature protection. Overload protection operates at 90 to 110% of rated output power with constant current limiting and auto-recovery, while over voltage protection shuts down the output until power is cycled.

Can the GC160A12-AD1 be used in demanding temperature conditions?

The specified operating temperature range is -30°C to +70°C, subject to the derating curve. That makes it a practical option for industrial and commercial environments where ambient temperatures may vary significantly.

How efficient is the Mean Well GC160A12-AD1?

The GC160A12-AD1 has a typical efficiency of 89% and no-load power consumption below 1W. These characteristics help reduce wasted energy compared with less efficient charger and power supply designs.

What compliance and warranty details are listed for the GC160A12-AD1?

The AD1 version is listed with UL1012, TUV BS EN/EN62368-1 and EAC approval, and EMC compliance including EN55032 Class B and FCC Part 15 Class B. It also comes with a 2-year warranty.
