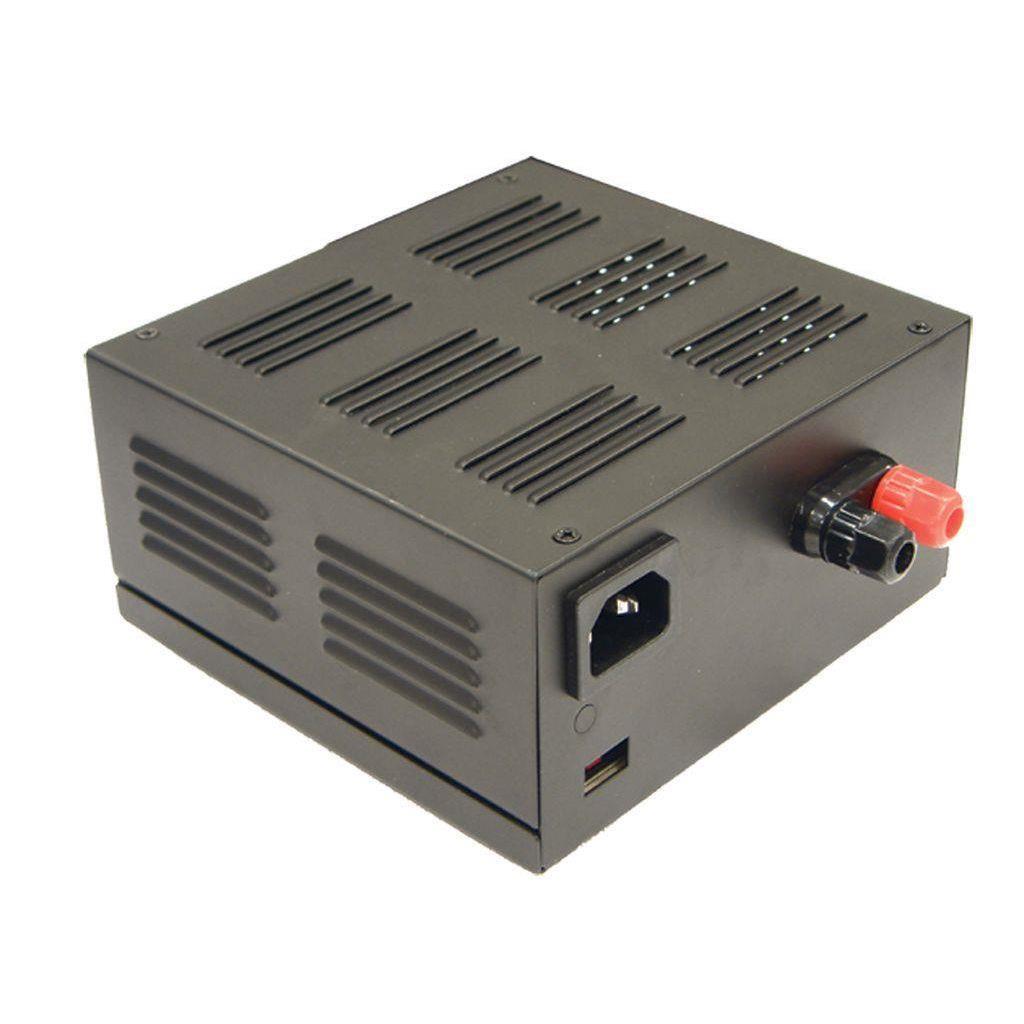

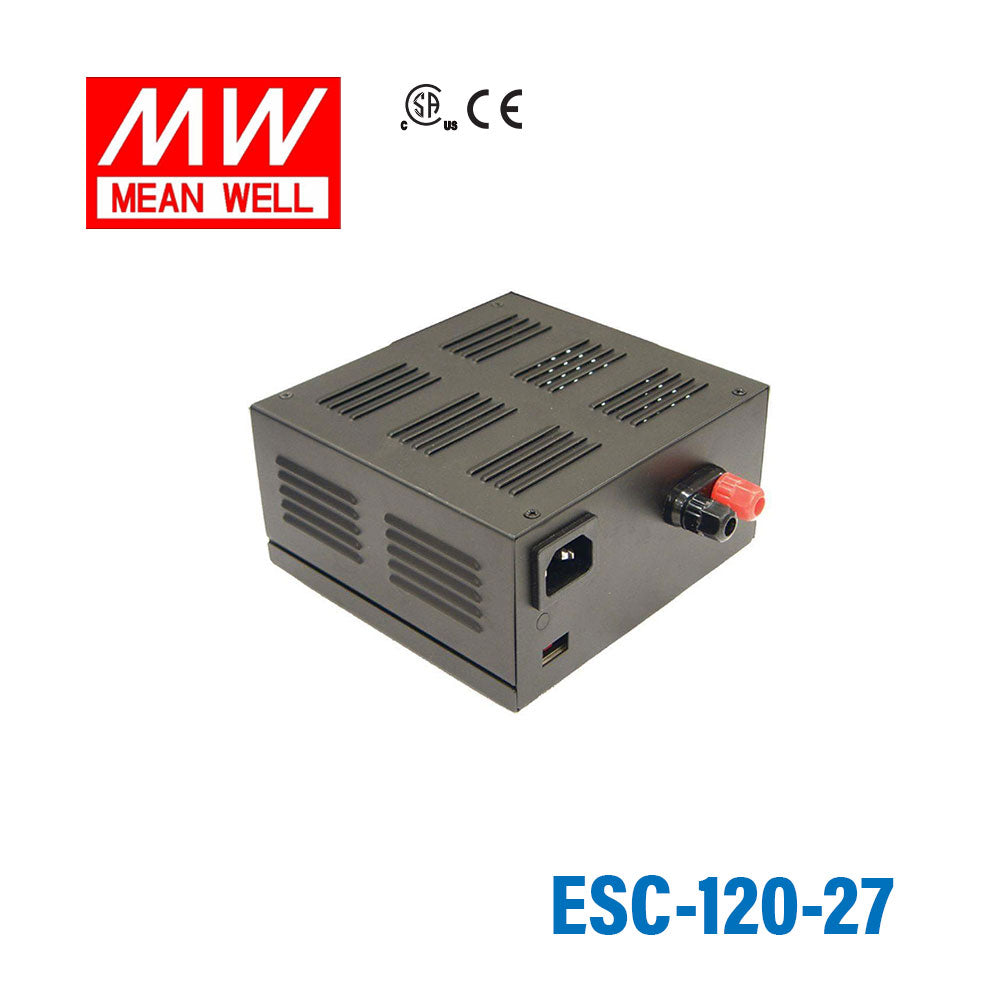

Mean Well ESC-120-27 AC-DC Desktop Power Supply or Charger 108W 27V...
$33.49 USD
Unit price /
Unavailable
Overview
ESC-120-27 is the 27V output model of this series: rated current 4A, rated power 108W, typical efficiency 83%.
Features
- AC input range selected by switch
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Battery under/Over voltage and polarity protections(ESC only)
- Forced air cooling by built-in DC fan(240W only)
- Fixed switching frequency at 25KHz
- 3 color LED loading indicator
- 2 years warranty
Specifications
ESC-120-27Specifications from the official datasheet (2018-01-04 edition)Download datasheet PDF
OUTPUT
- DC VOLTAGE
- 27V
- RATED CURRENT
- 4A
- CURRENT RANGE
- 0 ~ 4A
- RATED POWER
- 108W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 24 ~ 30V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 200ms, 100ms at full load
- HOLD UP TIME (Typ.)
- 36ms at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC/176 ~264VAC selected by switch 249 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 83%
- AC CURRENT (Typ.)
- 3A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 40A
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Fold back current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 31 ~ 36.5V Protection type : Constant voltage limiting, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- RTH5≧80℃ detect on heatsink of Q1,Q2 power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
- BATTERY
- ESC series with bat. polarity, bat. Under voltage, bat. Over voltage protection
FUNCTION
- FAN CONTROL
- NO FAN
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- CSA1010.1(UL3101-1,IEC1010-1,EN61010-1) approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4, light industry level, criteria A
OTHERS
- MTBF
- 215.8K hrs min.(ESC-120) 200.6K hrs min.(ESC-240) 250.9K Hrs min.(ESP-120) 226.6K Hrs min.(ESP-240) MIL-HDBK-217F (25℃)
- DIMENSION
- 150*140*86mm (L*W*H)
- PACKING
- 1.38Kg; 8pcs/12Kg/1.1CUFT(ESC-120)
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
