Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

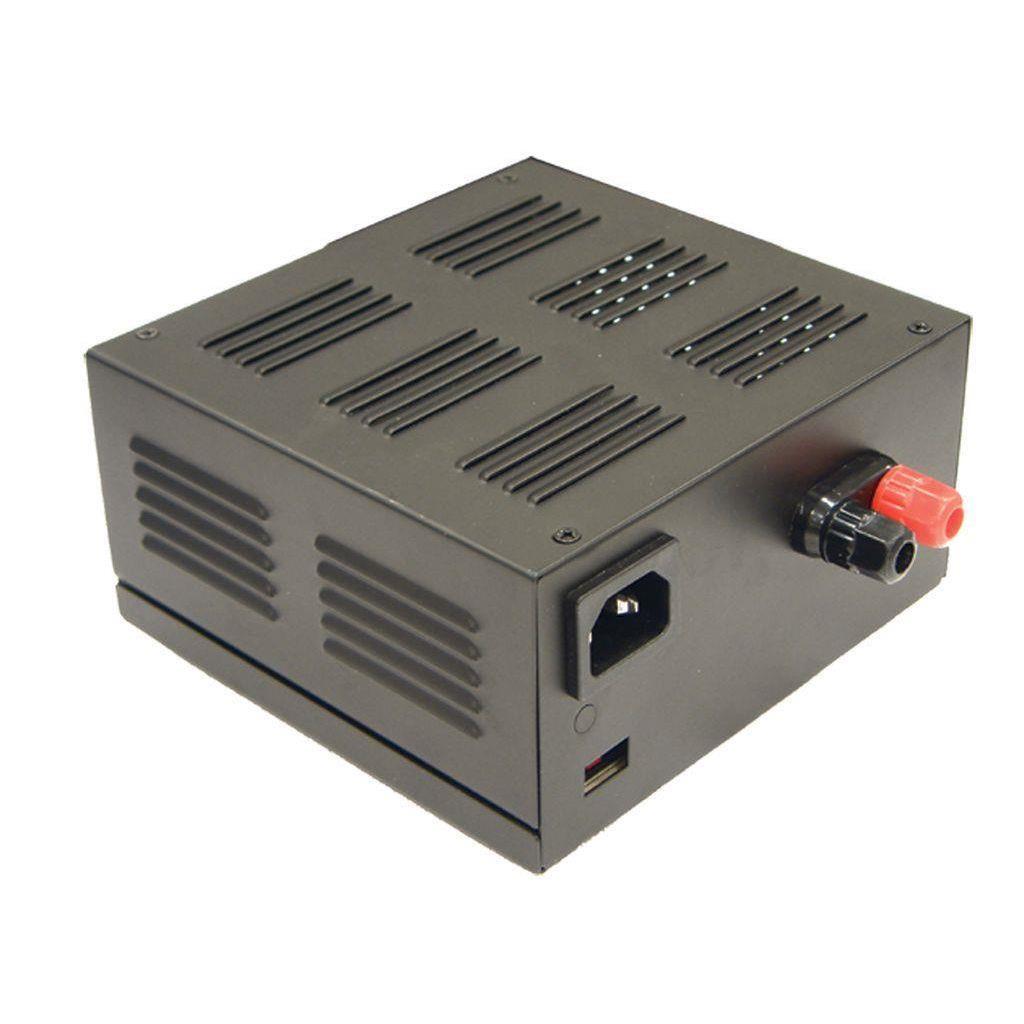

Mean Well ESC-120-13.5 Bench Top Power Supplies 108W 13.5V 8A

$33.49 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

AC-DC Desktop type charger with 3 pin IEC320-C14 input socket; Output 13.5VDC at 8A with banana plug; Under/Over voltage and polarity protection; Cooling by built-in DC fan; ESC-120-13.5 is succeeded by ENC-120-12.

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well ESC Series
  • Power Rating
    108 Watt
  • Output Voltage
    13.5 Volt
  • Rated Current
    0.00 Ampere
  • Input Voltage
    176V~264V
  • Standards Met
    CE,EAC,ENEC,FCC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    5.91 in
  • Width
    5.51 in
  • Height
    3.39 in
  • Weight
    3.04 lb

File Downloads

::specification::
