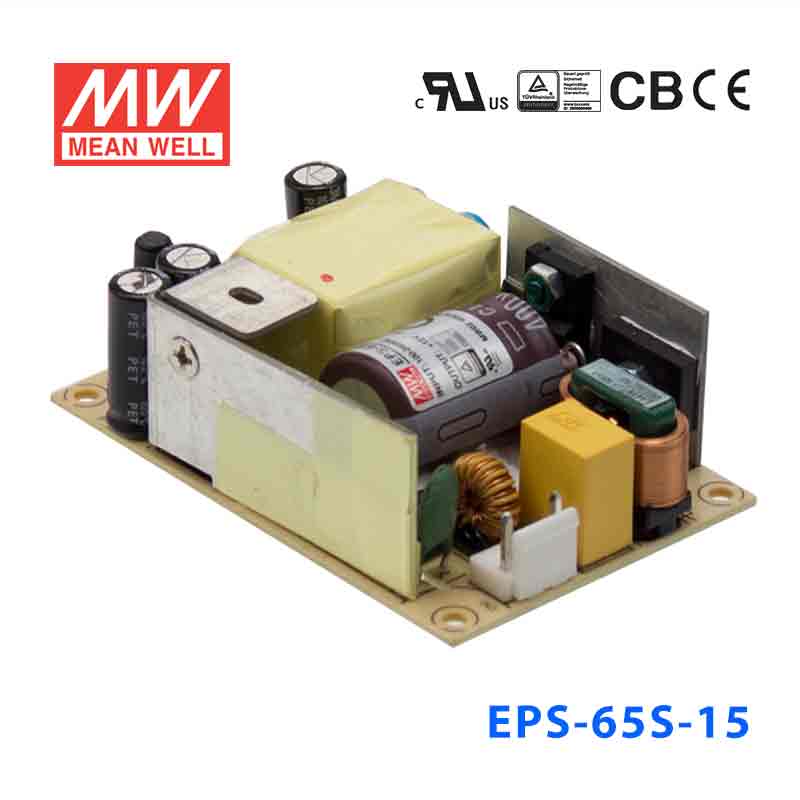

Mean Well EPS-65S-15 Power Supply 65W 15V 4.34A

Name: Mean Well EPS-65S-15 Power Supply 65W 15V 4.34A
Brand: Mean Well
SKU: EPS-65S-15
Price: 18.17 USD
Availability: InStock

3" x 2"economical non-PFCsmall sizehigh efficiency

SKU EPS-65S-15

$18.17 USD

Shipping calculated at checkout.

In stock

Overview

EPS-65S-15 is the 15V output model of this series: rated current 4.34A, rated power 65.1W, typical efficiency 89%.

EPS-65S is a 65W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-65S is able to be used for ClassⅡ(no FG) system design.

Features

3"×2" miniature size
Universal AC input / Full range
ClassⅡ(without FG) installations
No load power consumption<0.1W
High efficiency up to 91%
For 1U applications
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
-30~70℃wide range of operating temperature
Operating altitude up to 5000 meters
LED indicator for power on
3 years warranty

Specifications

EPS-65S-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 4.34A
CURRENT RANGE: 0 ~ 4.77A
RATED POWER: 65.1W
PEAK LOAD(10sec.)^Note.2: 71.6W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE ADJ.RANGE: 13.5~16.5V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 12ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 80 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.5A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.): COLD STAR 30A/115VAC 50A/230VAC
LEAKAGE CURRENT(max.): 0.25mA/264VAC

PROTECTION

OVERLOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25~20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.6: 5000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368- 1, BS EN/EN60335-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, Heavy industry Level , EAC TP TC 020

OTHERS

MTBF: 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 706.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H)
PACKING: 0.11Kg; 120pcs/14.2Kg/0.94CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

EPS-65S-15 Block Diagram — Block Diagram

EPS-65S-15 Derating Curve — Derating Curve

EPS-65S-15 Mechanical Specification — Mechanical Specification

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device

Downloads

Datasheet1

EPS-65S-15 datasheetEPS-65S-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates9

Mean Well E183223 UL Certificate PDF Download

Mean Well EPS-65S-45S TUV Certificate PDF Download

Mean Well EPS-45S-65S TUV Certificate PDF Download

Mean Well EPS-45S-65S CB Certificate PDF Download

Mean Well EPS-45S-65S CB(UL) Certificate PDF Download

Mean Well EPS-45S-65S CB(TUV) Certificate PDF Download

Mean Well EPS-45S-65S CE-dec Certificate PDF Download

Mean Well EPS-45S-65S UK-dec Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well EPS-65S-15 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-65S-15 for 15V industrial control electronics?

It is intended for constant-voltage 15VDC loads and can supply up to 65.1W or 4.34A. That makes it relevant for industrial or automation devices designed specifically for a 15V rail. Confirm the equipment requires 15V rather than 12V or 24V.

Is the EPS-65S-15 a good fit for embedded systems that run on a 15V DC bus?

This power supply can fit embedded or test equipment built around a 15V constant-voltage input, provided the load stays within 4.34A. Its compact 76.2 x 50.8 x 24.0 mm form factor also helps in space-constrained electronics assemblies. The input range is 80-264VAC for broad AC compatibility.

Can the EPS-65S-15 power multiple 15V automation accessories from one supply?

It can support multiple 15VDC accessories on the same bus as long as the combined demand remains at or below 65.1W and 4.34A. This is useful for low- to moderate-power 15V control subsystems. All connected loads still need to be designed for constant-voltage 15V operation.

Is the EPS-65S-15 suitable for outdoor cabinets or unprotected environments?

The specs show an operating temperature range of -30C to +70C (with output derating at higher ambient temperatures per the derating curve), but no IP rating is listed. Because no IP rating is provided, the published data does not describe it as an exposed outdoor power supply. It is better suited to indoor equipment or protected housings that stay within -30C to +70C.

What are the main differences between the EPS-65S-15 and the other EPS-65S versions?

The EPS-65S family shown here includes 3.3V 33W 10A, 5V 50W 10A, 7.5V 60W 8A, 12V 65W 5.42A, 15V 65.1W 4.34A, 24V 65W 2.71A, and 48V 65.3W 1.36A. The EPS-65S-15 version is the 15V option and is rated for 65.1W with 4.34A output current. Selection across the family mainly comes down to matching the required output voltage and current.
