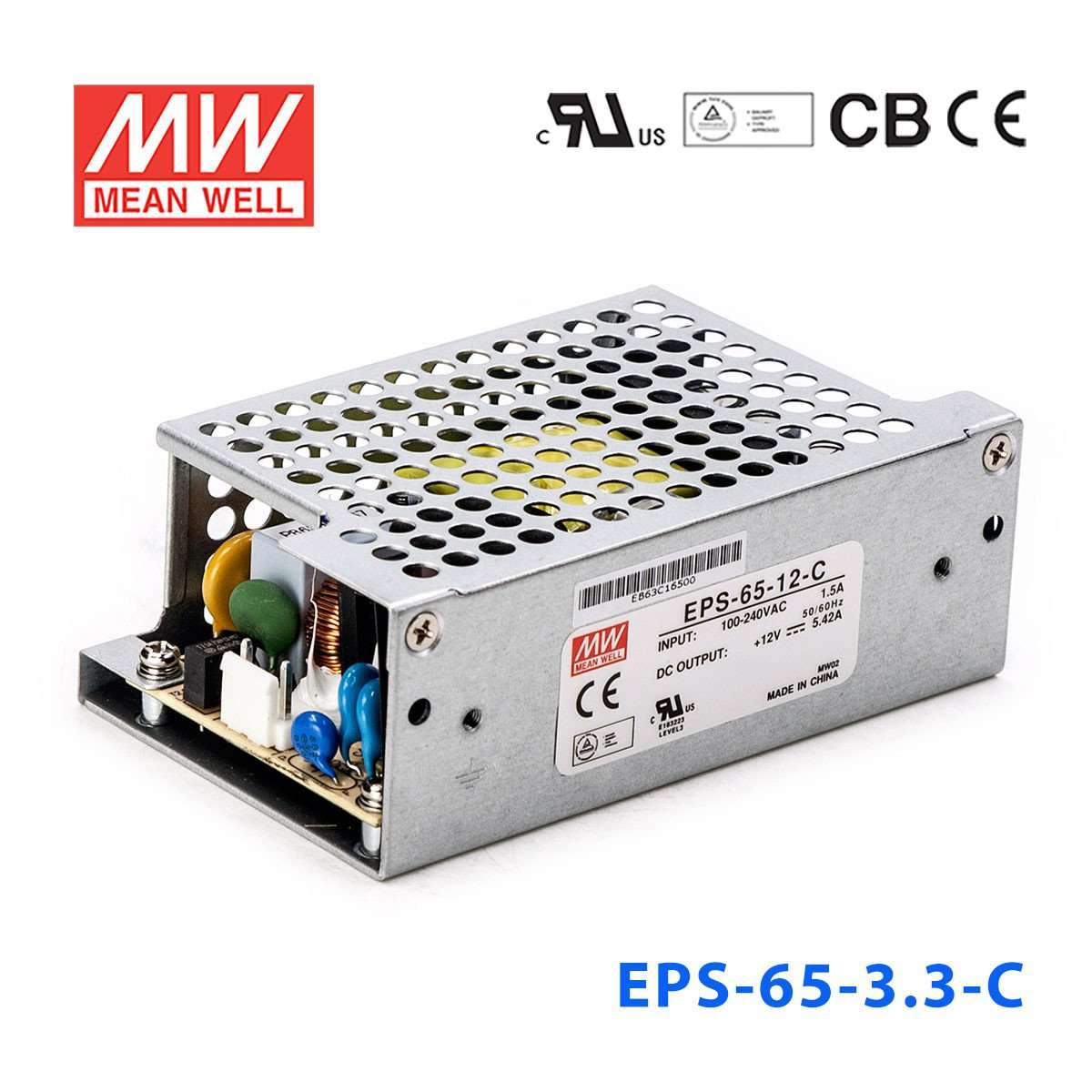

Mean Well EPS-65-3.3-C Power Supply 36W 3.3V 11A

Name: Mean Well EPS-65-3.3-C Power Supply 36W 3.3V 11A
Brand: Mean Well
SKU: EPS-65-3.3-C
Price: 22.69 USD
Availability: InStock

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W

SKU EPS-65-3.3-C

$22.69 USD

Shipping calculated at checkout.

In stock

Overview

EPS-65-3.3-C is the 3.3V output model of this series: rated current 11A, rated power 36.3W, typical efficiency 80%. Type C: Enclosed type.

Features

Universal AC input / Full range
Optional L-Bracket and cover
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
4"×2" compact size
LED indicator for power on
No load power consumption<0.3W
Operating altitude up to 4000 meters
3 years warranty

Specifications

EPS-65-3.3-CSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 3.3V
RATED CURRENT: 11A
CURRENT RANGE: 0 ~ 12A
RATED POWER: 36.3W
PEAK LOAD(10sec.)^Note.6: 39.6W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 3.1 ~ 3.6V
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 115 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 3.7 ~ 4.45V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃(0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 4000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3077.6K hrs min. Telcordia SR-332 (Bellcore) ; 563.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING: PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank: Blank
C (this model): Enclosed type

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

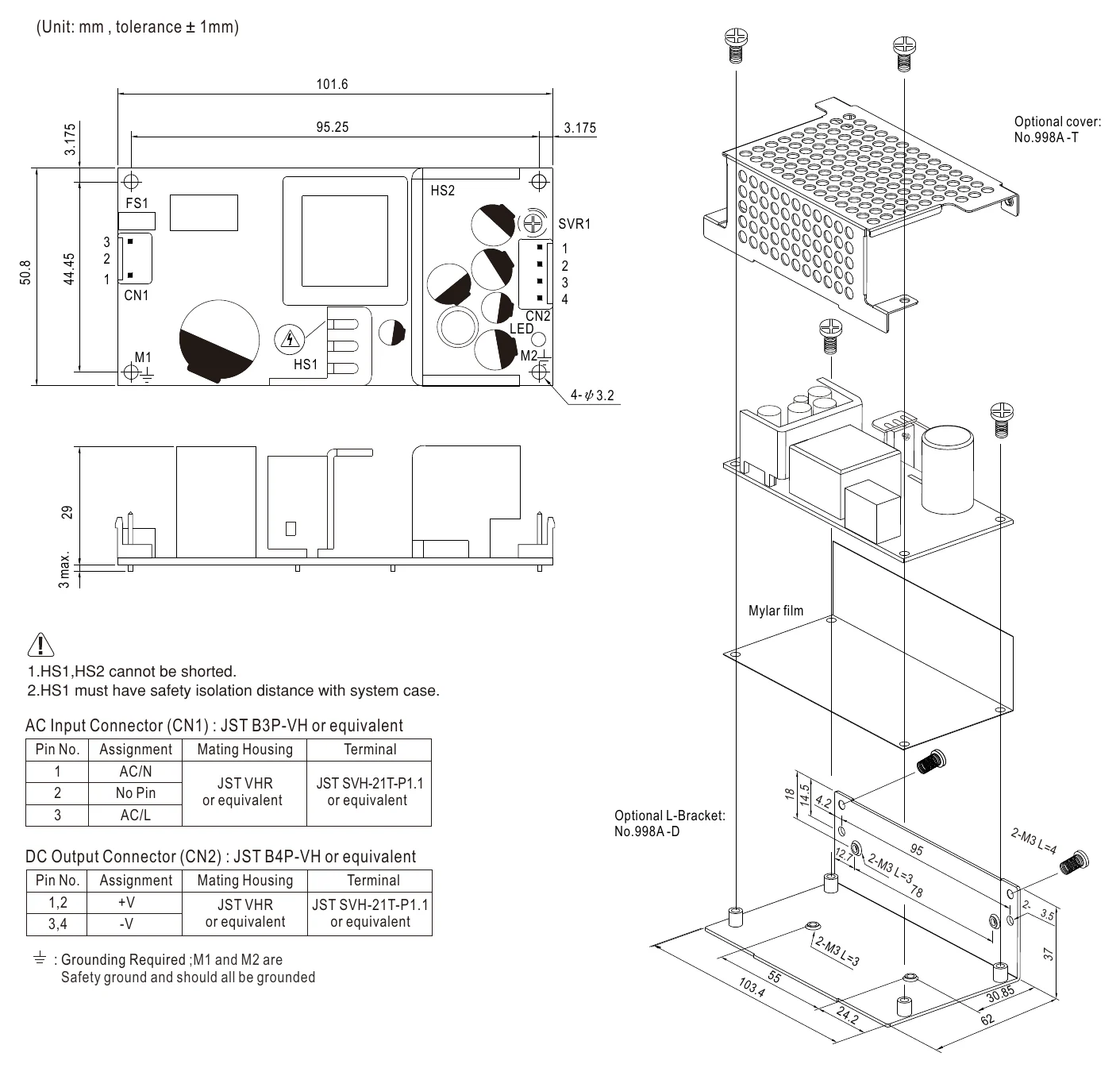

EPS-65-3.3-C Mechanical Specification — Mechanical Specification

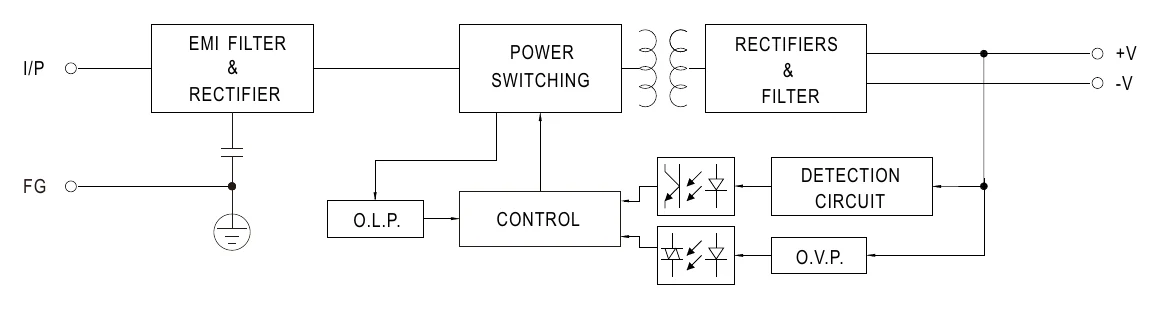

EPS-65-3.3-C Block Diagram — Block Diagram

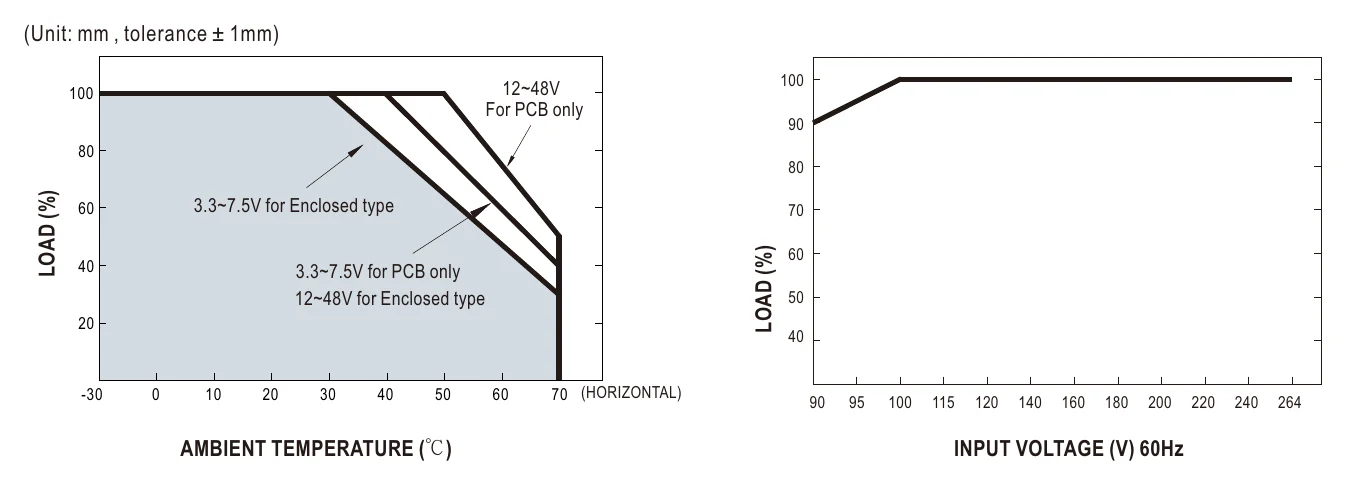

EPS-65-3.3-C Output Derating — Output Derating

Downloads

Datasheet1

EPS-65-3.3-C datasheetEPS-65-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (EPS-65)(EN) PDF Download

TUV Certificate (EPS-65)(EN) PDF Download

EMC Certificate (EPS-65)(EN) PDF Download

Test reports1

Test Report (EPS-65-3.3)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-65-3.3-C for a 3.3V OEM control assembly with higher current demand?

Yes, if the assembly needs a constant 3.3V output and the load stays within 11A and 36.3W. That makes it suitable for 3.3V control electronics, processor boards, and embedded assemblies with heavier low-voltage current draw.

Is the EPS-65-3.3-C a fit for industrial computing or logic-level electronics that run on 3.3V?

It can be used where the end device is designed for a fixed 3.3V input and requires up to 11A. The rated output power at 3.3V is 36.3W, with a 39.6W peak load allowed for 10 seconds.

Can this model power 3.3V monitoring, sensing, or automation boards inside machinery?

Yes, for 3.3V constant-voltage boards and electronics whose combined demand is no more than 11A. Its 90-264VAC input also suits equipment that may be deployed across different AC mains ranges.

Is the EPS-65-3.3-C suitable for outdoor use?

The listed operating range is -30°C to +70°C (per the output load derating curve), but no IP rating is provided in the specs. That points to use in protected indoor equipment or enclosures rather than direct outdoor exposure.

What is the difference between EPS-65-3.3-C and the other 3.3V EPS power supplies?

Within the EPS-65 series on this datasheet, the 3.3V options are EPS-65-3.3 and EPS-65-3.3-C, both rated 3.3V, 11A and 36.3W. EPS-65-3.3 is the 101.6 × 50.8 × 29.0 mm PCB version at 0.15 kg, while EPS-65-3.3-C is 103.4 × 62.0 × 37.0 mm at 0.3 kg; other EPS series are not covered by this sheet.
