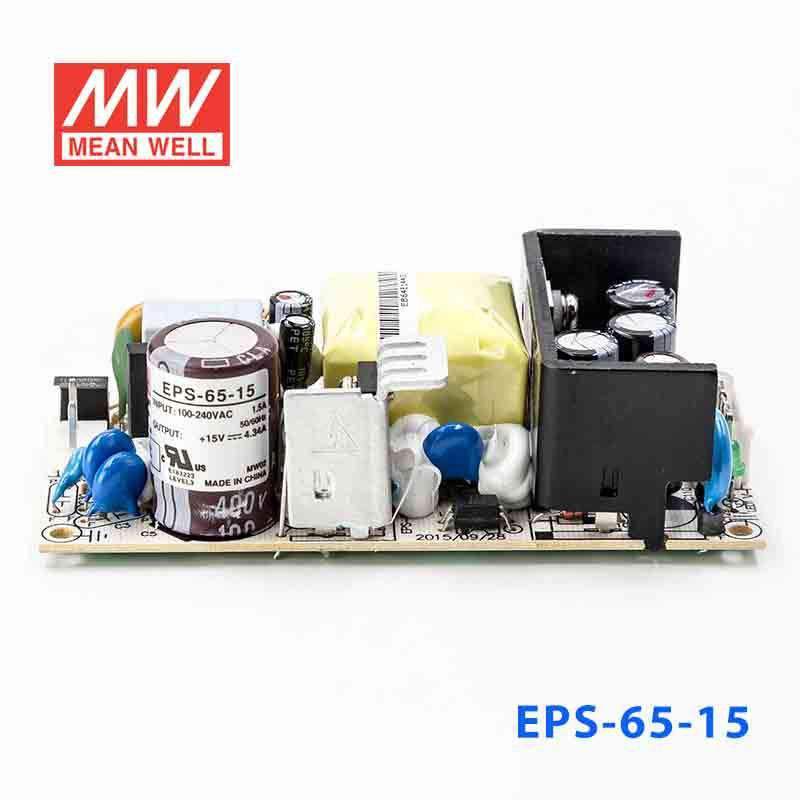

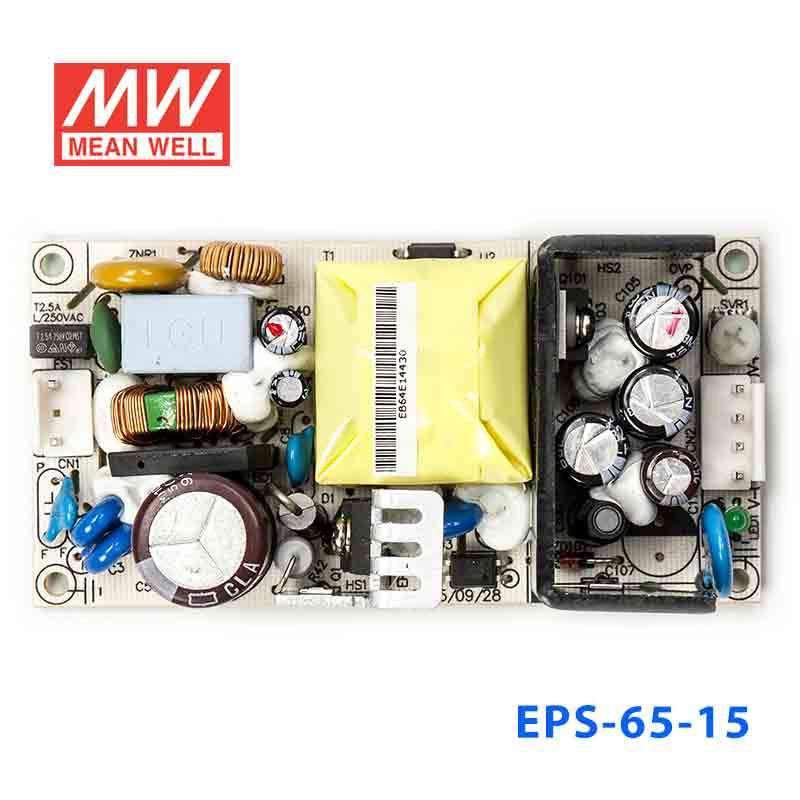

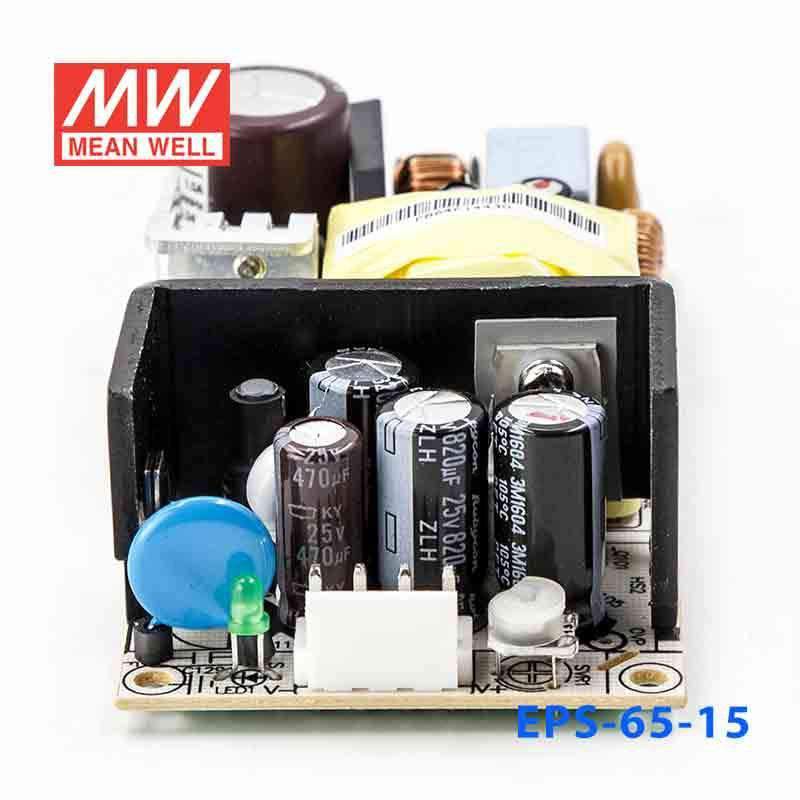

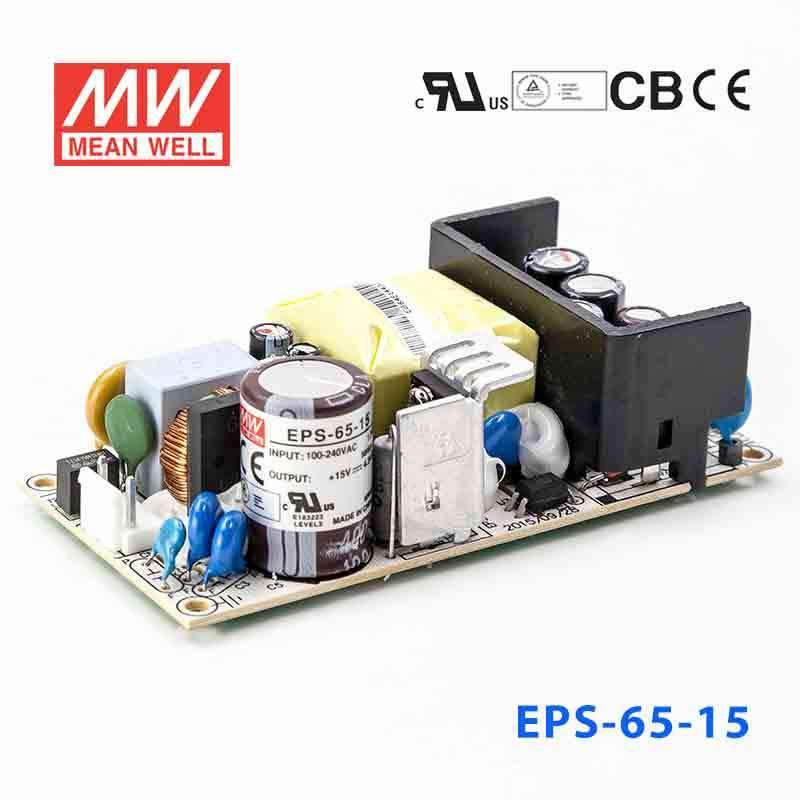

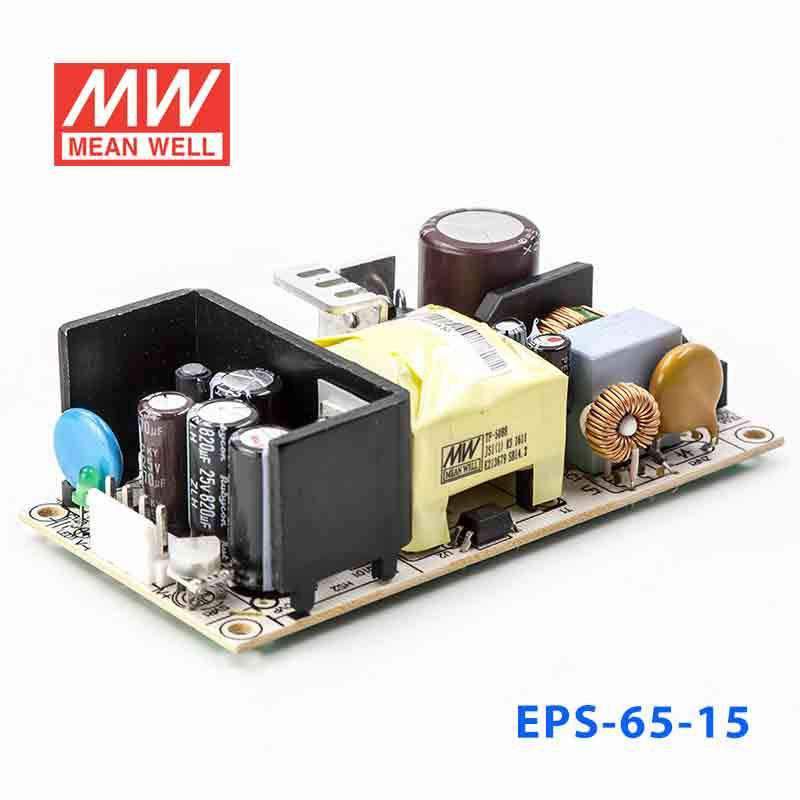

Mean Well EPS-65-15 Power Supply 65W 15V 4.34A

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W
SKU EPS-65-15
$17.53 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-65-15 is the 15V output model of this series: rated current 4.34A, rated power 65.1W, typical efficiency 87%. Type Blank: Blank.

Features

  • Universal AC input / Full range
  • Optional L-Bracket and cover
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 4"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • Operating altitude up to 4000 meters
  • 3 years warranty

Specifications

EPS-65-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
4.34A
CURRENT RANGE
0 ~ 4.8A
RATED POWER
65.1W
PEAK LOAD(10sec.)Note.6
72W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.)
COLD START 60A/230VAC
LEAKAGE CURRENT
<2mA/240VAC

PROTECTION

OVER LOAD
115 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃(0 ~ 50℃)
OPERATING ALTITUDENote.7
4000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3077.6K hrs min. Telcordia SR-332 (Bellcore) ; 563.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING
PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank (this model)
Blank
C
Enclosed type
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-65-15 Mechanical Specification
Mechanical Specification
EPS-65-15 Block Diagram
Block Diagram
EPS-65-15 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-65-15 for a 15V industrial control or monitoring assembly?

Yes, if the assembly requires a constant voltage 15V DC source and draws no more than 4.34A or 65.1W. That makes it relevant for compact industrial electronics built around a 15V rail.

Is this a good fit for 15V test, measurement, or lab-built electronic equipment?

It can be used for 15V electronic equipment that needs stable constant voltage output and stays within 4.34A. The 65.1W rated power also allows a 72W peak load for up to 10 seconds.

Can the EPS-65-15 power 15V embedded or communications hardware?

Yes, when the device is designed for 15V DC input and the load remains at or below 4.34A and 65.1W. It is a practical choice for embedded or communications assemblies that are not based on 12V or 24V rails.

Will this model handle demanding temperature conditions indoors?

The specified operating temperature range is -30°C to +70°C (per the output load derating curve), so it is rated for broad indoor temperature conditions. The provided specs do not include an IP rating, so outdoor exposure protection is not defined here.

What should I check before choosing this 15V model over a smaller 15V supply?

Check that your equipment needs 15V constant voltage and compare the required current and wattage against this unit's 4.34A and 65.1W output. Smaller 15V supplies are not covered by this datasheet, so compare their ratings separately before choosing.
