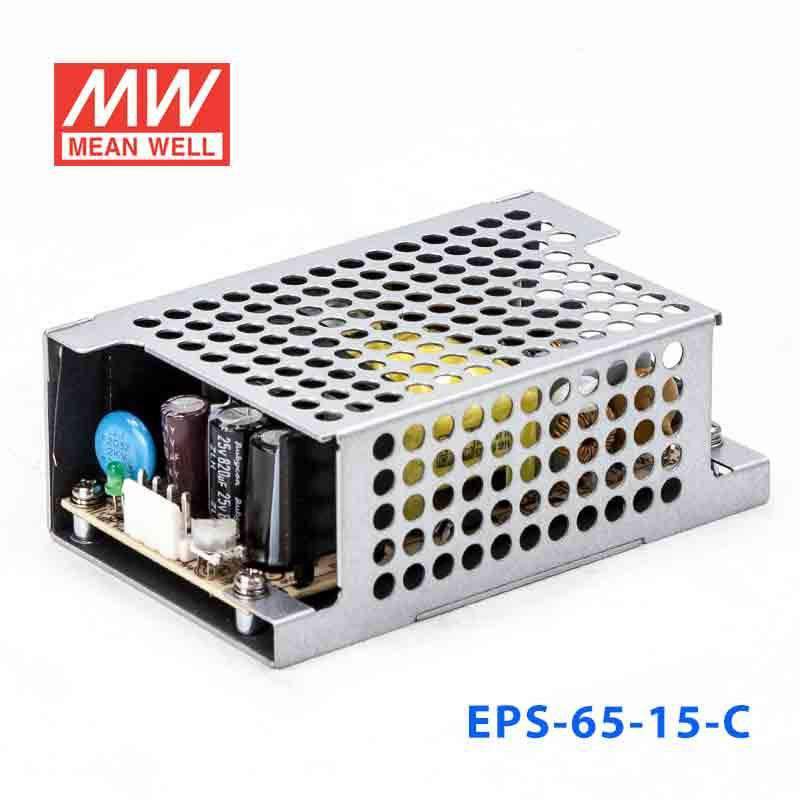

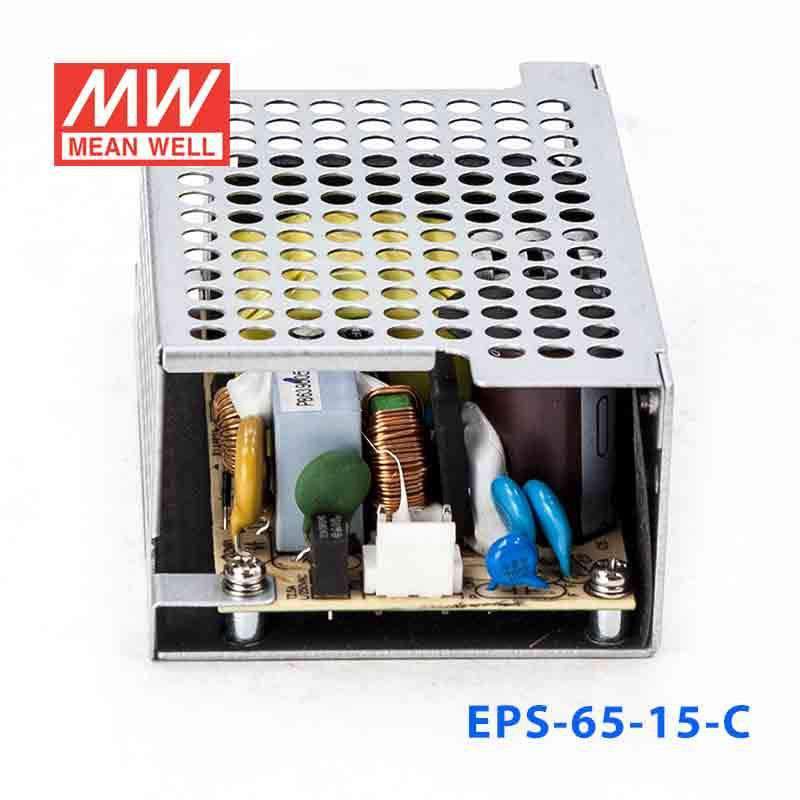

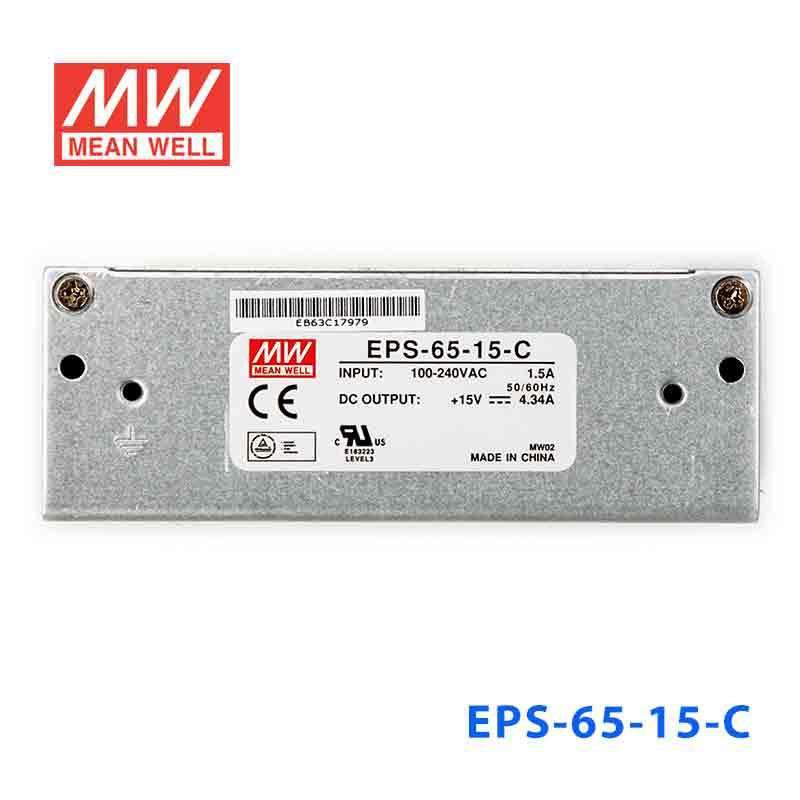

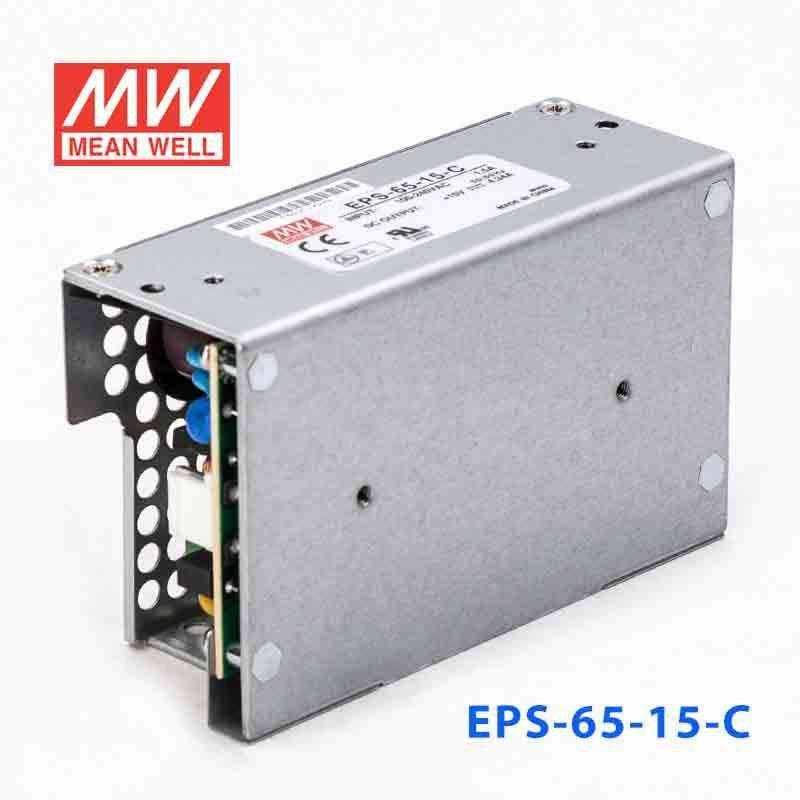

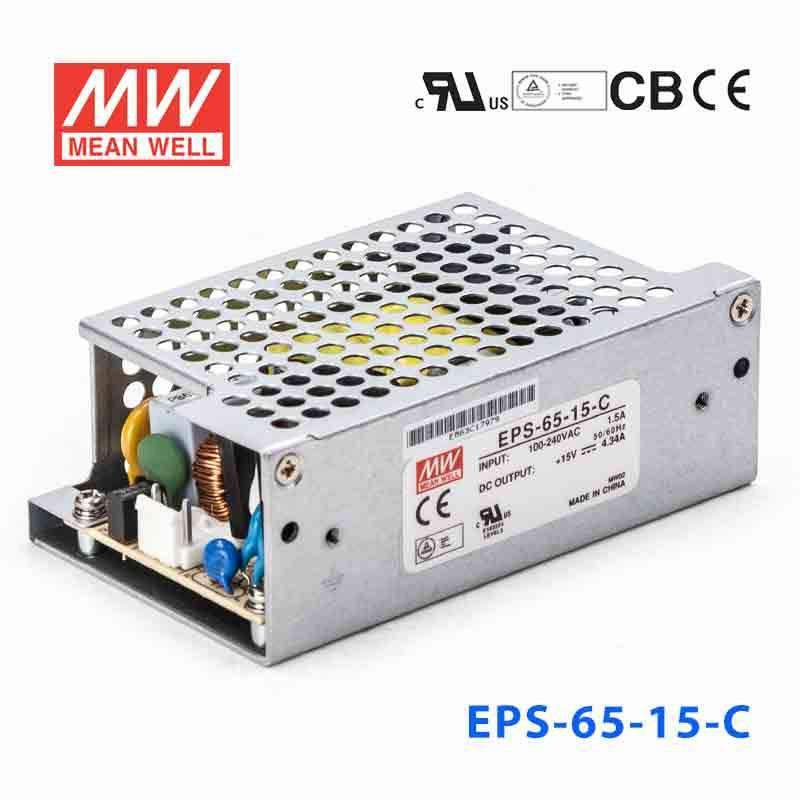

Mean Well EPS-65-15-C Power Supply 65W 15V 4.34A

Name: Mean Well EPS-65-15-C Power Supply 65W 15V 4.34A
Brand: Mean Well
SKU: EPS-65-15-C
Price: 22.69 USD
Availability: InStock

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W

SKU EPS-65-15-C

$22.69 USD

Shipping calculated at checkout.

In stock

Overview

EPS-65-15-C is the 15V output model of this series: rated current 4.34A, rated power 65.1W, typical efficiency 87%. Type C: Enclosed type.

Features

Universal AC input / Full range
Optional L-Bracket and cover
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
4"×2" compact size
LED indicator for power on
No load power consumption<0.3W
Operating altitude up to 4000 meters
3 years warranty

Specifications

EPS-65-15-CSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 4.34A
CURRENT RANGE: 0 ~ 4.8A
RATED POWER: 65.1W
PEAK LOAD(10sec.)^Note.6: 72W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 115 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃(0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 4000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3077.6K hrs min. Telcordia SR-332 (Bellcore) ; 563.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING: PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank: Blank
C (this model): Enclosed type

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-65-15-C Mechanical Specification — Mechanical Specification

EPS-65-15-C Block Diagram — Block Diagram

EPS-65-15-C Output Derating — Output Derating

Downloads

Datasheet1

EPS-65-15-C datasheetEPS-65-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (EPS-65)(EN) PDF Download

TUV Certificate (EPS-65)(EN) PDF Download

EMC Certificate (EPS-65)(EN) PDF Download

Test reports1

Test Report (EPS-65-15)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-65-15-C in a compact 15V automation cabinet?

Yes, it provides constant voltage 15V output up to 4.34A and 65.1W, which suits compact automation cabinets built around a 15V DC bus. Its wide 90-264VAC input also supports deployment across varied AC mains conditions.

Is the EPS-65-15-C suitable for powering 15V control boards or interface modules?

It is suitable when those boards or modules require regulated 15V DC and their combined load does not exceed 4.34A or 65.1W. This is the main fit case for a constant voltage 15V power supply in this size class.

Can this model be used for 15V embedded electronics in OEM equipment?

Yes, for OEM equipment designed around a 15V rail, this supply can support embedded electronics up to 4.34A and 65.1W. The 103.4 × 62.0 × 37.0 mm form factor may also matter where enclosure space is limited.

Is the EPS-65-15-C rated for outdoor use?

The supplied specs show an operating temperature range of -30°C to +70°C (per the output load derating curve), but they do not provide an IP rating. Based on the provided data, temperature capability is defined, while outdoor ingress protection is not.

How do I choose between the EPS-65-15 and EPS-65-15-C?

Both versions are rated at 15V, 4.34A, and 65.1W with a 90-264VAC input and the same -30°C to +70°C operating range (per the output load derating curve). They differ in size, weight and derating: EPS-65-15 is 101.6 × 50.8 × 29.0 mm at 0.15 kg, EPS-65-15-C is 103.4 × 62.0 × 37.0 mm at 0.3 kg, and the sheet gives separate derating curves for PCB and enclosed types.
