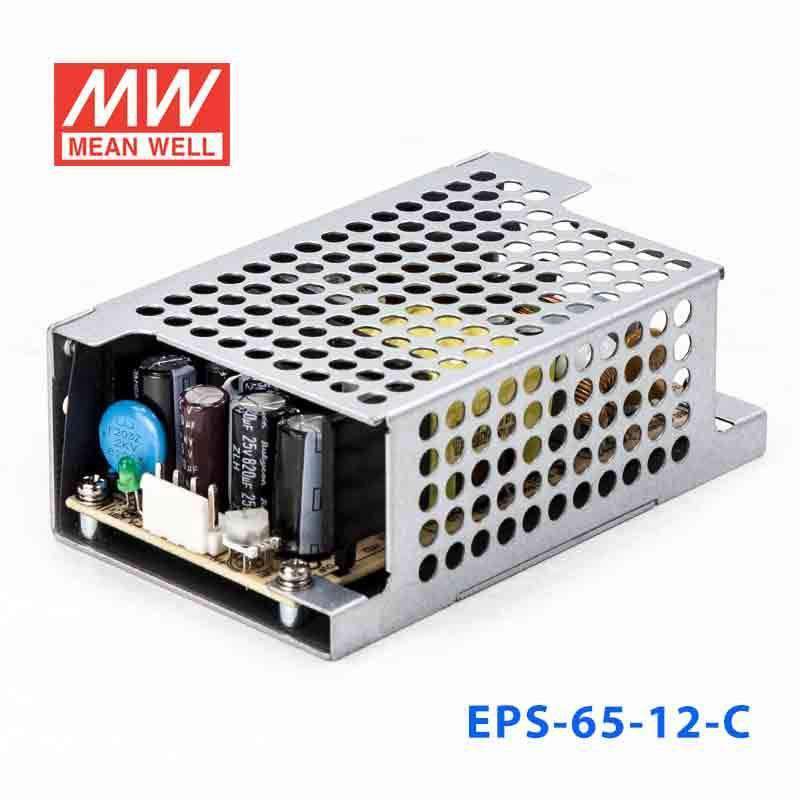

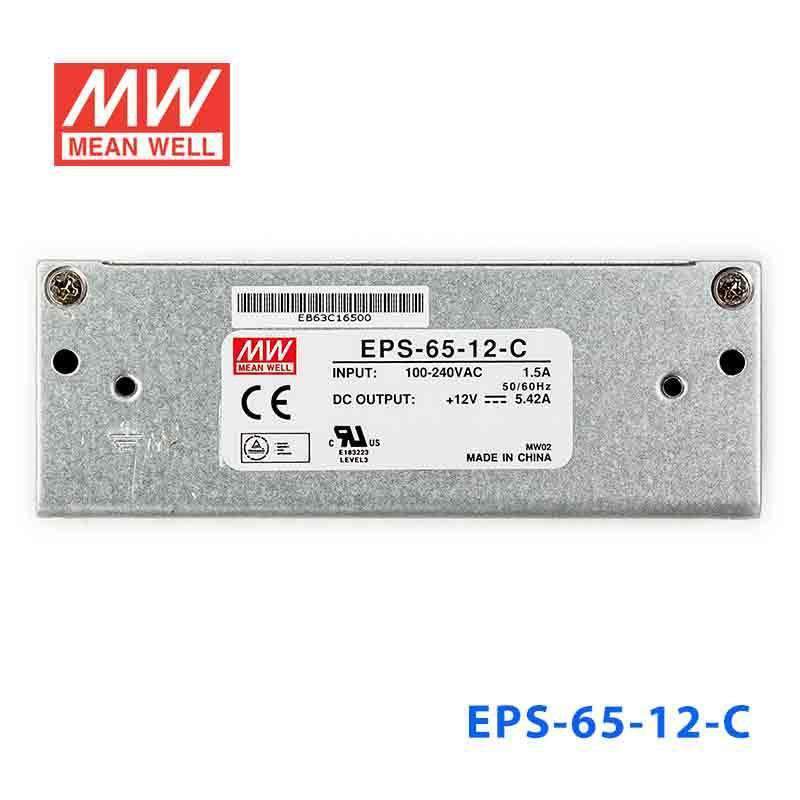

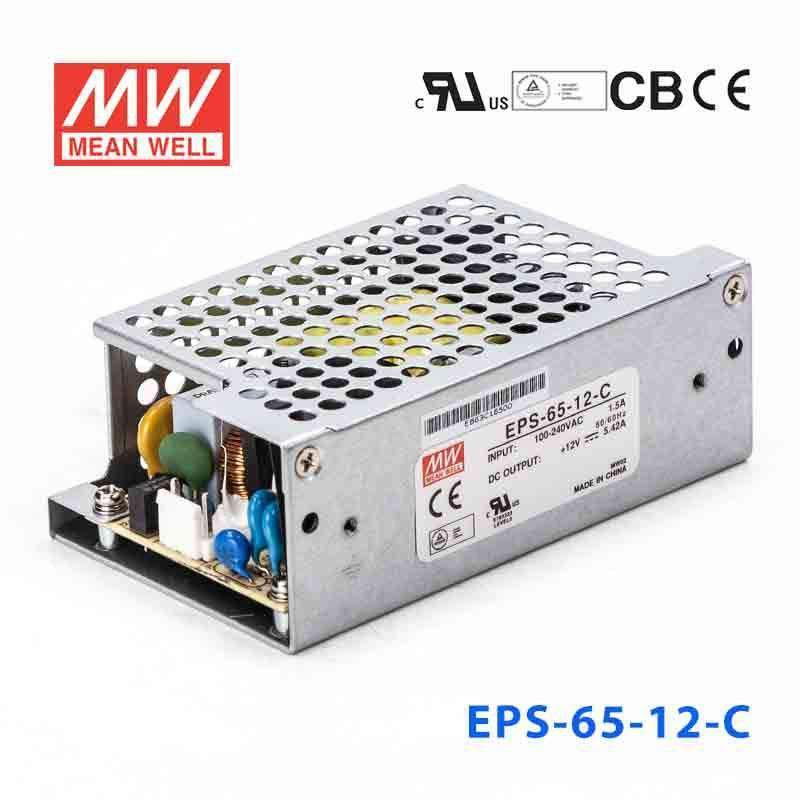

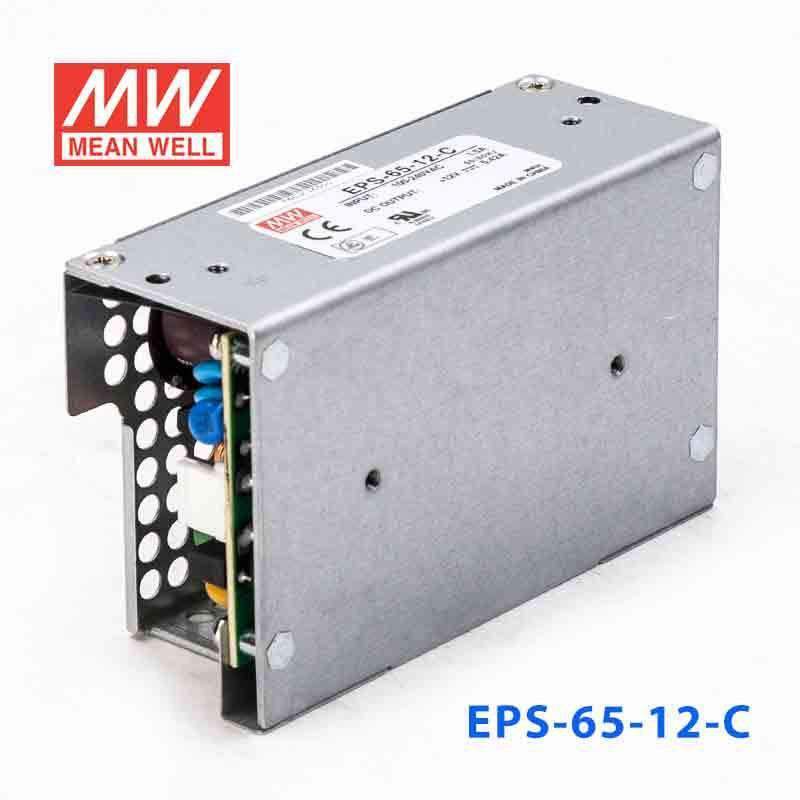

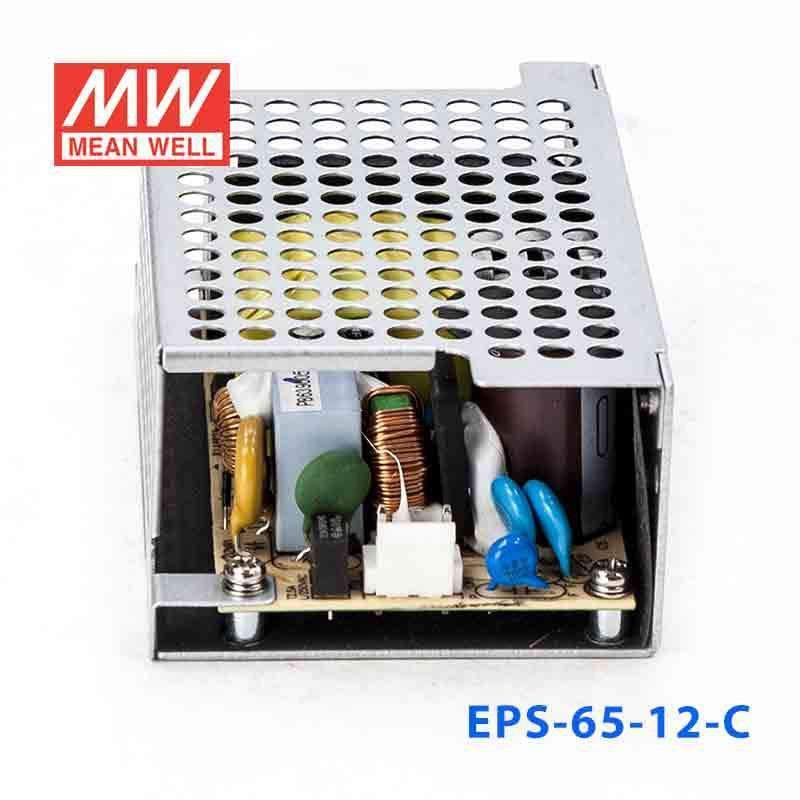

Mean Well EPS-65-12-C Power Supply 65W 12V 5.42A

Name: Mean Well EPS-65-12-C Power Supply 65W 12V 5.42A
Brand: Mean Well
SKU: EPS-65-12-C
Price: 22.69 USD
Availability: InStock

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W

SKU EPS-65-12-C

$22.69 USD

Shipping calculated at checkout.

In stock

Overview

EPS-65-12-C is the 12V output model of this series: rated current 5.42A, rated power 65.04W, typical efficiency 86%. Type C: Enclosed type.

Features

Universal AC input / Full range
Optional L-Bracket and cover
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
4"×2" compact size
LED indicator for power on
No load power consumption<0.3W
Operating altitude up to 4000 meters
3 years warranty

Specifications

EPS-65-12-CSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 5.42A
CURRENT RANGE: 0 ~ 6A
RATED POWER: 65.04W
PEAK LOAD(10sec.)^Note.6: 72W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 86%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 115 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃(0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 4000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3077.6K hrs min. Telcordia SR-332 (Bellcore) ; 563.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING: PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank: Blank
C (this model): Enclosed type

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-65-12-C Mechanical Specification — Mechanical Specification

EPS-65-12-C Block Diagram — Block Diagram

EPS-65-12-C Output Derating — Output Derating

Downloads

Datasheet1

EPS-65-12-C datasheetEPS-65-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (EPS-65)(EN) PDF Download

TUV Certificate (EPS-65)(EN) PDF Download

EMC Certificate (EPS-65)(EN) PDF Download

Test reports1

Test Report (EPS-65-12)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-65-12-C for a 12V industrial control panel?

Yes, this model is a constant voltage 12V supply rated for 5.42A and 65.04W, which fits many small industrial control panel loads that require regulated 12V DC. Its 90-264VAC input also works across common global AC input ranges.

Is this power supply suitable for 12V embedded systems or SBC-based equipment?

It can be a fit when the embedded system requires a 12V constant voltage source and the total load stays within 5.42A or 65.04W. That makes it relevant for embedded hardware, edge devices, or controller assemblies built around a 12V DC power rail.

Can the EPS-65-12-C power 12V automation devices like relays, sensors, or small control assemblies?

Yes, it is intended for constant voltage 12V output, so it can support 12V automation loads as long as their combined draw does not exceed 5.42A and 65.04W. This makes it appropriate for compact automation assemblies that standardize on 12V DC.

Is the EPS-65-12-C appropriate for indoor or outdoor environments?

The supplied specs list an operating temperature range of -30°C to +70°C (per the output load derating curve), which supports use across a wide temperature span. No IP rating is provided in the supplied data, so these specs do not define it for exposed outdoor wet or dusty locations.

How do I know if 65.04W is enough for my 12V load?

Match your equipment to the 12V output and keep the total demand at or below 5.42A and 65.04W. If the load needs more than 5.42A at 12V, this model is undersized.
