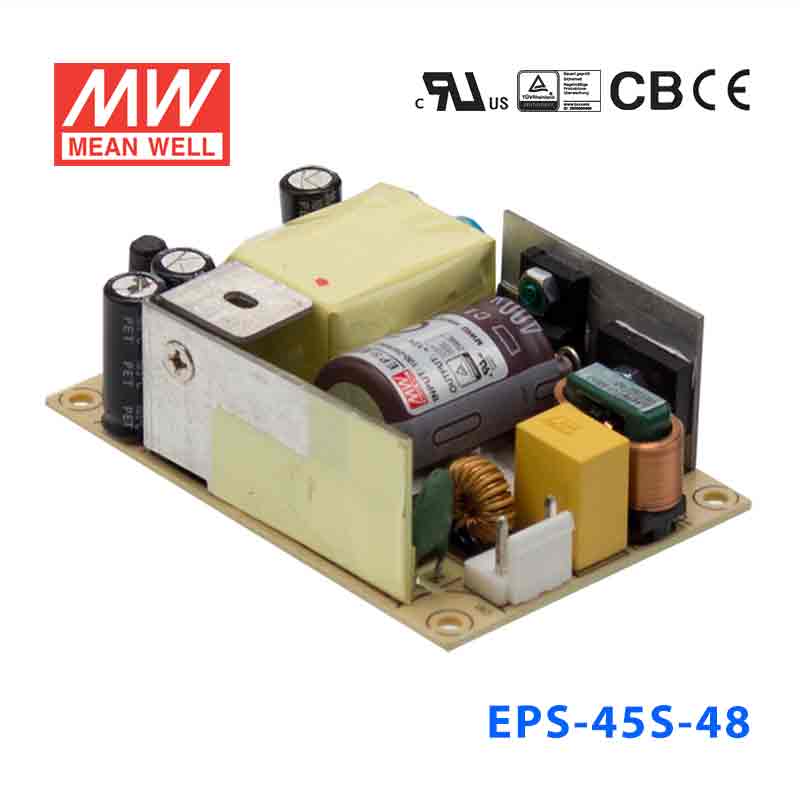

Mean Well EPS-45S-48 Power Supply 45W 48V 940mA

Name: Mean Well EPS-45S-48 Power Supply 45W 48V 940mA
Brand: Mean Well
SKU: EPS-45S-48
Price: 17.43 USD
Availability: InStock

3" x 2"economical non-PFCsmall sizehigh efficiency

SKU EPS-45S-48

$17.43 USD

Shipping calculated at checkout.

In stock

Overview

EPS-45S-48 is the 48V output model of this series: rated current 0.94A, rated power 45.1W, typical efficiency 91%.

EPS-45S is a 45W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-45S is able to be used for ClassⅡ(no FG) system design.

Features

3"×2" miniature size
Universal AC input / Full range
ClassⅡ(without FG) installations
No load power consumption<0.1W
High efficiency up to 91%
For 1U applications
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
-30~70℃wide range of operating temperature
Operating altitude up to 5000 meters
LED indicator for power on
3 years warranty

Specifications

EPS-45S-48Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 0.94A
CURRENT RANGE: 0 ~ 1.03A
RATED POWER: 45.1W
PEAK LOAD(10sec.)^Note.2: 49.4W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
VOLTAGE ADJ.RANGE: 45.6~52.8V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 12ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 80 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1.2A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.): COLD STAR 30A/115VAC 60A/230VAC
LEAKAGE CURRENT(max.): 0.25mA/264VAC

PROTECTION

OVERLOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 55.2~64.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 5000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, GB9254.1 Class B,GB17625 Class A, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, Heavy industry Level , EAC TP TC 020

OTHERS

MTBF: 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 706.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H)
PACKING: 0.11Kg; 120pcs/14.2Kg/0.94CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Touch current was measured from primary input to DC output.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. "All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness." The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

EPS-45S-48 Block Diagram — Block Diagram

EPS-45S-48 Derating Curve — Derating Curve

EPS-45S-48 Mechanical Specification — Mechanical Specification

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device

Downloads

Datasheet1

EPS-45S-48 datasheetEPS-45S-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates9

Mean Well E183223 UL Certificate PDF Download

Mean Well EPS-65S-45S TUV Certificate PDF Download

Mean Well EPS-45S-65S TUV Certificate PDF Download

Mean Well EPS-45S-65S CB Certificate PDF Download

Mean Well EPS-45S-65S CB(UL) Certificate PDF Download

Mean Well EPS-45S-65S CB(TUV) Certificate PDF Download

Mean Well EPS-45S-EMC Certificate PDF Download

Mean Well EPS-45S-65S CE-dec Certificate PDF Download

Mean Well EPS-45S-65S UK-dec Certificate PDF Download

Test reports1

Mean Well EPS-45S-48 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-45S-48 for a 48V industrial sensor or transmitter circuit?

Yes, if the load requires constant 48V DC and stays within 0.94A and 45.1W. That makes it a practical fit for small 48V industrial sensor, transmitter, and interface circuits inside equipment.

Is the EPS-45S-48 suitable for compact 48V automation or control electronics?

It is suitable where the equipment needs a regulated 48V constant voltage source and total demand remains at or below 45.1W. The 76.2 x 50.8 x 24.0 mm form factor also helps in compact internal control assemblies.

Would this work for a small 48V industrial communication or relay-based control device?

Yes, provided the device is designed for 48V DC input and does not exceed 0.94A. Its constant voltage output is appropriate for low-power 48V communication hardware, relay logic, and similar embedded control loads.

Can the EPS-45S-48 power a low-power 48V embedded or monitoring system?

It can, as long as the system operates from 48V constant voltage and remains within the 45.1W output limit. That makes it better suited to lower-power 48V monitoring and embedded electronics than to heavier 48V loads.

Is the EPS-45S-48 appropriate for outdoor or washdown locations?

No IP rating is provided in the listed specs, so it should be considered for protected indoor enclosures rather than exposed outdoor or washdown use. The operating temperature range is -30°C to +70°C, but the environmental decision should account for the absence of a stated IP rating.

How does the EPS-45S-48 compare with the other EPS-45S versions?

Within the EPS-45S line, the models are EPS-45S-3.3 at 26.4W, 3.3V, 8A; EPS-45S-5 at 40W, 5V, 8A; EPS-45S-7.5 at 40.5W, 7.5V, 5.4A; EPS-45S-12 at 45.6W, 12V, 3.8A; EPS-45S-15 at 45W, 15V, 3A; EPS-45S-24 at 45.6W, 24V, 1.9A; and EPS-45S-48 at 45.1W, 48V, 0.94A. This model is the highest-voltage option in that subgroup and has the lowest current rating at 0.94A.
