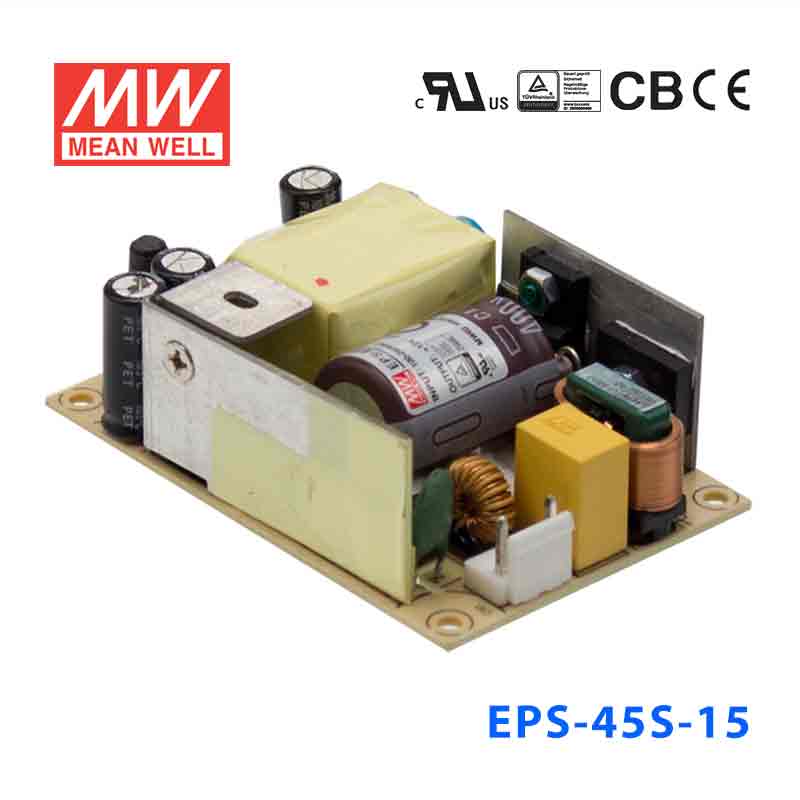

Mean Well EPS-45S-15 Power Supply 45W 15V 3A

Name: Mean Well EPS-45S-15 Power Supply 45W 15V 3A
Brand: Mean Well
SKU: EPS-45S-15
Price: 17.43 USD
Availability: InStock

3" x 2"economical non-PFCsmall sizehigh efficiency

SKU EPS-45S-15

$17.43 USD

Shipping calculated at checkout.

In stock

Overview

EPS-45S-15 is the 15V output model of this series: rated current 3A, rated power 45W, typical efficiency 89%.

EPS-45S is a 45W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-45S is able to be used for ClassⅡ(no FG) system design.

Features

3"×2" miniature size
Universal AC input / Full range
ClassⅡ(without FG) installations
No load power consumption<0.1W
High efficiency up to 91%
For 1U applications
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
-30~70℃wide range of operating temperature
Operating altitude up to 5000 meters
LED indicator for power on
3 years warranty

Specifications

EPS-45S-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 3A
CURRENT RANGE: 0 ~ 3.3A
RATED POWER: 45W
PEAK LOAD(10sec.)^Note.2: 49.5W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE ADJ.RANGE: 13.5~16.5V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 12ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 80 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.2A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.): COLD STAR 30A/115VAC 60A/230VAC
LEAKAGE CURRENT(max.): 0.25mA/264VAC

PROTECTION

OVERLOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25~20.3V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 5000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, GB9254.1 Class B,GB17625 Class A, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, Heavy industry Level , EAC TP TC 020

OTHERS

MTBF: 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 706.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H)
PACKING: 0.11Kg; 120pcs/14.2Kg/0.94CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Touch current was measured from primary input to DC output.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. "All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness." The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

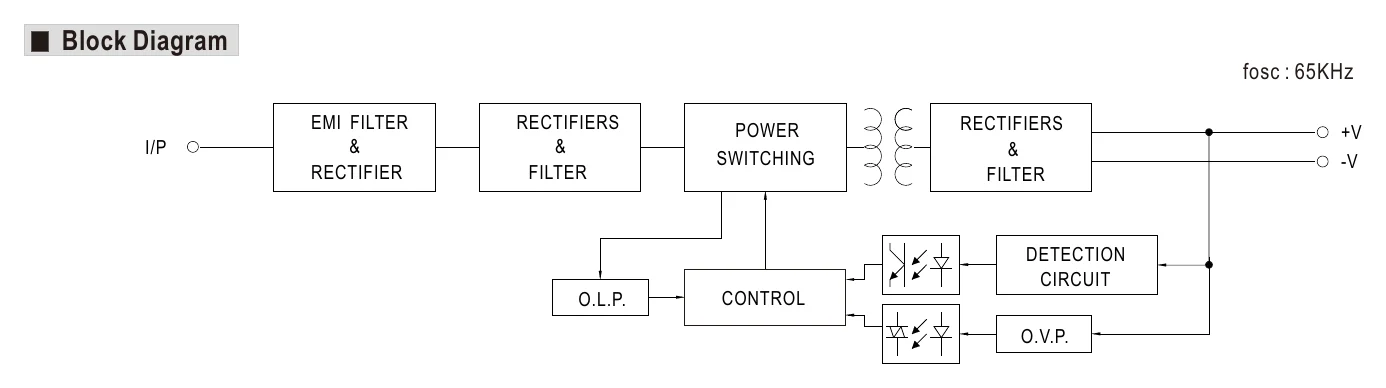

EPS-45S-15 Block Diagram — Block Diagram

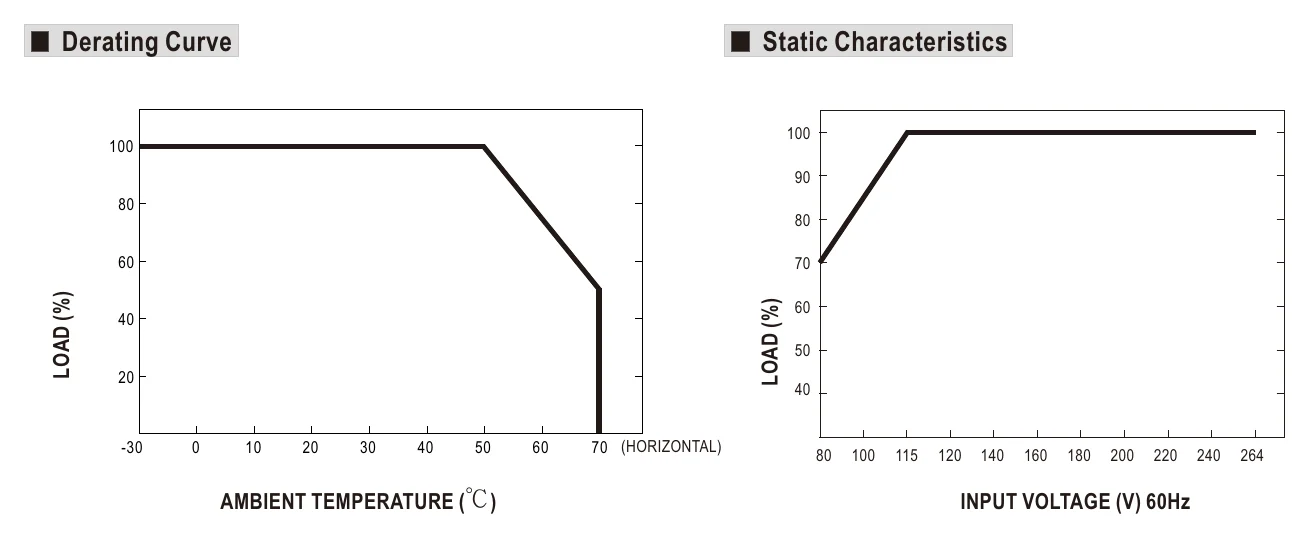

EPS-45S-15 Derating Curve — Derating Curve

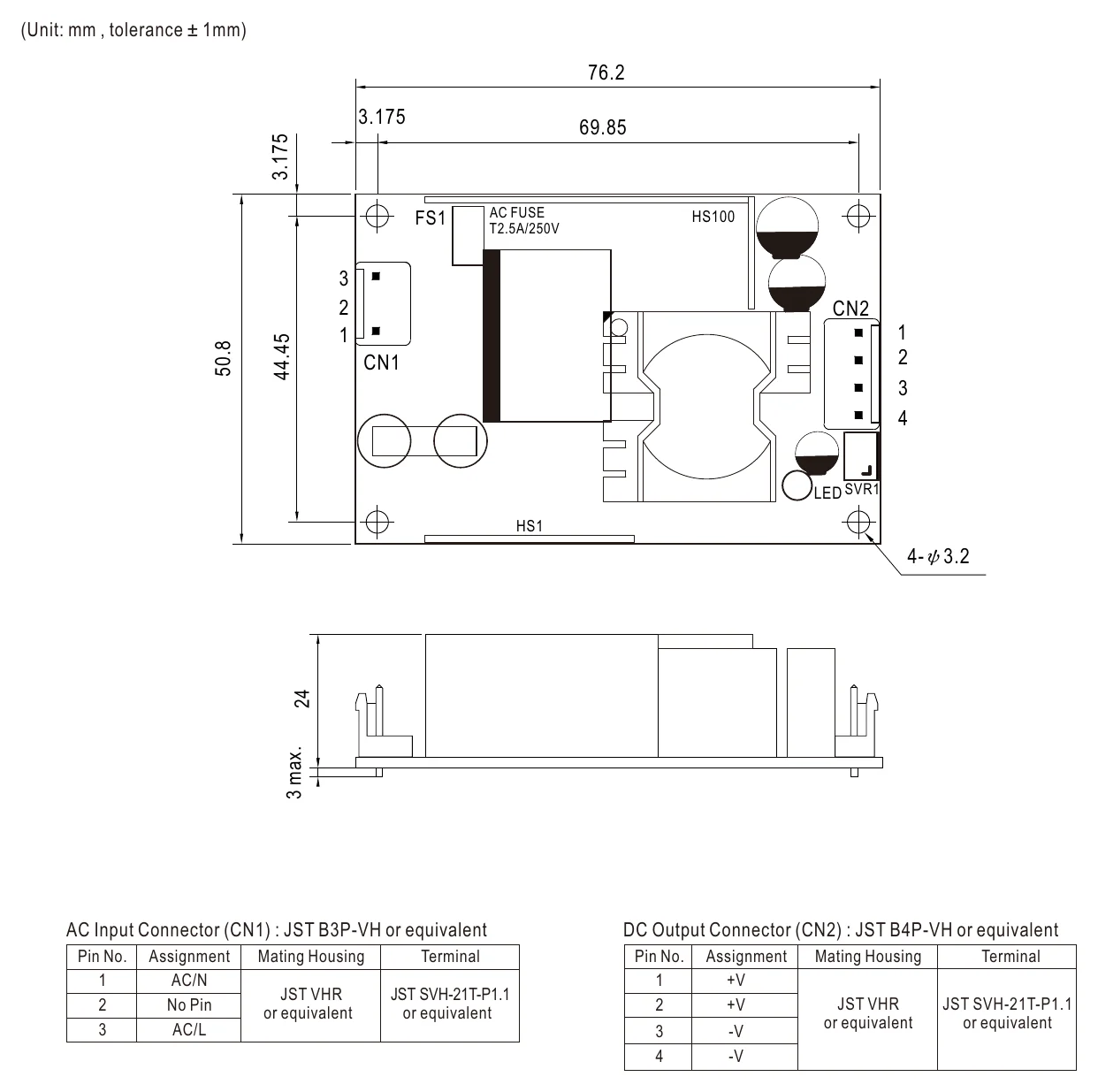

EPS-45S-15 Mechanical Specification — Mechanical Specification

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device

Downloads

Datasheet1

EPS-45S-15 datasheetEPS-45S-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates9

Mean Well E183223 UL Certificate PDF Download

Mean Well EPS-65S-45S TUV Certificate PDF Download

Mean Well EPS-45S-65S TUV Certificate PDF Download

Mean Well EPS-45S-65S CB Certificate PDF Download

Mean Well EPS-45S-65S CB(UL) Certificate PDF Download

Mean Well EPS-45S-65S CB(TUV) Certificate PDF Download

Mean Well EPS-45S-EMC Certificate PDF Download

Mean Well EPS-45S-65S CE-dec Certificate PDF Download

Mean Well EPS-45S-65S UK-dec Certificate PDF Download

Test reports1

Mean Well EPS-45S-15 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-45S-15 for a 15V industrial controller or instrumentation module?

Yes, this is a constant voltage 15V supply rated for up to 3A and 45W. It fits industrial control, instrumentation, or embedded equipment designed for 15V DC within those ratings.

Is the EPS-45S-15 a fit for embedded electronics that need 15V DC from AC input?

It can be used for embedded systems that require a regulated 15V output and draw no more than 3A. The 80-264VAC input range supports use in equipment intended for broad AC input conditions.

Would this model work for a compact automation or test system with a 15V load?

Yes, provided the system needs constant 15V and its total load stays within 45W and 3A. Its 76.2 x 50.8 x 24.0 mm dimensions make it easier to place in compact internal layouts.

Can the EPS-45S-15 be used for 15V communication or signal-processing equipment?

It is suitable for communication, sensing, or signal-processing equipment that is specified for constant 15V input. The electrical limit is 3A with a maximum rated power of 45W.

Is the EPS-45S-15 intended for wet or exposed outdoor environments?

No IP rating is listed for this model, so the product information does not confirm protection against water or dust exposure. The operating temperature range is -30°C to +70°C, which addresses temperature capability but not environmental sealing.

How does the EPS-45S-15 compare with other 15V EPS power supplies?

The EPS-45S spec sheet lists one 15V model, the EPS-45S-15 at 45W and 3A. The other versions are EPS-45S-3.3 at 26.4W, 3.3V, 8A; EPS-45S-5 at 40W, 5V, 8A; EPS-45S-7.5 at 40.5W, 7.5V, 5.4A; EPS-45S-12 at 45.6W, 12V, 3.8A; EPS-45S-24 at 45.6W, 24V, 1.9A; and EPS-45S-48 at 45.1W, 48V, 0.94A. At 45W, the EPS-45S-15 sits just below the 45.1W 48V version and the 45.6W 12V and 24V versions.
