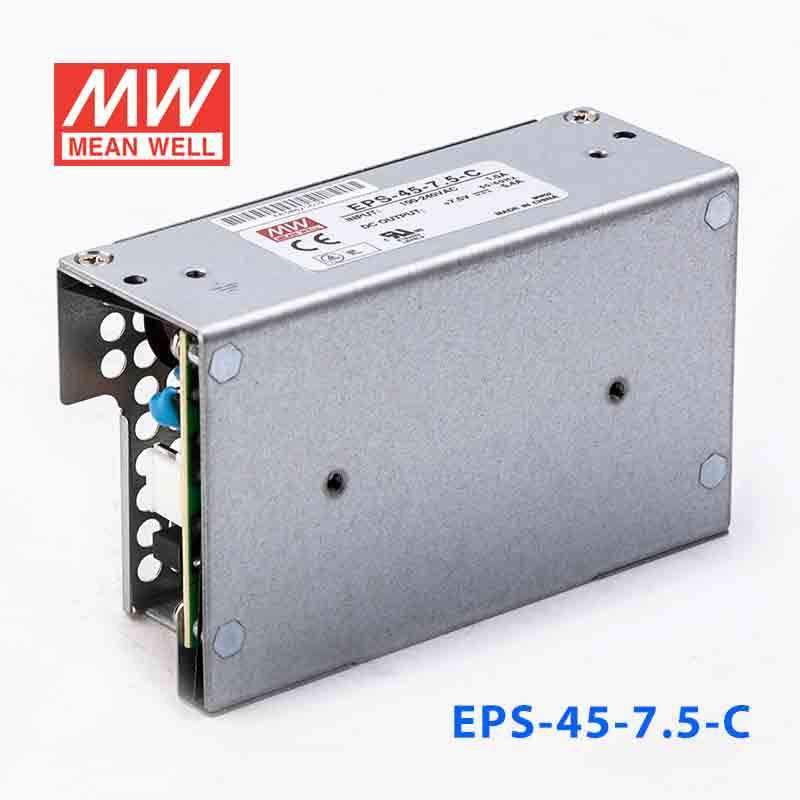

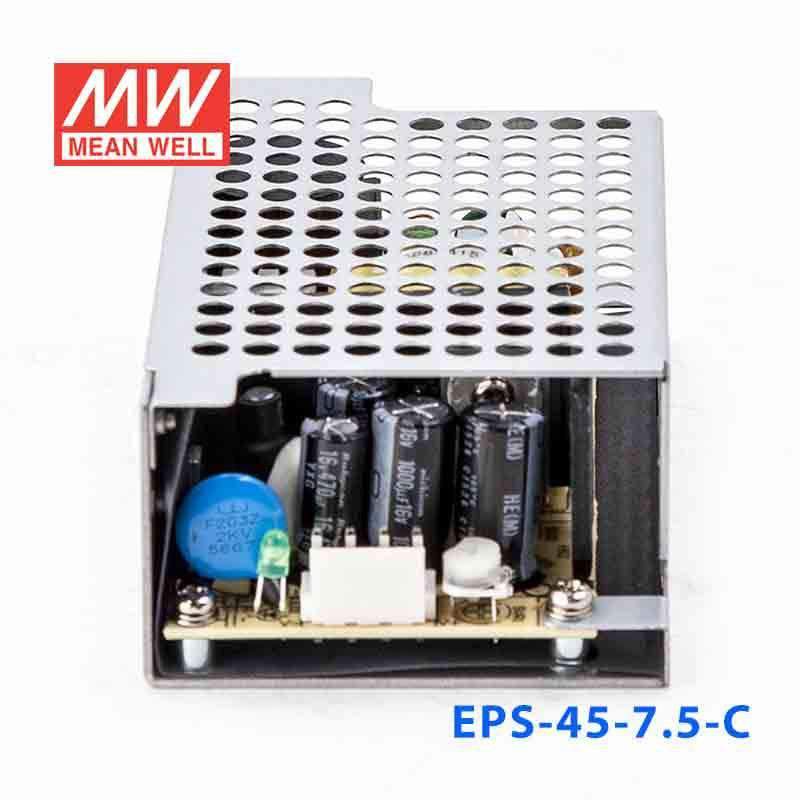

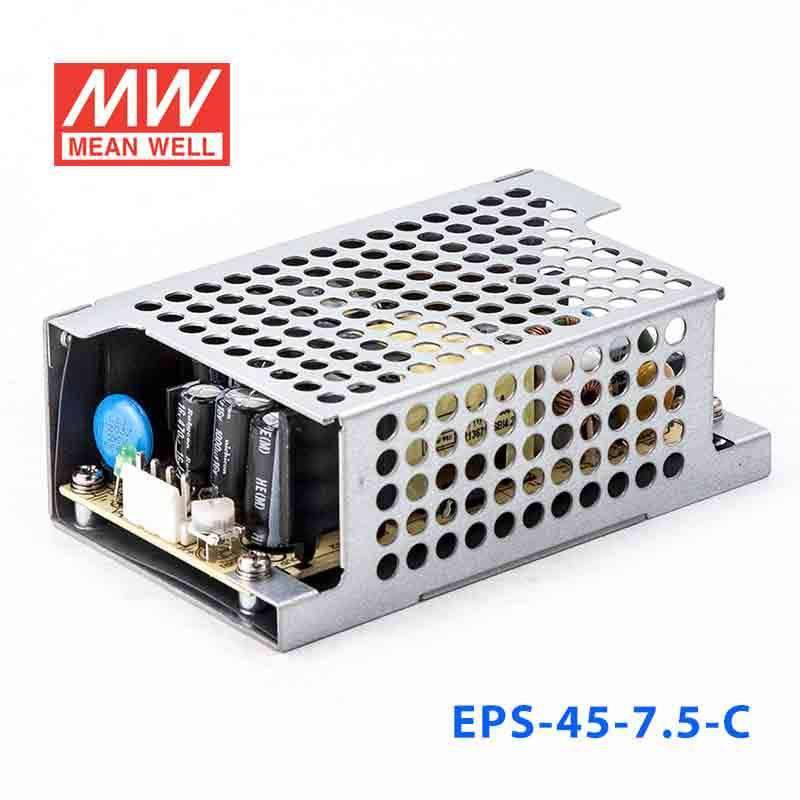

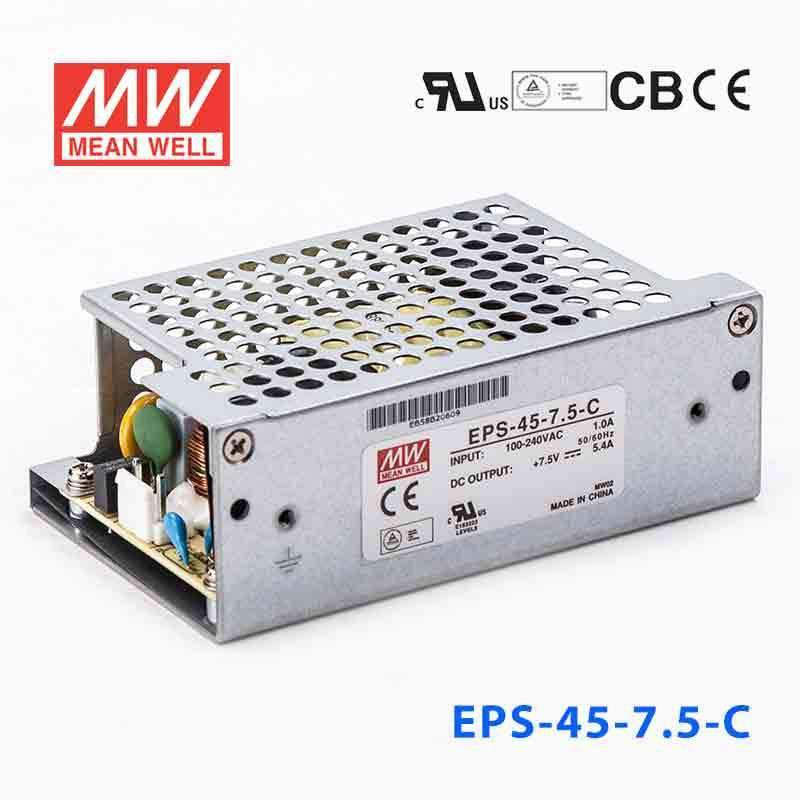

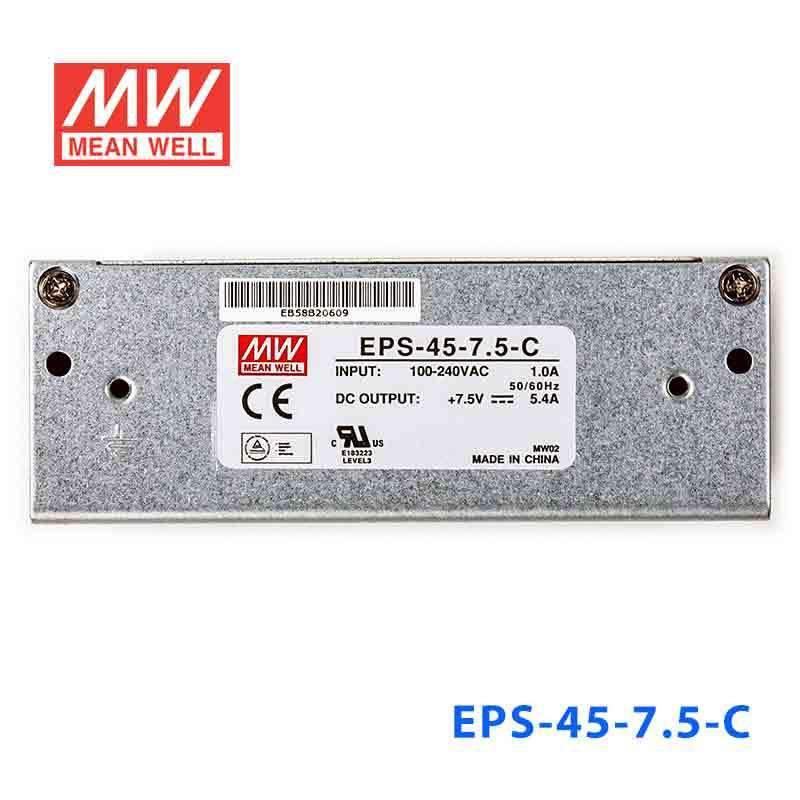

Mean Well EPS-45-7.5-C Power Supply 40W 7.5V 5.4A

Name: Mean Well EPS-45-7.5-C Power Supply 40W 7.5V 5.4A
Brand: Mean Well
SKU: EPS-45-7.5-C
Price: 21.22 USD
Availability: InStock

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W

SKU EPS-45-7.5-C

$21.22 USD

Shipping calculated at checkout.

In stock

Overview

EPS-45-7.5-C is the 7.5V output model of this series: rated current 5.4A, rated power 40.5W, typical efficiency 84%. Type C: Enclosed type.

Features

Universal AC input / Full range
Optional L-Bracket and cover
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
4"×2" compact size
LED indicator for power on
No load power consumption<0.3W
Operating altitude up to 4000 meters
3 years warranty

Specifications

EPS-45-7.5-CSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 7.5V
RATED CURRENT: 5.4A
CURRENT RANGE: 0 ~ 6A
RATED POWER: 40.5W
PEAK LOAD(10sec.)^Note.6: 42W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 7.13 ~ 8.25V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 84%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 115 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 8.63 ~ 10.1V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 4000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2981.8K hrs min. Telcordia SR-332 (Bellcore) ; 652.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING: PCB: 0.14Kg; 96pcs/ 14.5Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank: Blank=PCB only
C (this model): Enclosed type

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-45-7.5-C Mechanical Specification — Mechanical Specification

EPS-45-7.5-C Block Diagram — Block Diagram

EPS-45-7.5-C Output Derating — Output Derating

Downloads

Datasheet1

EPS-45-7.5-C datasheetEPS-45-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (EPS-45)(EN) PDF Download

TUV Certificate (EPS-45)(EN) PDF Download

EMC Certificate (EPS-45)(EN) PDF Download

Test reports1

Test Report (EPS-45-7.5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-45-7.5-C for a 7.5V automation subsystem that needs steady DC output?

Yes, this unit provides constant voltage output at 7.5V with up to 5.4A and 40.5W available. It is suitable for automation, industrial control, or embedded loads that are specified for those limits.

Is the EPS-45-7.5-C appropriate for a 7.5V embedded computer or control board assembly?

It can be used where the embedded assembly requires a regulated 7.5V supply and draws no more than 5.4A. The listed 90-264VAC input range is also useful when the equipment may be deployed across different AC supply standards.

Can this model power a 7.5V industrial sensor hub or communications node?

Yes, if the hub or node is designed for constant 7.5V input and its total load stays within 40.5W and 5.4A. The 103.4 x 62.0 x 37.0 mm form factor may also matter when comparing enclosure space to other versions.

Would the EPS-45-7.5-C fit a compact OEM device that needs 7.5V DC from AC mains?

It is intended for OEM and embedded equipment that converts 90-264VAC input to a constant 7.5V DC output. As long as the device stays within the 5.4A and 40.5W rating, it is a valid electrical fit.

Can the EPS-45-7.5-C be used in cold or hot indoor equipment environments?

The specified operating temperature range is -30°C to +70°C, with output load derating at higher temperatures per the derating curve. No IP rating is listed, so the product information does not confirm suitability for exposed outdoor or wet locations.

What are the main 7.5V EPS alternatives to the EPS-45-7.5-C?

On this spec sheet, the other 7.5V option is the EPS-45-7.5, which shares the same 40.5W, 5.4A rating. The EPS-45-7.5-C is the cased version at 103.4 × 62 × 37 mm and 0.3 kg, versus 101.6 × 50.8 × 29 mm and 0.14 kg for the PCB-type EPS-45-7.5.
