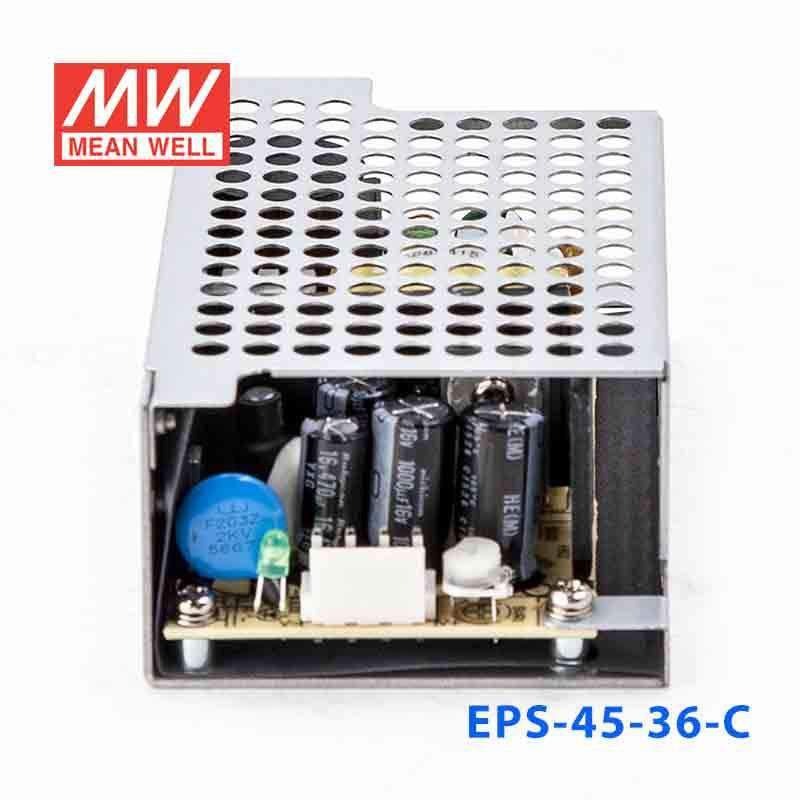

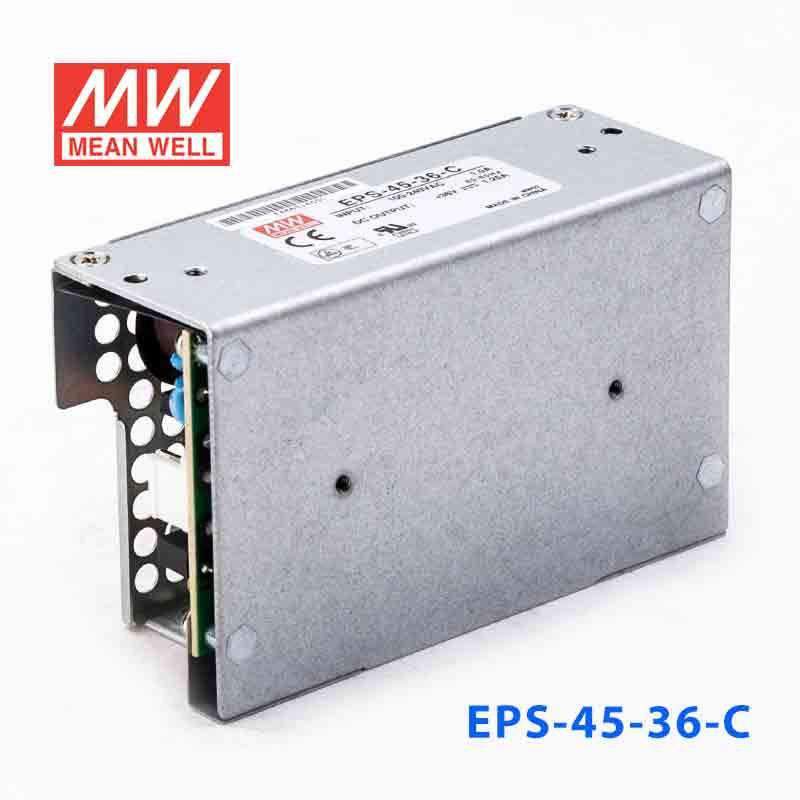

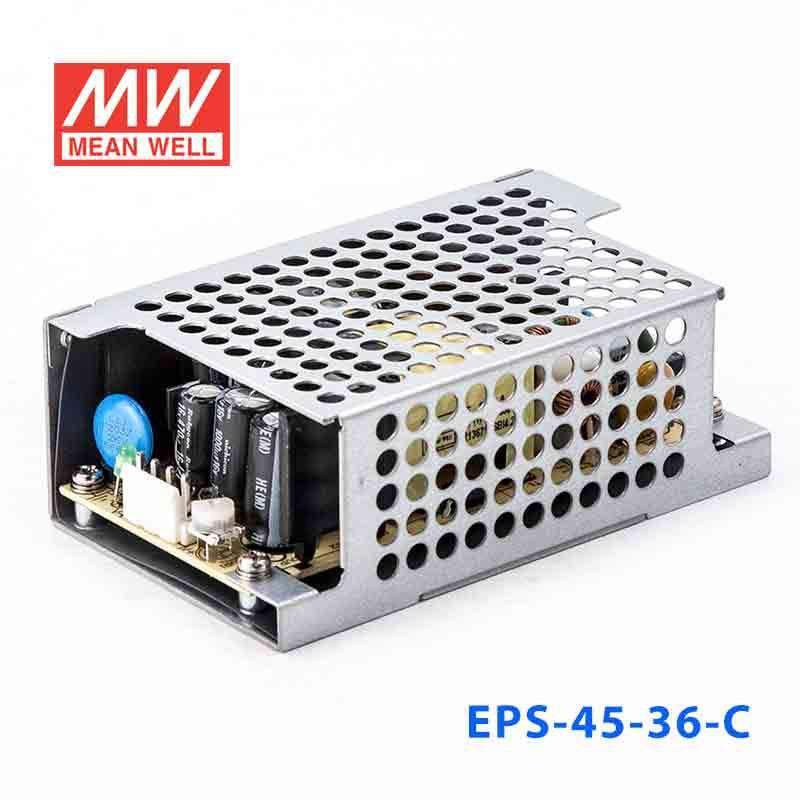

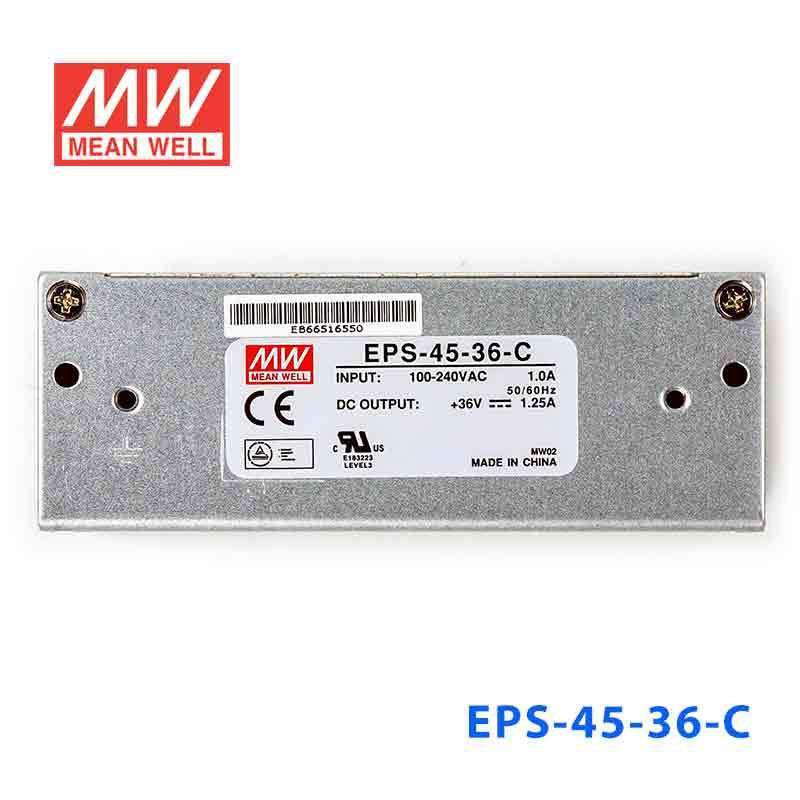

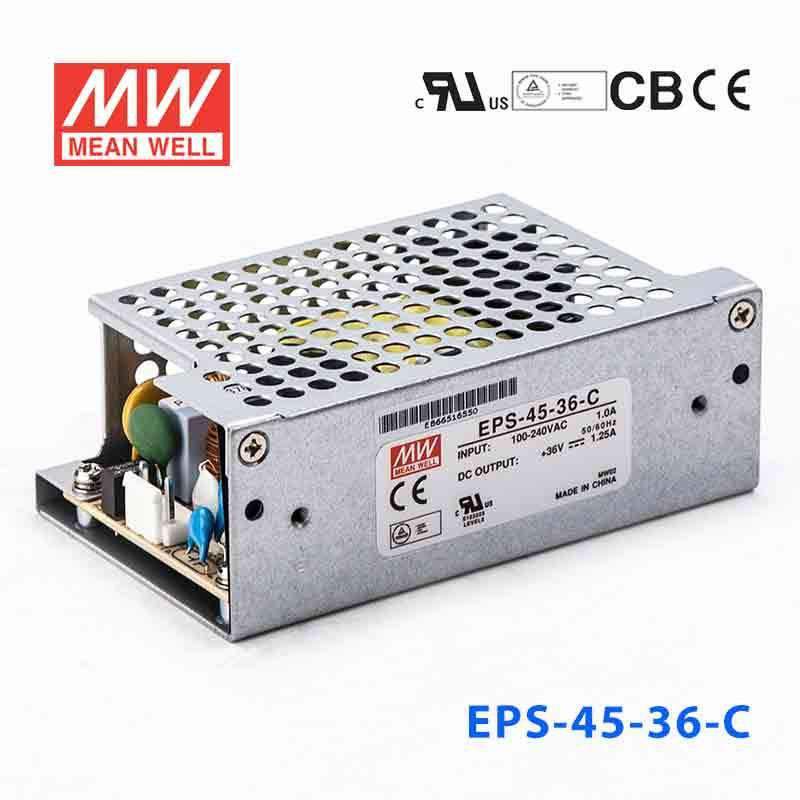

Mean Well EPS-45-36-C Power Supply 45W 36V 1.25A

Name: Mean Well EPS-45-36-C Power Supply 45W 36V 1.25A
Brand: Mean Well
SKU: EPS-45-36-C
Price: 21.25 USD
Availability: InStock

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W

SKU EPS-45-36-C

$21.25 USD

Shipping calculated at checkout.

In stock

Overview

EPS-45-36-C is the 36V output model of this series: rated current 1.25A, rated power 45W, typical efficiency 89%. Type C: Enclosed type.

Features

Universal AC input / Full range
Optional L-Bracket and cover
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
4"×2" compact size
LED indicator for power on
No load power consumption<0.3W
Operating altitude up to 4000 meters
3 years warranty

Specifications

EPS-45-36-CSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 1.25A
CURRENT RANGE: 0 ~ 1.4A
RATED POWER: 45W
PEAK LOAD(10sec.)^Note.6: 50.4W
RIPPLE & NOISE (max.)^Note.2: 280mVp-p
VOLTAGE ADJ. RANGE: 32.4 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 115 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 39.7 ~ 46.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 4000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2981.8K hrs min. Telcordia SR-332 (Bellcore) ; 652.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING: PCB: 0.14Kg; 96pcs/ 14.5Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank: Blank=PCB only
C (this model): Enclosed type

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-45-36-C Mechanical Specification — Mechanical Specification

EPS-45-36-C Block Diagram — Block Diagram

EPS-45-36-C Output Derating — Output Derating

Downloads

Datasheet1

EPS-45-36-C datasheetEPS-45-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (EPS-45)(EN) PDF Download

TUV Certificate (EPS-45)(EN) PDF Download

EMC Certificate (EPS-45)(EN) PDF Download

Test reports1

Test Report (EPS-45-36)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-45-36-C for a 36V industrial sensor or actuator circuit?

Yes, if the load is designed for 36V constant-voltage input and stays within 1.25A. This model provides 45W total at 36V, so it fits lower-power industrial sensor, relay, or actuator circuits that match those limits.

Is the EPS-45-36-C a good fit for a 36V embedded controller or electronics test fixture?

It can be, as long as the controller or fixture needs a regulated 36V constant-voltage source and does not exceed 45W. The wide 90-264VAC input also makes it suitable for equipment used across different AC mains environments.

Can this power a small 36V automation subsystem inside a control cabinet?

Yes, for small automation loads that require 36V DC and draw no more than 1.25A. Its compact 103.4 × 62.0 × 37.0 mm size also helps where panel space is limited.

Would the EPS-45-36-C work for low-power 36V lab or bench equipment?

Yes, if the equipment calls for 36V constant voltage and stays within the 45W, 1.25A output limit. This makes it suitable for low-power test, measurement, or evaluation setups built around 36V DC rails.

Is the EPS-45-36-C suitable for outdoor or harsh-environment use?

The listed operating temperature range is -30°C to +70°C, with output load derating per the derating curve, but no IP rating is provided in the product specs. That supports use across a wide temperature range, but the specs do not support direct exposure to outdoor moisture or washdown conditions.
