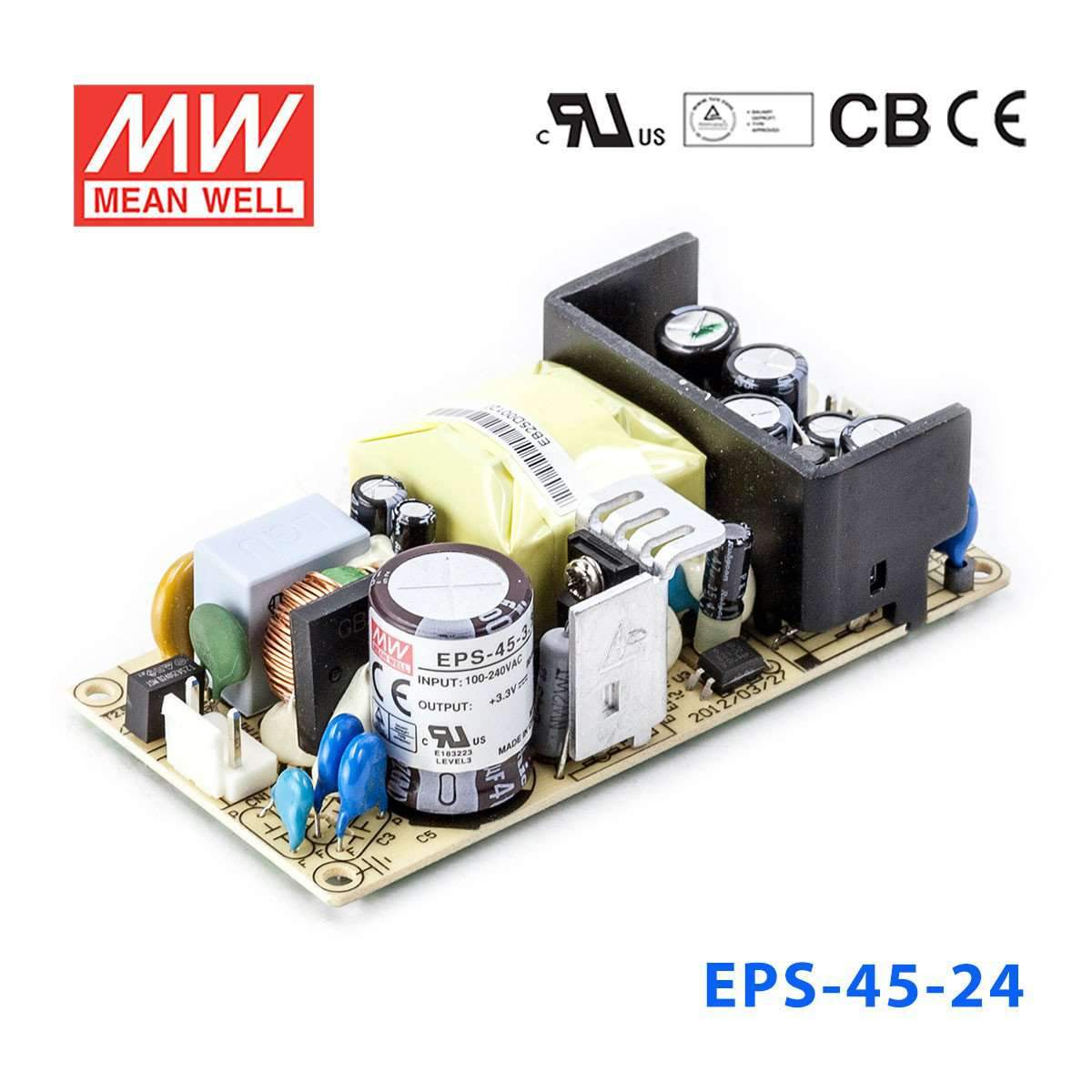

Mean Well EPS-45-24 Power Supply 45W 24V 1.9A

Name: Mean Well EPS-45-24 Power Supply 45W 24V 1.9A
Brand: Mean Well
SKU: EPS-45-24
Price: 16.88 USD
Availability: InStock

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W

SKU EPS-45-24

$16.88 USD

Shipping calculated at checkout.

In stock

Overview

EPS-45-24 is the 24V output model of this series: rated current 1.9A, rated power 45.6W, typical efficiency 89%. Type Blank: Blank=PCB only.

Features

Universal AC input / Full range
Optional L-Bracket and cover
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
4"×2" compact size
LED indicator for power on
No load power consumption<0.3W
Operating altitude up to 4000 meters
3 years warranty

Specifications

EPS-45-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 1.9A
CURRENT RANGE: 0 ~ 2.1A
RATED POWER: 45.6W
PEAK LOAD(10sec.)^Note.6: 50.4W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 27V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 115 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 4000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2981.8K hrs min. Telcordia SR-332 (Bellcore) ; 652.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING: PCB: 0.14Kg; 96pcs/ 14.5Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank (this model): Blank=PCB only
C: Enclosed type

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-45-24 Mechanical Specification — Mechanical Specification

EPS-45-24 Output Derating — Output Derating

Downloads

Datasheet1

EPS-45-24 datasheetEPS-45-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (EPS-45)(EN) PDF Download

TUV Certificate (EPS-45)(EN) PDF Download

EMC Certificate (EPS-45)(EN) PDF Download

Test reports1

Test Report (EPS-45-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-45-24 to power a 24V PLC or industrial control circuit?

Yes, this model is a constant voltage 24V supply rated for 45.6W and 1.9A, which fits many small PLC, relay, and control-panel loads that require 24VDC. It runs from a 90-264VAC input, and the sheet also allows 127-370VDC input.

Is the EPS-45-24 suitable for 24V sensors, relays, and automation accessories in one enclosure?

It can be a fit when the connected 24V devices stay within the unit's 1.9A and 45.6W output limits. The constant voltage output is intended for 24V equipment rather than loads that require another DC voltage.

Can this power supply run a small 24V embedded or industrial PC setup?

It is appropriate for 24V embedded and industrial electronics when the total load does not exceed 45.6W or 1.9A. Buyers should match the equipment to a constant voltage 24V source and verify the power draw stays inside the published limits.

Can the EPS-45-24 be used in an indoor machine cabinet or control box?

For indoor equipment spaces, the operating temperature range of -30°C to +70°C (with output load derating per the derating curve) supports a wide range of industrial conditions. No IP rating is listed in the provided specs, so it should not be treated as a weather-exposed or washdown power supply.

How does the EPS-45-24 compare with other 24V models in the EPS series?

Among the 24V models on this spec sheet, EPS-45-24 and EPS-45-24-C share the same 45.6W, 1.9A rating. EPS-45-24 is the PCB version at 101.6 × 50.8 × 29 mm and 0.14 kg, while EPS-45-24-C is the cased version at 103.4 × 62 × 37 mm and 0.3 kg.
