Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

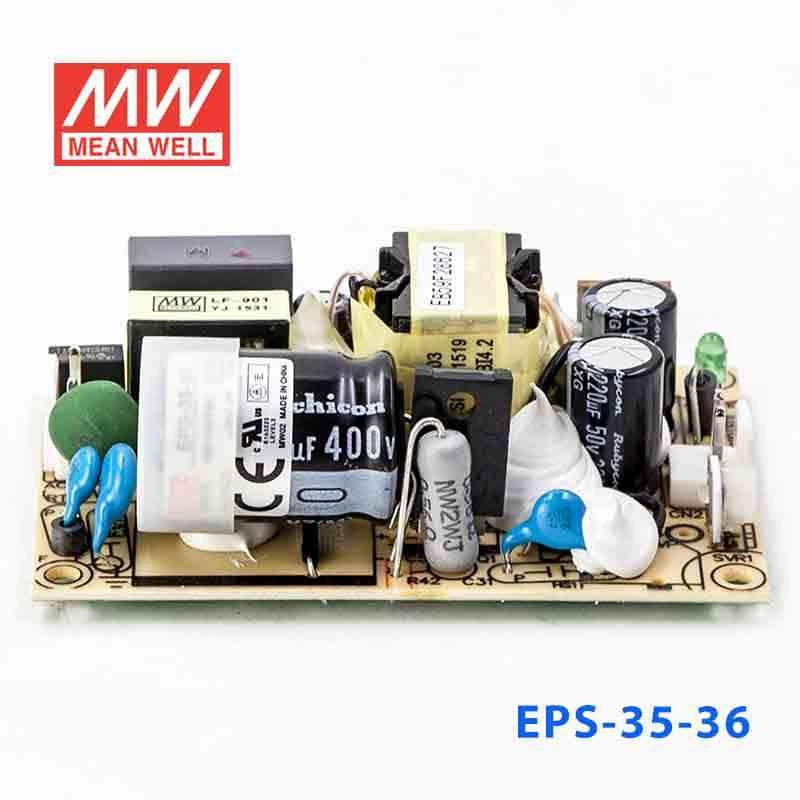

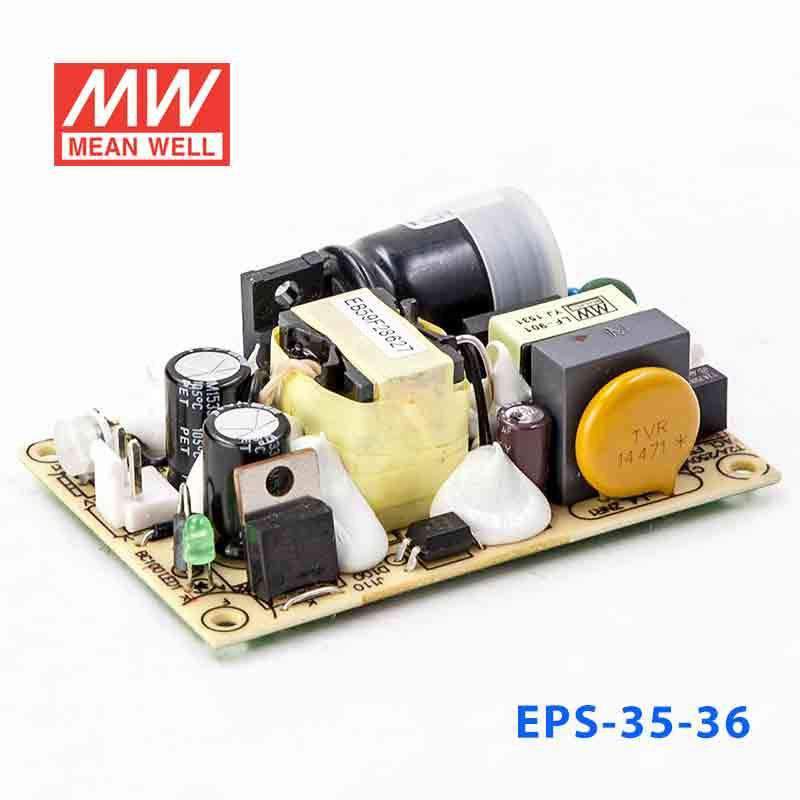

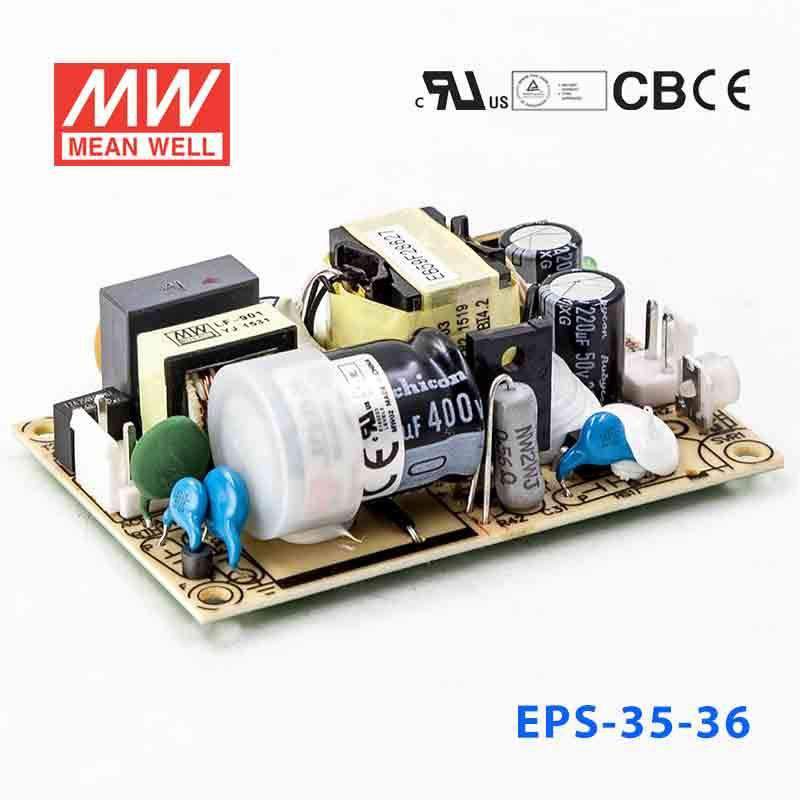

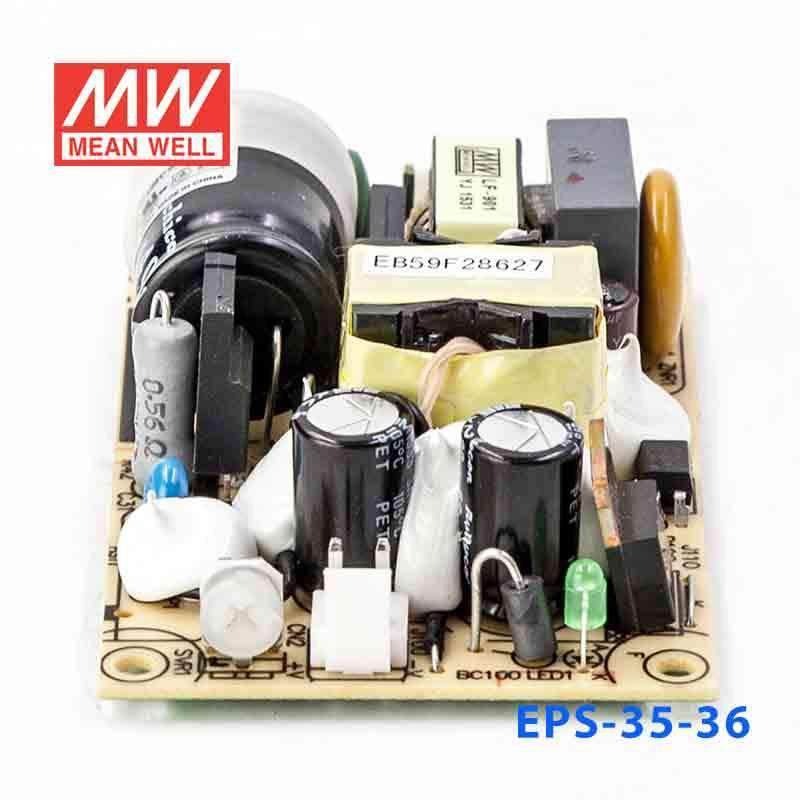

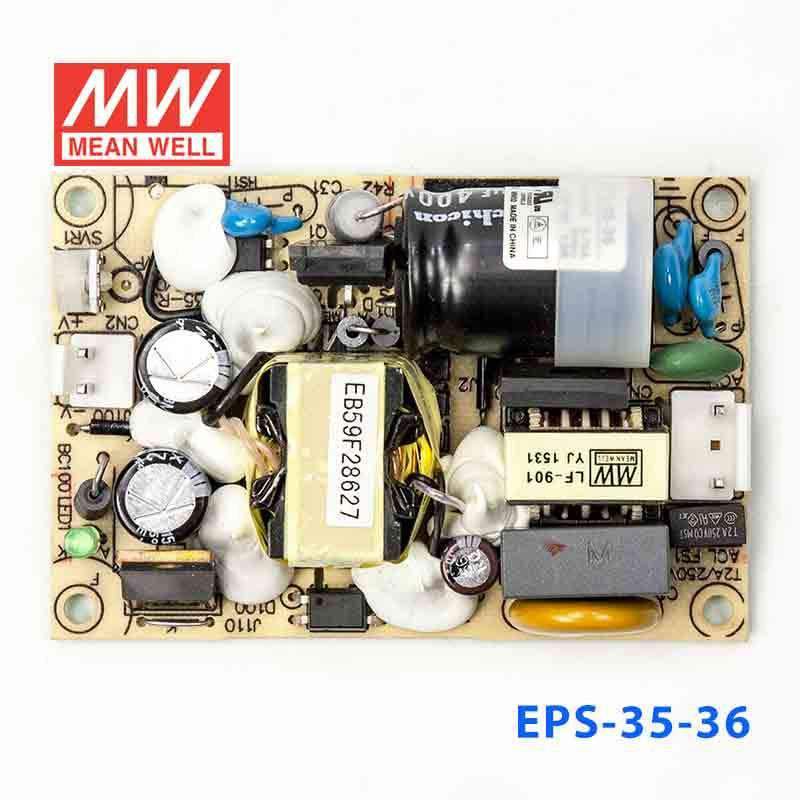

Mean Well EPS-35-36 Power Supply 36W 36V 1A

3" x 2"economical non-PFCsmall sizehigh efficiency
SKU EPS-35-36
$13.53 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-35-36 is the 36V output model of this series: rated current 1A, rated power 36W, typical efficiency 89%.

Features

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • 3 years warranty

Specifications

EPS-35-36Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
36V
RATED CURRENT
1A
CURRENT RANGE
0 ~ 1.1A
RATED POWER
36W
PEAK LOAD(10sec.)Note.6
39.6W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
32.4 ~ 39.6V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
39.7 ~ 46.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃ )
OPERATING ALTITUDENote.8
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3673.9K hrs min. Telcordia SR-332 (Bellcore) ; 649.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
76.2*50.8*24mm (L*W*H)
PACKING
0.085Kg; 120pcs/11.2Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. EPS-35-24/27/36/48 without Hs1.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-35-36 Mechanical Specification
Mechanical Specification
EPS-35-36 Block Diagram
Block Diagram
EPS-35-36 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-35-36 for a 36V automation or industrial control load?

Yes, if the equipment requires a constant 36V output and draws no more than 1A, since this model is rated for 36W at 36V. It fits low-power industrial, embedded, or automation loads that need 36V DC from an 85-264VAC input.

Is the EPS-35-36 suitable for a compact 36V internal power supply in equipment?

It is designed for compact internal use where a 36V rail is needed at up to 36W. The 76.2 × 50.8 × 24.0 mm form factor and 0.085 kg weight are useful when space is limited inside a machine, controller, or embedded assembly.

Can this model power a 36V panel device or low-current control module?

It can, provided the device is a 36V constant-voltage load and its current draw does not exceed 1A. That makes it a better fit for lower-current 36V electronics than for heavier 36V loads that need more than 36W.

Is the EPS-35-36 rated for outdoor environments?

The product has an operating temperature range of -30°C to +70°C, but no IP rating is shown in the provided specs. That means the temperature capability is specified, while outdoor, rain, or dust-exposed suitability is not confirmed here.
