Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

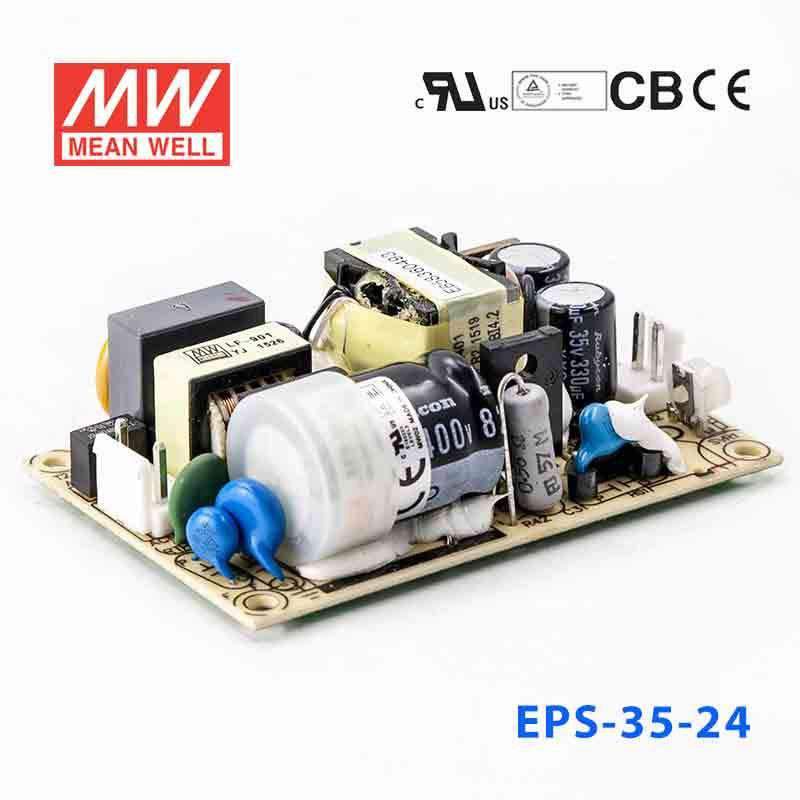

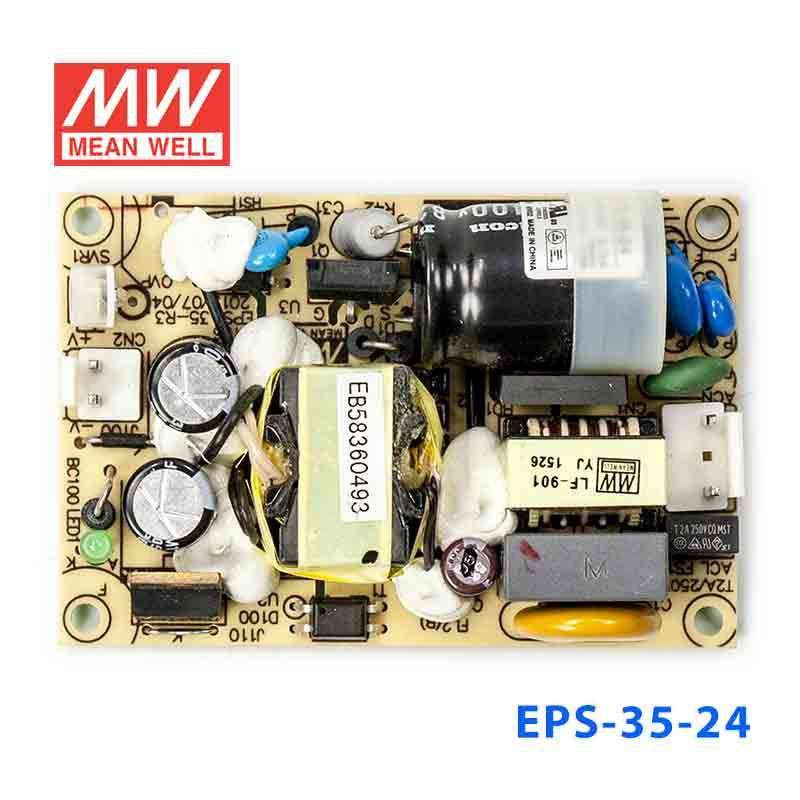

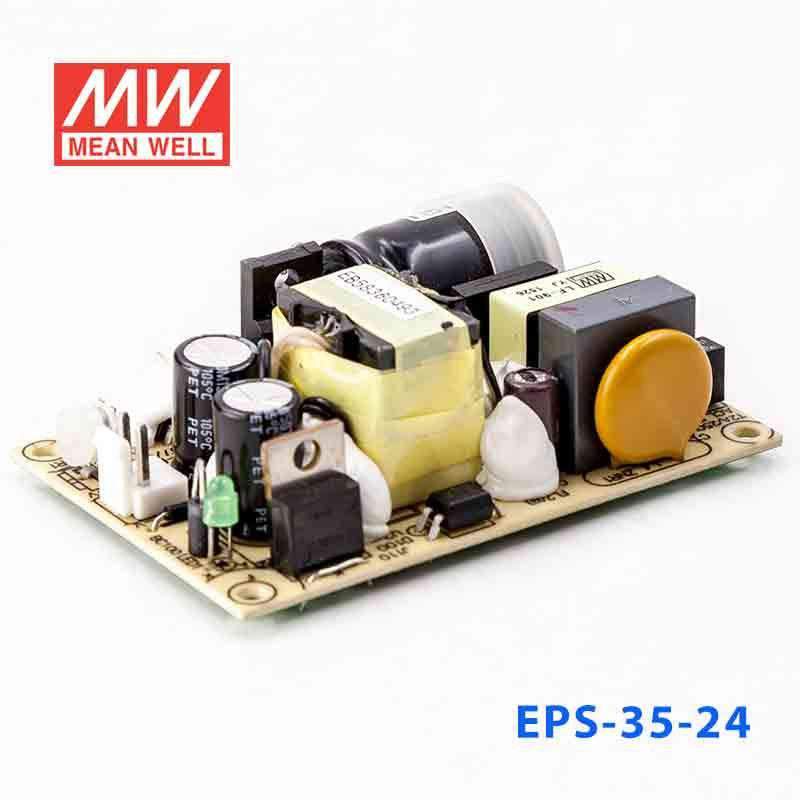

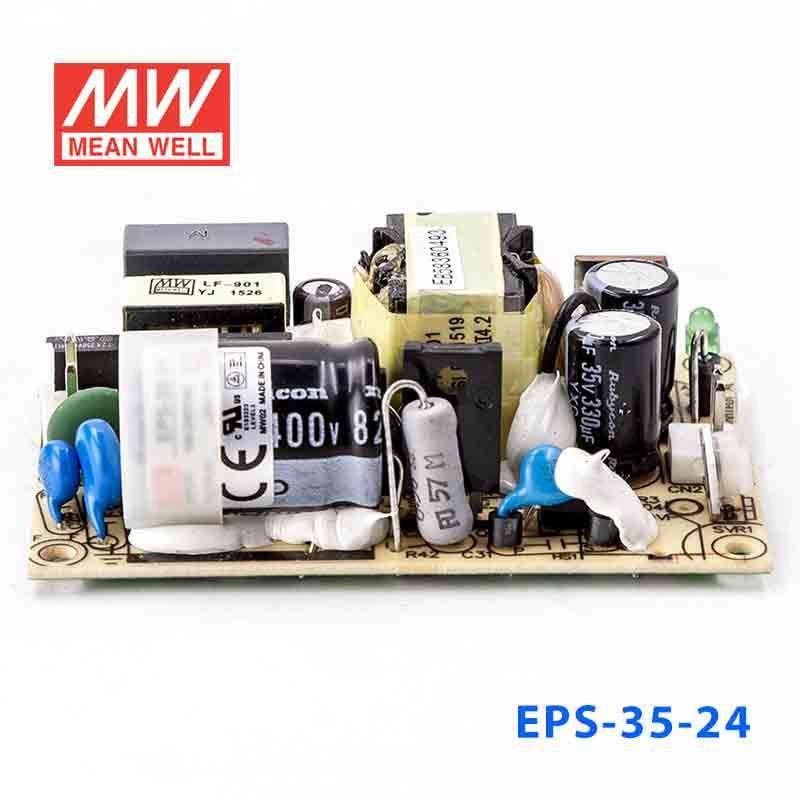

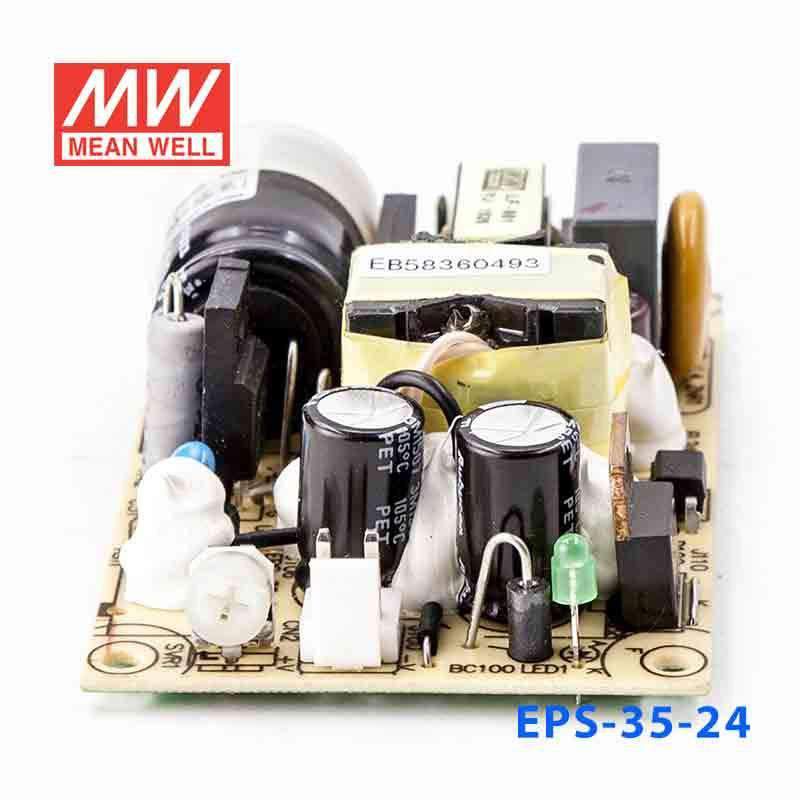

Mean Well EPS-35-24 Power Supply 36W 24V 1.5A

3" x 2"economical non-PFCsmall sizehigh efficiency
SKU EPS-35-24
$15.76 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-35-24 is the 24V output model of this series: rated current 1.5A, rated power 36W, typical efficiency 89%.

Features

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • 3 years warranty

Specifications

EPS-35-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
1.5A
CURRENT RANGE
0 ~ 1.65A
RATED POWER
36W
PEAK LOAD(10sec.)Note.6
39.6W
RIPPLE & NOISE (max.)Note.2
180mVp-p
VOLTAGE ADJ. RANGE
21.6 ~ 27V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃ )
OPERATING ALTITUDENote.8
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3673.9K hrs min. Telcordia SR-332 (Bellcore) ; 649.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
76.2*50.8*24mm (L*W*H)
PACKING
0.085Kg; 120pcs/11.2Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. EPS-35-24/27/36/48 without Hs1.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-35-24 Mechanical Specification
Mechanical Specification
EPS-35-24 Block Diagram
Block Diagram
EPS-35-24 Output Derating
Output Derating

Downloads

FAQ

What output does the Mean Well EPS-35-24 provide?

The Mean Well EPS-35-24 is a 36W AC-DC power supply with a 24V DC output. Its rated output current is 1.5A, and the output voltage can be adjusted from 21.6V to 27V.

What input voltage range does the EPS-35-24 support?

This model accepts a universal input range of 85 to 264VAC, and it can also operate from 120 to 370VDC. That wide range makes it suitable for equipment intended for use across different mains power regions.

What types of applications is the EPS-35-24 typically used for?

The EPS-35-24 is generally suited to OEM and industrial equipment that needs a compact 24V DC power source installed inside the final equipment. Its 36W power rating and small size make it a practical option where space is limited and moderate 24V loads are required.

What protection features are included in the EPS-35-24?

This power supply includes protection against overload and over voltage. The overload protection operates in hiccup mode with auto recovery, and the overload range is specified at 115% to 170% of rated output power.

Can the EPS-35-24 be used in demanding temperature environments?

The EPS-35-24 is rated for operation from -30°C to +70°C, with reference to the output derating curve. That gives it a broad working temperature range for many commercial and industrial environments.

How efficient is the Mean Well EPS-35-24?

Mean Well specifies a typical efficiency of 89% for the EPS-35-24. Typical AC input current is 0.75A at 115VAC and 0.5A at 230VAC.

What approvals and standards does the EPS-35-24 meet?

This model is approved to UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1 and EAC TP TC 004 safety standards. It also meets listed EMC standards including BS EN/EN55032 Class B and multiple BS EN/EN61000 series requirements.
