Mean Well

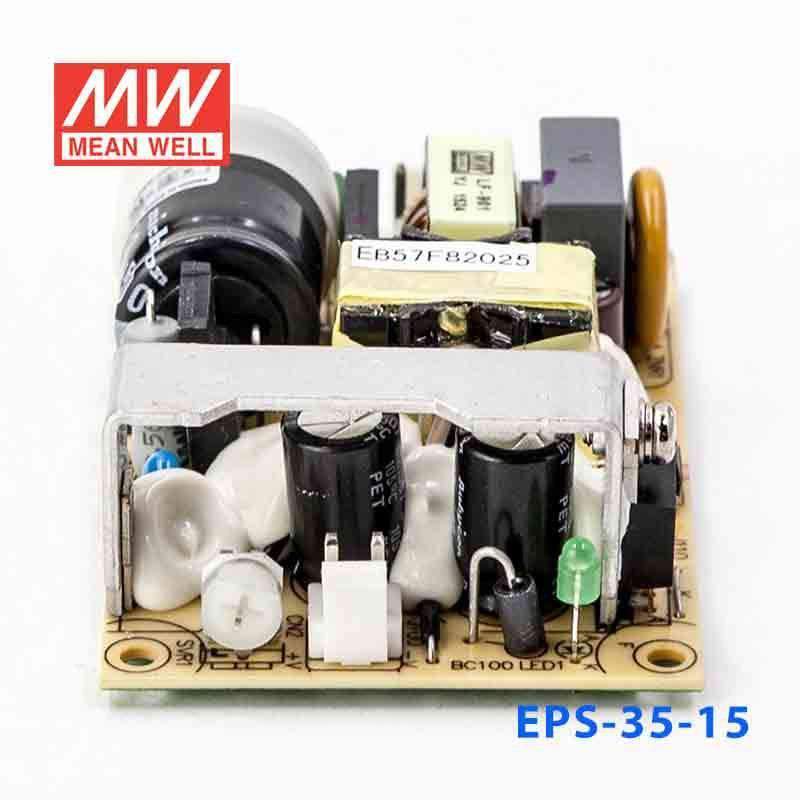

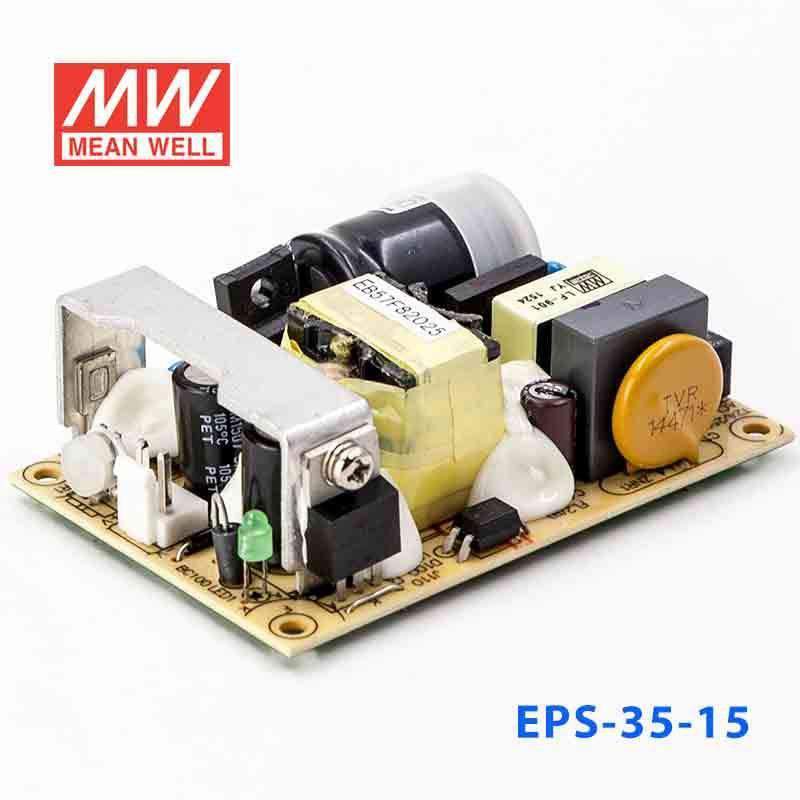

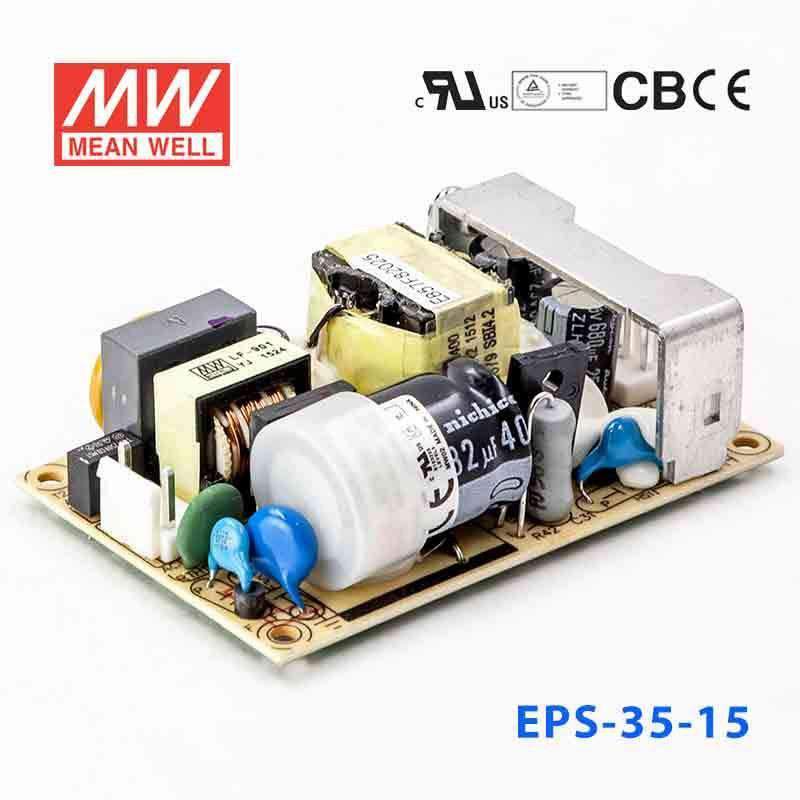

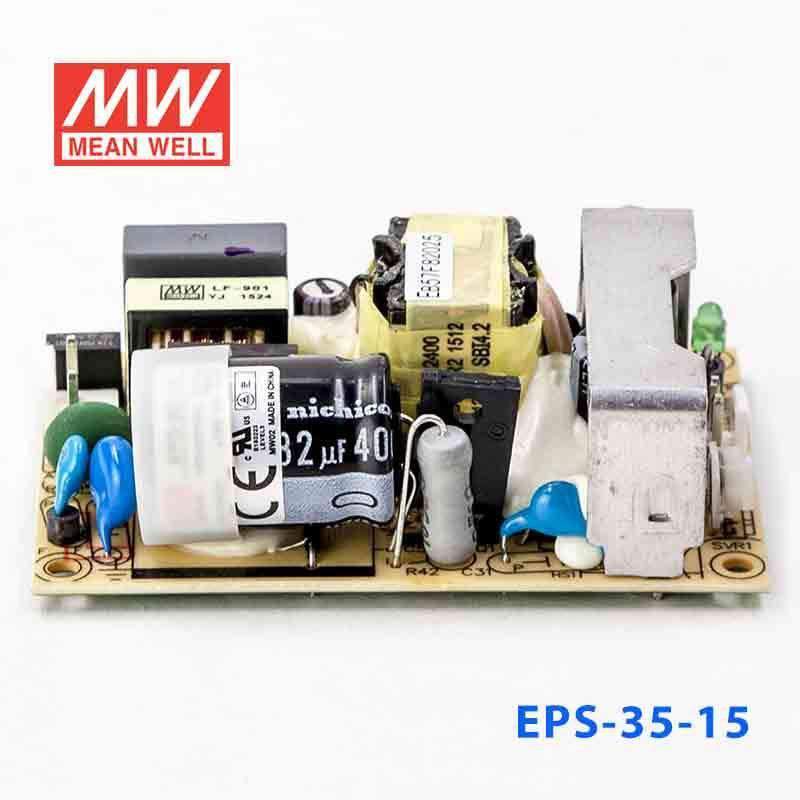

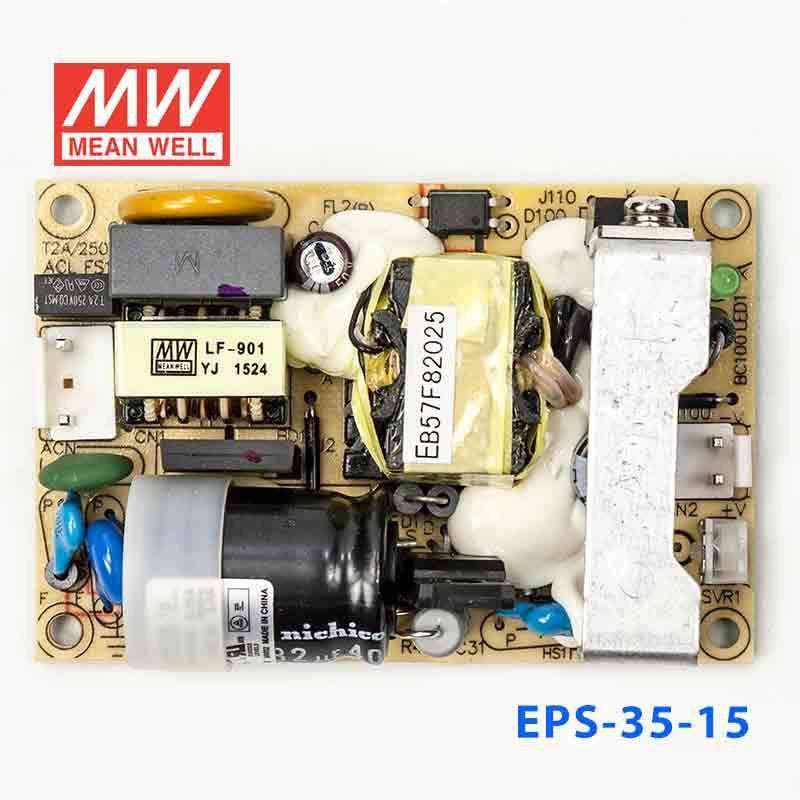

Mean Well EPS-35-15 Power Supply 36W 15V 2.4A

3" x 2"economical non-PFCsmall sizehigh efficiency
SKU EPS-35-15
$15.76 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-35-15 is the 15V output model of this series: rated current 2.4A, rated power 36W, typical efficiency 88%.

Features

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • 3 years warranty

Specifications

EPS-35-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
2.4A
CURRENT RANGE
0 ~ 2.65A
RATED POWER
36W
PEAK LOAD(10sec.)Note.6
39.75W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃ )
OPERATING ALTITUDENote.8
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3673.9K hrs min. Telcordia SR-332 (Bellcore) ; 649.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
76.2*50.8*24mm (L*W*H)
PACKING
0.085Kg; 120pcs/11.2Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. EPS-35-24/27/36/48 without Hs1.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-35-15 Mechanical Specification
Mechanical Specification
EPS-35-15 Block Diagram
Block Diagram
EPS-35-15 Output Derating
Output Derating

Downloads

FAQ

What is the output rating of the Mean Well EPS-35-15 power supply?

The Mean Well EPS-35-15 is rated for 36W total output power. It provides a 15V DC output with a rated current of 2.4A. This makes it suitable for applications that need a compact regulated 15V power source within that power range.

What input voltage range does the EPS-35-15 support?

This model accepts a universal input range of 85 to 264VAC, and it can also operate from 120 to 370VDC. That wide range helps it fit equipment intended for different regional power systems. The AC input frequency range is 47 to 63Hz.

Can the output voltage on the EPS-35-15 be adjusted?

Yes, the EPS-35-15 has a DC adjustment range of 13.5V to 16.5V, plus or minus 10% of the rated output voltage. Since the nominal output is 15V, that allows limited adjustment around the standard setpoint. This can help in designs that need minor output trimming rather than a fixed exact voltage only.

What protection features are included in the Mean Well EPS-35-15?

The EPS-35-15 includes overload and over-voltage protection. Its overload protection operates in hiccup mode with auto recovery, and the overload range is specified at 115% to 170% of rated output power. Over-voltage protection operates at 17.25 to 20.25V and shuts down the output; re-power on to recover.

Is the EPS-35-15 suitable for compact embedded or OEM equipment?

Yes, this model is a compact power supply with dimensions of 76.2 x 50.8 x 24 mm and a weight of 0.085 kg. Its small footprint makes it a practical option for space-constrained OEM and embedded applications. It is designed as a component to be installed inside finished equipment.

What operating temperature range can the EPS-35-15 handle?

The specified working temperature range is -30°C to +70°C, with reference to the output derating curve. That gives it a broad operating window for many commercial and industrial environments. Performance at higher temperatures should be considered against the published derating curve.

What certifications and compliance standards are listed for the EPS-35-15?

The EPS-35-15 is listed with UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1 and EAC TP TC 004 safety approvals. Its EMC information includes BS EN/EN55032 Class B, BS EN/EN61000-3-2, -3, and multiple BS EN/EN61000-4 immunity standards. These published standards are useful for buyers evaluating the unit for regulated equipment designs.
