Mean Well

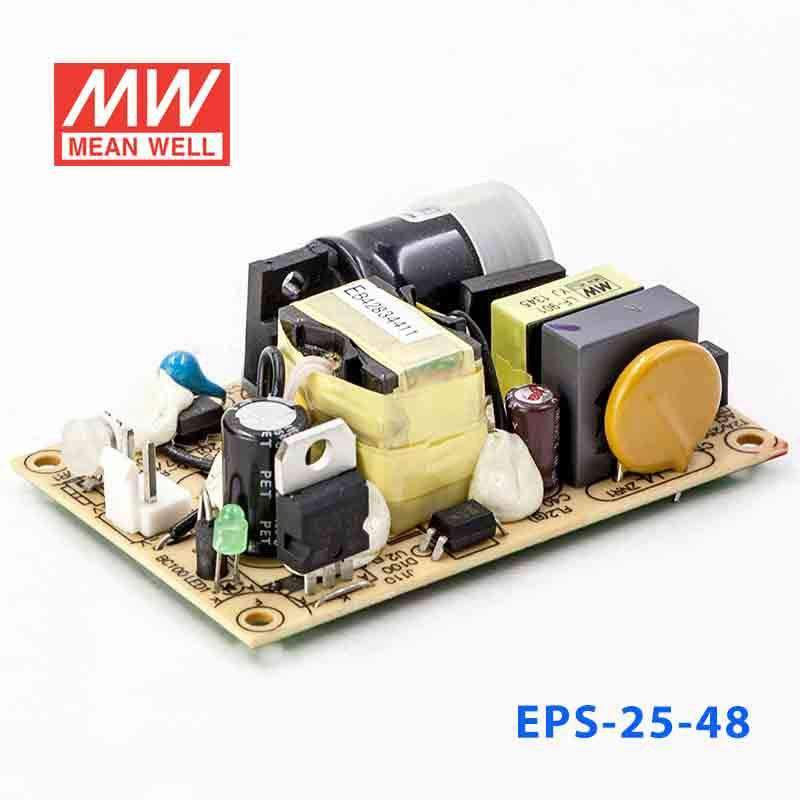

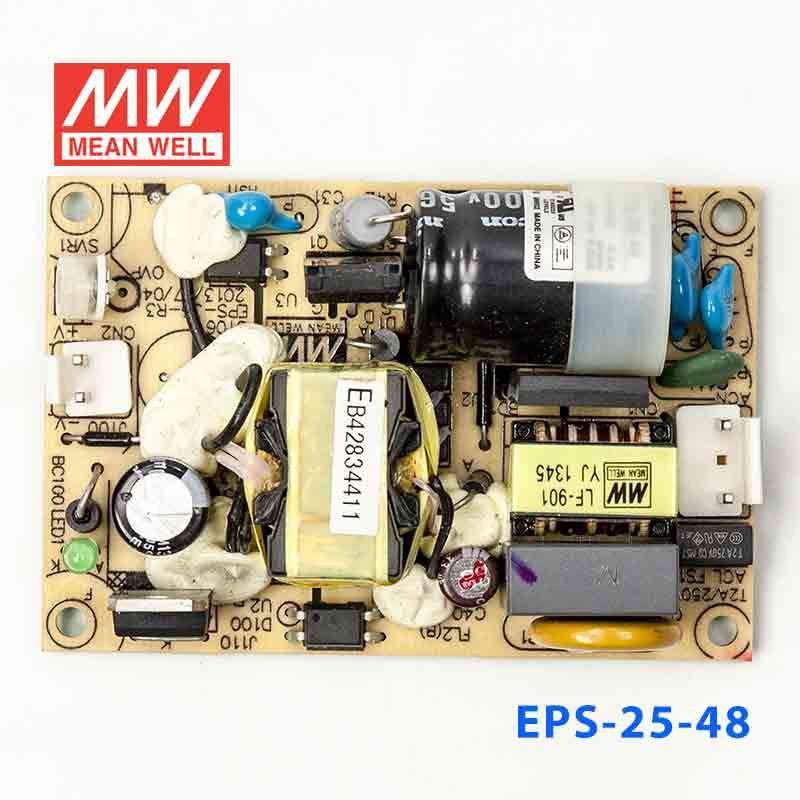

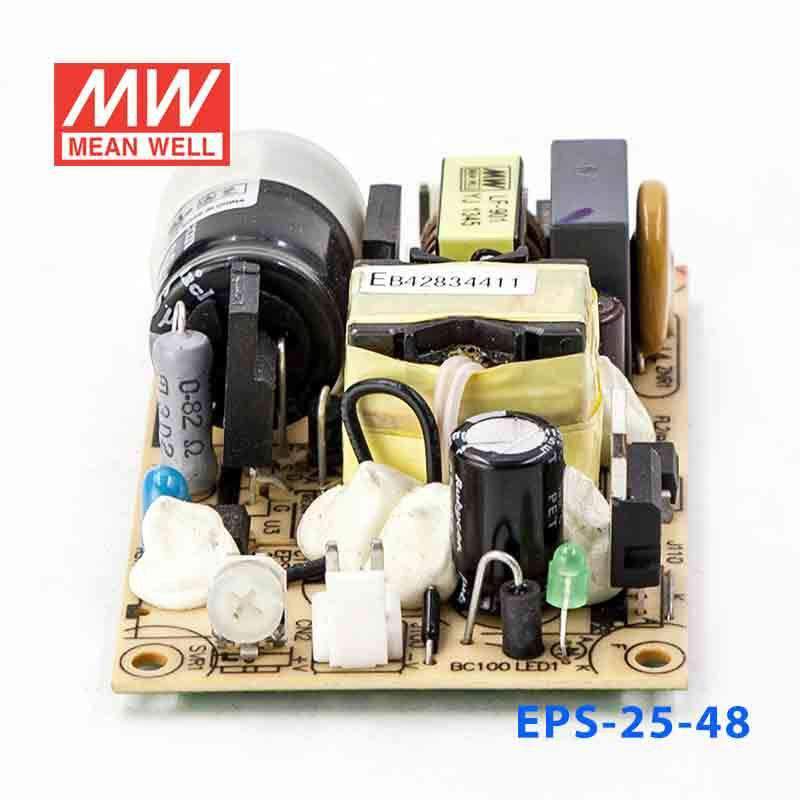

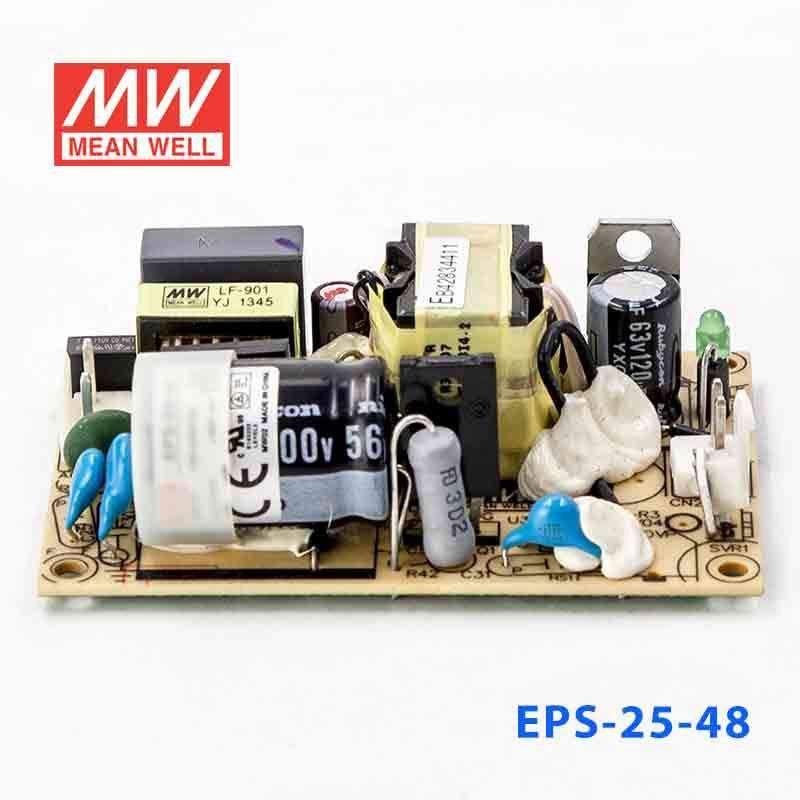

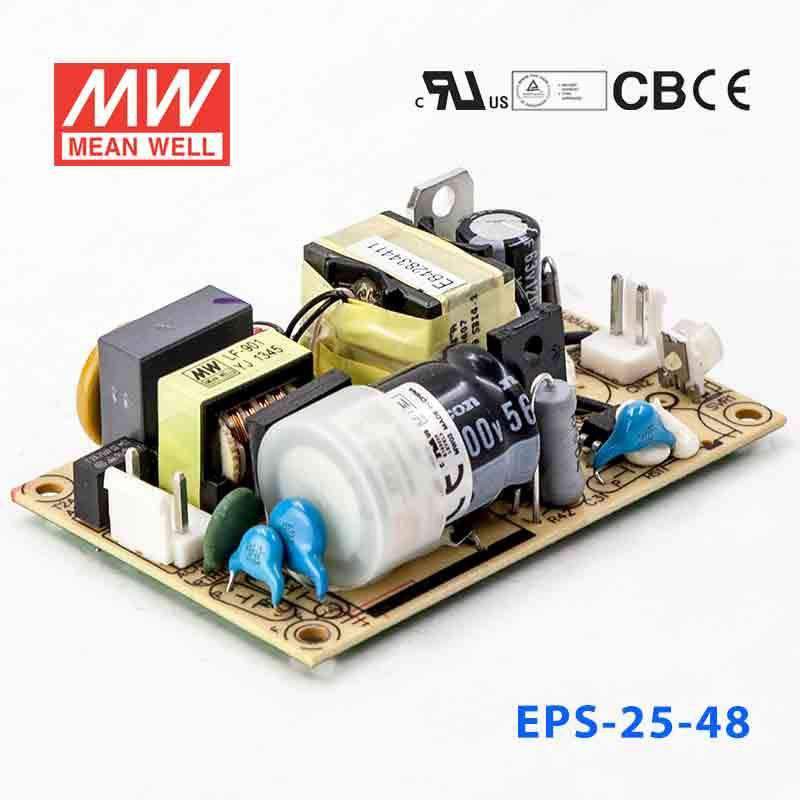

Mean Well EPS-25-48 Power Supply 25W 48V 530mA

3" x 2"economical non-PFCsmall sizehigh efficiency
SKU EPS-25-48
$15.21 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-25-48 is the 48V output model of this series: rated current 0.53A, rated power 25.44W, typical efficiency 90%.

Features

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • 3 years warranty

Specifications

EPS-25-48Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
0.53A
CURRENT RANGE
0 ~ 0.59A
RATED POWER
25.44W
PEAK LOAD(10sec.)Note.6
28.32W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE ADJ. RANGE
43.2 ~ 52.8V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
90%
AC CURRENT (Typ.)
0.6A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
53.3 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.8
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3830.1K hrs min. Telcordia SR-332 (Bellcore) ; 655.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
76.2*50.8*24mm (L*W*H)
PACKING
0.081Kg; 120pcs/10.7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. EPS-25-15/24/27/36/48 without Hs1.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

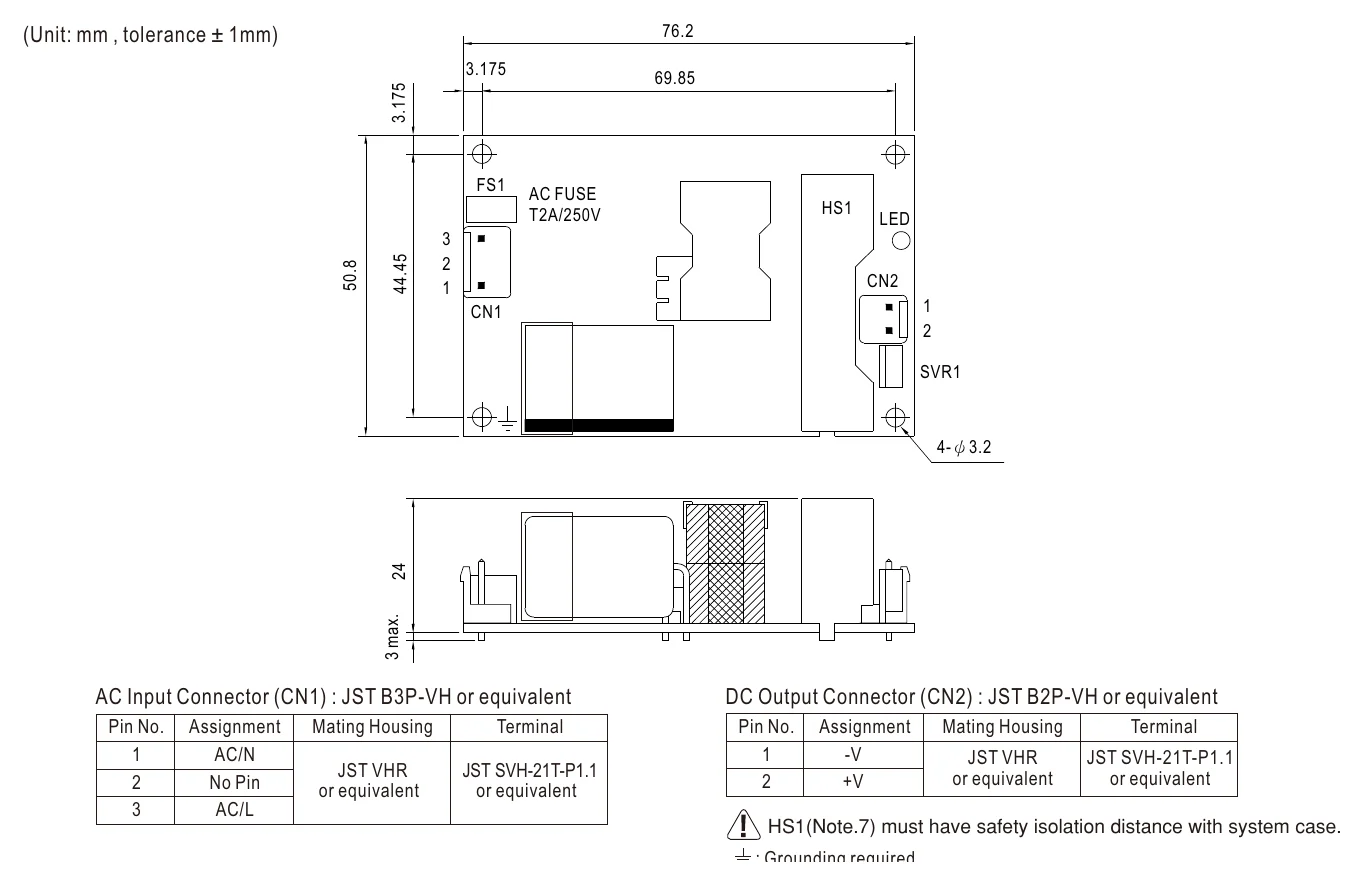

EPS-25-48 Mechanical Specification
Mechanical Specification

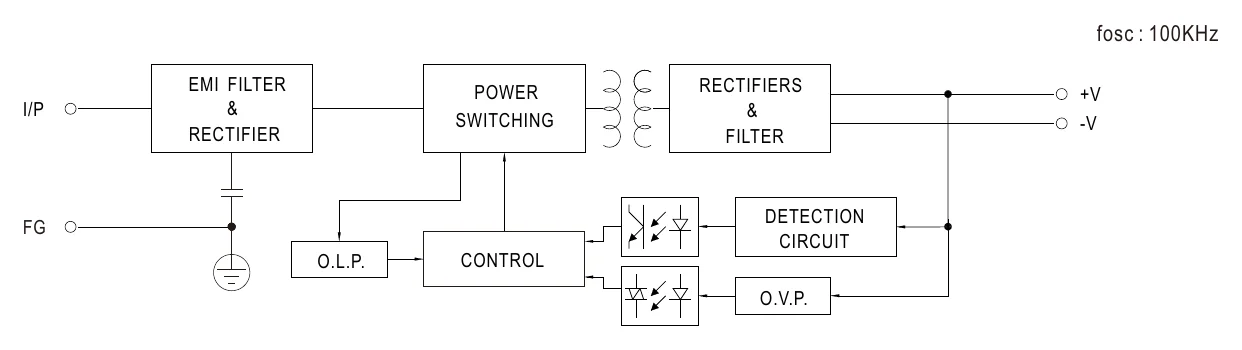

EPS-25-48 Block Diagram
Block Diagram

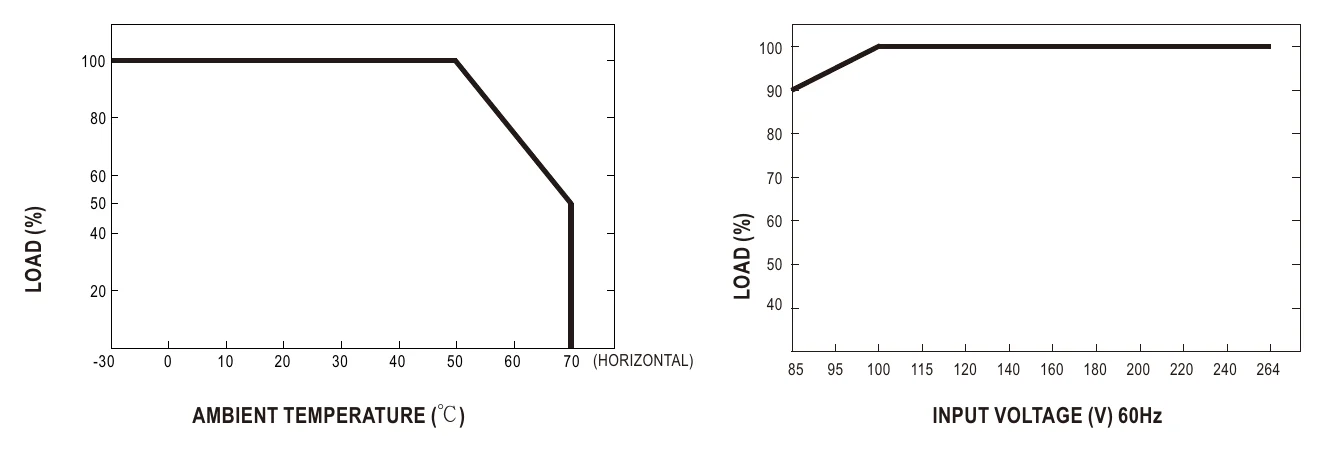

EPS-25-48 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-25-48 for a 48V industrial controller or network appliance?

Yes, if the equipment is designed for constant-voltage 48V DC and draws no more than 0.53A or 25.44W. It is better suited to low-power 48V electronics than to higher-current 48V loads.

Is this a good fit for a 48V embedded communication or monitoring device?

It can be a fit when the device expects a regulated 48V input and its total load stays within 0.53A. For embedded communication, monitoring, or control hardware, the deciding factor is matching the 48V constant-voltage requirement and the 25.44W ceiling.

Can the EPS-25-48 power a small 48V automation subsystem?

Yes, for small 48V automation electronics that stay within 25.44W and 0.53A. It is intended for constant-voltage loads, so it should be matched to electronics and modules specified for 48V DC operation.

Can this 48V unit be used in low-temperature or high-temperature equipment enclosures?

The specified operating range is -30°C to +70°C, which covers a wide span for enclosed equipment. No IP rating is listed in the provided specs, so those specs do not establish exposed outdoor or wet-location suitability on their own.

What are the main differences between the EPS-25-48 and other EPS-25 versions?

The EPS-25 family includes 3.3V 5A at 16.5W, 5V 5A at 25W, 7.5V 3.4A at 25.5W, 12V 2.1A at 25.2W, 15V 1.7A at 25.5W, 24V 1.05A at 25.2W, 27V 0.95A at 25.65W, 36V 0.7A at 25.2W, and 48V 0.53A at 25.44W. This model is the 48V option in that group, with the lowest output current among the EPS-25 variants listed.
