Mean Well

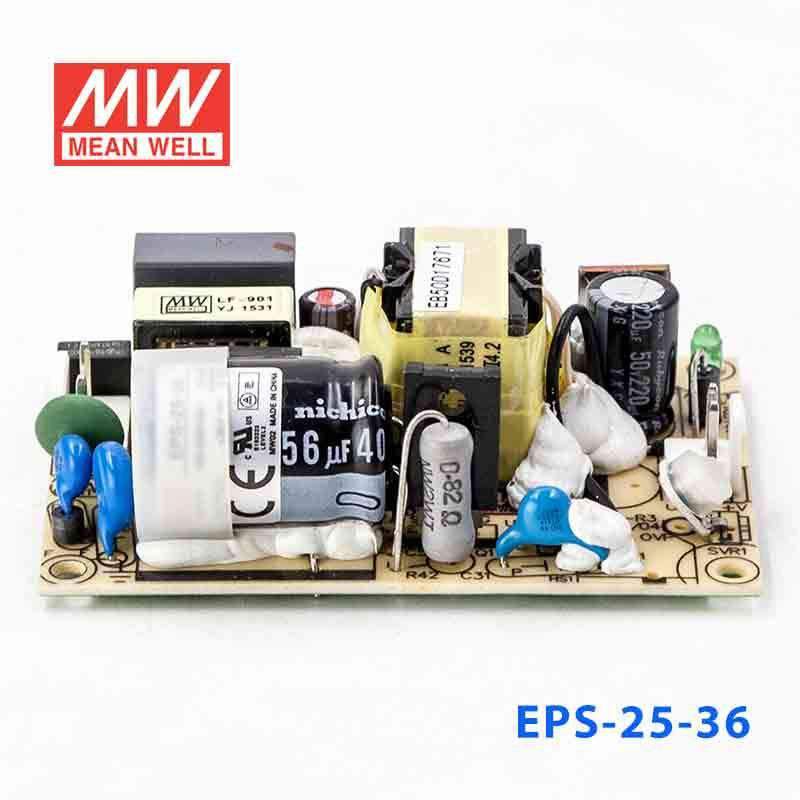

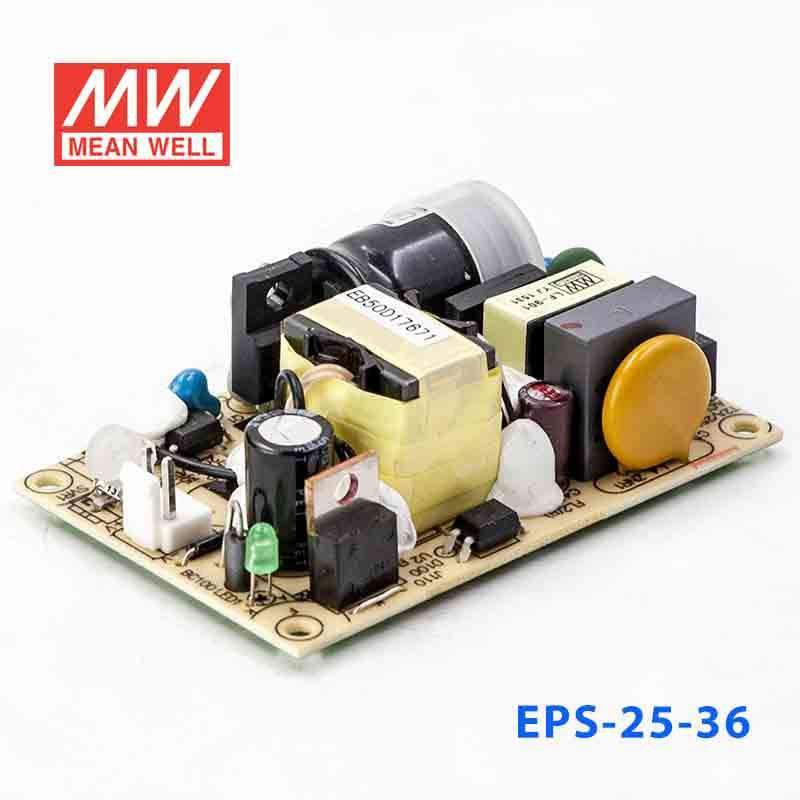

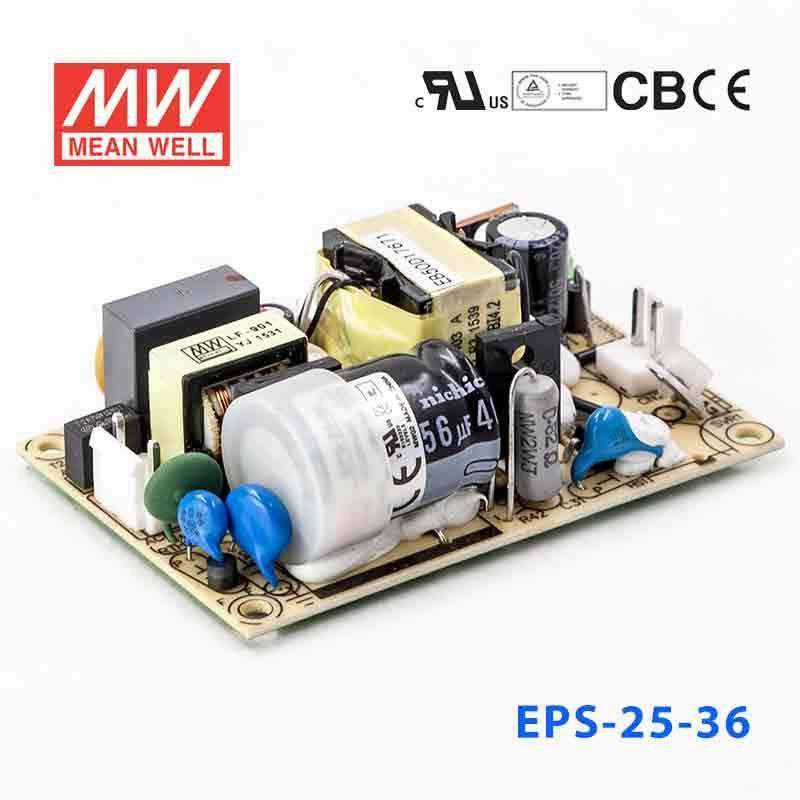

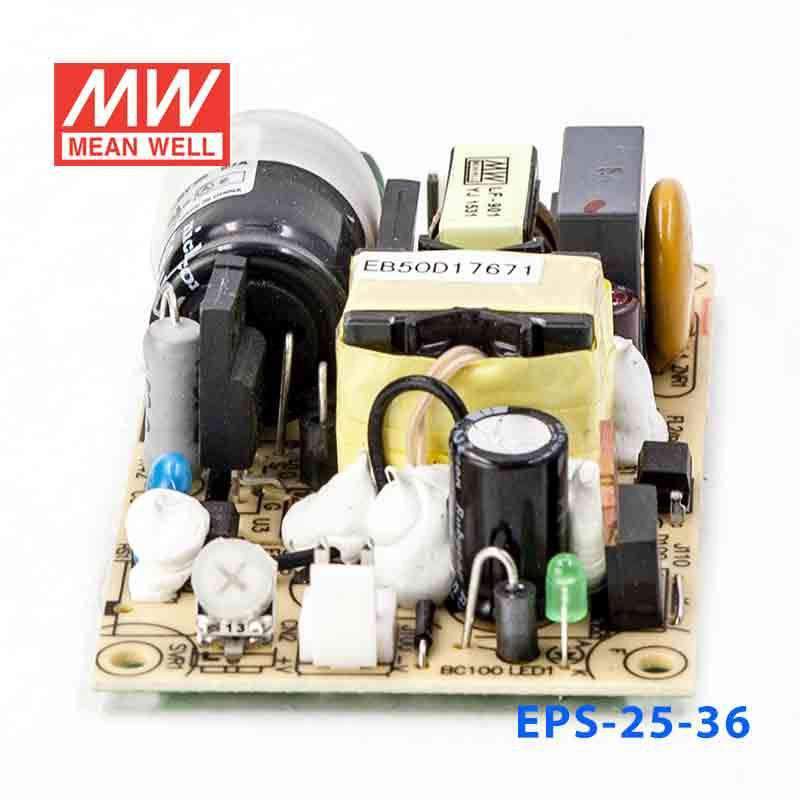

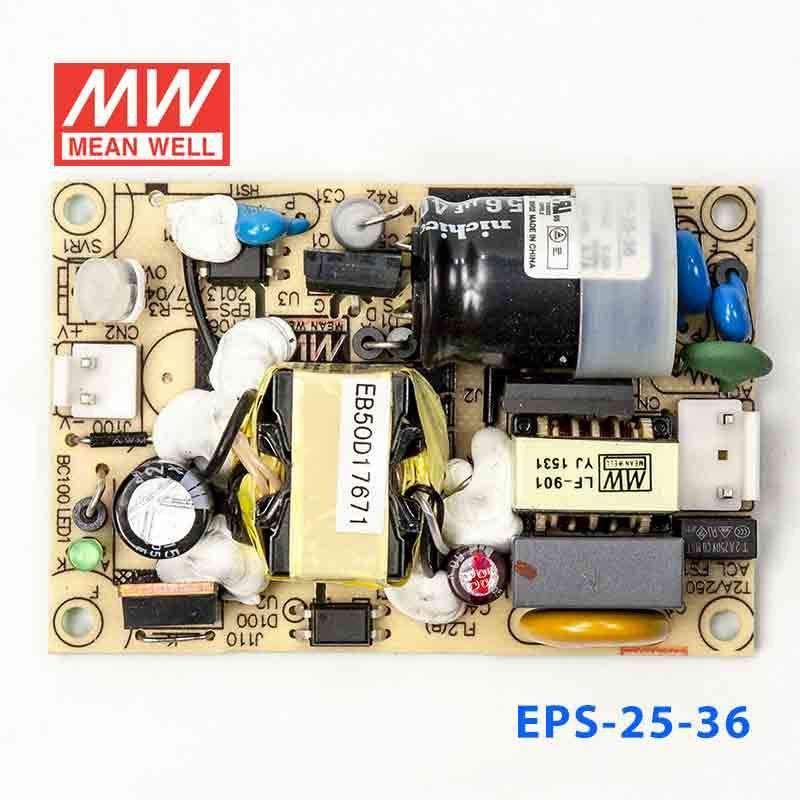

Mean Well EPS-25-36 Power Supply 25W 36V 700mA

3" x 2"economical non-PFCsmall sizehigh efficiency
SKU EPS-25-36
$15.21 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-25-36 is the 36V output model of this series: rated current 0.7A, rated power 25.2W, typical efficiency 89%.

Features

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • 3 years warranty

Specifications

EPS-25-36Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
36V
RATED CURRENT
0.7A
CURRENT RANGE
0 ~ 0.78A
RATED POWER
25.2W
PEAK LOAD(10sec.)Note.6
28.08W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
32.4 ~ 39.6V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
0.6A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
39.7 ~ 46.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.8
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3830.1K hrs min. Telcordia SR-332 (Bellcore) ; 655.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
76.2*50.8*24mm (L*W*H)
PACKING
0.081Kg; 120pcs/10.7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. EPS-25-15/24/27/36/48 without Hs1.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-25-36 Mechanical Specification
Mechanical Specification
EPS-25-36 Block Diagram
Block Diagram
EPS-25-36 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-25-36 for a 36V industrial control board or automation module?

Yes, if the equipment requires constant-voltage 36V DC and stays within 0.7A and 25.2W. That makes it a fit for low-power 36V control electronics, embedded boards, and automation subassemblies that do not exceed those limits.

Is this 36V power supply suitable for a small embedded OEM device?

It can be, when the OEM device is designed for a constant 36V input and its load is no more than 0.7A. The compact 76.2 x 50.8 x 24.0 mm size also suits dense equipment layouts where board space is limited.

Can the EPS-25-36 power a 36V sensor or monitoring subsystem in a panel?

It is appropriate for a 36V subsystem if the total demand remains at or below 25.2W and 0.7A. For panel-level sensing, monitoring, or control electronics, the key requirement is that the load expects constant-voltage 36V DC.

Is the EPS-25-36 okay for outdoor or harsh-environment use?

The published operating range is -30°C to +70°C, so temperature coverage is broad. However, no IP rating is listed in the provided specs, so these specs do not indicate suitability for exposed outdoor, washdown, or weather-facing use without additional enclosure protection.

How does the EPS-25-36 compare with other EPS-25 models?

Within the EPS-25 group, the sibling outputs are 3.3V 5A at 16.5W, 5V 5A at 25W, 7.5V 3.4A at 25.5W, 12V 2.1A at 25.2W, 15V 1.7A at 25.5W, 24V 1.05A at 25.2W, 27V 0.95A at 25.65W, 36V 0.7A at 25.2W, and 48V 0.53A at 25.44W. The main difference is the output-voltage and current combination, while all remain in the same compact EPS-25 family.
