Mean Well

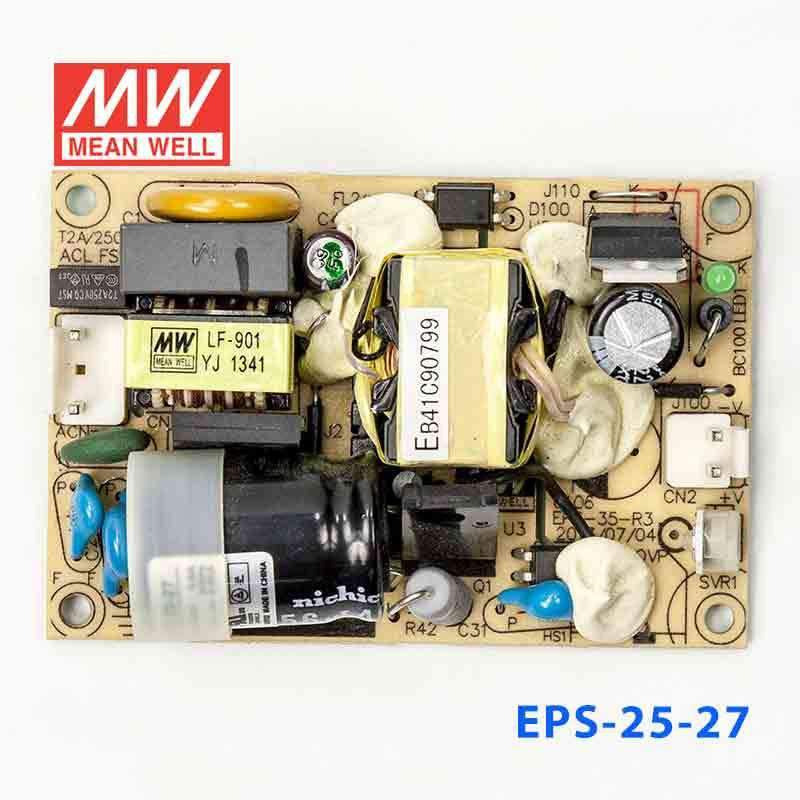

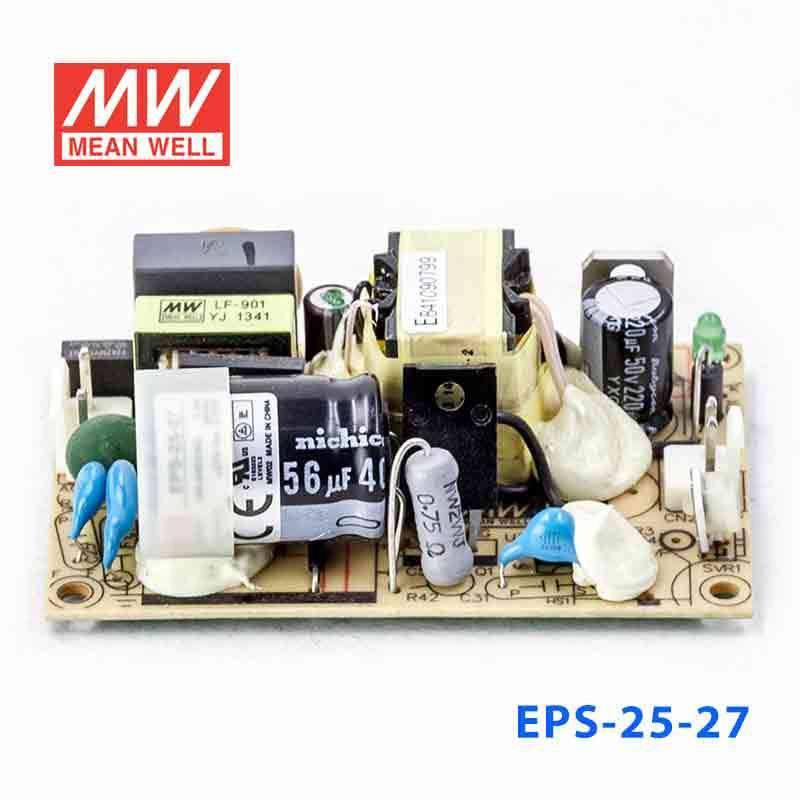

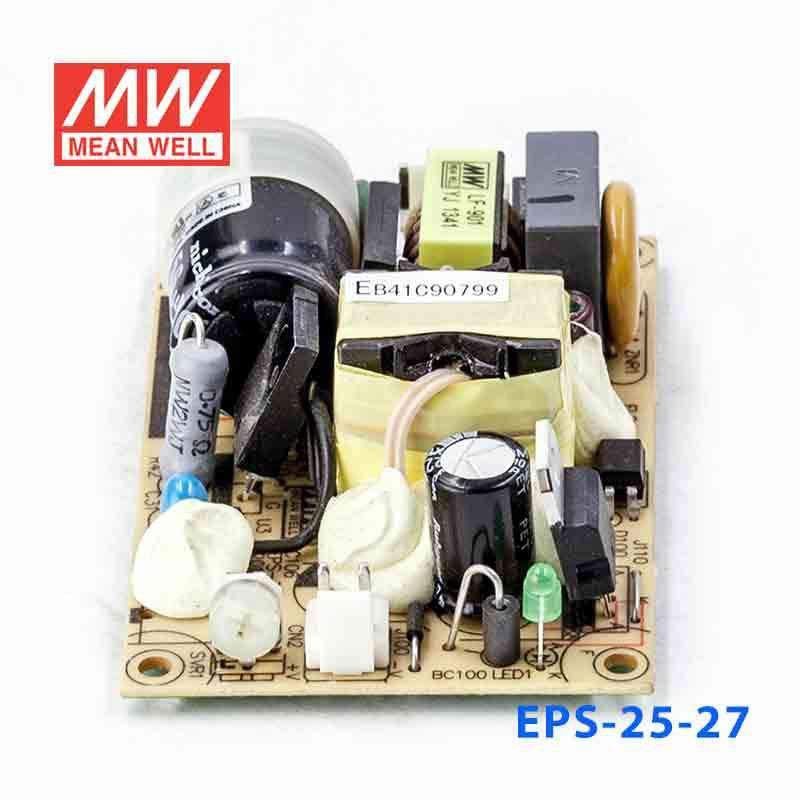

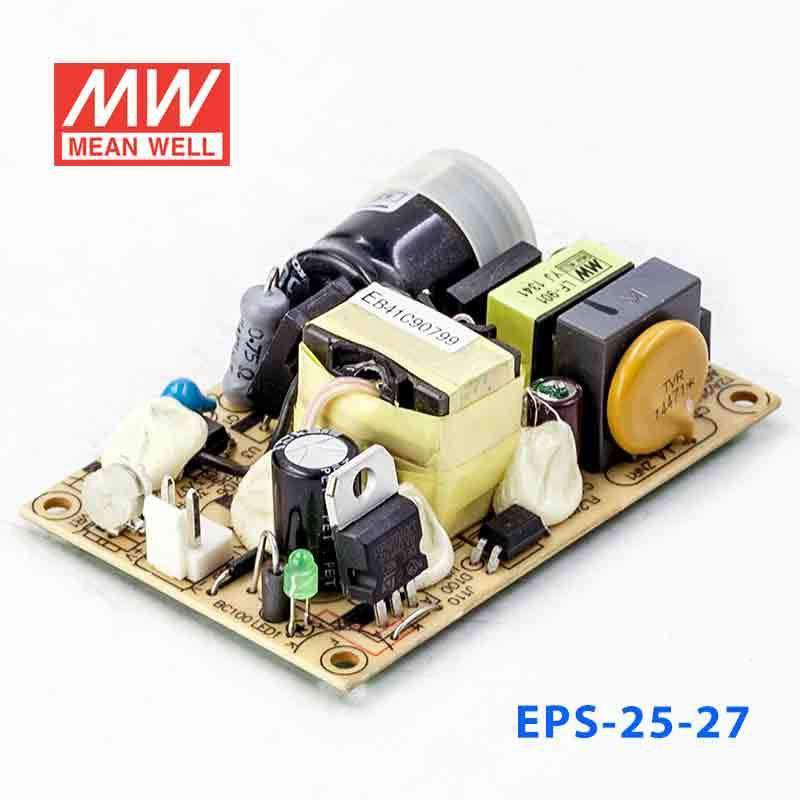

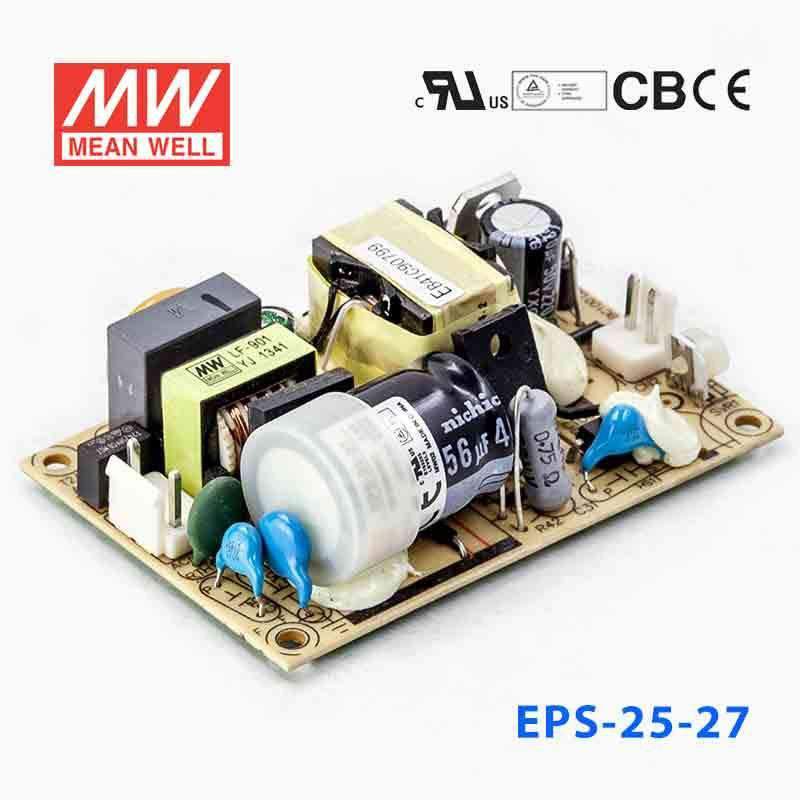

Mean Well EPS-25-27 Power Supply 25W 27V 950mA

3" x 2"economical non-PFCsmall sizehigh efficiency
SKU EPS-25-27
$15.21 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-25-27 is the 27V output model of this series: rated current 0.95A, rated power 25.65W, typical efficiency 89%.

Features

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • 3 years warranty

Specifications

EPS-25-27Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
27V
RATED CURRENT
0.95A
CURRENT RANGE
0 ~ 1.05A
RATED POWER
25.65W
PEAK LOAD(10sec.)Note.6
28.35W
RIPPLE & NOISE (max.)Note.2
180mVp-p
VOLTAGE ADJ. RANGE
24.3 ~ 29.7V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
0.6A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
31.05 ~ 36.45V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.8
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3830.1K hrs min. Telcordia SR-332 (Bellcore) ; 655.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
76.2*50.8*24mm (L*W*H)
PACKING
0.081Kg; 120pcs/10.7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. EPS-25-15/24/27/36/48 without Hs1.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-25-27 Mechanical Specification
Mechanical Specification
EPS-25-27 Block Diagram
Block Diagram
EPS-25-27 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-25-27 for a 27V industrial control or instrumentation load?

It can be used where the equipment specifically requires a constant 27V DC source and the total load stays within 25.65W and 0.95A. That makes it a fit for lighter 27V control and instrumentation circuits rather than higher-current loads.

Is the EPS-25-27 suitable for 27V alarm, signaling, or interface equipment?

Yes, if the equipment is rated for 27V DC and its demand does not exceed 0.95A. The constant voltage output is appropriate for fixed-voltage electronics instead of devices that need a different drive method.

Can this model power a compact 27V embedded or telecom-related subsystem?

It can support compact 27V electronics when the required power is within 25.65W. The 85-264VAC input range is useful when the same equipment may be deployed in regions with different AC input conditions.

Is the EPS-25-27 suitable for outdoor installations?

The operating temperature rating is -30°C to +70°C, but the provided specs do not include an IP rating. Without an IP rating in the listed specifications, it should be used only in protected equipment or enclosures rather than exposed outdoor conditions.

What other outputs are available in the EPS-25 series if I am comparing the 27V version?

Other EPS-25 versions are EPS-25-3.3 at 16.5W, 3.3V, 5A; EPS-25-5 at 25W, 5V, 5A; EPS-25-7.5 at 25.5W, 7.5V, 3.4A; EPS-25-12 at 25.2W, 12V, 2.1A; EPS-25-15 at 25.5W, 15V, 1.7A; EPS-25-24 at 25.2W, 24V, 1.05A; EPS-25-27 at 25.65W, 27V, 0.95A; EPS-25-36 at 25.2W, 36V, 0.7A; and EPS-25-48 at 25.44W, 48V, 0.53A. The comparison is mainly a matter of matching the required output voltage and the corresponding current limit.
