Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

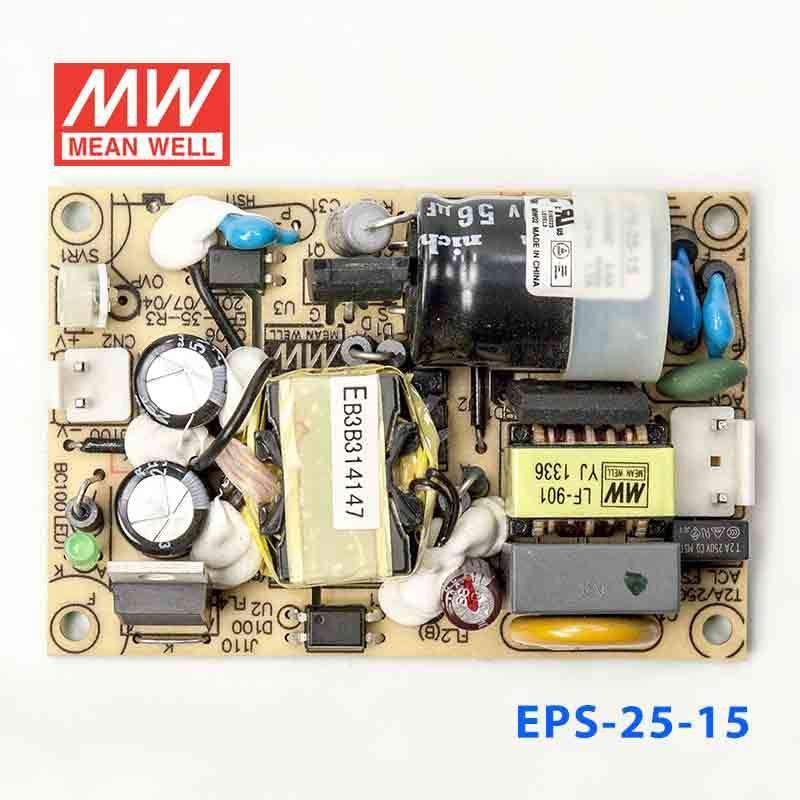

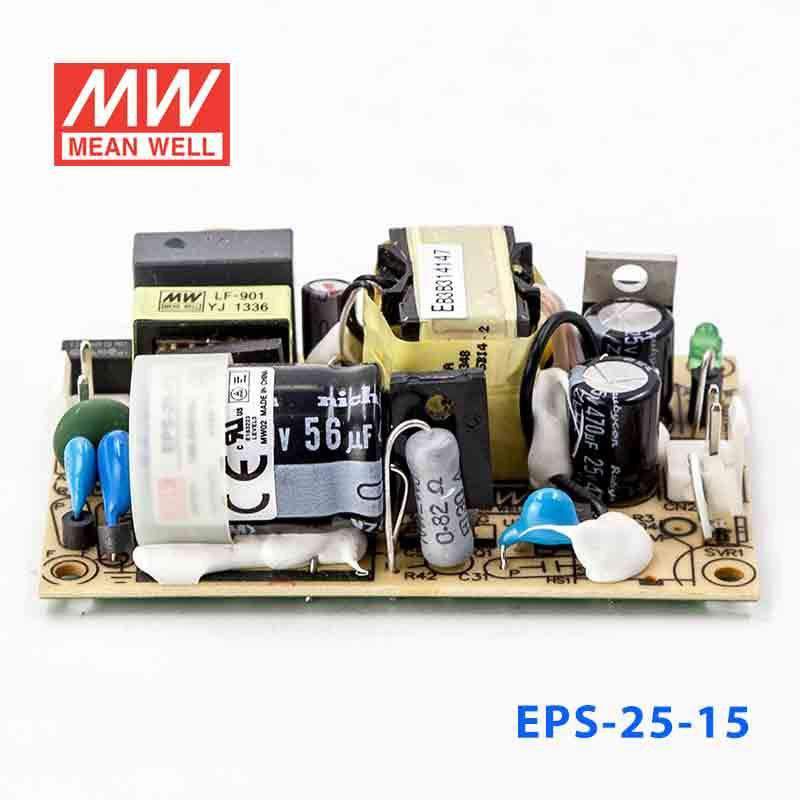

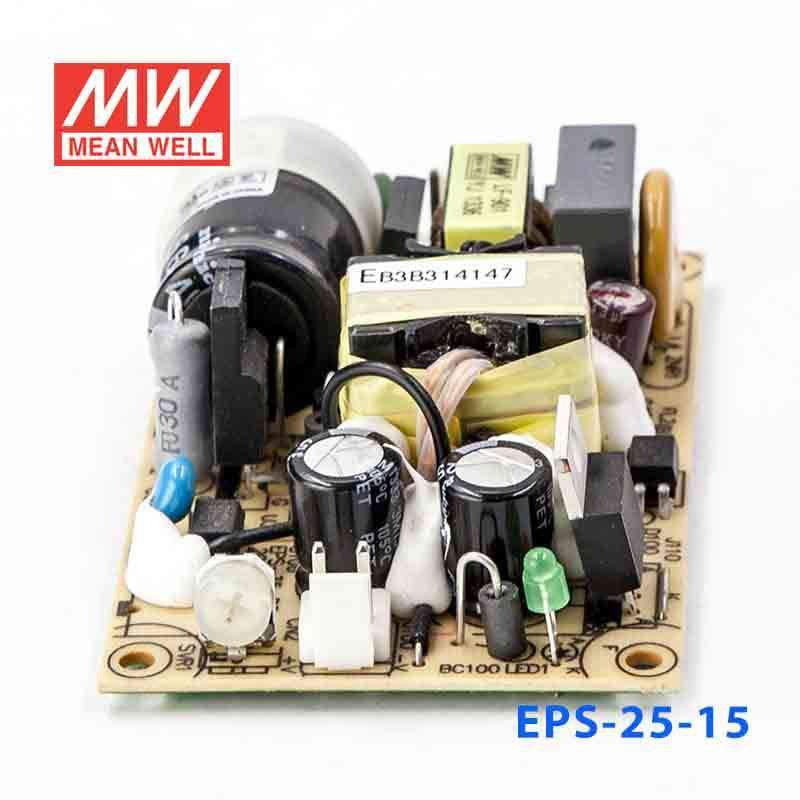

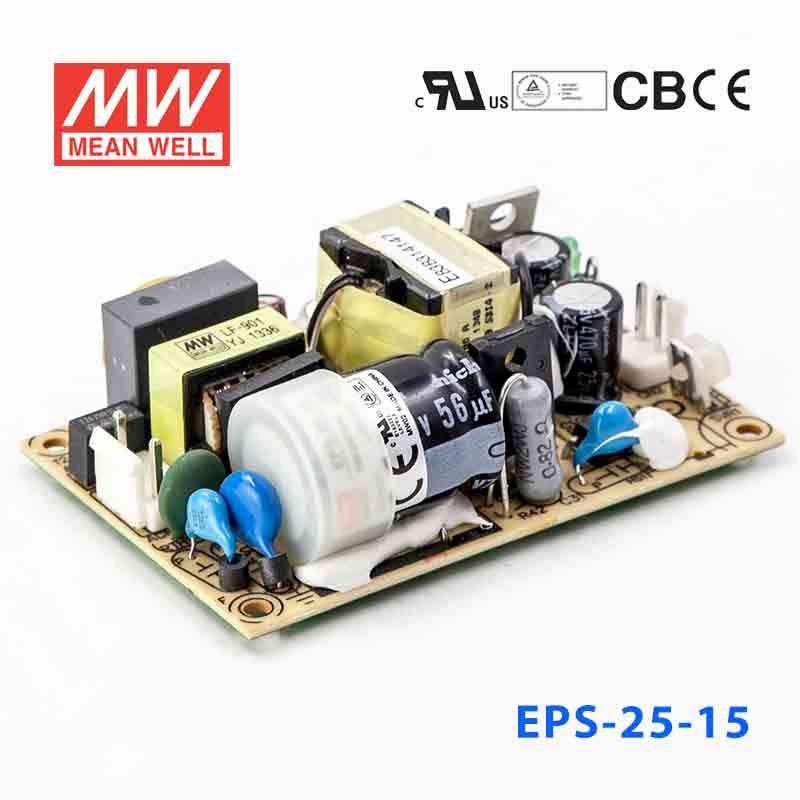

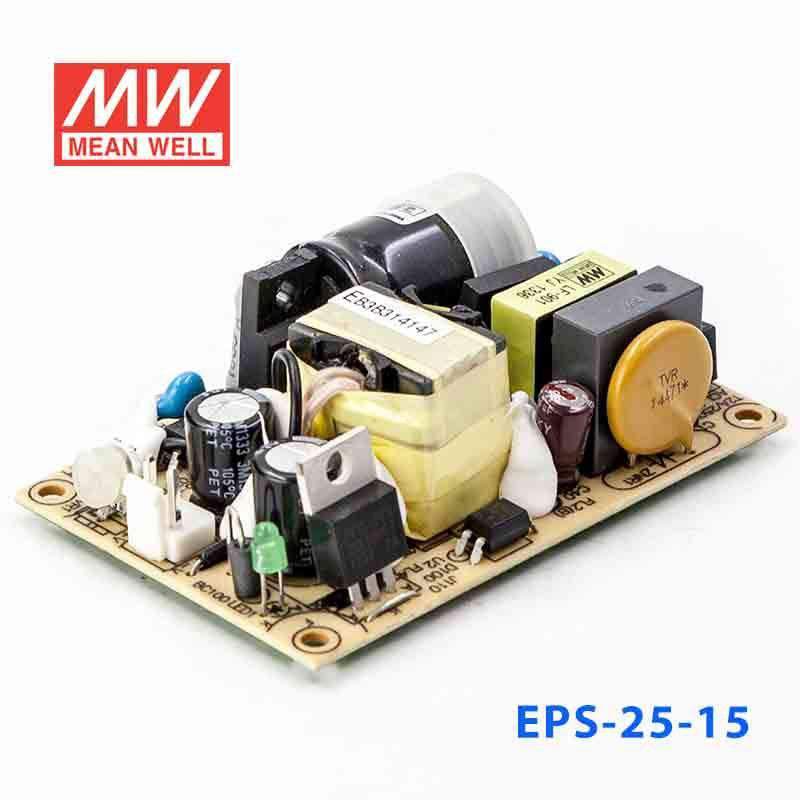

Mean Well EPS-25-15 Power Supply 25W 15V 1.7A

3" x 2"economical non-PFCsmall sizehigh efficiency
SKU EPS-25-15
$15.21 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-25-15 is the 15V output model of this series: rated current 1.7A, rated power 25.5W, typical efficiency 87%.

Features

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 3"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • 3 years warranty

Specifications

EPS-25-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
1.7A
CURRENT RANGE
0 ~ 1.87A
RATED POWER
25.5W
PEAK LOAD(10sec.)Note.6
28.05W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.6A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.8
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
3830.1K hrs min. Telcordia SR-332 (Bellcore) ; 655.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
76.2*50.8*24mm (L*W*H)
PACKING
0.081Kg; 120pcs/10.7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. EPS-25-15/24/27/36/48 without Hs1.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-25-15 Mechanical Specification
Mechanical Specification
EPS-25-15 Block Diagram
Block Diagram
EPS-25-15 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-25-15 for 15V instrumentation or industrial control electronics?

Yes, if the equipment requires a constant 15V DC source and the total load stays within 25.5W and 1.7A. That makes it more appropriate for lighter-duty 15V control and instrumentation loads than for higher-current systems.

Is the EPS-25-15 a good fit for a compact embedded controller that runs on 15V?

It can work for embedded controllers, interface boards, or test assemblies that are designed for 15V constant voltage input. The limit to watch is the 1.7A maximum output current at 25.5W.

Can this model power 15V analog modules, meters, or small automation subsystems?

It can support 15V analog or automation subsystems as long as the combined requirement does not go past 25.5W or 1.7A. The 85-264VAC input range also helps when the same equipment may be used across different AC mains conditions.

Is the EPS-25-15 intended for indoor or outdoor conditions?

The provided specs give an operating temperature range of -30°C to +70°C, but they do not include an IP rating. Because no IP rating is listed, it is best treated as a supply for protected indoor equipment or for use inside an enclosure that provides environmental protection.

What are the other voltage options in the EPS-25 family besides the EPS-25-15?

The EPS-25 family includes EPS-25-3.3 at 16.5W, 3.3V, 5A; EPS-25-5 at 25W, 5V, 5A; EPS-25-7.5 at 25.5W, 7.5V, 3.4A; EPS-25-12 at 25.2W, 12V, 2.1A; EPS-25-15 at 25.5W, 15V, 1.7A; EPS-25-24 at 25.2W, 24V, 1.05A; EPS-25-27 at 25.65W, 27V, 0.95A; EPS-25-36 at 25.2W, 36V, 0.7A; and EPS-25-48 at 25.44W, 48V, 0.53A. Across the family, the voltage option changes the available current while staying in the same compact series format.
