Mean Well

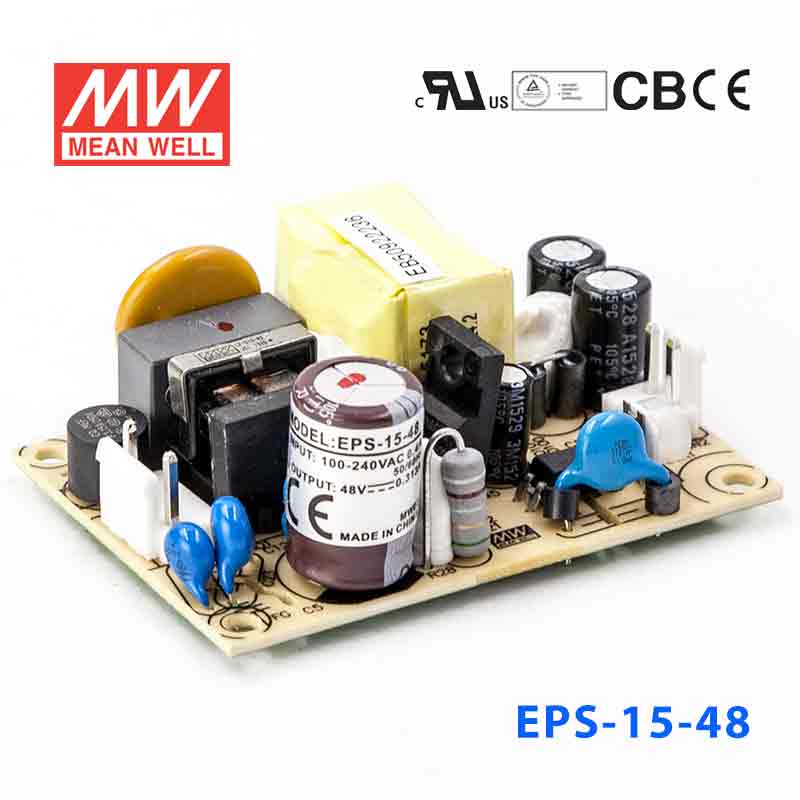

Mean Well EPS-15-48 Power Supply 15W 48V 313mA

2.5" x 1.8"economical non-PFCno load power consumption<0.3W
SKU EPS-15-48
$9.83 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-15-48 is the 48V output model of this series: rated current 0.313A, rated power 15.02W, typical efficiency 85%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 1.8"x2.5" compact size
  • No load power consumption<0.3W
  • Operating altitude up to 3000 meters
  • 3 years warranty

Specifications

EPS-15-48Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
0.313A
CURRENT RANGE
0 ~ 0.344A
RATED POWER
15.02W
PEAK LOAD(10sec.)Note.6
16.51W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
43.2 ~ 52.8V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 45A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
55.2 ~ 65.8V Protection type : Shut down o/p voltage, Clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.7
3000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
6024.7K hrs min. Telcordia SR-332 (Bellcore) ; 849.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
63.5*45.7*24mm (L*W*H)
PACKING
0.057Kg; 120pcs/ 7.84Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-15-48 Mechanical Specification
Mechanical Specification
EPS-15-48 Block Diagram
Block Diagram
EPS-15-48 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-15-48 for a small 48V industrial device?

Yes, if the equipment requires constant 48V and draws no more than 0.313A, this supply matches that requirement. Its output is limited to 15.02W, so it is intended for lower-power 48V electronics.

Is the EPS-15-48 suitable for compact 48V monitoring or interface equipment?

It can be suitable for compact 48V electronics that stay within 0.313A and 15.02W. The 63.5 x 45.7 x 24.0 mm footprint also helps when space is limited inside equipment or panel builds.

Will this work for a low-power 48V telecom or IT module?

It may fit a low-power 48V module if the load is within the 0.313A output current and 15.02W power rating. The wide 85-264VAC input is also useful where the AC source may vary across deployment sites.

Can I use this for a 48V embedded or automation subsystem with modest current draw?

Yes, this model is designed for constant 48V output at up to 0.313A. That makes it a better match for low-power embedded, interface, or control subsystems than for heavier 48V loads.

Is the EPS-15-48 rated for outdoor temperature swings?

The operating temperature range is -30C to +70C, with output derating at higher temperatures per the derating curve, so the electrical rating covers a broad temperature range. The provided specs do not list an IP rating, so outdoor exposure resistance is not defined here and protected installation should be assumed unless other enclosure details are available.
