Mean Well

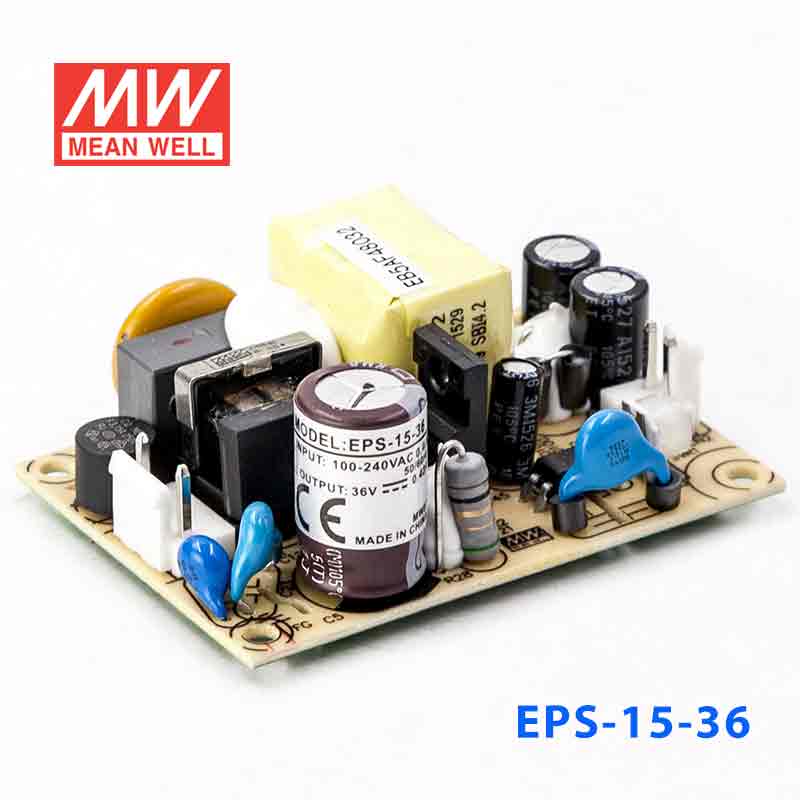

Mean Well EPS-15-36 Power Supply 15W 36V 420mA

2.5" x 1.8"economical non-PFCno load power consumption<0.3W
SKU EPS-15-36
$9.27 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-15-36 is the 36V output model of this series: rated current 0.42A, rated power 15.12W, typical efficiency 85%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 1.8"x2.5" compact size
  • No load power consumption<0.3W
  • Operating altitude up to 3000 meters
  • 3 years warranty

Specifications

EPS-15-36Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
36V
RATED CURRENT
0.42A
CURRENT RANGE
0 ~ 0.46A
RATED POWER
15.12W
PEAK LOAD(10sec.)Note.6
16.56W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
32.4 ~ 39.6V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 45A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
39.7 ~ 46.8V Protection type : Shut down o/p voltage, Clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.7
3000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
6024.7K hrs min. Telcordia SR-332 (Bellcore) ; 849.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
63.5*45.7*24mm (L*W*H)
PACKING
0.057Kg; 120pcs/ 7.84Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-15-36 Mechanical Specification
Mechanical Specification
EPS-15-36 Block Diagram
Block Diagram
EPS-15-36 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-15-36 for a 36V industrial sensor or transmitter?

Yes, if the device requires a constant 36V supply and draws no more than 0.42A, this model is in range. Its total output is 15.12W, so it is intended for lower-power 36V electronics rather than larger actuators or drives.

Is this a good fit for a small 36V automation module inside a control cabinet?

It can be a fit for compact 36V automation electronics because it provides 36V constant voltage at up to 0.42A. The 63.5 x 45.7 x 24.0 mm size also suits internal cabinet or equipment builds where board space is limited.

Can the EPS-15-36 power a low-current 36V interface board or monitoring device?

Yes, it is suitable for low-current 36V loads up to 0.42A and 15.12W. That makes it more appropriate for interface, sensing, or monitoring electronics than for higher-current 36V equipment.

Would this work for compact embedded equipment that needs 36V DC from AC input?

Yes, the supply accepts 85-264VAC input and converts it to a constant 36V output. It is best used where the embedded or industrial device stays within the 0.42A and 15.12W output rating.

Can the EPS-15-36 be used in cold or hot indoor equipment environments?

The specified operating temperature range is -30C to +70C, with output derating at higher temperatures per the derating curve, which supports a wide range of equipment environments. No IP rating is provided in the listed specs, so exposed outdoor use is not confirmed by the product data shown here.
