Mean Well

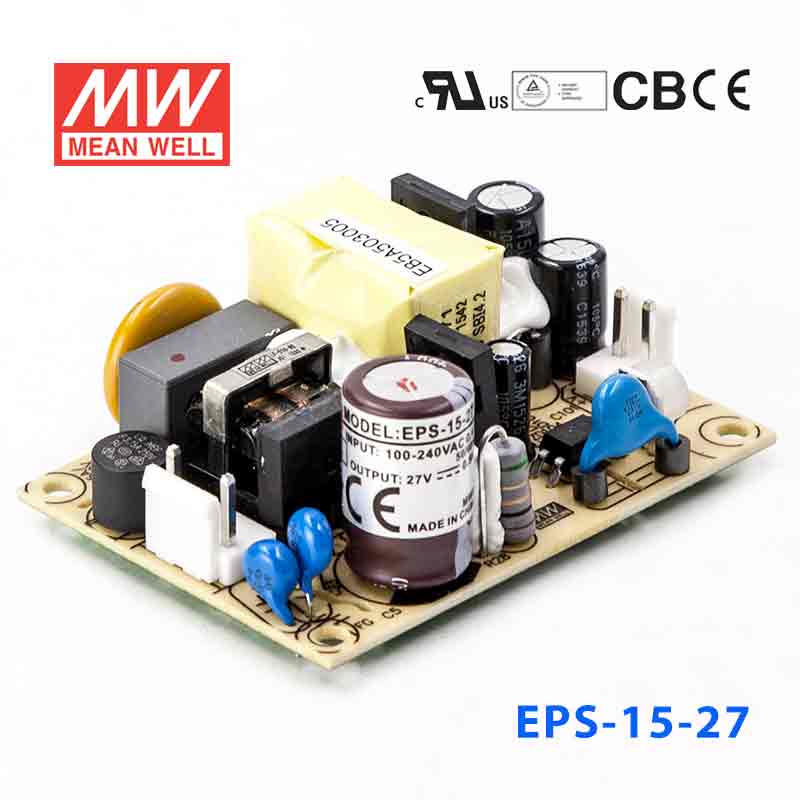

Mean Well EPS-15-27 Power Supply 15W 27V 560mA

2.5" x 1.8"economical non-PFCno load power consumption<0.3W
SKU EPS-15-27
$9.83 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-15-27 is the 27V output model of this series: rated current 0.56A, rated power 15.12W, typical efficiency 84%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 1.8"x2.5" compact size
  • No load power consumption<0.3W
  • Operating altitude up to 3000 meters
  • 3 years warranty

Specifications

EPS-15-27Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
27V
RATED CURRENT
0.56A
CURRENT RANGE
0 ~ 0.615A
RATED POWER
15.12W
PEAK LOAD(10sec.)Note.6
16.6W
RIPPLE & NOISE (max.)Note.2
180mVp-p
VOLTAGE ADJ. RANGE
24.3 ~ 29.7V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
84%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 45A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
31.05 ~ 36.45V Protection type : Shut down o/p voltage, Clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.7
3000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
6024.7K hrs min. Telcordia SR-332 (Bellcore) ; 849.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
63.5*45.7*24mm (L*W*H)
PACKING
0.057Kg; 120pcs/ 7.84Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-15-27 Mechanical Specification
Mechanical Specification
EPS-15-27 Block Diagram
Block Diagram
EPS-15-27 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-15-27 for a 27V control or instrumentation circuit?

Yes, if the equipment requires constant 27V DC and stays within 0.56A and 15.12W. It is intended for lighter 27V loads rather than systems with higher current demand.

Is the EPS-15-27 suitable for a compact 27V embedded device?

It can fit small embedded hardware built around a 27V input rail, provided the total load remains under 15.12W. The small 63.5 x 45.7 x 24.0 mm size can help in compact housings.

Can this power supply run a low-power 27V automation module?

Yes, for low-power automation or interface modules that need a fixed 27V output and draw no more than 0.56A. The 85-264VAC input range also supports use across a wide AC input span.

Is the EPS-15-27 okay for harsh temperature environments?

The operating range is -30°C to +70°C, with output derating at higher temperatures per the derating curve, which is broad for temperature exposure. No IP rating is listed, so environmental suitability depends on using it in a protected space or inside an enclosure that adds the required ingress protection.
