Mean Well

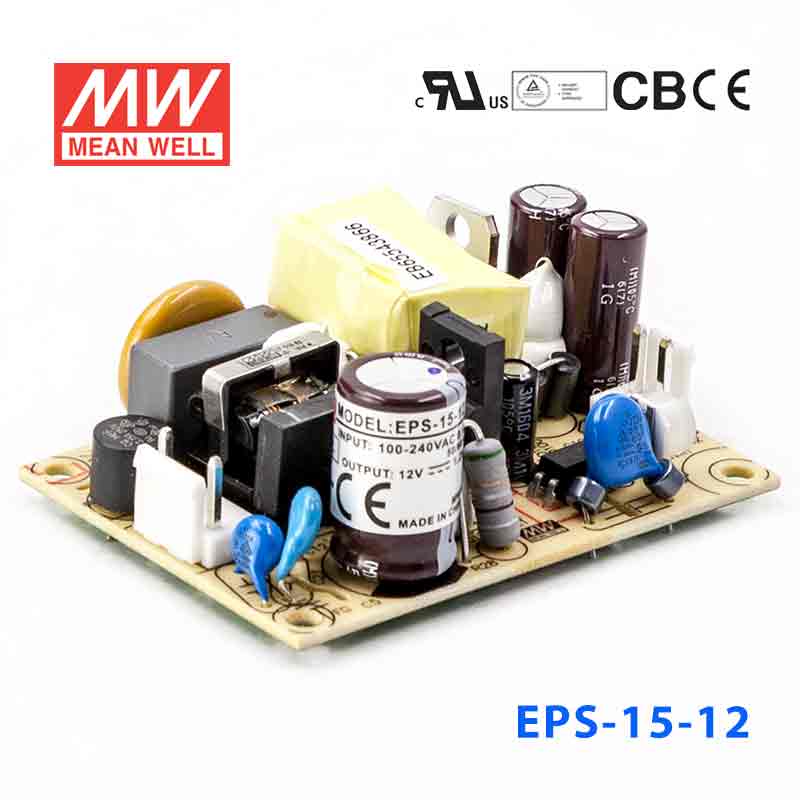

Mean Well EPS-15-12 Power Supply 15W 12V 1.25A

2.5" x 1.8"economical non-PFCno load power consumption<0.3W
SKU EPS-15-12
$9.83 USD
Shipping calculated at checkout.
In stock
|

Overview

EPS-15-12 is the 12V output model of this series: rated current 1.25A, rated power 15W, typical efficiency 82%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 1.8"x2.5" compact size
  • No load power consumption<0.3W
  • Operating altitude up to 3000 meters
  • 3 years warranty

Specifications

EPS-15-12Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
1.25A
CURRENT RANGE
0 ~ 1.38A
RATED POWER
15W
PEAK LOAD(10sec.)Note.6
16.56W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
10.8 ~ 13.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
82%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 45A/230VAC
LEAKAGE CURRENT
<1mA/240VAC

PROTECTION

OVER LOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, Clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.7
3000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
6024.7K hrs min. Telcordia SR-332 (Bellcore) ; 849.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
63.5*45.7*24mm (L*W*H)
PACKING
0.057Kg; 120pcs/ 7.84Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

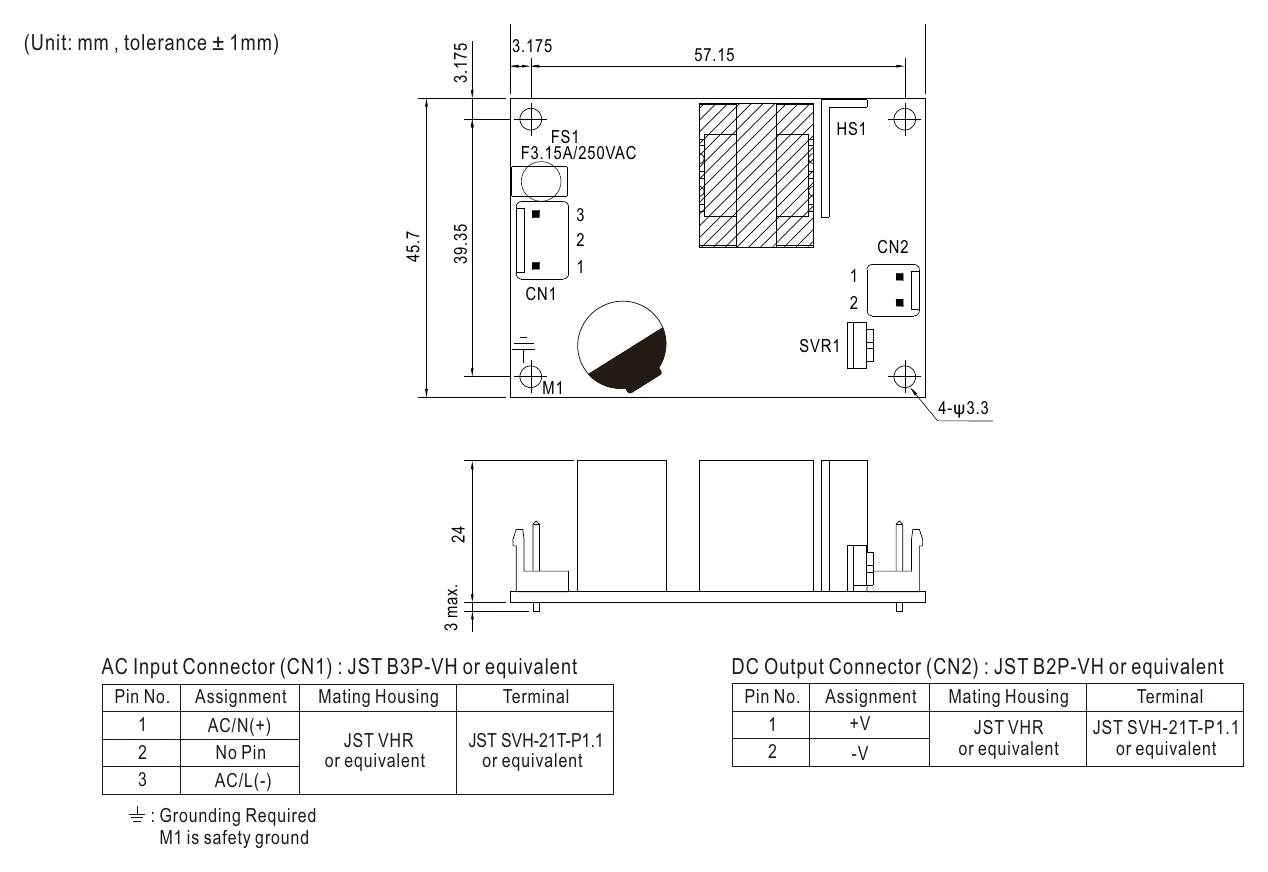

EPS-15-12 Mechanical Specification
Mechanical Specification

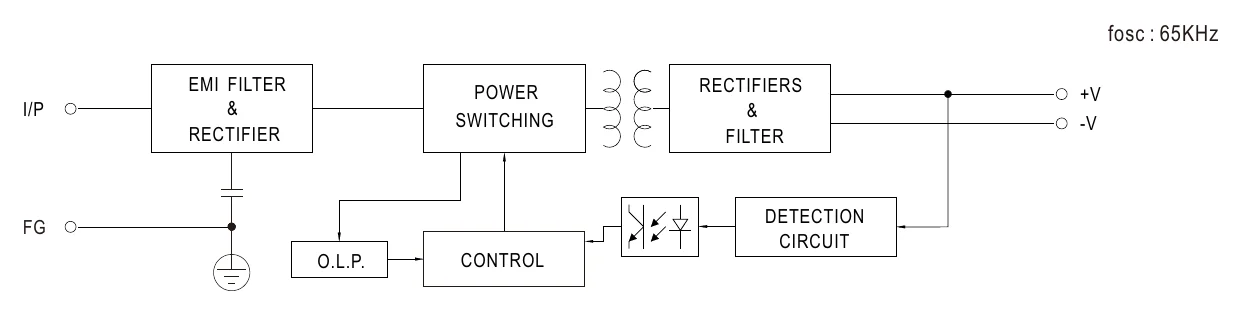

EPS-15-12 Block Diagram
Block Diagram

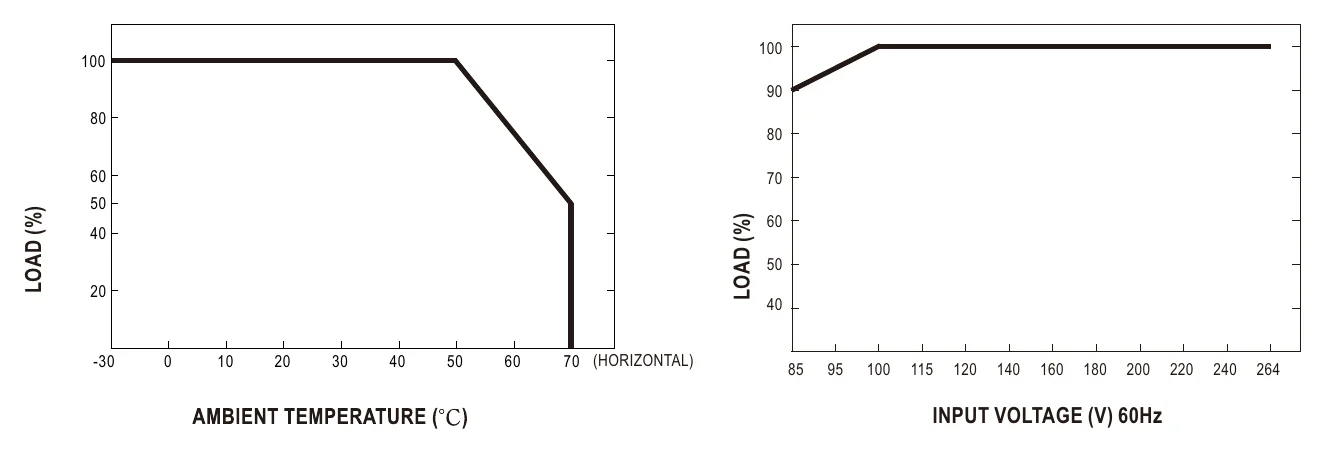

EPS-15-12 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-15-12 for a 12V sensor or small controller project?

Yes, it is a constant-voltage 12V supply rated for 15W and 1.25A, which suits low-power 12V electronics. It is best matched to equipment that needs a fixed 12V DC rail and stays within that output limit.

Is the EPS-15-12 suitable for embedded systems with modest 12V power demand?

It can be a fit for embedded hardware that needs 12V and draws up to 1.25A. The compact 63.5 x 45.7 x 24.0 mm footprint also makes it practical where space is tight.

Can this model power a small 12V automation accessory?

Yes, for light-duty automation loads that require 12V constant voltage and remain under 15W. It is more appropriate for smaller auxiliaries than for high-current 12V equipment.

Does the EPS-15-12 work for protected indoor environments only?

The specified operating temperature is -30°C to +70°C, with output derating at higher temperatures per the derating curve, so the temperature range is broad. No IP rating is listed, so outdoor exposure would normally require a separate protective enclosure rather than open use.
