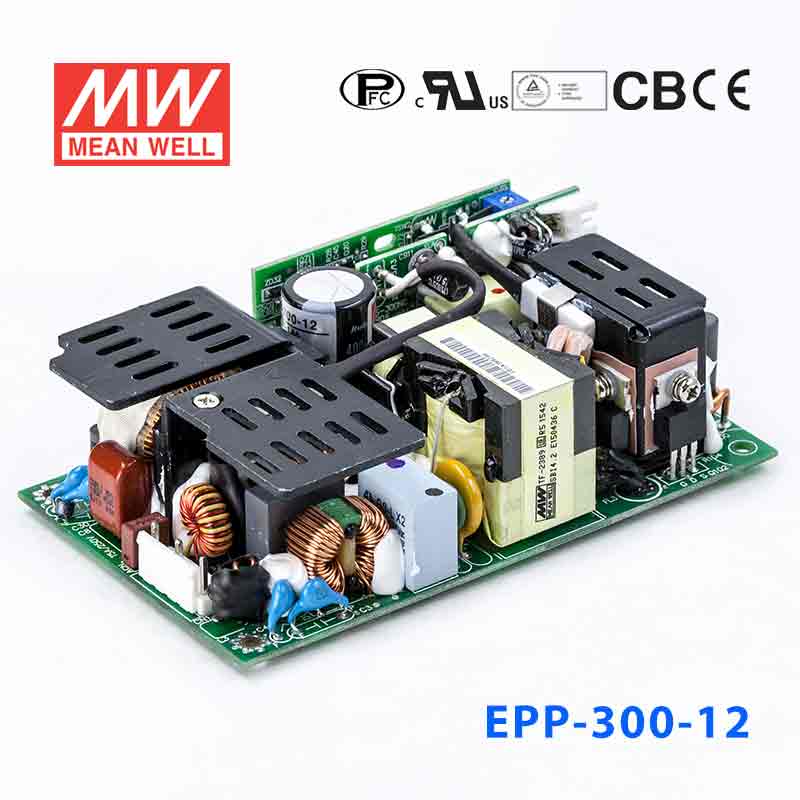

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well EPP-300-12 Power Supply 200W 12V 16.67A

Name: Mean Well EPP-300-12 Power Supply 200W 12V 16.67A
Brand: Mean Well
SKU: EPP-300-12
Price: 72.93 USD
Availability: InStock

5" x 3"high efficiency up to 93%economical PFCno load power consumption<0.5W

SKU EPP-300-12

$72.93 USD

Shipping calculated at checkout.

In stock

Overview

EPP-300-12 is the 12V output model of this series: typical efficiency 90%.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 93%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in 12V/0.5A auxiliary output
5"x3" compact size
Free air convection for 200W and 300W with 20.5 CFM forced air
With power good and fail signal output
Built-in remote sense function
No load power consumption under 0.5W by PS-ON control
Standby 5V@1A with fan, @ 0.6A without fan
Operating altitude up to 5000 meters
3 years warranty

Specifications

EPP-300-12Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT (20.5CFM): 25A
CURRENT RANGE (convection): 0 ~ 16.67A
CURRENT RANGE (20.5CFM): 0 ~ 25A
RATED POWER (convection): 200W
RATED POWER (20.5CFM): 300W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: Main output:11.4 ~ 12.6V
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 2500ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 13ms/230VAC/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 3.5A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 40A/115VAC 80A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.5 ~ 15V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: 115℃±5℃ (TSW1) detect on heatsink of power transistor 115±5℃ (12V,15V),100±5℃ (24V,27V,48V) (TSW2) detect on heatsink of output diode Protection type : (TSW1)Shut down o/p voltage, recovers automatically after temperature goes down Protection type : (TSW2)Shut down o/p voltage, re-power on to recover

FUNCTION

5V STANDBY: 5VSB : 5V@0.6A without fan, 1A with fan 20.5CFM ; tolerance ± 2%, ripple : 150mVp-p(max.)
AUXILIARY POWER (AUX): 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 20% rated current (20.5CFM)
PS-ON INPUT SIGNAL: Power on: PS-ON = "Hi" or " > 2 ~ 5V" ; Power off: PS-ON = "Low" or " < 0 ~ 0.5V"
POWER GOOD / POWER FAIL: 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal goes low at least 1ms before Vo below 90% of rated value

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃ , 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃ )
OPERATING ALTITUDE^Note.7: 5000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32),Conduction Class B,Radiation Class B;BS EN/EN61000-3-2,3;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN60601-1-2, EAC TP TC 020

OTHERS

MTBF: 1490.1K hrs min. Telcordia SR-332 (Bellcore) ; 160.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76.2*35mm (L*W*H)
PACKING: 0.37 Kg; 36pcs/14.3Kg/0.96CUFT;

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Heat Sink HS1,HS2 can not be shorted.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

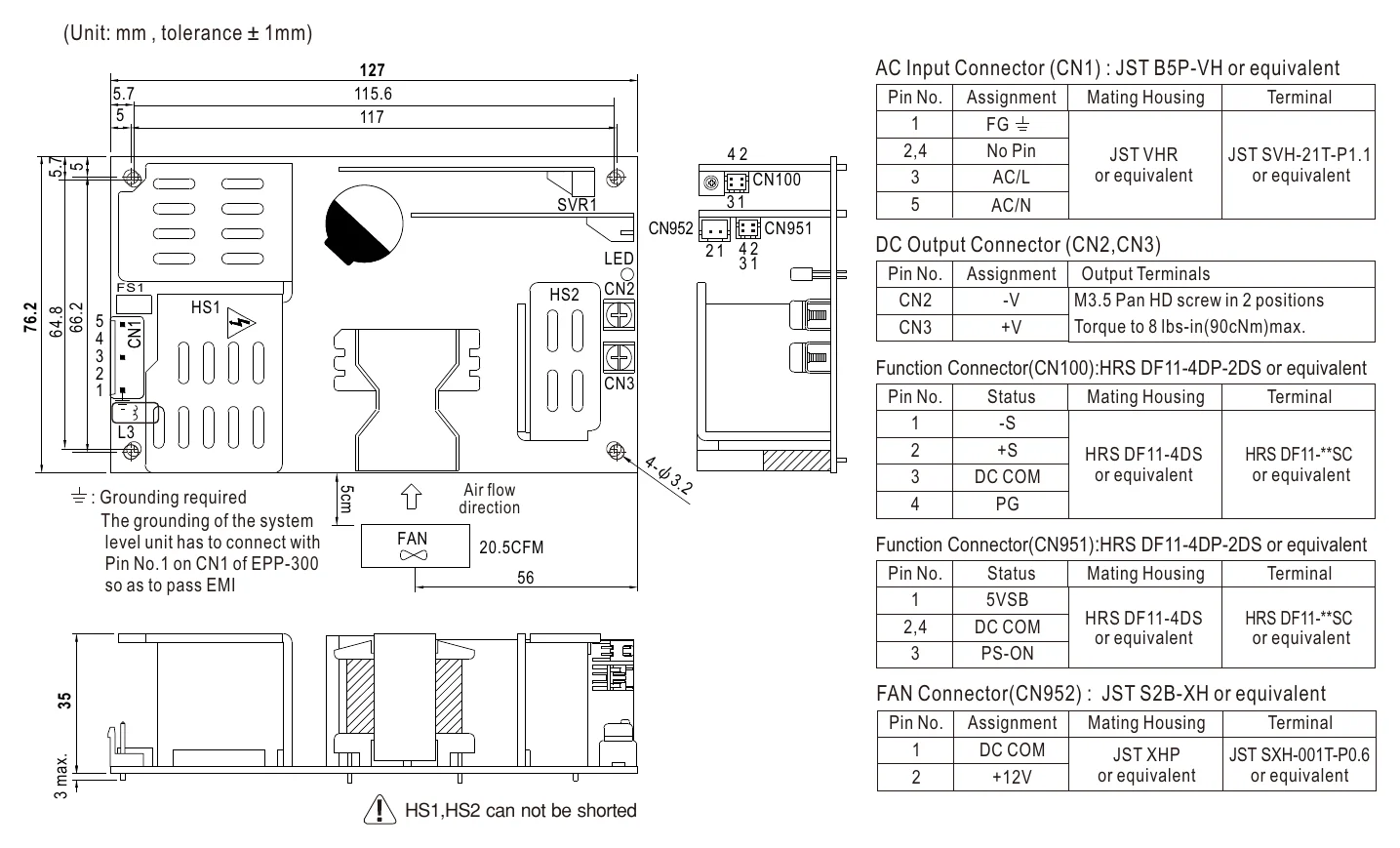

EPP-300-12 Mechanical Specification — Mechanical Specification

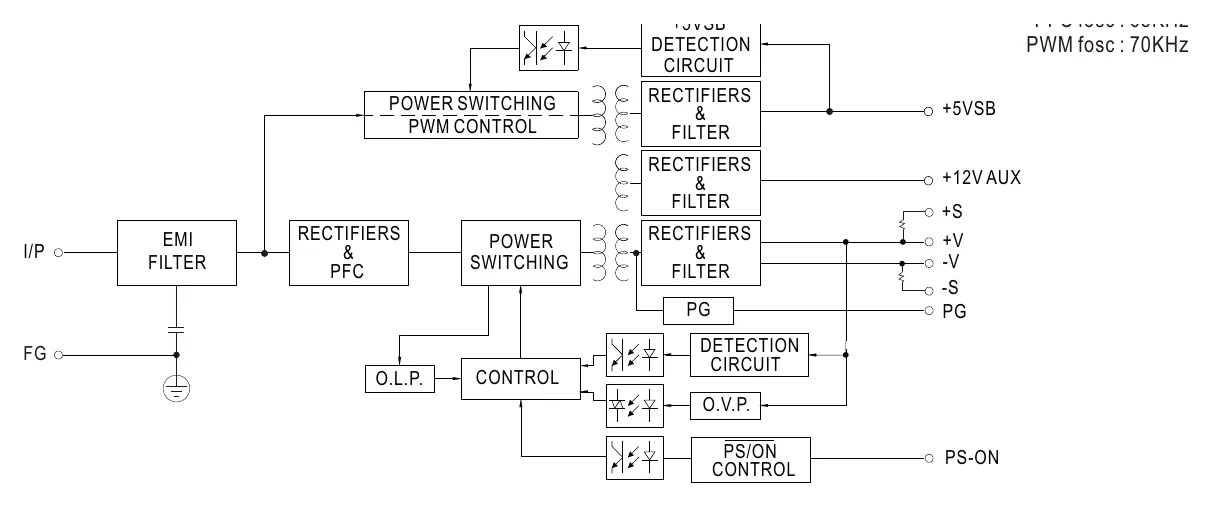

EPP-300-12 Block Diagram — Block Diagram

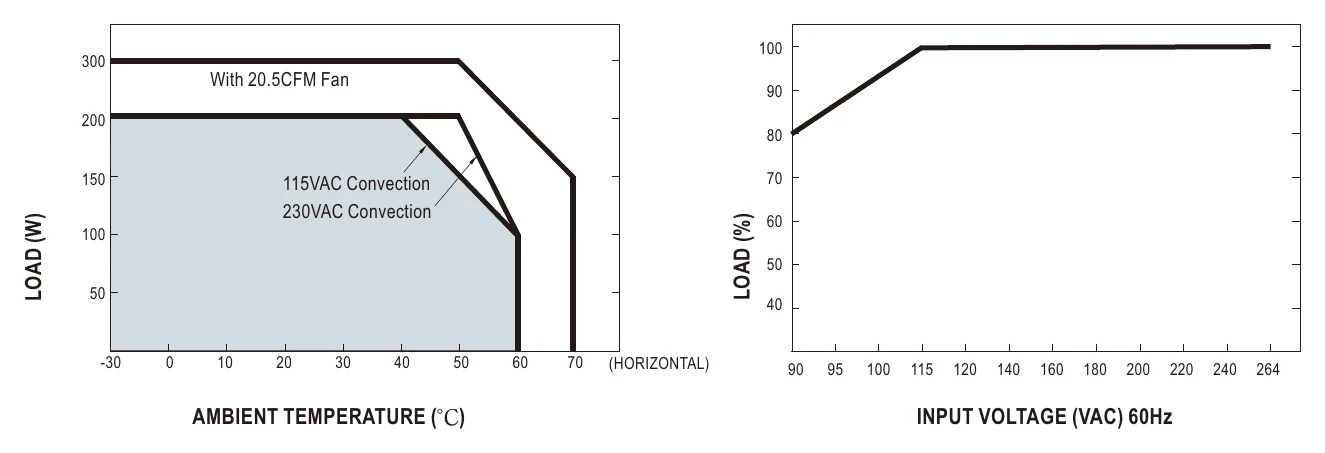

EPP-300-12 Derating Curve — Derating Curve

Downloads

Datasheet1

EPP-300-12 datasheetEPP-300-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates8

Mean Well E183223 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well EPP-300-CB(UL) Certificate PDF Download

Mean Well EPP-300-CB(TUV) Certificate PDF Download

Mean Well EPP-300-TUV Certificate PDF Download

Mean Well EPP-300-UK-dec Certificate PDF Download

Mean Well EPP-300-CE-DEC Certificate PDF Download

Mean Well EPP-300-EMC Certificate PDF Download

Test reports1

Mean Well EPP-300-12 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPP-300-12 for a 12V CCTV or security system power feed?

Yes, if the system needs a constant 12Vdc supply and the total load stays within 200W and 16.67A with convection cooling, or 300W and 25A with 20.5CFM forced airflow. That output level is often useful where several 12V security components share one supply budget.

Is the EPP-300-12 a fit for 12V industrial electronics or embedded controllers?

It is suitable for 12V embedded or industrial devices that require constant-voltage output and draw no more than 16.67A with convection cooling, or 25A with 20.5CFM airflow. The unit also accepts 90-264VAC input, which helps when AC source voltage varies by site.

Can this model power a 12V automation accessory bank or low-voltage control load?

It can, as long as the combined 12Vdc demand does not exceed 200W or 16.67A with convection cooling (300W or 25A with 20.5CFM airflow). Buyers should size the connected load against both the voltage and current limits, not wattage alone.

Will the EPP-300-12 work in cold or hot indoor equipment environments?

The specified operating range is -30 degrees C to +70 degrees C, with output derating at higher temperatures per the derating curve. No IP rating is provided, so the listed specs do not confirm suitability for exposed outdoor or wet environments.
