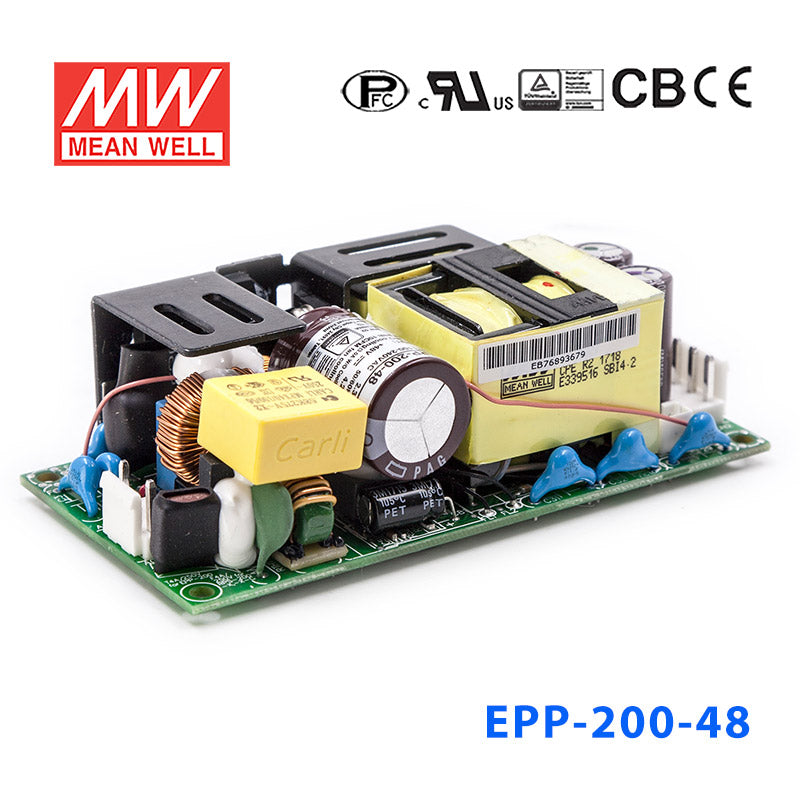

Mean Well EPP-200-48 Power Supply 144W 48V 3A

Name: Mean Well EPP-200-48 Power Supply 144W 48V 3A
Brand: Mean Well
SKU: EPP-200-48
Price: 52.19 USD
Availability: InStock

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W

SKU EPP-200-48

$52.19 USD

Shipping calculated at checkout.

In stock

Overview

EPP-200-48 is the 48V output model of this series: typical efficiency 94%.

EPP-200 is a 200W highly reliable green PCB type power supply with a high power density (21.9W/in³) on the 4" by 2" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-200 is able to be used for both ClassⅠ(with FG) and Class Ⅱ(no FG) system design. EPP-200 is equipped with complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. EPP-200 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

4"×2" miniature size
Universal AC input / Full range
Built-in active PFC function
EMI Conduction for Class B Radiation for Class B with FG(ClassⅠ) and Class A without FG(ClassⅡ)
No load power consumption<0.5W
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection for 140W and 200W with 10CFM forced air
Built-in 12V/0.5A FAN supply
LED indicator for power on
Operating altitude up to 5000 meters
3 years warranty

Specifications

EPP-200-48Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 48V
CURRENT 10CFM: 4.2A
CURRENT Convection: 3A
RATED POWER 10CFM: 201.6W
RATED POWER Convection: 144W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 45.6 ~50.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 12ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.8A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 52.8 ~ 62.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

FAN SUPPLY: 12V@0.5A for driving a fan ; tolerance +15% ~ -15% at main output 20% rated current (10CFM)

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.6: 5000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Conduction for Class B Radiation for Class B with FG(ClassⅠ) and Class A without FG(ClassⅡ), BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF: 2672.7K hrs min. Telcordia SR-332 (Bellcore) ; 500.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 101.6*50.8*29mm (L*W*H)
PACKING: 0.19Kg; 72pcs/14.7Kg/0.82CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPP-200-48 Block Diagram — Block Diagram

EPP-200-48 Derating Curve — Derating Curve

EPP-200-48 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus

Downloads

Datasheet1

EPP-200-48 datasheetEPP-200-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates8

Mean Well E183223 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well EPP-200-UK-dec Certificate PDF Download

Mean Well EPP-200-TUV Certificate PDF Download

Mean Well EPP-200-CB(UL) Certificate PDF Download

Mean Well EPP-200-CB(TUV) Certificate PDF Download

Mean Well EPP-200-EMC Certificate PDF Download

Mean Well EPP-200-CE-dec Certificate PDF Download

Test reports1

Mean Well EPP-200-48 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPP-200-48 for a 48V industrial control panel or automation subsystem?

Yes, this model is a constant-voltage 48V supply rated for 144W and 3A with convection cooling, or 201.6W and 4.2A with a 10CFM fan, which fits 48Vdc control or automation loads within that range. Its wide 80-264VAC input also supports deployment in facilities with varied AC mains.

Is the EPP-200-48 suitable for powering a 48V embedded computer or industrial networking device?

It can be, provided the equipment requires a regulated 48V constant-voltage input and draws no more than 3A/144W by convection, or 4.2A/201.6W with a 10CFM fan. The compact 101.6 x 50.8 x 29.0 mm size can also matter where board-level space is limited.

Can this power supply run a 48V telecom or access-control load?

It is appropriate for 48Vdc loads that need up to 144W and 3A with convection cooling, or up to 201.6W and 4.2A with a 10CFM fan. Buyers should match the device's required DC voltage to the unit's fixed 48V constant-voltage output.

Is the EPP-200-48 rated for outdoor or harsh-environment use?

The provided specs show an operating temperature range of -30 degrees C to +70 degrees C, with output derating at higher temperatures per the derating curve. However, no IP rating is listed, so the provided data does not establish suitability for exposed outdoor, washdown, or wet locations.

How does the EPP-200-48 compare with other EPP series options?

This spec sheet covers only the EPP-200 series, so other EPP families are not listed here. Within EPP-200, the 48V model delivers 3A/144W by convection or 4.2A/201.6W with a 10CFM fan, while the 12V, 15V, 24V and 27V versions are rated 140.4W to 143.1W by convection and 200.4W to 202.5W with a fan.
