Mean Well

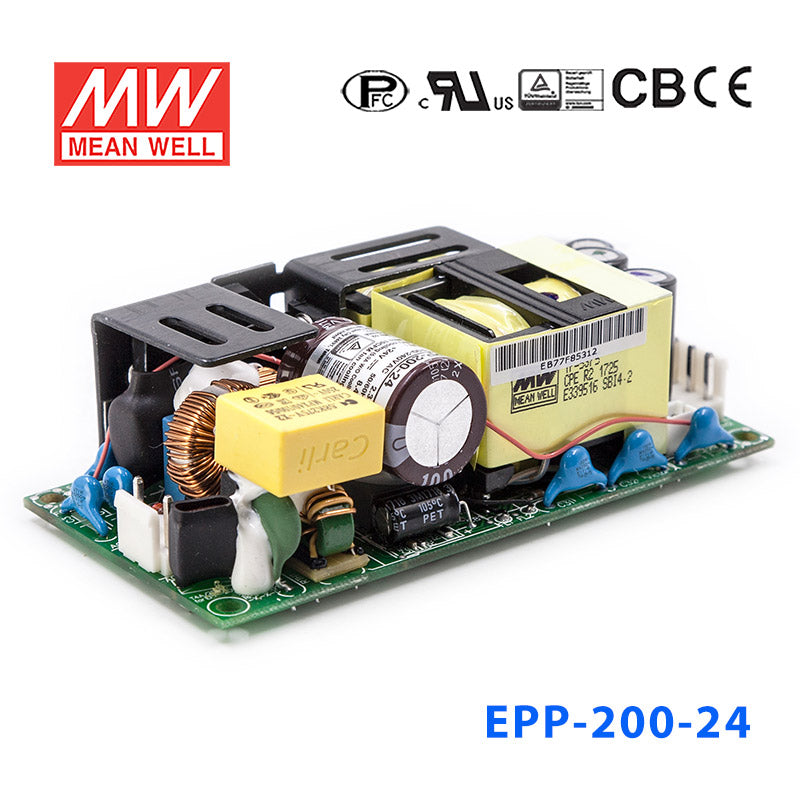

Mean Well EPP-200-24 Power Supply 141W 24V 5.9A

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W
SKU EPP-200-24
$52.19 USD
Shipping calculated at checkout.
In stock
|

Overview

EPP-200-24 is the 24V output model of this series: typical efficiency 94%.

EPP-200 is a 200W highly reliable green PCB type power supply with a high power density (21.9W/in³) on the 4" by 2" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-200 is able to be used for both ClassⅠ(with FG) and Class Ⅱ(no FG) system design. EPP-200 is equipped with complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. EPP-200 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

  • 4"×2" miniature size
  • Universal AC input / Full range
  • Built-in active PFC function
  • EMI Conduction for Class B Radiation for Class B with FG(ClassⅠ) and Class A without FG(ClassⅡ)
  • No load power consumption<0.5W
  • High efficiency up to 94%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection for 140W and 200W with 10CFM forced air
  • Built-in 12V/0.5A FAN supply
  • LED indicator for power on
  • Operating altitude up to 5000 meters
  • 3 years warranty

Specifications

EPP-200-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
24V
CURRENT 10CFM
8.4A
CURRENT Convection
5.9A
RATED POWER 10CFM
201.6W
RATED POWER Convection
141.6W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
22.8~25.2V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
12ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
94%
AC CURRENT (Typ.)
1.8A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
26.4 ~ 31.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

FAN SUPPLY
12V@0.5A for driving a fan ; tolerance +15% ~ -15% at main output 20% rated current (10CFM)

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.6
5000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Conduction for Class B Radiation for Class B with FG(ClassⅠ) and Class A without FG(ClassⅡ), BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
2672.7K hrs min. Telcordia SR-332 (Bellcore) ; 500.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*50.8*29mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.82CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPP-200-24 Block Diagram
Block Diagram
EPP-200-24 Derating Curve
Derating Curve
EPP-200-24 Mechanical Specification
Mechanical Specification
EPP-200-24 3max.
3max.

Typical applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus

Downloads

FAQ

Can I use the EPP-200-24 for a 24V industrial control system?

Yes, if the control system needs constant 24V DC and the total load is no more than 5.9A or 141.6W with convection cooling, or 8.4A or 201.6W with a 10CFM fan. This is a constant voltage 24V power supply.

Is the EPP-200-24 suitable for 24V automation components in a compact machine?

It can be a fit for 24V automation components when the combined demand stays within 141.6W by convection, or 201.6W with a 10CFM fan. The 101.6 x 50.8 x 29.0 mm package is relatively compact for equipment with limited internal space.

Can this model power 24V embedded or industrial I/O hardware?

Yes, for embedded or I/O hardware designed for a fixed 24V DC input and drawing up to 5.9A total by convection (8.4A with a 10CFM fan). Buyers should confirm their load fits both the 24V output and the 141.6W convection / 201.6W fan-cooled rating.

Will the EPP-200-24 handle cold or hot indoor operating conditions?

The specified operating range is -30°C to +70°C, with output derating at higher temperatures per the derating curve. The provided specs do not include an IP rating, so they do not confirm outdoor exposure resistance.

How does the EPP-200-24 compare to other 24V members of the series?

This spec sheet covers only the EPP-200 series, so ratings for other 24V EPP families are not listed here. The EPP-200-24 delivers 5.9A/141.6W with convection cooling or 8.4A/201.6W with a 10CFM fan, at 94% typical efficiency and a 22.8-25.2V adjustment range.
