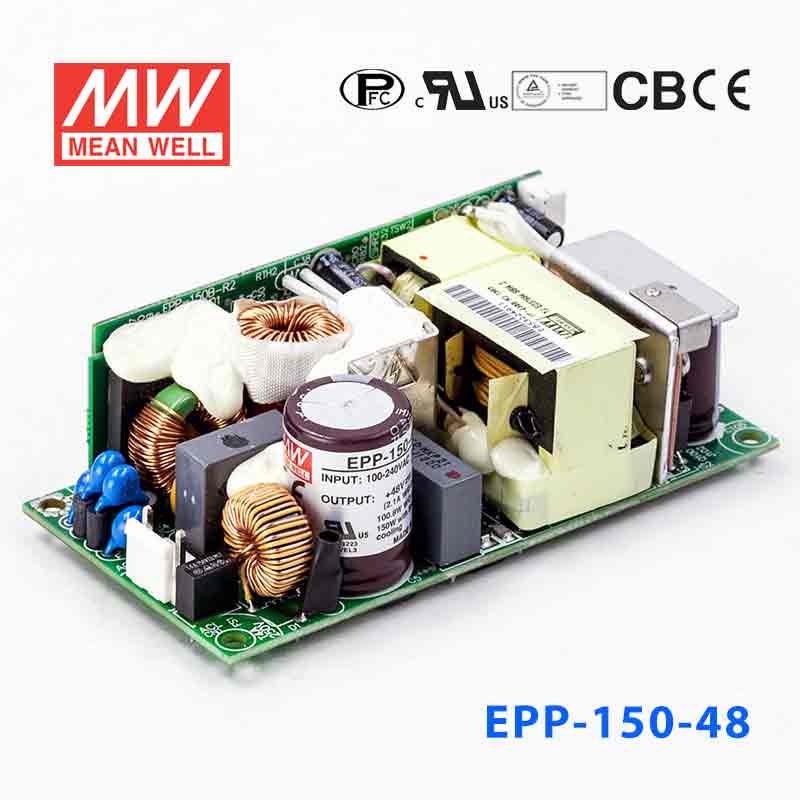

Mean Well EPP-150-48 Power Supply 100W 48V 2.1A

Name: Mean Well EPP-150-48 Power Supply 100W 48V 2.1A
Brand: Mean Well
SKU: EPP-150-48
Price: 49.88 USD
Availability: InStock

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W

SKU EPP-150-48

$49.88 USD

Shipping calculated at checkout.

In stock

Overview

EPP-150-48 is the 48V output model of this series: typical efficiency 92%.

Features

4"x2" Compact size
Universal AC input / Full range
Built-in active PFC function
High efficiency up to 93%
Protections: Short circuit / Overload / Over voltage/ Over temperature
100W free air convection, 150W with 20CFM forced air
LED indicator for power on
No load power consumption<0.5W
Built-in 12V/0.3A auxiliary output
3 years warranty

Specifications

EPP-150-48Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT (convection): 2.1A
RATED CURRENT (20CFM FAN): 3.125A
CURRENT RANGE (convection): 0 ~ 2.1A
CURRENT RANGE (20CFM FAN): 0 ~ 3.125A
RATED POWER (convection): 100.8W
RATED POWER (20CFM FAN): 150W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: 47.04 ~ 50.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 70A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 105 ~ 145% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 51.3 ~ 62.7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

AUXILIARY POWER(AUX): 12V@0.3A for driving a fan, tolerance ± 10% at main output 100% load

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
OPERATING ALTITUDE^Note.5: 2000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2002.2K hrs min. Telcordia SR-332 (Bellcore) ; 207.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 101.6*50.8*29mm (L*W*H)
PACKING: 0.2Kg; 72pcs/15.4Kg/0.82CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

EPP-150-48 Mechanical Specification — Mechanical Specification

EPP-150-48 Block Diagram — Block Diagram

EPP-150-48 Output Derating — Output Derating

Downloads

Datasheet1

EPP-150-48 datasheetEPP-150-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates8

Mean Well E183223 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well EPP-100-150-TUV Certificate PDF Download

Mean Well EPP-100-150-CB(UL) Certificate PDF Download

Mean Well EPP-100-150-CB(TUV) Certificate PDF Download

Mean Well EPP-100-150-CE-dec Certificate PDF Download

Mean Well EPP-100-150-UK-dec Certificate PDF Download

Mean Well EPP-150-100-EMC Certificate PDF Download

Test reports1

Mean Well EPP-150-48 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPP-150-48 for a 48V industrial controller or PLC load?

Yes, if the controller requires a constant 48V DC supply and stays within 2.1A and 100.8W. This model is a constant voltage power supply rated at 48V output.

Is the EPP-150-48 suitable for embedded 48V electronics inside a compact machine?

It can be a fit for compact embedded equipment that needs 48V DC and does not exceed 100.8W. Its 101.6 x 50.8 x 29.0 mm size and 0.2 kg weight support use in space-constrained equipment.

Can this power a 48V automation module or sensor hub?

Yes, for 48V automation loads that draw no more than 2.1A total with convection cooling, or 3.125A with a 20CFM fan. The supply provides constant 48V output, so it is intended for equipment designed for fixed-voltage DC input.

Is the EPP-150-48 appropriate for indoor or outdoor equipment?

The operating temperature range is -30°C to +70°C, with derating at higher temperatures per the derating curve. However, no IP rating is listed in the provided specs, so outdoor or wet-location suitability is not established by these specs alone.
