Mean Well

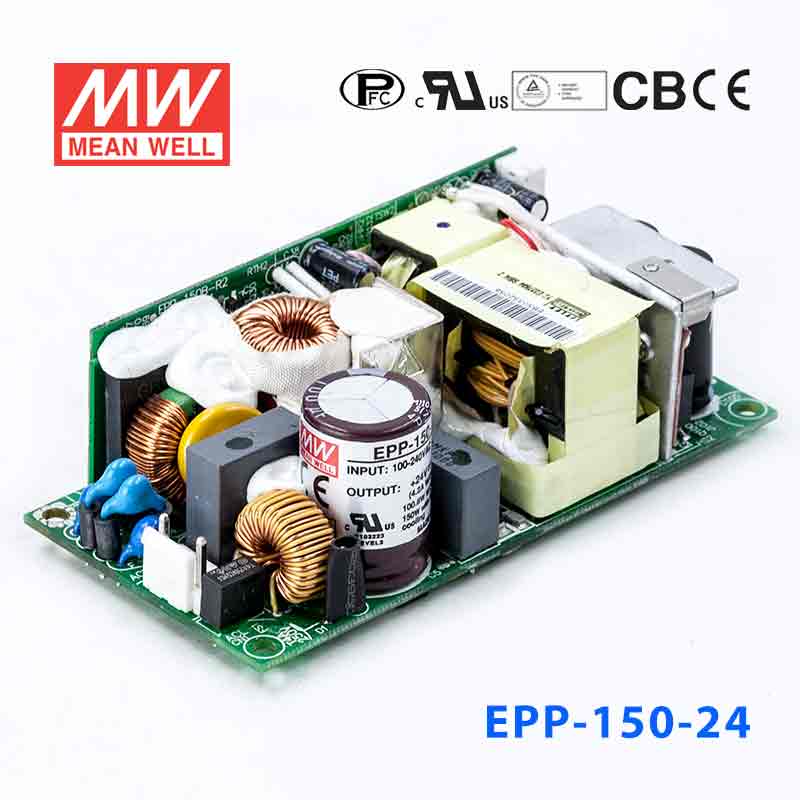

Mean Well EPP-150-24 Power Supply 100W 24V 4.2A

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W
SKU EPP-150-24
$49.88 USD
Shipping calculated at checkout.
In stock
|

Overview

EPP-150-24 is the 24V output model of this series: typical efficiency 93%.

Features

  • 4"x2" Compact size
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 93%
  • Protections: Short circuit / Overload / Over voltage/ Over temperature
  • 100W free air convection, 150W with 20CFM forced air
  • LED indicator for power on
  • No load power consumption<0.5W
  • Built-in 12V/0.3A auxiliary output
  • 3 years warranty

Specifications

EPP-150-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT (convection)
4.2A
RATED CURRENT (20CFM FAN)
6.25A
CURRENT RANGE (convection)
0 ~ 4.2A
CURRENT RANGE (20CFM FAN)
0 ~ 6.25A
RATED POWER (convection)
100.8W
RATED POWER (20CFM FAN)
150W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE ADJ. RANGE
23.52 ~ 25.2V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.)
COLD START 70A/230VAC
LEAKAGE CURRENT
<2mA/240VAC

PROTECTION

OVER LOAD
105 ~ 145% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.7 ~ 31.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

AUXILIARY POWER(AUX)
12V@0.3A for driving a fan, tolerance ± 10% at main output 100% load

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
OPERATING ALTITUDENote.5
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2002.2K hrs min. Telcordia SR-332 (Bellcore) ; 207.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*50.8*29mm (L*W*H)
PACKING
0.2Kg; 72pcs/15.4Kg/0.82CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

EPP-150-24 Mechanical Specification
Mechanical Specification
EPP-150-24 Block Diagram
Block Diagram
EPP-150-24 Output Derating
Output Derating

Downloads

FAQ

What output does the Mean Well EPP-150-24 provide?

This model provides a 24V DC output with a rated current of 4.2A. Its listed power rating is 100.8W, which matches its standard free-air convection rating.

Is the EPP-150-24 suitable for equipment used in industrial environments?

It is designed for embedded and industrial applications that need a compact open-frame AC-DC power supply. The unit supports operation from -30 to +70 degrees C (with derating per the derating curve) and includes overload, over voltage, and over temperature protection.

What input range does the Mean Well EPP-150-24 accept?

The power supply accepts a universal AC input range of 90 to 264VAC. It also supports 127 to 370VDC input, which helps it fit a wide range of OEM and equipment designs.

How compact is the EPP-150-24 for space-constrained designs?

This model uses a 4 x 2 inch compact form factor. Its listed dimensions are 101.6 x 50.8 x 29 mm, making it suitable where mounting space is limited.

Does the EPP-150-24 include efficiency and power-saving features?

Yes. It includes active PFC with a power factor above 0.95 at full load and reaches a typical efficiency of 93%. Those characteristics can help reduce wasted energy in always-on equipment.

Can this power supply deliver more than 100W?

This model is rated for 100W under free-air convection conditions, and up to 150W with 20CFM forced air. Buyers should evaluate the cooling conditions in the end equipment when comparing it with fixed 150W open-frame models.

Does the EPP-150-24 offer any auxiliary output or status indication?

Yes. It includes a built-in 12V / 0.3A auxiliary output and an LED indicator. The auxiliary output is intended for driving a cooling fan via the fan connector, which lets the unit reach its 150W forced-air rating.
