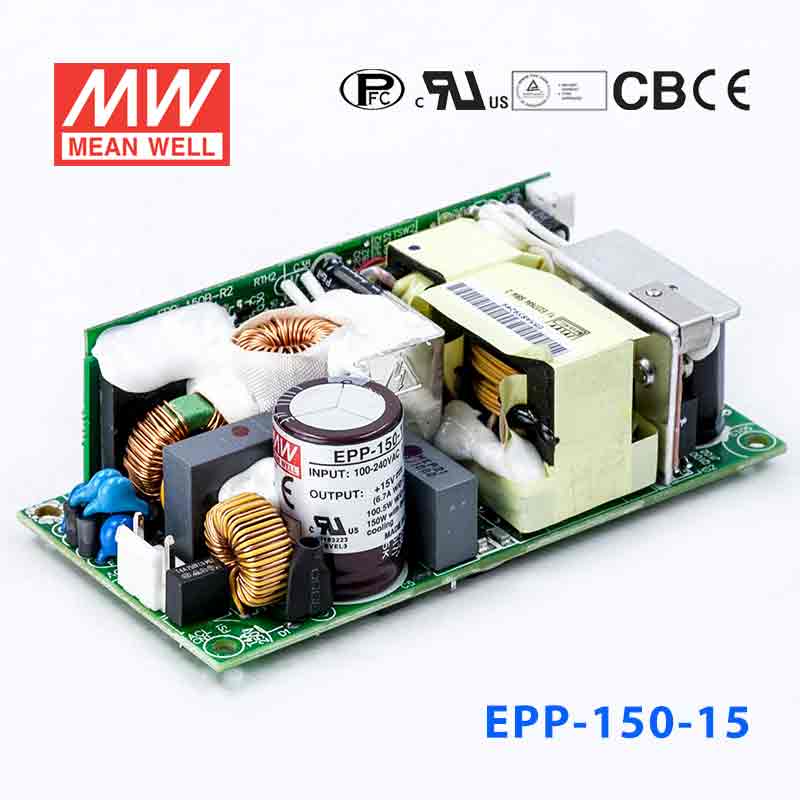

Mean Well EPP-150-15 Power Supply 100W 15V 6.7A

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W
SKU EPP-150-15
$49.88 USD
Shipping calculated at checkout.
In stock
|

Overview

EPP-150-15 is the 15V output model of this series: typical efficiency 92%.

Features

  • 4"x2" Compact size
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 93%
  • Protections: Short circuit / Overload / Over voltage/ Over temperature
  • 100W free air convection, 150W with 20CFM forced air
  • LED indicator for power on
  • No load power consumption<0.5W
  • Built-in 12V/0.3A auxiliary output
  • 3 years warranty

Specifications

EPP-150-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT (convection)
6.7A
RATED CURRENT (20CFM FAN)
10A
CURRENT RANGE (convection)
0 ~ 6.7A
CURRENT RANGE (20CFM FAN)
0 ~ 10A
RATED POWER (convection)
100.5W
RATED POWER (20CFM FAN)
150W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
14.7 ~ 15.75V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
92%
AC CURRENT (Typ.)
1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.)
COLD START 70A/230VAC
LEAKAGE CURRENT
<2mA/240VAC

PROTECTION

OVER LOAD
105 ~ 145% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
16.83 ~ 19.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

AUXILIARY POWER(AUX)
12V@0.3A for driving a fan, tolerance ± 10% at main output 100% load

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
OPERATING ALTITUDENote.5
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2002.2K hrs min. Telcordia SR-332 (Bellcore) ; 207.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*50.8*29mm (L*W*H)
PACKING
0.2Kg; 72pcs/15.4Kg/0.82CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

EPP-150-15 Mechanical Specification
Mechanical Specification
EPP-150-15 Block Diagram
Block Diagram
EPP-150-15 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPP-150-15 for 15V industrial instrumentation?

Yes, if the instrument or control electronics require constant 15V DC and the load stays within 6.7A and 100.5W. It is intended for applications that specifically need 15V, not 12V, 24V, 27V, or 48V.

Is this 15V power supply suitable for embedded control or OEM boards?

It can be a fit for embedded systems and OEM assemblies designed around a constant 15V input. The available output is 15V at up to 6.7A, with a 90-264VAC input range.

Can the EPP-150-15 power 15V test fixtures or lab support equipment?

Yes, for equipment that needs a regulated 15V constant-voltage source and remains under 100.5W. The main sizing check is keeping current draw at or below 6.7A.

How do I tell if my 15V device is within this model's capacity?

This power supply is rated for 15V output at 6.7A and 100.5W with convection cooling, or 10A and 150W with a 20CFM fan. If the connected 15V load exceeds the values for your cooling condition, this model is undersized for that application.

Can I use the EPP-150-15 in harsh temperature conditions?

The specified operating range is -30°C to +70°C, with output derating at higher temperatures per the derating curve. The specs do not list an IP rating, so environmental suitability should be treated as indoor and enclosure-protected rather than exposed outdoor use.
