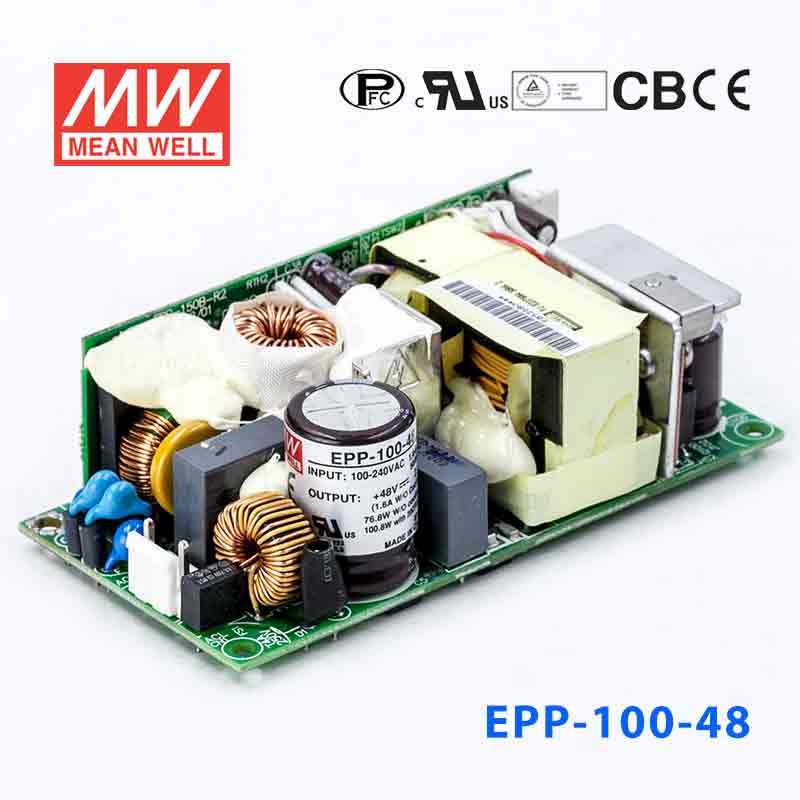

Mean Well EPP-100-48 Power Supply 76W 48V 1.6A

Name: Mean Well EPP-100-48 Power Supply 76W 48V 1.6A
Brand: Mean Well
SKU: EPP-100-48
Price: 45.81 USD
Availability: InStock

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W

SKU EPP-100-48

$45.81 USD

Shipping calculated at checkout.

In stock

Overview

EPP-100-48 is the 48V output model of this series: typical efficiency 92.5%.

Features

4"x2" Compact size
Universal AC input / Full range
Built-in active PFC function
High efficiency up to 92.5%
Protections: Short circuit / Overload / Over voltage/Over temperature
75W free air convection, 100W with 20CFM forced air
LED indicator for power on
No load power consumption<0.5W
Built-in 12V/0.3A auxiliary output
3 years warranty

Specifications

EPP-100-48Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT (convection): 1.6A
RATED CURRENT (20CFM FAN): 2.1A
CURRENT RANGE (convection): 0 ~ 1.6A
CURRENT RANGE (20CFM FAN): 0 ~ 2.1A
RATED POWER (convection): 76.8W
RATED POWER (20CFM FAN): 100.8W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: 47.04 ~ 50.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 92.5%
AC CURRENT (Typ.): 1.4A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 70A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 105 ~ 145% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 51.3 ~ 62.7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: 110℃±10℃ (RTH2),110℃±5℃ (TSW2) Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

AUXILIARY POWER(AUX): 12V@0.3A for driving a fan, tolerance ±10% at main output 100% load

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
OPERATING ALTITUDE^Note.6: 2000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2401.7K hrs min. Telcordia SR-332 (Bellcore) ; 249.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 101.6*50.8*29mm (L*W*H)
PACKING: 0.2Kg; 72pcs/15.4Kg/0.82CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPP-100-48 Mechanical Specification — Mechanical Specification

EPP-100-48 Block Diagram — Block Diagram

EPP-100-48 Output Derating — Output Derating

Downloads

Datasheet1

EPP-100-48 datasheetEPP-100-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates8

Mean Well E183223 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well EPP-100-150-TUV Certificate PDF Download

Mean Well EPP-100-150-CB(UL) Certificate PDF Download

Mean Well EPP-100-150-CB(TUV) Certificate PDF Download

Mean Well EPP-100-150-CE-dec Certificate PDF Download

Mean Well EPP-100-150-UK-dec Certificate PDF Download

Mean Well EPP-150-100-EMC Certificate PDF Download

Test reports1

Mean Well EPP-100-48 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPP-100-48 for 48V industrial networking or control equipment?

Yes, it provides constant-voltage 48V output: 1.6A (76.8W) with convection cooling, or 2.1A (100.8W) with a 20CFM fan. It is suited to industrial or embedded equipment that is designed for 48V DC and operates within those limits.

Is this a good fit for 48V telecom or communications hardware inside a cabinet?

It can be a fit when the telecom or communications device requires 48V DC and draws no more than 1.6A with convection cooling (2.1A with a 20CFM fan). The 90-264VAC input range also supports use in systems intended for broad AC input conditions.

Can the EPP-100-48 power a 48V embedded or automation subsystem?

Yes, for a subsystem that calls for constant-voltage 48V input and stays under 76.8W total load with convection cooling (100.8W with a 20CFM fan). Its 48V, 1.6A/2.1A output is better aligned with lower-current 48V electronics than with heavier 48V loads.

Can I use the EPP-100-48 outdoors or in harsh exposed conditions?

The published operating temperature is -30°C to +70°C, with output derating at higher ambient temperatures (see the derating curve). However, no IP rating is listed, so it is better treated as a power supply for protected indoor equipment or enclosed systems rather than direct outdoor exposure.
