Mean Well

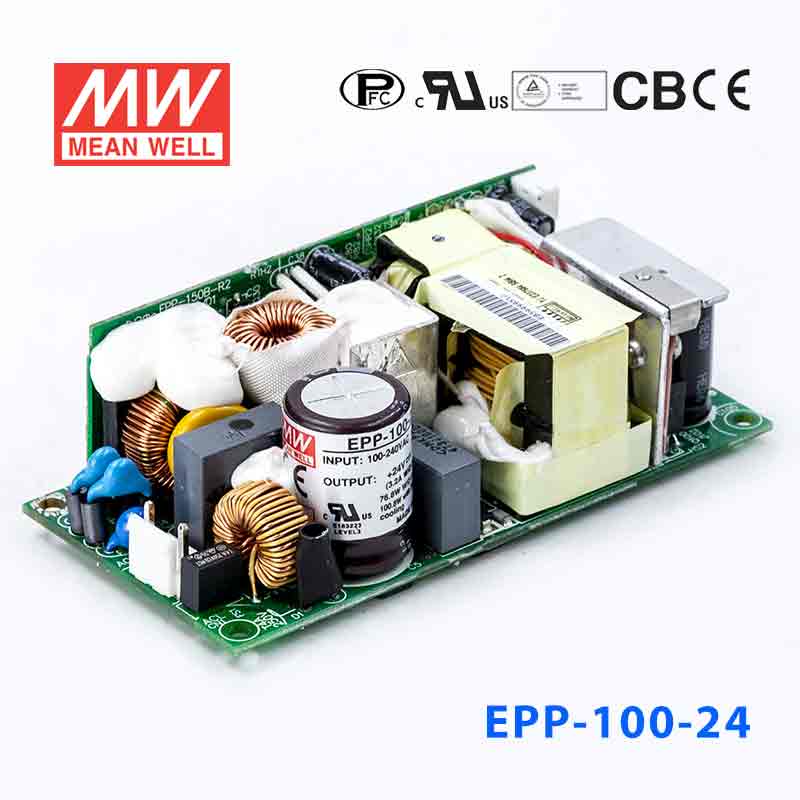

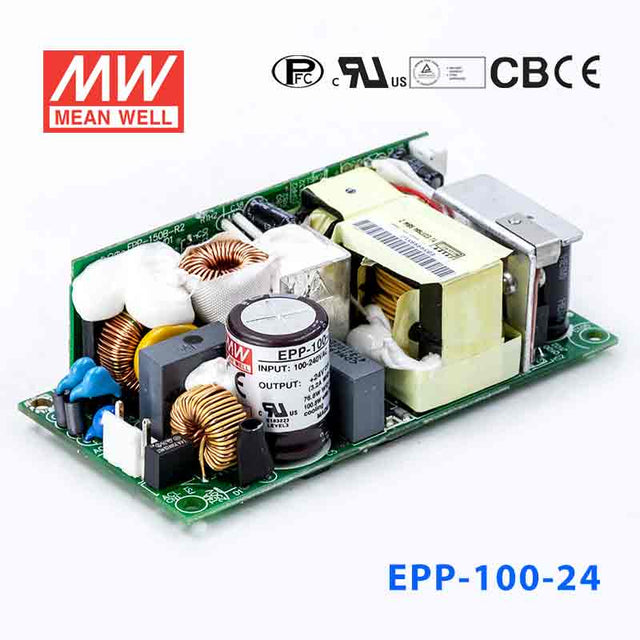

Mean Well EPP-100-24 Power Supply 76W 24V 3.2A

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W
SKU EPP-100-24
$45.69 USD
Shipping calculated at checkout.
In stock
|

Overview

EPP-100-24 is the 24V output model of this series: typical efficiency 92%.

Features

  • 4"x2" Compact size
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 92.5%
  • Protections: Short circuit / Overload / Over voltage/Over temperature
  • 75W free air convection, 100W with 20CFM forced air
  • LED indicator for power on
  • No load power consumption<0.5W
  • Built-in 12V/0.3A auxiliary output
  • 3 years warranty

Specifications

EPP-100-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT (convection)
3.2A
RATED CURRENT (20CFM FAN)
4.2A
CURRENT RANGE (convection)
0 ~ 3.2A
CURRENT RANGE (20CFM FAN)
0 ~ 4.2A
RATED POWER (convection)
76.8W
RATED POWER (20CFM FAN)
100.8W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE ADJ. RANGE
23.52 ~ 25.2V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
92%
AC CURRENT (Typ.)
1.4A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.)
COLD START 70A/230VAC
LEAKAGE CURRENT
<2mA/240VAC

PROTECTION

OVER LOAD
105 ~ 145% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.7 ~ 31.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
110℃±10℃ (RTH2),110℃±5℃ (TSW2) Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

AUXILIARY POWER(AUX)
12V@0.3A for driving a fan, tolerance ±10% at main output 100% load

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
OPERATING ALTITUDENote.6
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2401.7K hrs min. Telcordia SR-332 (Bellcore) ; 249.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*50.8*29mm (L*W*H)
PACKING
0.2Kg; 72pcs/15.4Kg/0.82CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPP-100-24 Mechanical Specification
Mechanical Specification
EPP-100-24 Block Diagram
Block Diagram
EPP-100-24 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPP-100-24 for a 24V PLC panel, sensor bank, or automation controller?

Yes, if the equipment requires constant 24V and the total load remains within 76.8W and 3.2A with convection cooling, or 100.8W and 4.2A with a 20CFM fan. That makes it a practical fit for many 24V industrial control and sensing applications.

Is the EPP-100-24 suitable for 24V embedded or OEM equipment inside a compact enclosure?

It can fit 24V OEM and embedded equipment that draws no more than 3.2A (4.2A with a 20CFM fan) from a constant-voltage source. The 101.6 x 50.8 x 29.0 mm footprint is useful where internal mounting space is tight.

Can this model power 24V HMI equipment or industrial communication hardware?

It is appropriate for 24V control and interface devices as long as the combined load stays within 76.8W (100.8W with a 20CFM fan). Buyers should size the system against the 3.2A convection rating, or 4.2A with a 20CFM fan.

Would the EPP-100-24 work for a 24V test fixture or machine subassembly?

Yes, for fixtures or subassemblies that need a regulated 24V output and do not exceed 76.8W or 3.2A with convection cooling (100.8W or 4.2A with a 20CFM fan). The 90-264VAC input can also simplify use across different AC supply conditions.

Can the EPP-100-24 be used where temperature swings are expected?

The published operating temperature range is -30C to +70C, with output derating at higher temperatures (see the derating curve). No IP rating is shown in the provided specs, so temperature capability is stated, but direct outdoor exposure or wet-area suitability is not confirmed here.
