Mean Well

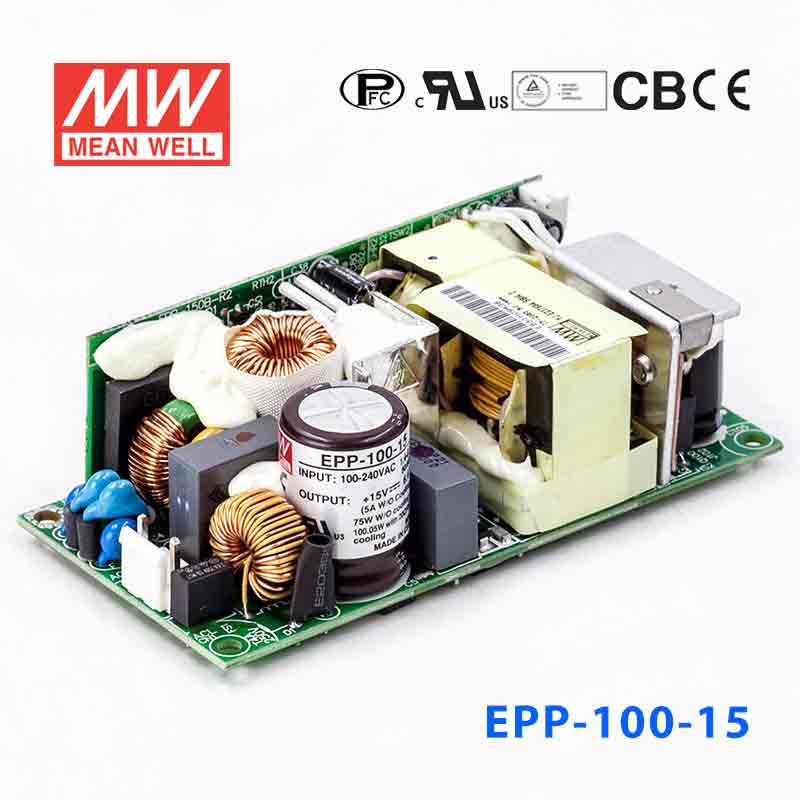

Mean Well EPP-100-15 Power Supply 75W 15V 5A

4" x 2"high efficiency up to 92%economical PFCno load power consumption<0.5W
SKU EPP-100-15
$45.81 USD
Shipping calculated at checkout.
In stock
|

Overview

EPP-100-15 is the 15V output model of this series: typical efficiency 91%.

Features

  • 4"x2" Compact size
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 92.5%
  • Protections: Short circuit / Overload / Over voltage/Over temperature
  • 75W free air convection, 100W with 20CFM forced air
  • LED indicator for power on
  • No load power consumption<0.5W
  • Built-in 12V/0.3A auxiliary output
  • 3 years warranty

Specifications

EPP-100-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT (convection)
5A
RATED CURRENT (20CFM FAN)
6.67A
CURRENT RANGE (convection)
0 ~ 5A
CURRENT RANGE (20CFM FAN)
0 ~ 6.67A
RATED POWER (convection)
75W
RATED POWER (20CFM FAN)
100.05W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
14.7 ~ 15.75V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
91%
AC CURRENT (Typ.)
1.4A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.)
COLD START 70A/230VAC
LEAKAGE CURRENT
<2mA/240VAC

PROTECTION

OVER LOAD
105 ~ 145% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
16.83 ~ 19.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
110℃±10℃ (RTH2),110℃±5℃ (TSW2) Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

AUXILIARY POWER(AUX)
12V@0.3A for driving a fan, tolerance ±10% at main output 100% load

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
OPERATING ALTITUDENote.6
2000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2401.7K hrs min. Telcordia SR-332 (Bellcore) ; 249.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*50.8*29mm (L*W*H)
PACKING
0.2Kg; 72pcs/15.4Kg/0.82CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPP-100-15 Mechanical Specification
Mechanical Specification
EPP-100-15 Block Diagram
Block Diagram
EPP-100-15 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPP-100-15 for a 15V industrial control or instrumentation load?

Yes, if the equipment needs constant 15V and the load stays within 75W and 5A with convection cooling, or 100.05W and 6.67A with a 20CFM fan. It fits 15V control electronics, instrumentation modules, and other industrial devices built around a fixed 15V rail.

Is the EPP-100-15 appropriate for embedded systems that require a regulated 15V supply?

It can be used for embedded and OEM electronics that need a constant 15V output up to 5A (6.67A with a 20CFM fan). The 101.6 x 50.8 x 29.0 mm size can also help in compact equipment designs.

Can this 15V power supply run automation interfaces, signal conditioners, or control modules?

It is suitable for 15V automation and control loads when the total demand does not exceed 75W (100.05W with a 20CFM fan). The output current is 5A with convection cooling or 6.67A with a 20CFM fan, so grouped loads need to be sized against that limit.

Would the EPP-100-15 make sense for a 15V lab fixture or equipment subassembly?

Yes, where the subassembly requires a constant 15V source and fits within the 75W, 5A convection rating (100.05W, 6.67A with a 20CFM fan). Its 90-264VAC input allows the same unit to be used across a broad AC input range.

Is the EPP-100-15 rated for hot, cold, or outdoor conditions?

The specified operating temperature range is -30C to +70C, with output derating at higher temperatures (see the derating curve). No IP rating is listed, so the temperature range is known, but indoor versus outdoor enclosure suitability is not defined in the provided specs.
