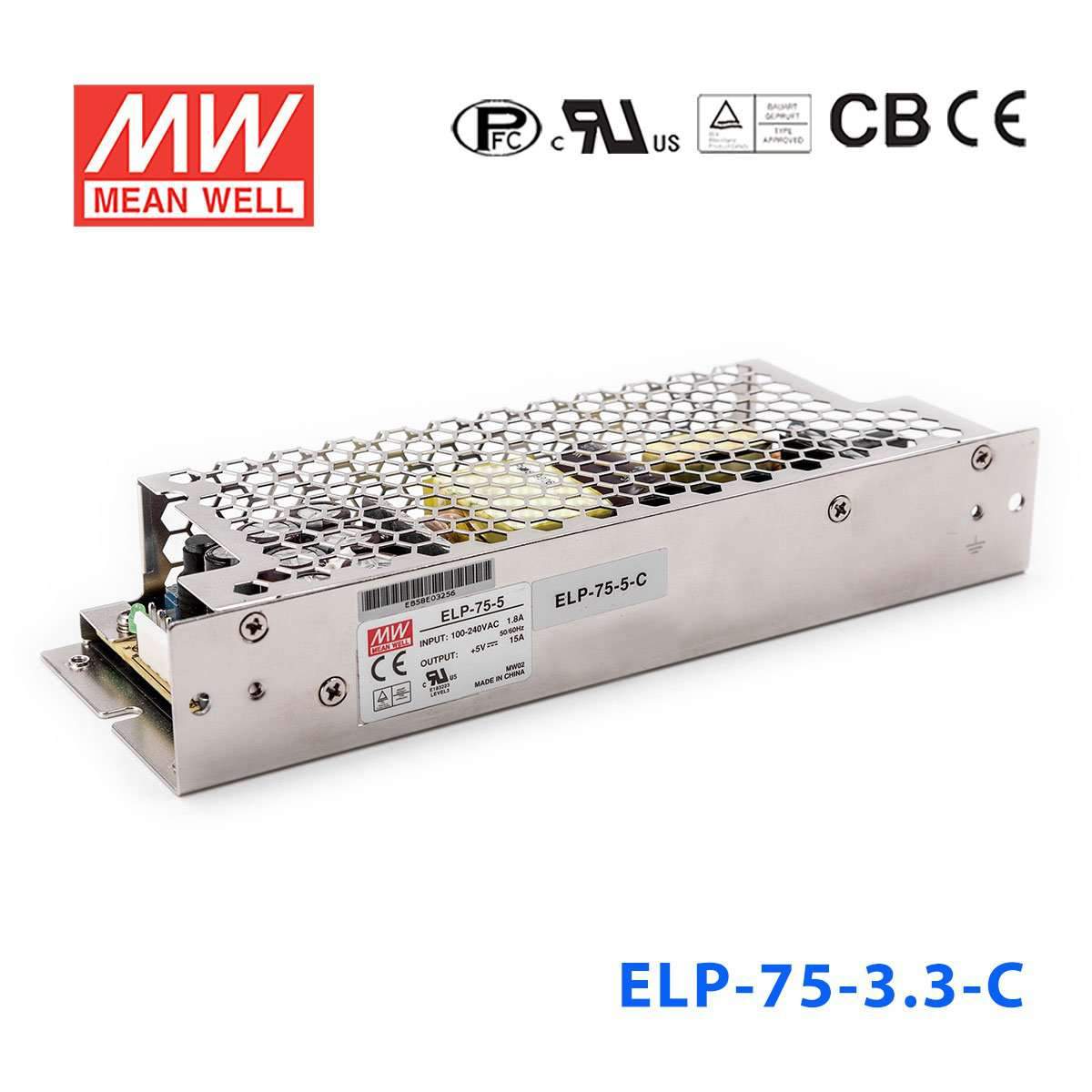

Mean Well ELP-75-3.3-C Power Supply 49W 3.3V 15A

Name: Mean Well ELP-75-3.3-C Power Supply 49W 3.3V 15A
Brand: Mean Well
SKU: ELP-75-3.3-C
Price: 38.49 USD
Availability: InStock

built-in active PFC functionPF>0.95high efficiency up to 90%1U low profileno load power consumption

SKU ELP-75-3.3-C

$38.49 USD

Shipping calculated at checkout.

In stock

The ELP-75-3.3-C is a 49.5W Mean Well open-frame power supply (input: 90~264VAC, operating temperature: -30~+70°C).

Key Features

✓ Input voltage: 90~264VAC
✓ Output voltage (max): 3.3V
✓ Rated output current: 15A
✓ Operating temperature: -30~+70°C
✓ Active PFC — meets international energy efficiency standards
✓ Safety certifications: CB, CE, EAC, TÜV, UL
✓ 3 year warranty

Frequently Asked Questions

Can I use the ELP-75-3.3-C to power 3.3V PLC, controller, or logic boards in an industrial panel?

Yes, this is a constant voltage 3.3V power supply rated for up to 15A and 49.5W. That makes it suitable for 3.3V industrial control, embedded, and automation electronics that need a regulated 3.3V DC source within that current and power range.

Is the ELP-75-3.3-C a fit for embedded computing or edge devices that run on 3.3V DC?

It can be a fit when the equipment requires a constant 3.3V input and the total load stays within 15A and 49.5W. The wide 90-264VAC input also supports use in installations that need broad AC input compatibility.

Can this 3.3V model be used for low-voltage automation electronics instead of higher-voltage field devices?

Yes, this model is intended for constant voltage 3.3V loads, not 12V, 24V, 36V, or 48V equipment. Its 15A output capacity supports higher-current 3.3V electronics while staying within a 49.5W rating.

Is the ELP-75-3.3-C suitable for outdoor or washdown environments?

The provided specs list an operating temperature of -30°C to +70°C, but they do not list an IP rating. Based on the provided data, temperature capability is specified, but outdoor or washdown suitability is not established.

How does the ELP-75-3.3-C compare with the other ELP-75 series voltage options?

Within the sibling range, the ELP-75-3.3 and ELP-75-3.3-C are 49.5W at 3.3V and 15A, the ELP-75-5 and ELP-75-5-C are 75W at 5V and 15A, the 12V and 12V-C versions are 75W at 6.25A, the 15V and 15V-C versions are 75W at 5A, the 24V and 24V-C versions are 75.6W at 3.15A, the 36V and 36V-C versions are 75.6W at 2.1A, and the 48V and 48V-C versions are 76.8W at 1.6A. This model is the 3.3V option in that series and shares its 49.5W and 15A rating with the non-C 3.3V version.
